4P 40A / 10MA RETIDUALS Reglerual Reger Riam

Lub pob tw 4P 21A / 10ma Tam sim no Circuit Court beather breaker nrog 4 amps hluav taws xob thiab xoom muag khoom siv tau nyob rau hauv Circuitual yog pom tias yog nyob rau hauv lossis siab tshaj 10 Milliamps. Cov cuab yeej siv tau tsuas yog siv los tiv thaiv hluav taws kub hluav taws xob thiab cov hluav taws xob hluav taws xob thiab kev tiv thaiv tus kheej thiab cov cuab yeej muaj kev nyab xeeb.

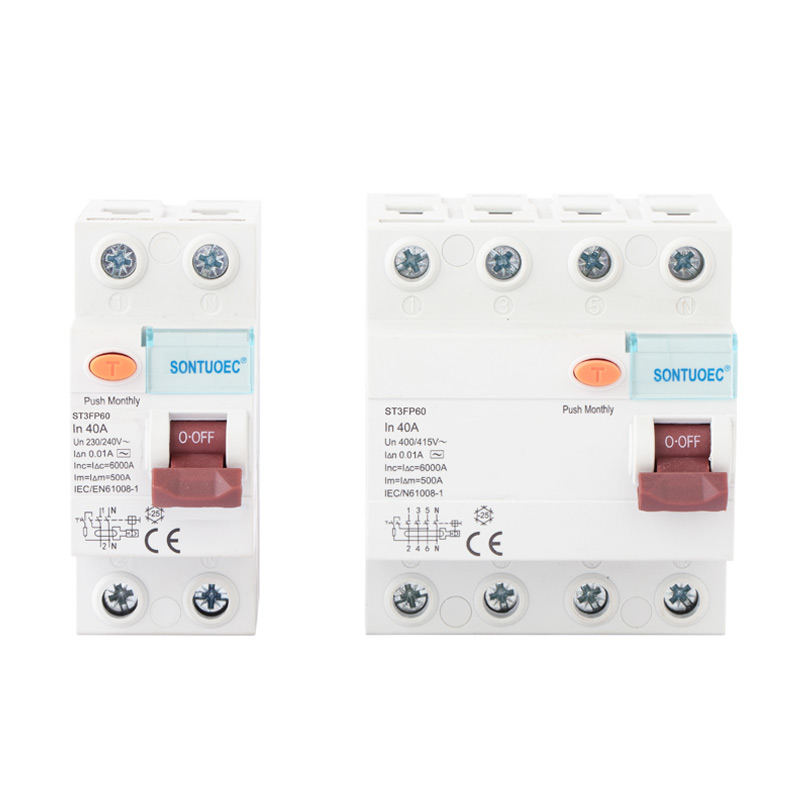

Qauv:ST3FP60

Xa lus nug

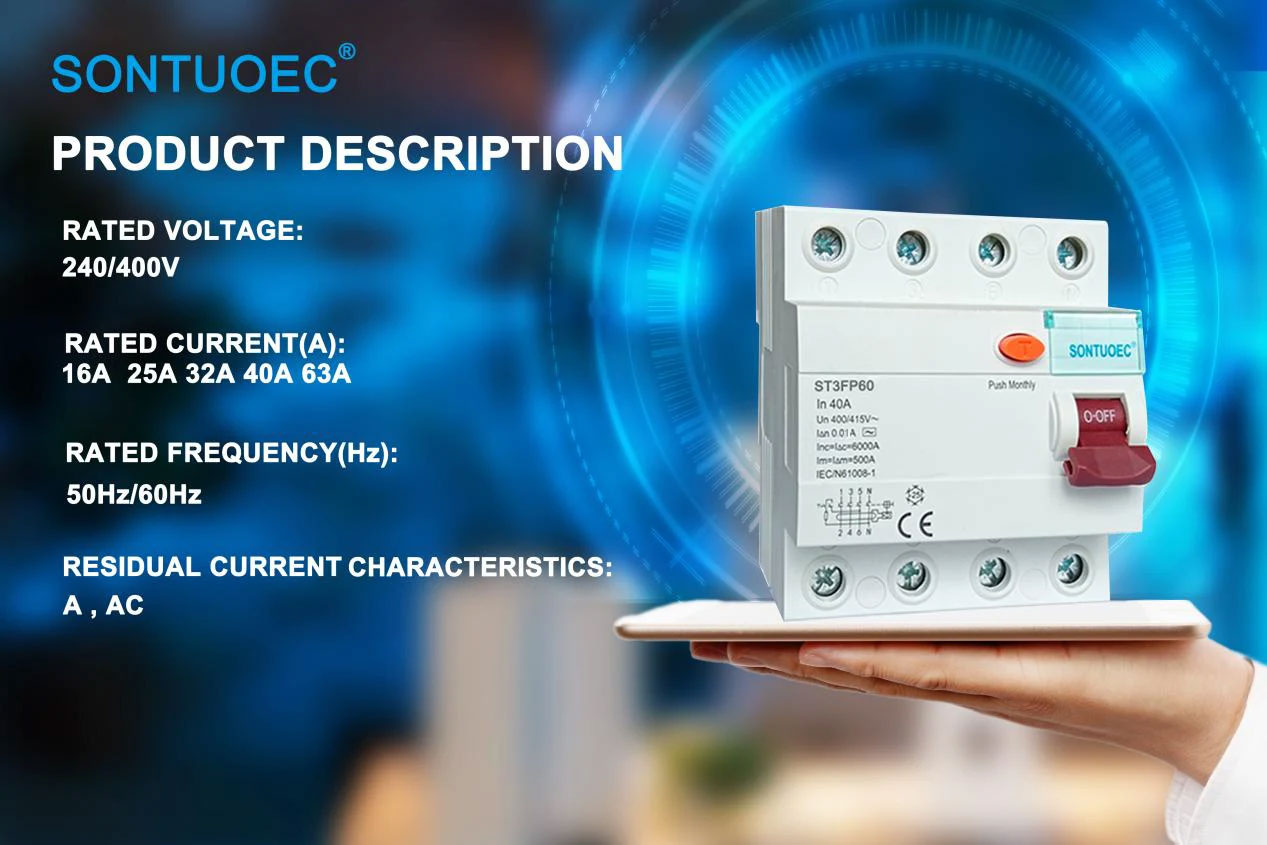

Product Description

Qauv:	St3fp60
Lub hom phiaj	Iec61008-1
Residual tam sim no cov yam ntxwv:	Thiab, thiab
Ncej Tsis muaj.:	2p, 4p
Nyob tam sim no:	16a, 25a, 32a, 40a, 63a;
Cov Ntsuas Hluav Taws Xob:	230 / 400v AC
Cov zaus ntsuas:	50 / 60Hz
Rated nyob rau kev ua haujlwm tam sim no ITN:	10MA, 30MA, 100 Pob, 300MA, 500MA
Rated residual tsis ua hauj lwm tam sim no kuv Δno:	I≤0.5IN
Rated ntawm kev mob luv luv-Circuit Cour Tam sim no Inc:	6000a
Nyob rau ntawm cov kev ntsuas ntawm cov luv luv-Circuit Court IPE ITC:	6000a
Track Duration:	Intantaneous tripping≤0.1sec
Residual Tripping Tam Sim No Ntau:	0.5in ~ inn
Electro-neeg thev taus:	4000 CYCLES
Fastening torque:	2.0nm

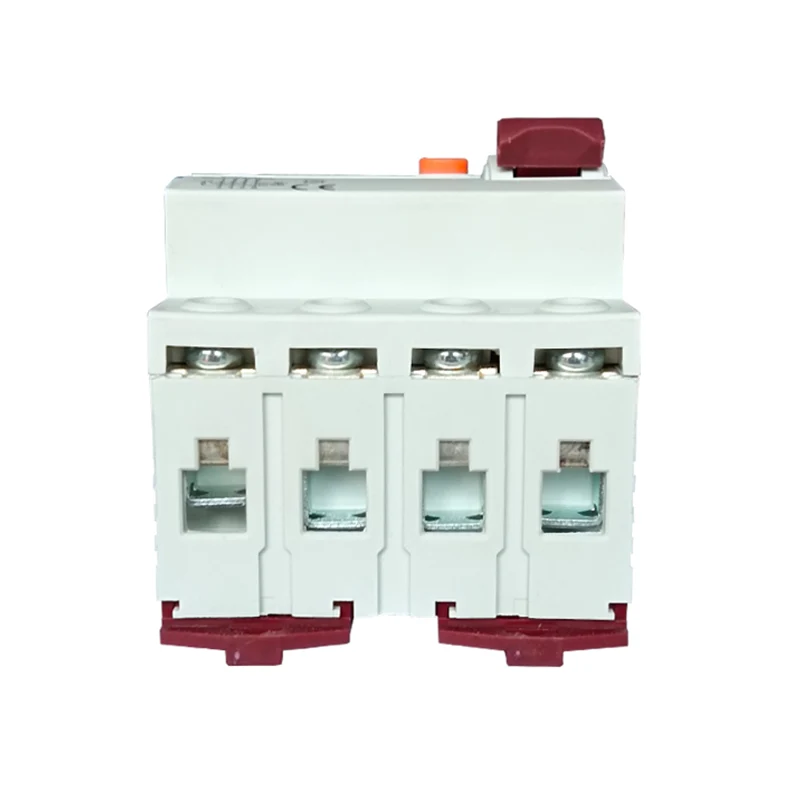

Kev sib txuas davhlau ya nyob:	Ntsia thawv Lub Sij Hawm Npab Terminal Nrog Clamp
:	35MM Din Rail Mounting

Lub ntsiab cai ntawm kev ua haujlwm

Lub hauv paus ntsiab lus ua haujlwm ntawm cov neeg tawg tshiab no yog raws li cov cai sib npaug tam sim no. Nyob rau hauv ib txwm muaj mob, cov dej ntws tawm thiab tawm hauv lub voj voog yuav tsum sib npaug nyob rau hauv ib txoj kab dhau ntawm lub nra. Txawm li cas los xij, thaum muaj kev ua txhaum rwb thaiv tsev hauv txoj kab lossis thaum tib neeg tuaj cuag nrog lub Circuit Court, qhov no tuaj yeem ua rau cov dej xau rau hauv thiab tawm ntawm Circuit Court tsis tas li. Txij ntawm no, tam sim no hloov sab hauv Circuit Court breaker yuav ntes qhov no tsis sib xws thiab hloov nws mus rau hauv lub cim hluav taws xob. Cov hluav taws xob hluav taws xob yuav ua kom nrov dua, piv thiab cov teeb liab no tau mus txog lossis ntau dua 10 Milliamps, thaum lub sijhawm hluav taws xob rov qab txiav ceev ceev ntawm Circuit Court.

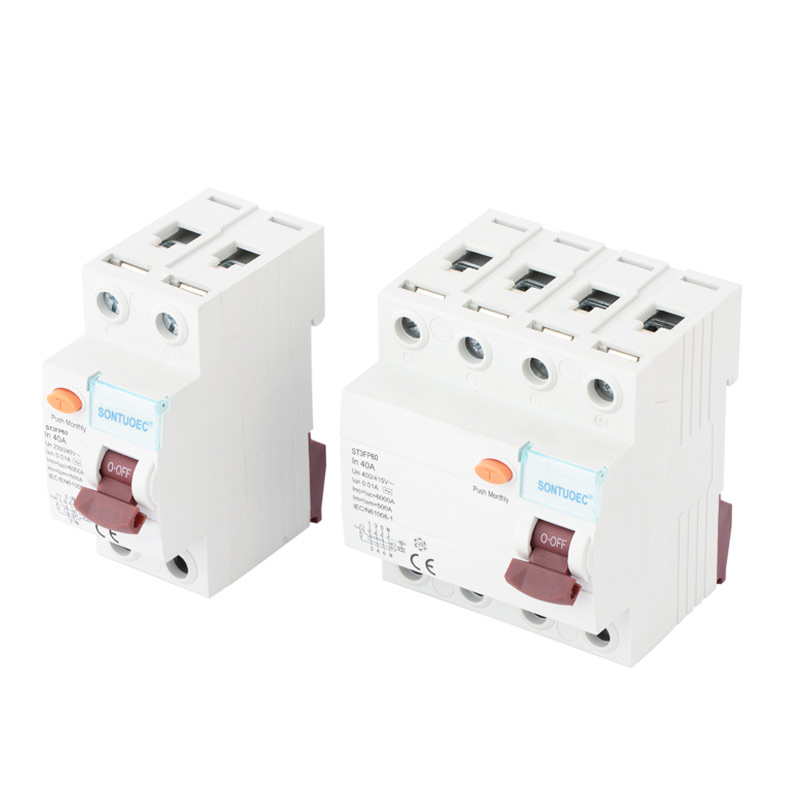

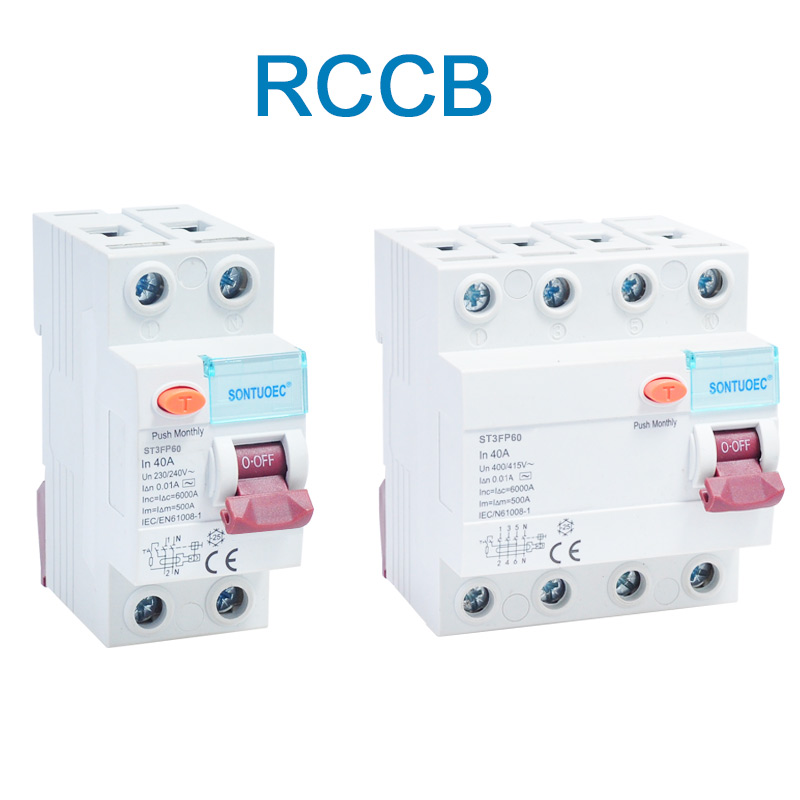

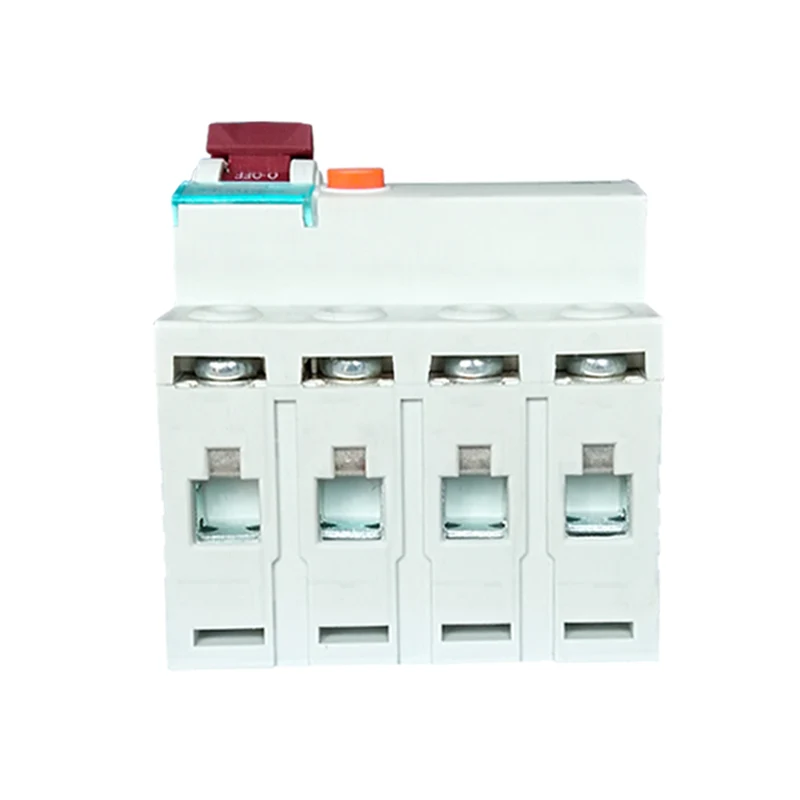

4P 40A/10mA Residual Current Circuit Breaker

Cov yam ntxwv tseem ceeb

Kev siab siab: Muaj peev xwm txheeb xyuas me me

Cov lus teb ceev: ib zaug cov xau dej tau tshawb pom, lub Circuit Court breaker yuav txiav tawm ntawm Circuit Court hauv lub sijhawm luv luv (feem ntau tsis pub dhau ntawm milliseconds).

Versatility: Ntxiv rau qhov yooj yim tiv thaiv muaj nuj nqi, lub Circuit Court Breaker kuj tseem tuaj yeem muaj kev tiv thaiv ntau dua thiab muaj kev tiv thaiv ib puag ncig.

Yooj yim rau nruab thiab tswj hwm: nws feem ntau yog tus qauv tsim qauv, uas yooj yim rau nruab thiab dismantle. Lub caij no, nws cov qauv yooj yim sab hauv ua kom nws yooj yim tswj thiab kho dua tshiab.
