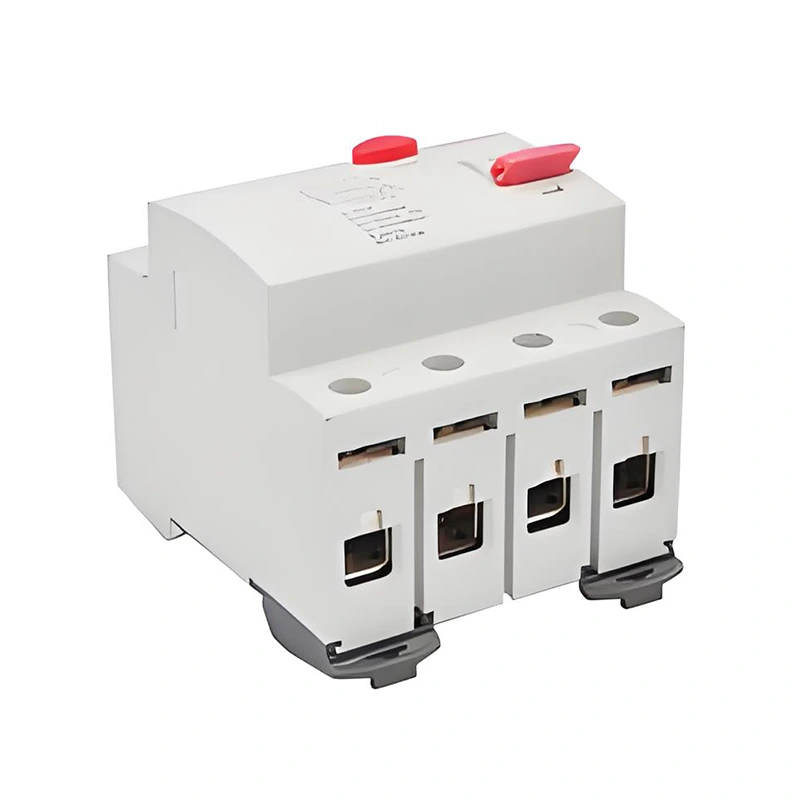

Hauv Hom Rccb

Thaum cov seem nyob hauv Circuit Court ntau dua cov nqi prescb yuav ua nrawm nrawm nrawm thiab tiv thaiv hluav taws xob hluav taws xob thiab hluav taws xob hluav taws xob. Hluav Taws Xob Rib Hluav Taws Xob Siv Hluav Taws Xob Hluav Taws Xob thiab cov microprocess thiab lwm yam thev naus laus zis los muab cov kev txawj ntse ntau dua thiab qhov tseeb.

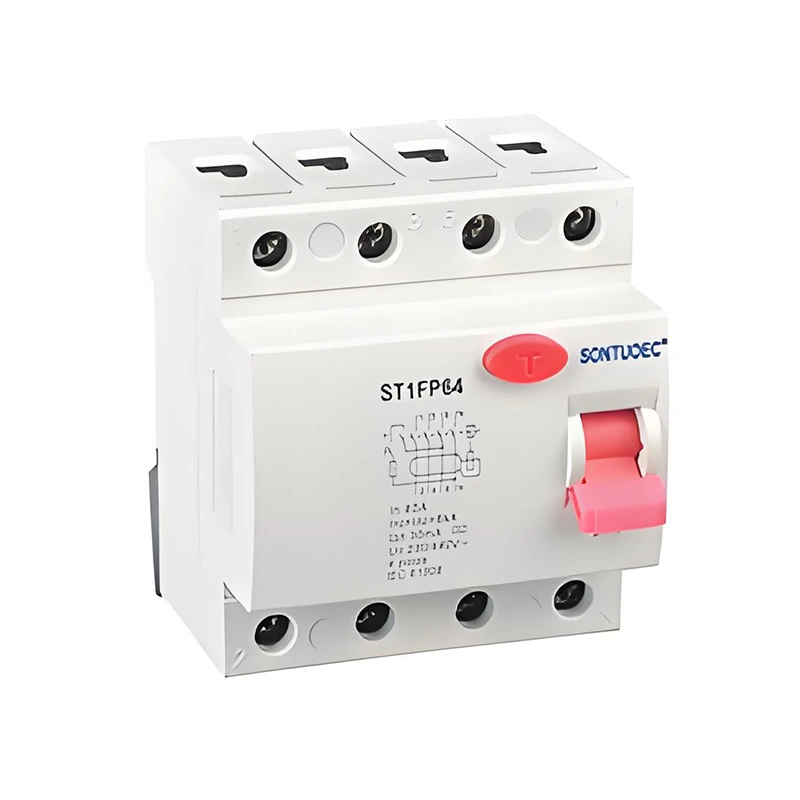

Qauv:ST1PF64

Xa lus nug

Product Description

Daus			Iec / en61008.1
Hluav taws xob	Hom (Yav Daim Ntawv ntawm lub Ntiaj Teb Txhiab Sensed)		Electro-sib nqus hom, hom hluav taws xob
Nta	Rated tam sim no nyob rau hauv	A	Thiab, thiab

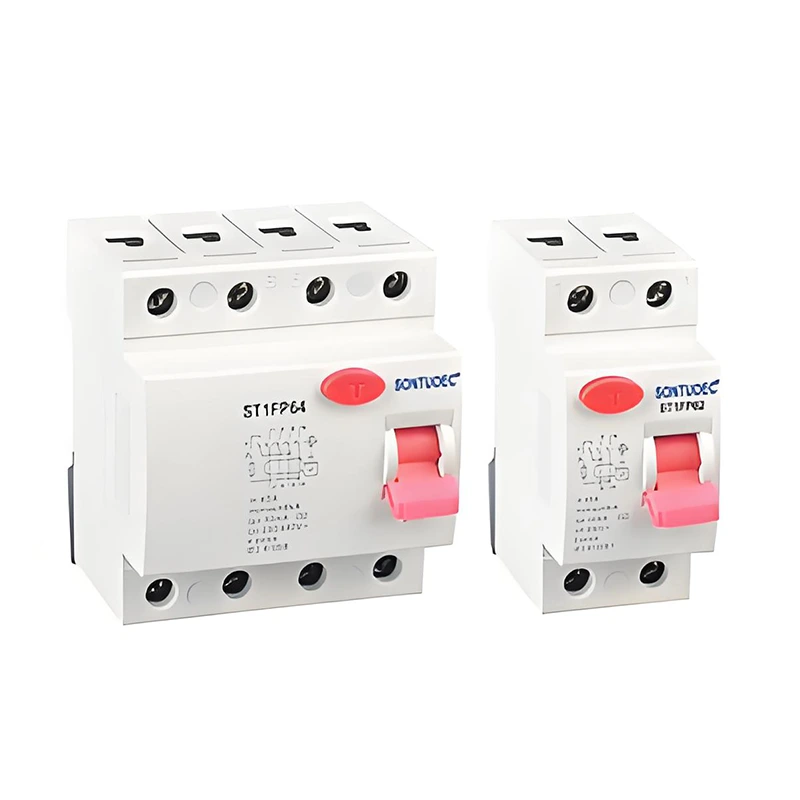

	Ncej	P	2,4
	Ntsuas Hluav Taws Xob Peb	V	AC 240 / 415V; AC 230 / 400v
	Rated tam sim no		16,25,32,40,63a
	Rated rhiab siab kuv △ n	A	0.01,0.03,0.1,0.3,0.5
	Rwb Thaiv Tsev Voltage Ui	V	500
	Rated residual ua thiab	A	630
	Breaking muaj peev xwm i △ m	A	630
	Luv-Circuit Court tam sim no i △ c	A	6000
	Scpd Fuse	A	6000


	Nyob Qhov Coob	Hz	50/60
	Degion degree		2
Txawj kho ub no	Hluav Taws Xob Lub Neej	t	4000
Nta	Neeg Kho Tshuab Lub Neej	t	10000
	Kev tiv thaiv degree		Liphaus20
	Thaj kub cua sov	ºC	-25 ~ + 40
	(nrog nruab nrab hauv nruab nrab ≤35ºC)	ºC	-25 ~ + 40
	Cia kub	ºC	-25 ~ + 70
Kev muab cia	Lub Terminal Txuas Hom		Cable / U Hom Busbar / Tus Pin Hom Busbar
	Lub davhlau ya nyob twg loj dua / hauv qab rau cable	mm2	25
	Lub davhlau ya nyob twg loj dua / hauv qab rau cable	Txawm li	3.18
	Lub davhlau ya nyob twg sab saum toj / hauv qab rau busbar	mm2	25
	Lub davhlau ya nyob twg sab saum toj / hauv qab rau busbar	Txawm li	3.18
	Zawm Torque	N * m	2.5
	Zawm Torque	Hauv-lbs	22
	Mounting		Ntawm lub tsheb nqaj hlau en 60715 (35 hli) los ntawm kev tuav ntaub ntawv
	Kev sib txua		Los ntawm sab saum toj thiab hauv qab

Lub ntsiab cai ntawm kev ua haujlwm

Lub hauv paus ntsiab lus ua haujlwm ntawm hluav taws xob hom RCCB yog raws cov ntsiab cai ntawm indectromagnetic induction thiab tam sim no ntsuas. Thaum cov theem thiab xoom kab kab nyob hauv lub hauv paus yog qhov tsis muaj, i.e. Cov hloov chaw nyob sab hauv RCCB yuav ntes cov teeb meem tsis sib xws thiab tsim cov teeb liab sib xws. Cov teeb liab no, tom qab ua tiav los ntawm cov hluav taws xob hluav taws xob, yuav ua rau cov kev txiav txim ntawm hluav taws xob kev tso tawm, yog li ntawd lub Circuit Court breaker yuav txiav tawm ntawm Circuit Court sai sai.

Cov yam ntxwv tseem ceeb

Kev siab siab: Electronic RCCBBBLS tuaj yeem txheeb tau los kuaj me me cov khoom seem me me, feem ntau tsawg dua 30mA lossis qis dua.

FAST Action: ib zaug cov seem tam sim no tau kuaj kom tau ntau dua tus nqi Preset, RCCB yuav ua tam sim ntawd kom txiav tawm ntawm Circuit Court thiab tiv thaiv kev sib tsoo.

Cheebtsam hluav taws xob zoo nkauj thiab microprocessor accure hluav taws xob ua kom muaj kev ntseeg siab ntau dua thiab ruaj khov.

Yooj yim rau nruab thiab tswj hwm: Electronic RCCBS feem ntau muaj cov qauv kev cog lus thiab xaim yooj yim, ua rau lawv yooj yim rau nruab thiab tswj.

Daim Ntawv Thov Kev Pab Cuam

Hluav Taws Xob Hluav Taws Xob tau siv ntau yam nyob rau ntau yam xwm txheej uas yuav tsum muaj, suav nrog tab sis tsis txwv rau:

Thaj chaw thiab cov tsev lag luam: Siv los tiv thaiv cov khoom siv hluav taws xob thiab kev nyab xeeb ntawm tus kheej, tiv thaiv hluav taws xob kev sib ntaus thiab hluav taws hluav taws xob.

Cov txheej txheem ntau lawm: siv los tiv thaiv cov cuab yeej hluav taws xob xws li cov hloov hluav taws xob xws li cov hloov hluav taws xob thiab cov hloov pauv ntawm cov khoom ua haujlwm ib txwm muaj, tiv thaiv cov cuab yeej vim yog dej xau thiab dhau.

Cov tsev kho mob: xws li tsev kho mob, tsev kawm ntawv, cov tsev kawm ntawv thiab lwm qhov chaw, siv los ua kom muaj hluav taws xob hluav taws xob thiab kev nyab xeeb siv hluav taws xob thiab kev nyab xeeb siv hluav taws xob los ntawm cov neeg ua haujlwm.

Electronic Type RCCB
