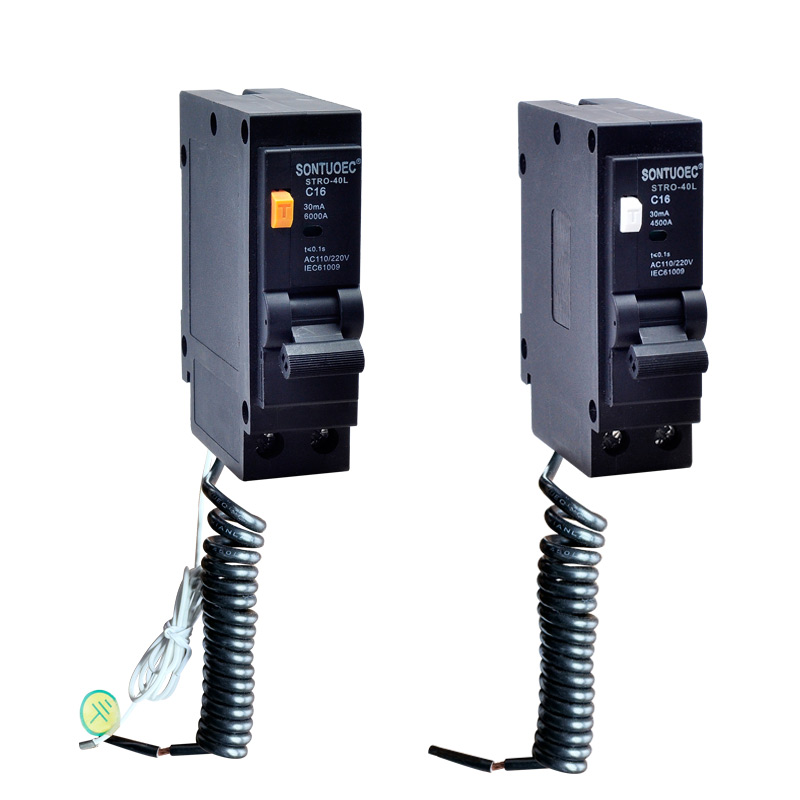

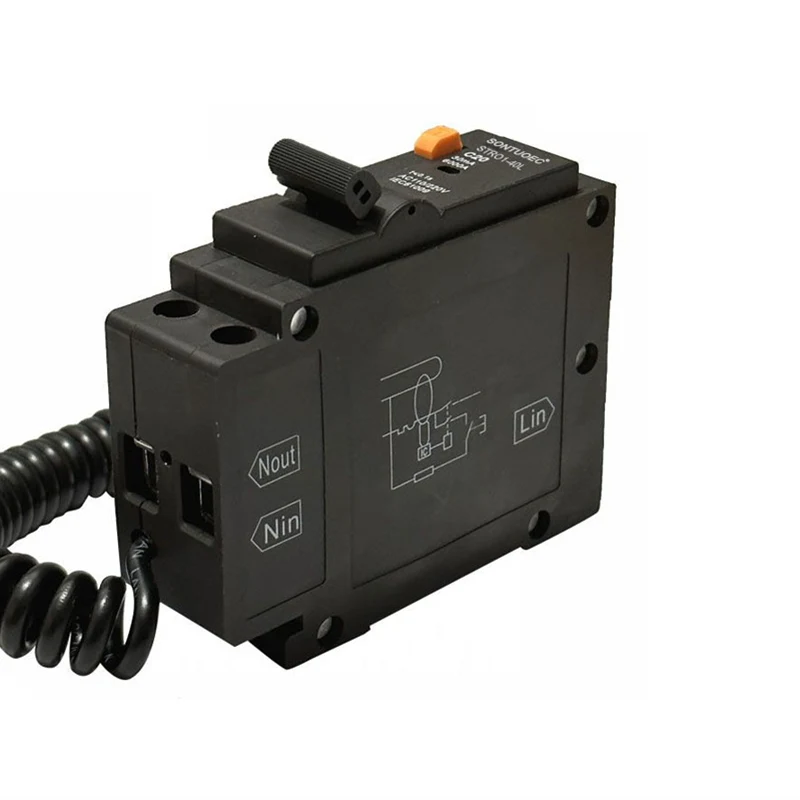

Txuas rau Hom RCBO 1P + N

Plug nyob rau hauv Hom RCBO 1P + N, piv txwv li Plug nyob rau hauv hom Residual Current Circuit Breaker nrog Overload Protection (Residual Current Circuit Breaker with Overload Protection), 1P + N qhia tias tus naj npawb ntawm nws cov ncej yog unipolar ntxiv rau xoom kab. Nws tsis tsuas yog muab kev tiv thaiv overload thiab luv luv, tab sis kuj muaj kev ua haujlwm ntawm kev tiv thaiv to, uas tuaj yeem ntes thiab txiav tawm cov xau tam sim no hauv cov kab hauv av, yog li muaj txiaj ntsig zoo rau kev ua haujlwm ntawm cov khoom siv hluav taws xob thiab kev nyab xeeb ntawm tus kheej.

Qauv:STRO1-40L

Xa lus nug

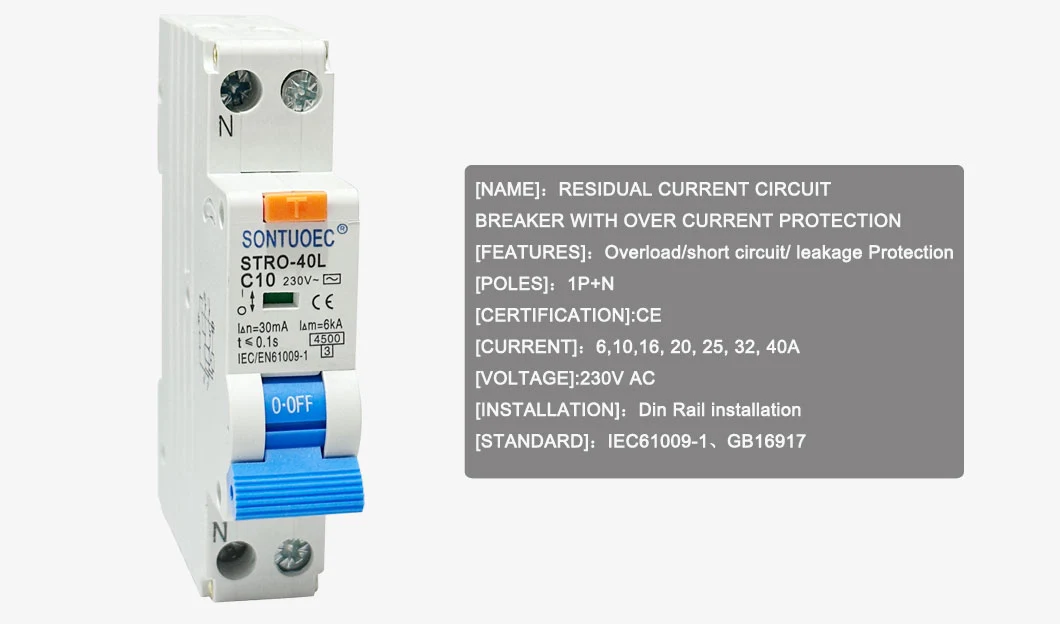

Product Description

Qauv	TSI 1-40L
Standard:	IEC 61009-1: Cov
Residual Current charactertics	A/AC
Ncej No	1 P + N
Rated Tam sim no (A)	6A, 10A, 16A, 25A, 32A, 40A
Rated voltage (V)	110/220, 120V
Rated residual khiav hauj lwm tam sim no	10ma, 30ma, 100ma, 300ma, 500ma
Rated conditional residual luv luv Circuit Court tam sim no	6 KA
Electro-machanical endurance	tshaj 4000 cycles

Technical Parameters

Rated Voltage: Feem ntau 230/240VAC, haum rau hluav taws xob hauv tsev thiab kev lag luam.

Rated tam sim no: Raws li cov qauv tshwj xeeb thiab cov kev qhia tshwj xeeb, qhov ntsuas tam sim no yuav txawv, tab sis cov kev ntsuas tam sim no muaj xws li 6A, 10A, 16A, 20A, 25A, 32A, 40A thiab lwm yam.

Rated residual tam sim no: yog hais txog tus nqi tam sim no yam tsawg kawg nkaus uas lub Circuit Court breaker tuaj yeem ua haujlwm hauv cov ntaub ntawv xau. Kev ntsuas qhov seem tam sim no yog 10mA, 30mA, 100mA, 300mA thiab lwm yam. Thaum cov xau tam sim no nyob rau hauv Circuit Court tshaj qhov nqi no, lub Circuit Court breaker yuav tawm mus.

Zaus: Feem ntau 50/60Hz, sib piv cov qauv zaus ntawm lub zog hluav taws xob.

Short-circuit peev: yog hais txog tus nqi siab tshaj plaws tam sim no uas lub Circuit Court breaker tuaj yeem tiv taus nyob rau hauv luv luv-circuit tej yam kev mob. Cov qauv sib txawv thiab cov kev qhia tshwj xeeb yuav muaj qhov sib txawv luv luv luv luv.

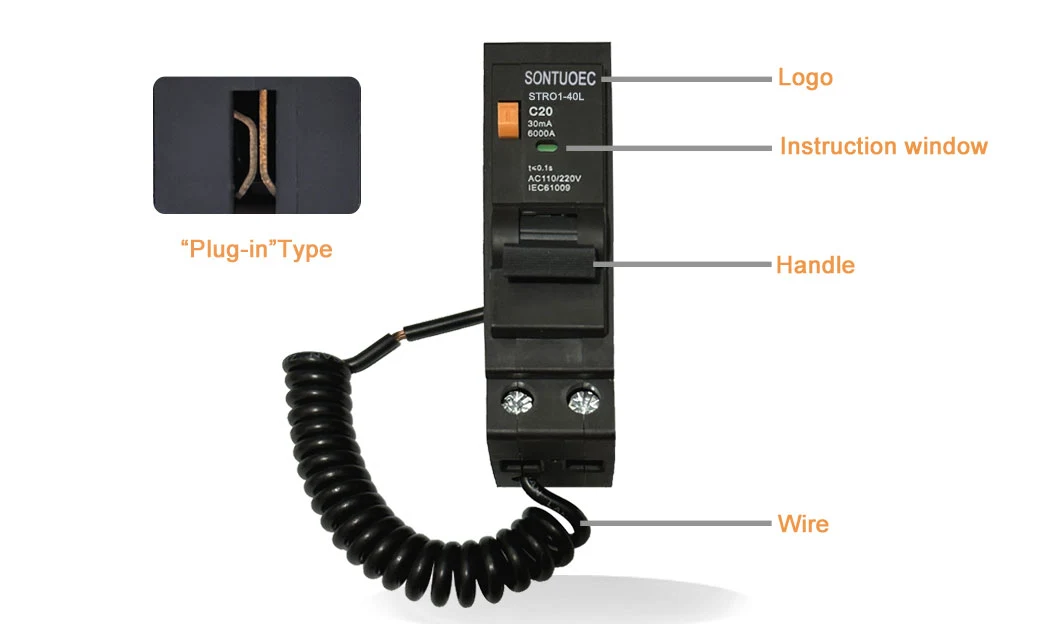

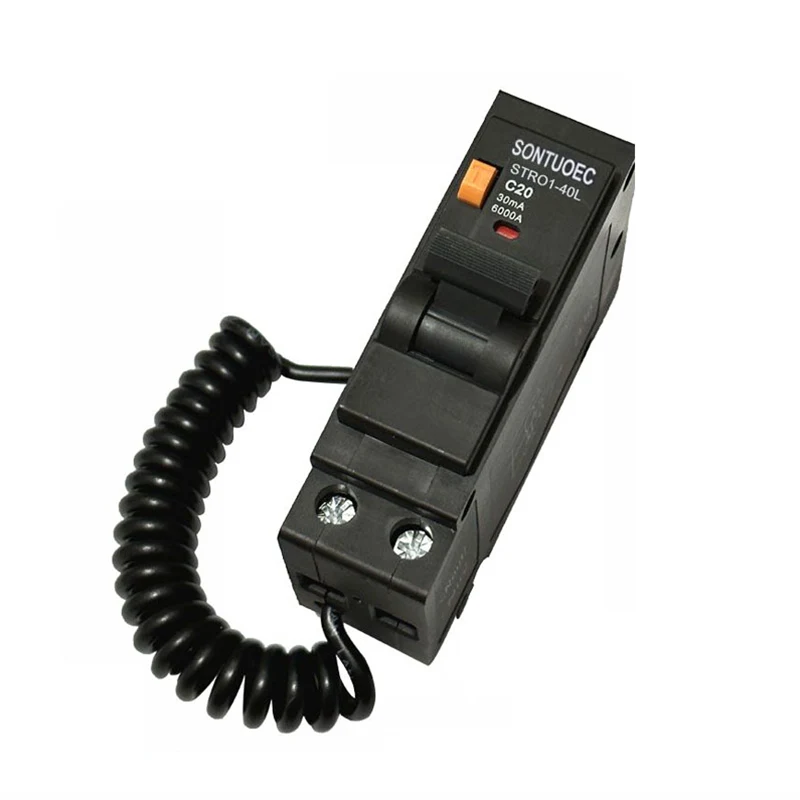

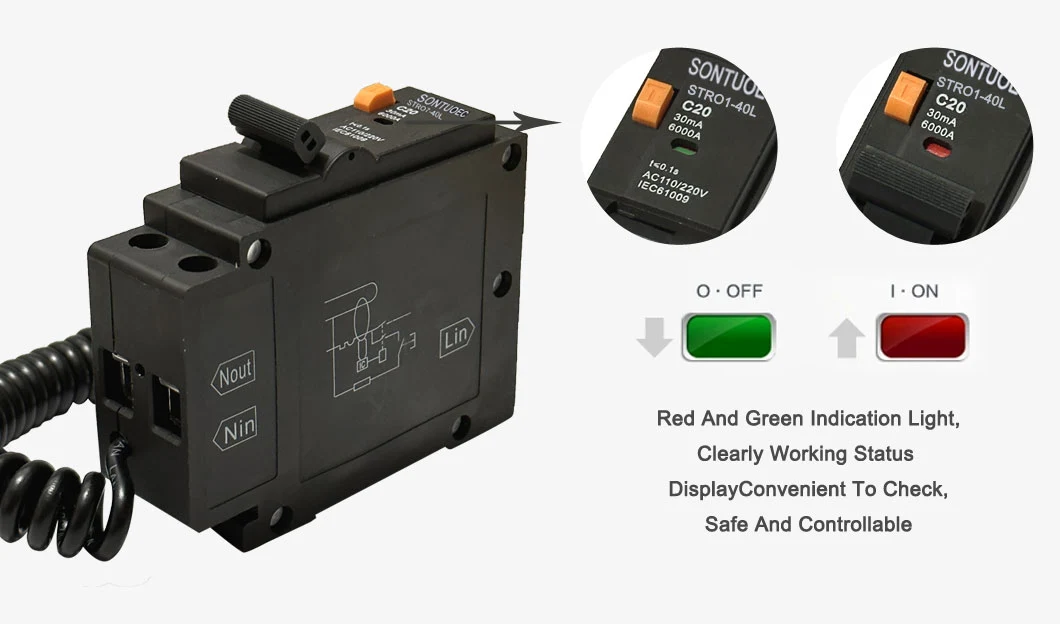

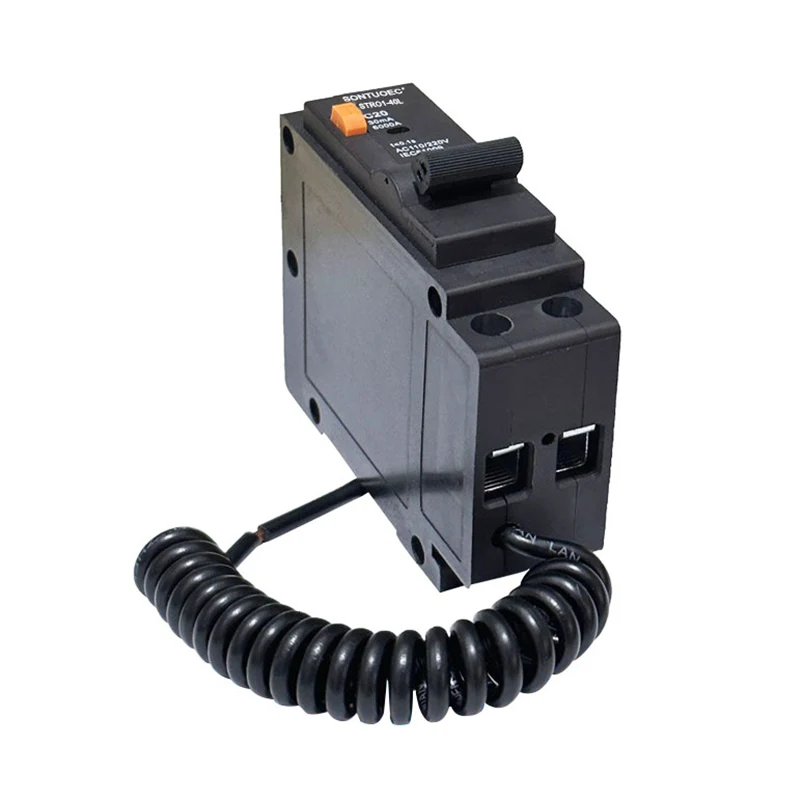

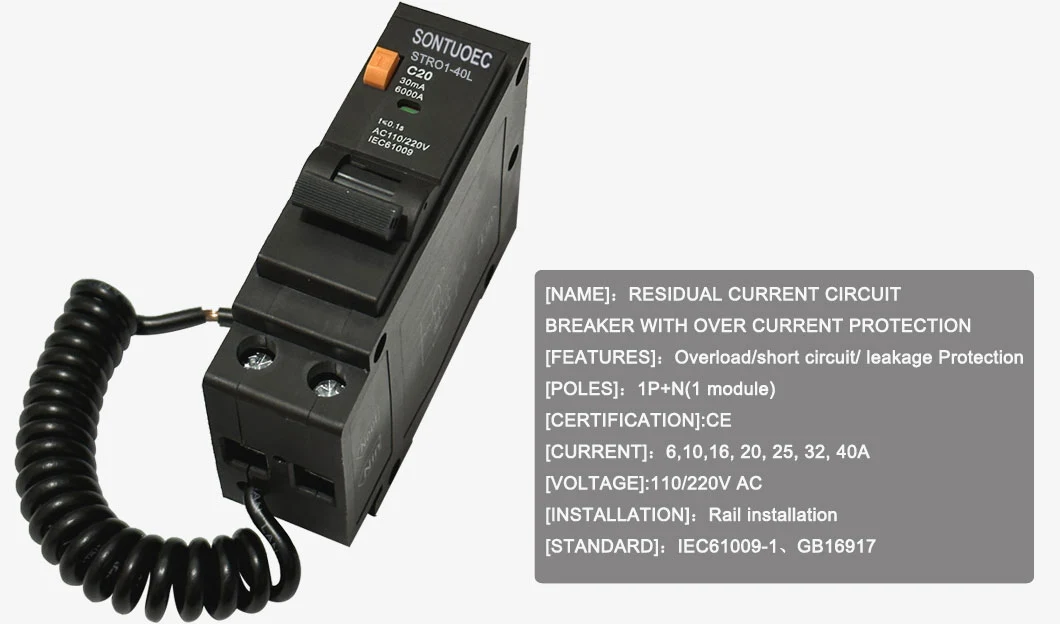

Plug in Type RCBO 1P+N

Nta

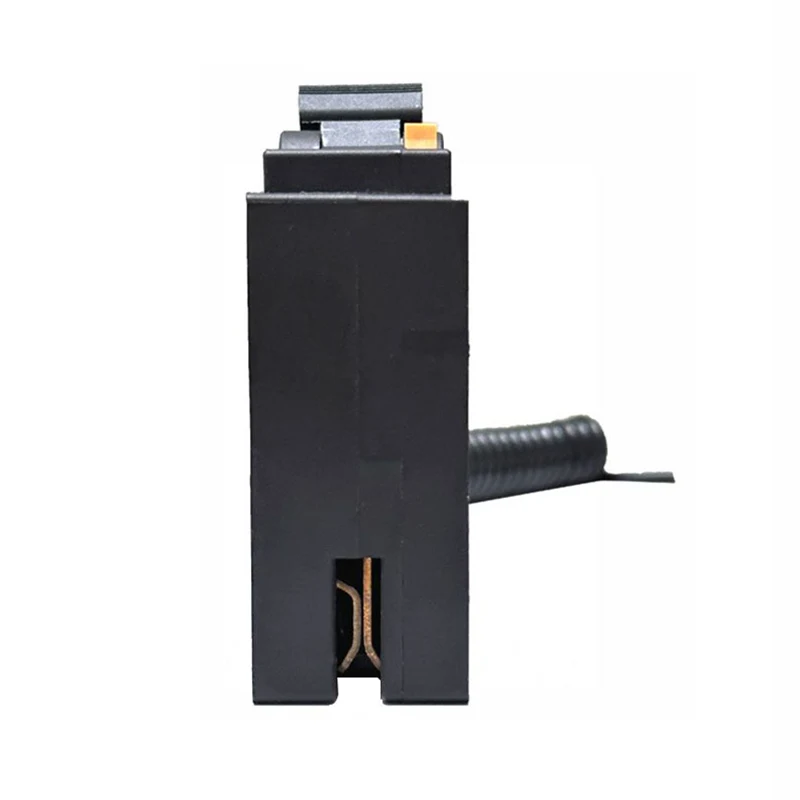

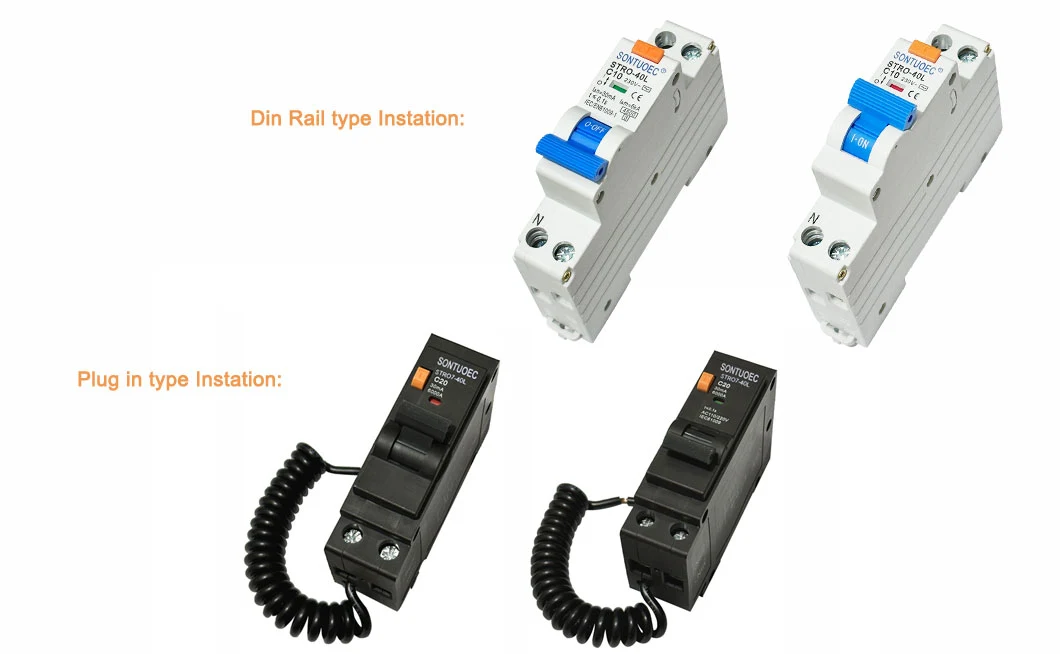

Plug-in tsim: yooj yim rau nruab thiab tshem tawm, txhim kho kev ruaj ntseg thiab yooj yim ntawm cov khoom siv hluav taws xob.

Kev tiv thaiv zoo: Kev sib koom ua ke ntau dhau, luv luv Circuit Court thiab tiv thaiv to, nws tuaj yeem lav tag nrho kev nyab xeeb ntawm circuits thiab khoom siv.

Kev nyab xeeb thiab txhim khu kev qha: Kev siv cov ntaub ntawv zoo thiab cov txheej txheem tsim khoom siab heev ua kom muaj kev ntseeg siab thiab ua haujlwm ntev ntawm lub tshuab hluav taws xob.

Muaj feem xyuam: haum rau ntau yam hluav taws xob ib puag ncig xws li hauv tsev, kev lag luam thiab kev lag luam.

Kev txhim kho thiab ceev faj

Kev teeb tsa qhov chaw: Nws yuav tsum tau muab tso rau hauv qhov chaw qhuav, qhov cua uas tsis muaj roj corrosive, thiab xyuas kom meej tias muaj kev sib cais lossis txiav tawm ntawm lub zog ntawm cov khoom siv hluav taws xob.

Txoj kev xaim hluav taws xob: Kev xaim yuav tsum tau ua raws li daim duab kab hluav taws xob ntawm cov hluav taws xob hluav taws xob kom ntseeg tau tias kev sib txuas ntawm hluav taws xob, xoom xaim thiab hauv av xaim.

Kev tshuaj xyuas tsis tu ncua: Tshawb xyuas thiab tswj xyuas lub tshuab hluav taws xob tsis tu ncua kom ntseeg tau tias nws ua haujlwm li qub.

Kev ceev faj: Thaum siv, yuav tsum tau saib xyuas kom tsis txhob muaj qhov tshwm sim ntawm kev ua txhaum xws li overloading, luv-circuiting thiab to kom ntseeg tau tias muaj kev nyab xeeb ntawm kev ua haujlwm ntawm circuits thiab khoom siv.

Daim ntawv thov Scenario

Plug-in RCBO 1P + N feem ntau yog siv rau hauv circuits uas xav tau kev nyab xeeb ntawm tus kheej, xws li teeb pom kev zoo, lub zog tsis muaj zog, cov khoom siv hluav taws xob thiab lwm yam hluav taws xob hauv tsev thiab cov chaw pej xeem. Cov chaw no feem ntau muaj dej, noo noo thiab lwm yam kev mob uas tuaj yeem ua rau muaj kev sib tsoo yooj yim. Yog li ntawd, kev siv plug-in RCBO 1P + N tuaj yeem txhim kho kev nyab xeeb thiab kev ntseeg siab ntawm cov hluav taws xob.
