RCCB B Qauv nyob ntawm cov neeg txhaum cai

RCCB B Qauv Regruitual Riverual Rivera RiverAs tiv thaiv nyob rau hauv qhov kev tshwm sim ntawm cov khoom siv hluav taws xob ceev, cov khoom siv roj ntsha thiab hloov kho mob batterers (dc)

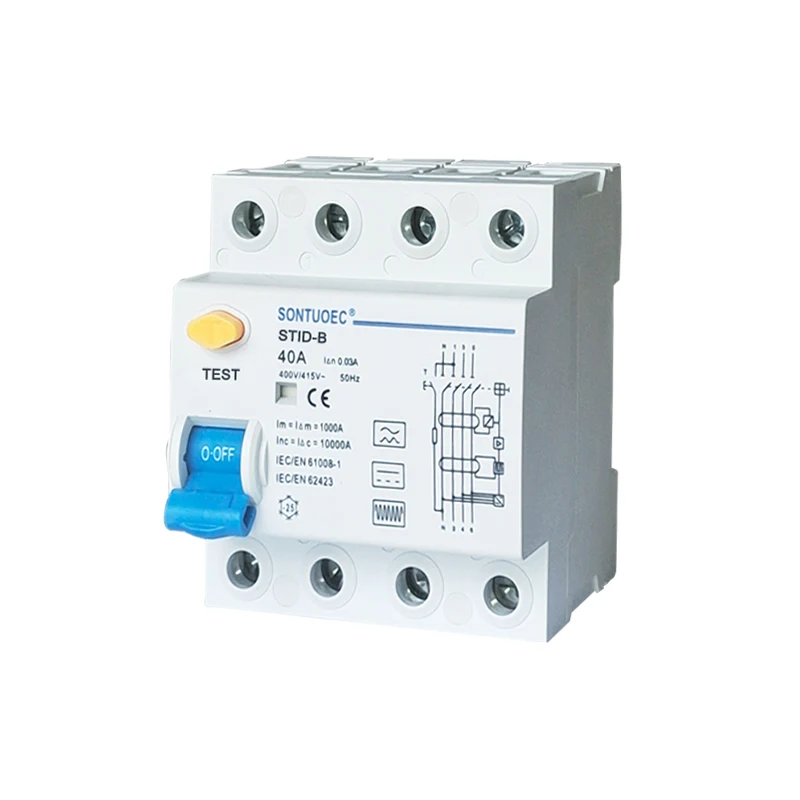

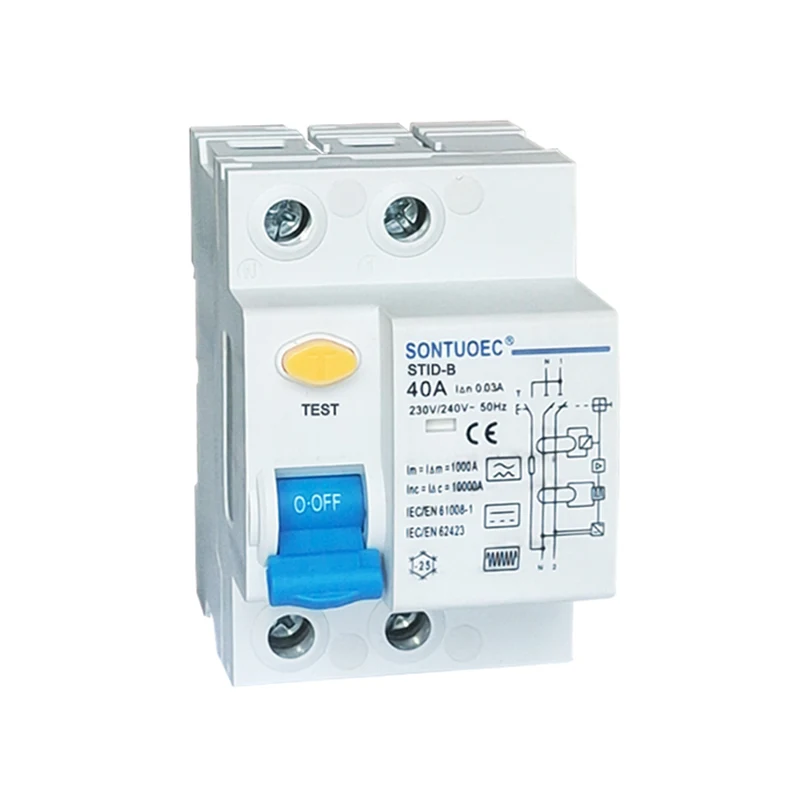

Qauv:STID-B

Xa lus nug

Product Description

Hluav taws xob Yam zoo	Lub hom phiaj		IEC / EN62423 & IEC / EN610088-1
	Hom (Yav Daim Ntawv ntawm lub Ntiaj Teb Txhiab Sensed)		B
	Rated tam sim no nyob rau hauv	A	25,40,63
	Ncej	P	1p + n, 3p + n
	Ntsuas Voltage UE	V	IP + N: 230 / 240V; 3p + N: 400 / 415V
	Rated rhiab I N	A	0.03,0.1,0.3
	Rwb Thaiv Tsev Voltage Ui	V	500
	Rated residual ua thiab	A	500 (hauv = 25a / 40A)
	Rhuav Lub Peev Xwm Kuv m	A	630 (hauv = 63a)
	Luv-Circuit Court tam sim no kuv c	A	10000
	Scpd Fuse	A	10000
	So lub sijhawm nyob rau hauv i n	s	I≤0.1
	Nyob Qhov Coob	Hz	50
	Nyob rau hauv impulse withstand voltage (1.2 / 5.0) Uimp	V	4000
Kws kho tshuab Nta	Dielectric kev xeem voltage ntawm ind. Fred. Rau 1min	kv	2.5
	Degion degree		2
	Hluav Taws Xob Lub Neej		2000
	Kws kho tsev neeg iife		10000
	Txhaum Tam Sim No		Tau
	Kev tiv thaiv degree		Liphaus20
	Ambient kub (nrog nruab nrab nruab nrab 35)	ºC	-40 ~ + 55ºC
	Cia kub	ºC	-40 ~ + 70ºC

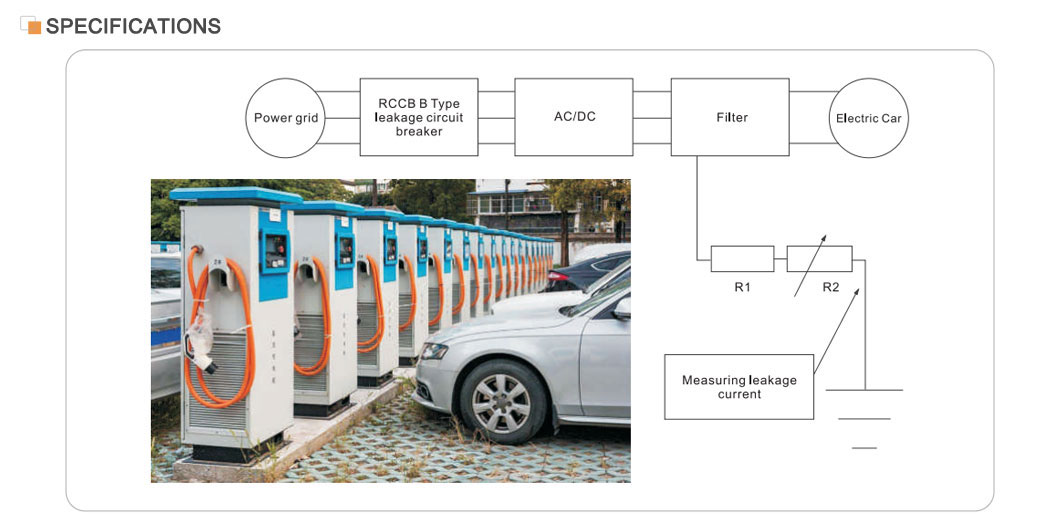

Stid-B rccb B tus qauv Reglerual Rabler tam sim no yog qhov tsim nyog rau hom rapifual uas yuav tshwm sim los ntawm rectifier circub thiab siab zaus ac residual spurents. Nws muab kev tiv thaiv nyob rau hauv qhov kev tshwm sim ntawm kev txhaum ua yuam kev txuas ntxiv hauv peb-theem network. STID-B yog feem ntau siv nyob rau hauv cov chaw them nyiaj, cov cuab yeej siv kho mob thiab cov khoom siv, roj teeb thiab inverers (DC). STID-B ua raws li IEC / EN610088 thiab IEC / EN62423 cov qauv.

Cov yam ntxwv tseem ceeb

Rated tam sim no: 40a, haum rau cov hluav taws xob loj.

Kev tiv thaiv kev tiv thaiv: Nrog siab rhiab thiab raug teeb meem, nws tuaj yeem ntes qhov xau dej tam sim no thiab txiav tawm lub zog hluav taws xob hauv lub sijhawm luv luv.

Kev Nyab Xeeb Kev Nyab Xeeb: Ua raws thoob ntiaj teb cov qauv xws li IEC / EN61008.1 thiab GB16916.1, txhawm rau kev nyab xeeb thiab kev ntseeg tau ntawm cov khoom.

Cov tau txais daim ntawv thov: dav siv hauv kev lag luam, ua lag luam, muaj kev tiv thaiv ntau thiab pej xeem muab kev tiv thaiv cov hluav taws xob hluav taws xob.

Lub ntsiab cai ntawm kev ua haujlwm

RCCB B Cov Qauv Qhia Txog Cov Circuit Court tam sim no raws li lub xoom hloov pauv tam sim no. Txhua ntu kev ua ntu zus dhau los ntawm lub Xoom Hloov Tam Sim No, sab nraud ntawm sab nraud uas txuas nrog lub tshuab hluav taws xob hluav taws xob. Nyob rau hauv ib txwm muaj mob, tus vector suav ntawm cov theem degrents los ntawm cov xoom hloov tshiab Txawm li cas los xij, ib zaug toastge nce ntxiv thiab ua kom cov kev ua haujlwm sab nraud los ua kom muaj kev tiv thaiv, kev siv hluav taws xob sib xyaw ua ke, yog li paub tias muaj kev tiv thaiv tsis zoo.

Xaiv thiab teeb tsa

Xaiv cov RCCB: Thaum xaiv RCCB, tsis muaj xws li cov hluav taws xob ntsuas, ntsuas tau tam sim no, lub sijhawm ua haujlwm ntawm lub tshuab hluav taws xob yuav tsum tau txiav txim siab. Nws tseem tsim nyog los xaiv ib qho RCCB raws li hom kev tiv thaiv yuav tsum muaj (piv txwv.

Kev teeb tsa: RCCB yuav tsum tau muab ntsia rau ntawm qhov pib lub tshuab hluav taws xob lossis ntawm cov kab ceg kom ntseeg tau tag nrho cov hluav taws xob tag nrho lossis cov kab sib ceg. Thaum lub sij hawm teeb tsa, cov qauv kev cuam tshuam thiab cov cim yuav tsum ua nruj me ntsis pom kom ntseeg tau tias kev ua haujlwm zoo ntawm RCCB.
