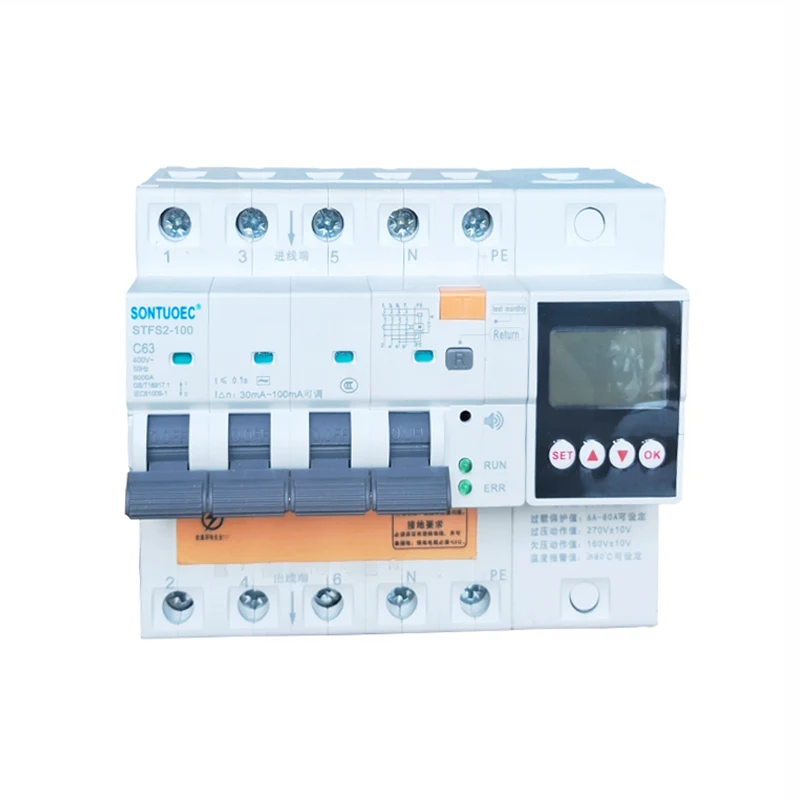

100A 2p 4p Multifunctional RCBO

STSF2-100 100A 2p 4p Multifunctional RCBO yog tsim rau AC 50 / 60Hz, nyob rau hauv ib lub voj voog nrog qhov hluav taws xob ntawm 230V-400V thiab cov ntsuas tam sim no ntawm 100A, thaum aperson electrocuted los yog lub hwj chim daim phiaj xau. Thaum cov xau, overvoltage, thiab undervoltage ncav cuag qhov tseem ceeb, qhov seem tam sim no Circuit Court breaker tuaj yeem ua haujlwm sai sai hauv lub sijhawm luv luv ntawm lub sijhawm sai sai txiav tawm lub hwj chim. Thaum qhov ntsuas kub ntawm qhov seem tam sim no Circuit Court breaker ncav cuag tus nqi, qhov kev soj ntsuam hauv av tsis txuas nrog. Thaum txuas nrog, cov khoom lag luam tawm suab nrov los tiv thaiv kev nyab xeeb ntawm cov neeg ua haujlwm thiab cov khoom siv hluav taws xob, thiab tuaj yeem zam Tiv thaiv kev puas tsuaj rau cov khoom siv los ntawm overvoltage hauv daim phiaj hluav taws xob. Muaj overload, luv luv Circuit Court, to, overvoltage Undervoltage thiab overtemperature tiv thaiv kev ua haujlwm kuj tseem siv tau los sib cuam tshuam qhib thiab tawm cov khoom siv hluav taws xob nyob rau hauv ib txwm muaj xwm txheej. Teeb pom kev zoo circuits, tshwj xeeb tshaj yog tsim rau kev lag luam thiab kev lag luam teeb pom kev zoo faib tshuab. Cov khoom muaj ib lub ntim me me, compact qauv, thiab tus nqi zoo dua li lwm yam khoom zoo sib xws. Nws muaj qhov zoo nkauj zoo nkauj, Lub peev xwm tawg siab ua rau nws xaiv zoo rau kev faib hluav taws xob hauv tsev. Cov khoom no ua raws li GB / T 16917.1 thiab IEC 61009-1 cov qauv thiab tau txais ntawv pov thawj CE.

Qauv:STFS2-100

Xa lus nug

Product Description

Qauv	STFS2-100 Electroic yam
Residual Current charactertics	AC
Txuj	IEC / EN 61009-1
Rated rhiab heev l△n	0.03, 0.1, 0.3
Ncej No	Ncej: 1P + N + PE; 3P + N + PE
Rated Tam sim no (A)	6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
Rated voltage (V)	240/415V, 230/400V
Rated residual khiav hauj lwm tam sim no	10ma, 30ma, 100ma, 300ma, 500ma
Rated conditional residual luv luv Circuit Court tam sim no	6 KA
Electro-machanical endurance	tshaj 4000 cycles
FUNCTION:	kev tiv thaiv leakage, Overload tiv thaiv tam sim no, tiv thaiv luv luv, nyob rau hauv kev tiv thaiv voltage, tiv thaiv dhau voltage, Rated tam sim no / Voltage adjustable, Kev tiv thaiv kub, Dej ingress tswb thiab lwm yam.

LUB SIJ HAWM NTAWM AIR TEMPERATURE:

1.Lub ambient kub yuav tsum tsis txhob qis tshaj -5 1C, tsis siab tshaj +40 C, thiab tus nqi nruab nrab txhua hnub yuav tsum tsis txhob tshaj +35 C.

2. Qhov siab: Qhov siab ntawm qhov chaw teeb tsa yuav tsum tsis pub tshaj 2000m.

3.Atmospheric tej yam kev mob

Cov huab cua huv si, thiab qhov kub siab tshaj plaws ntawm + 40 'C, qhov txheeb ze av noo ntawm huab cua tsis siab tshaj 50%. Cov av noo siab dua yog tso cai rau qhov kub qis dua, xws li ntawm + 20 C,

Tus txheeb ze humidity yuav tsum tsis pub tshaj 90%. Vim qee lub sijhawm me ntsis condensation tshwm sim los ntawm kev hloov pauv kub, Kev Saib Xyuas yuav tsum tau them rau kev ntsuas tsim nyog.

4. Installation Category Installation pawg yog lI thiab III

Tam sim no thiab Number of Poles

100A: Qhov no qhia tau tias RCBO raug ntsuas ntawm 100 amps. Qhov ntsuas tam sim no yog tus nqi siab tshaj plaws ntawm qhov tam sim no uas lub Circuit Court breaker tuaj yeem nqa tsis tu ncua yam tsis ua rau overheating lossis puas.

2p, 4p: Cov "p" ntawm no yog cov naj npawb ntawm cov ncej, piv txwv li, tus naj npawb ntawm Circuit Court theem uas lub Circuit Court breaker tuaj yeem txuas tau. 2p txhais tau hais tias lub Circuit Court breaker tuaj yeem txuas rau ob theem Circuit Court (feem ntau yog Hluav Taws Xob thiab Zero), qhov 4p txhais tau hais tias nws tuaj yeem txuas rau plaub theem Circuit Court (feem ntau yog peb theem hluav taws thiab xoom).

Multifunctional

Multifunctional qhia tias qhov no 100A 2p 4p Multifunctional RCBO yog nruab nrog ntau yam kev tiv thaiv kev ua haujlwm. Ntxiv rau qhov yooj yim overload thiab tiv thaiv luv luv, nws tuaj yeem muab kev tiv thaiv to, tiv thaiv undervoltage, tiv thaiv overvoltage, thiab lwm yam. Kev tiv thaiv kub, Dej ingress tswb, kho tam sim no thiab voltage.Cov kev tiv thaiv no tso cai rau RCBO muab kev tiv thaiv ntau dua rau circuits thiab khoom siv.

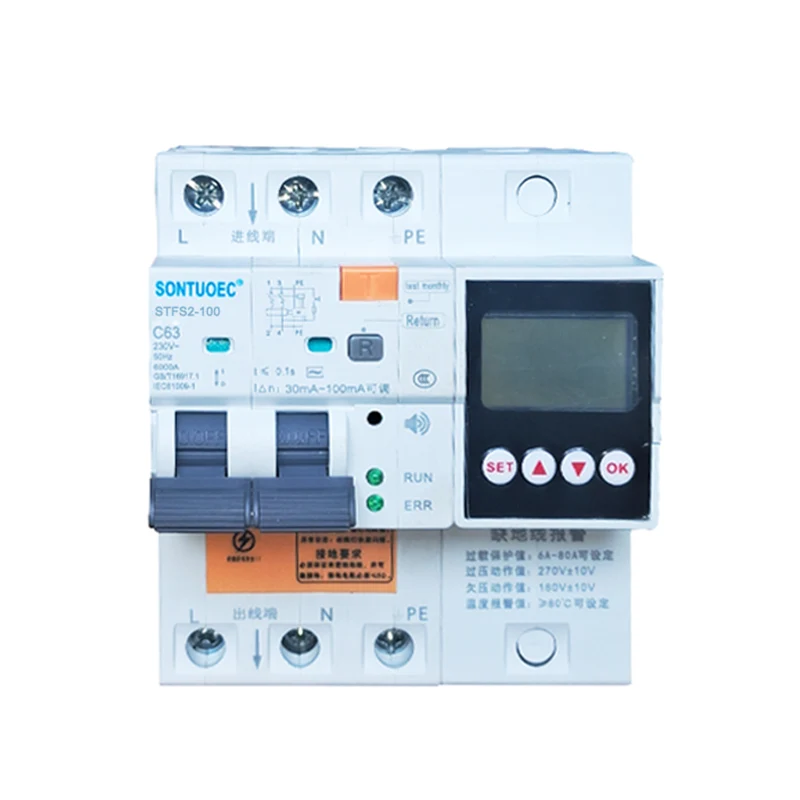

100A 2p 4p Multifunctional RCBO

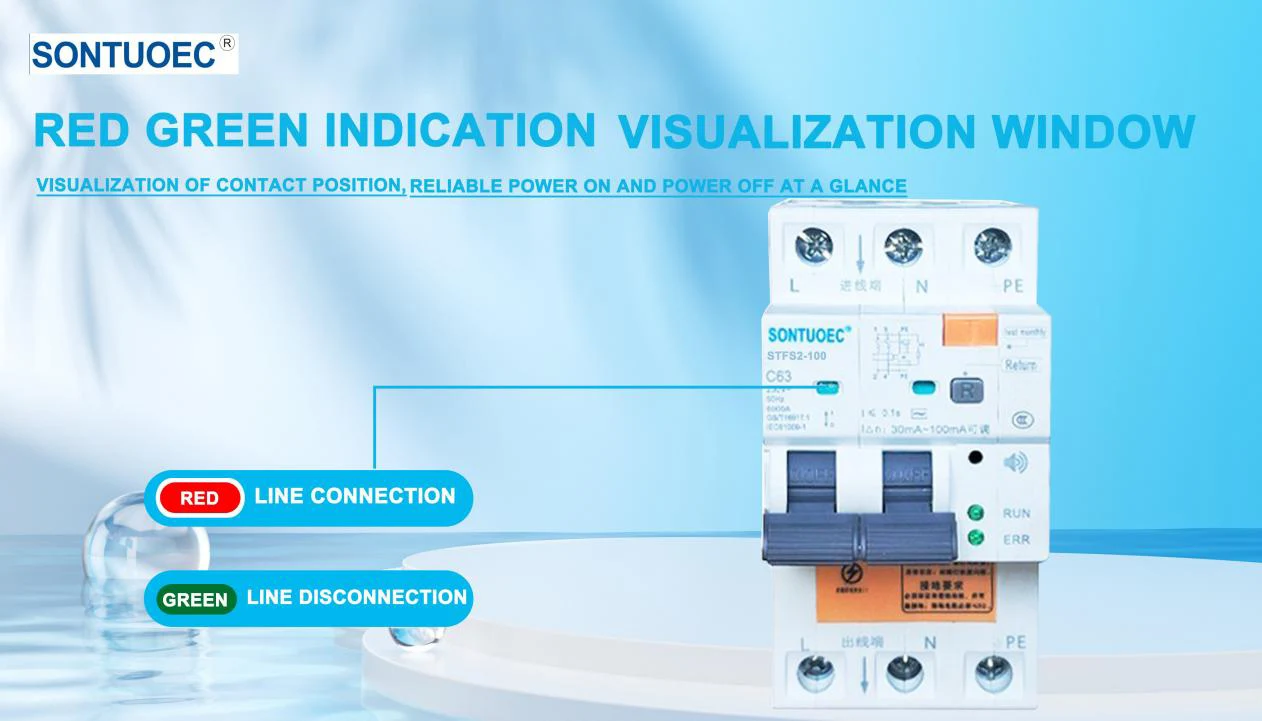

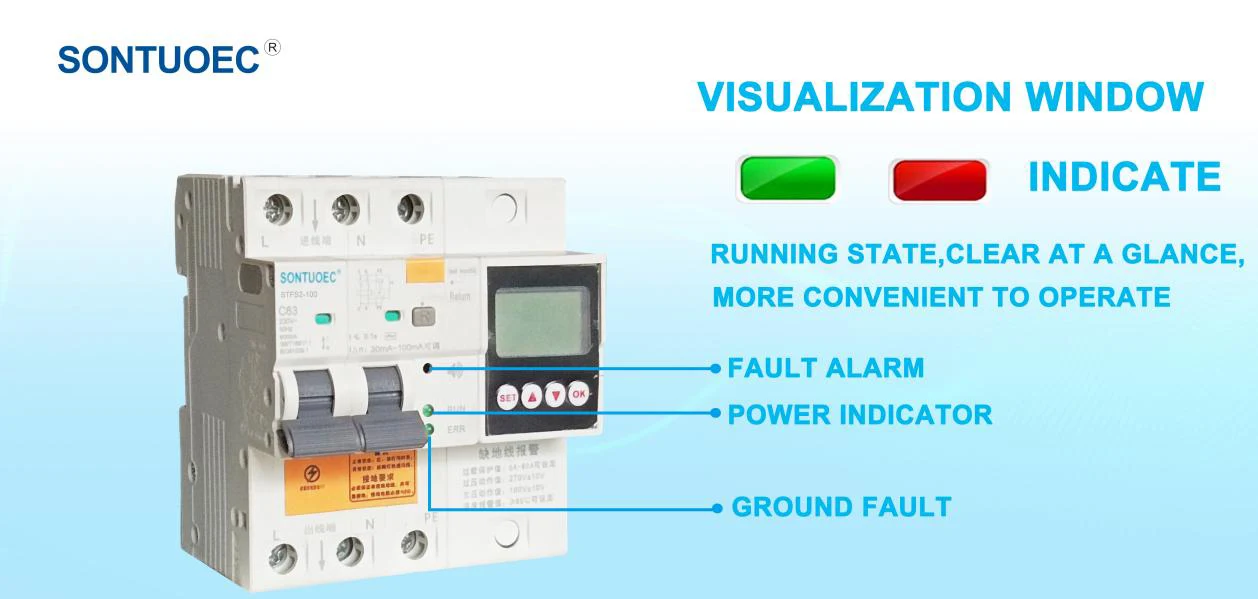

Ceeb toom!

Ceeb toom lub xeev ib txwm: teeb ntsuab rau;

Lub xeev txawv txav: Lub teeb tsis raug

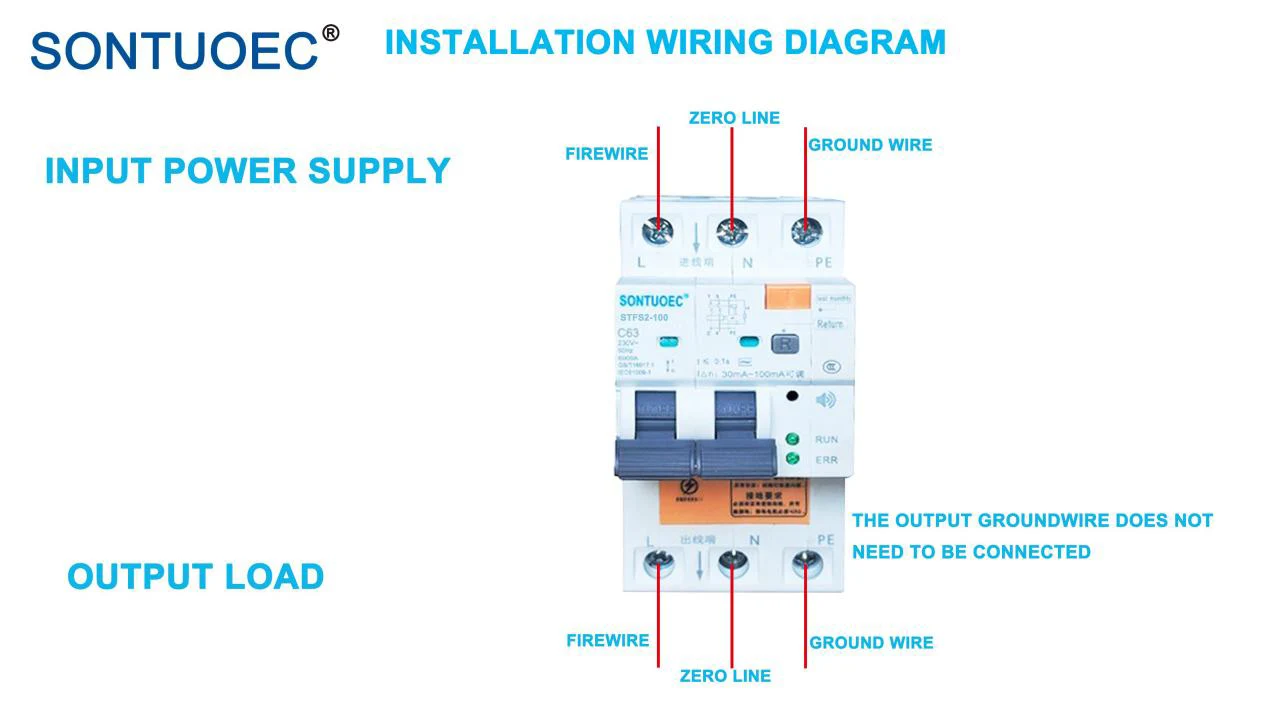

Grounding xav tau:

Nws yog ib qho tsim nyog los xyuas kom meej tias muaj cov xaim hauv av thiab cov xaim hauv av, thiab cov av tiv thaiv yuav tsum yog s 5Q!

Daim ntawv thov Scenario

Txij li thaum RCBO muaj ntau yam kev tiv thaiv kev ua haujlwm, nws feem ntau siv rau hauv Circuit Court uas xav tau kev nyab xeeb ntawm tus kheej, xws li hluav taws xob hluav taws xob rau cov teeb pom kev zoo, lub zog tsis muaj zog, thiab cov khoom siv hluav taws xob hauv tsev thiab cov chaw pej xeem. Cov chaw no feem ntau muaj cov dej thiab cov dej noo, uas tuaj yeem ua rau muaj kev sib tsoo yooj yim. Tsis tas li ntawd, RCBO tseem tuaj yeem siv rau hauv cov tshuab hluav taws xob uas tib neeg kev nyab xeeb yog qhov yuav tsum tau ua ua ntej, xws li cov khoom siv hluav taws xob hauv hluav taws xob, radar systems, thiab cov cuab yeej tshawb nrhiav geological.
