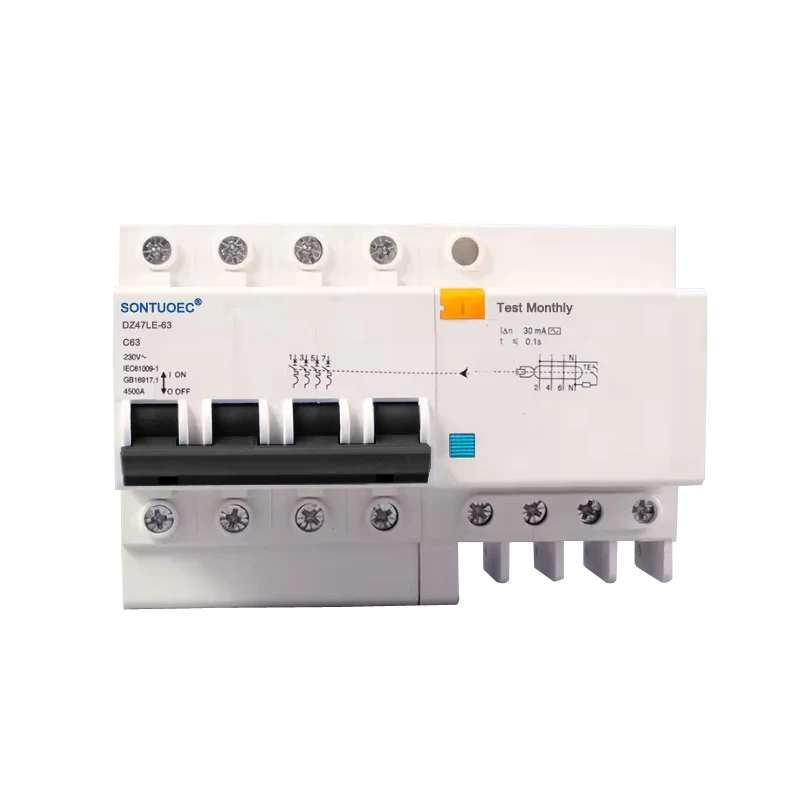

4P rcbo ac hom

Lub 4P rcbo ac hom yog 4-ncej hluav taws xob kev tiv thaiv uas tau muab cov khoom tiv thaiv tam sim no, tshwj xeeb yog tsim rau lwm yam tam sim no (AC) circuits. Nws tuaj yeem txiav tawm lub zog hluav taws xob thaum seem tam sim no (i.e. Toure tam sim no) raug kuaj pom nyob hauv Circuitical Firnel thiab tus kheej hluav taws xob sib tsoo. Nyob rau tib lub sijhawm, nws tseem muaj kev tiv thaiv kev tiv thaiv dhau los uas tuaj yeem txiav tawm lub zog hluav taws xob ntawm kev siv hluav taws xob lossis kev nyab xeeb ntawm kev nyab xeeb ntawm Circuit Court thiab khoom siv.

Qauv:DZ47LE-63

Xa lus nug

Product Description

lub npe	Residual Circuit Court breaker nrog overcurrent tiv thaiv
Nta	Overloload / Luv Circuit Court / Qaim Tiv Thaiv Kev Tiv Thaiv
Ncej Tsis	1p / 2L, 2p / 2l, 3p, 3L, 3p, 4L 4P / 4L
Breaking muaj peev xwm	3KA, 4.5ka, 6ka
Rated tam sim no (a)	6A, 10a, 16a, 20a, 25a, 32a, 40a, 63a
Cov twj tso cai nyob twj ywm tam sim no:	10MA, 30MA, 100 Pob, 300MA, 500MA
Cov Ntsuas Hluav Taws Xob (V)	240 / 415V
kev muab cia	DIN Rail Tail
lub hom phiaj	Iec61009-1, GB16917-1
daim ntawv muaj cai	Piam

Lub ntsiab cai ntawm kev ua haujlwm

Lub hauv paus ntsiab lus ua haujlwm ntawm 4p rcbo ac ntaus hom yog raws li vector sum ntawm cov hauv paus thiab ntawm hluav taws xob cov ntsiab cai. Thaum cov dej ntws hauv lub Circuit Court ntawm hluav taws (l) thiab xoom (n) cov xov hlau tsis muaj zog nyob rau hauv thawj, uas ua rau muaj hluav taws xob voltage nyob rau sab ib sab hauv ib sab kauj. Qhov no ua rau hluav taws xob voltage tau ntxiv rau lub tshuab hluav taws xob hluav taws xob, tsim kom muaj qhov ua kom muaj kev zam dhau tam sim no uas tsim rov qab demagnetizing dag zog. Thaum cov txhaum tam sim no nce mus txog tus nqi khiav haujlwm tam sim no ntawm RCBO, qhov no rov qab Demagnetic Relay kom ua thiab txiav tawm qhov txhaum Circuit Court.

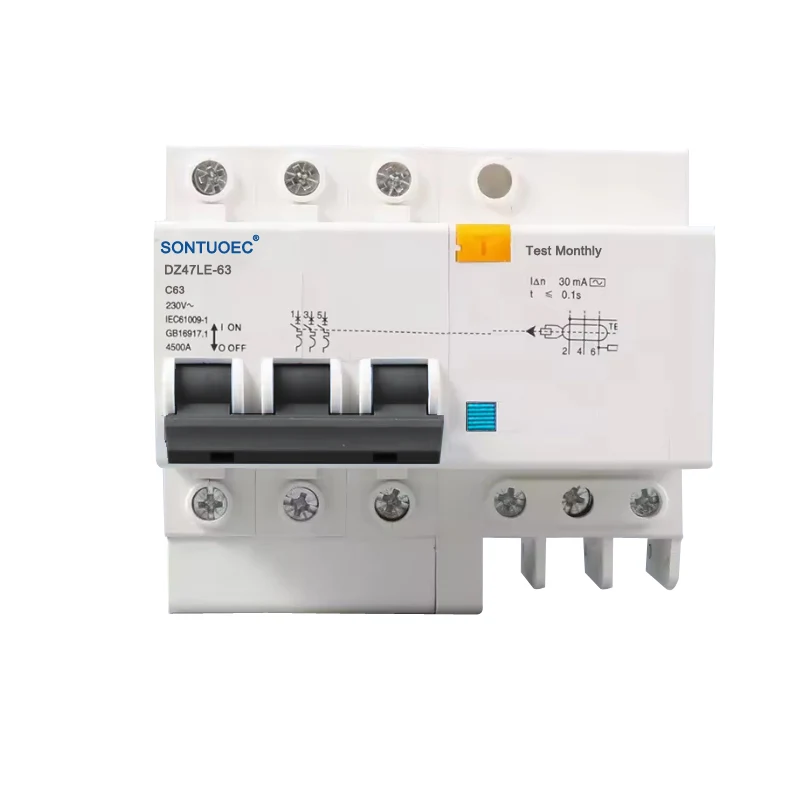

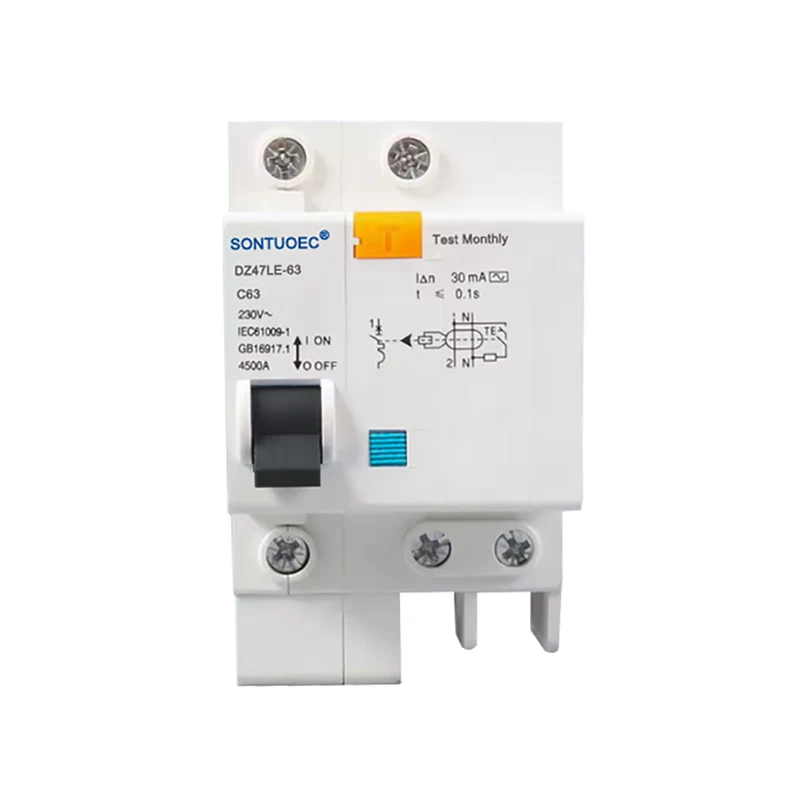

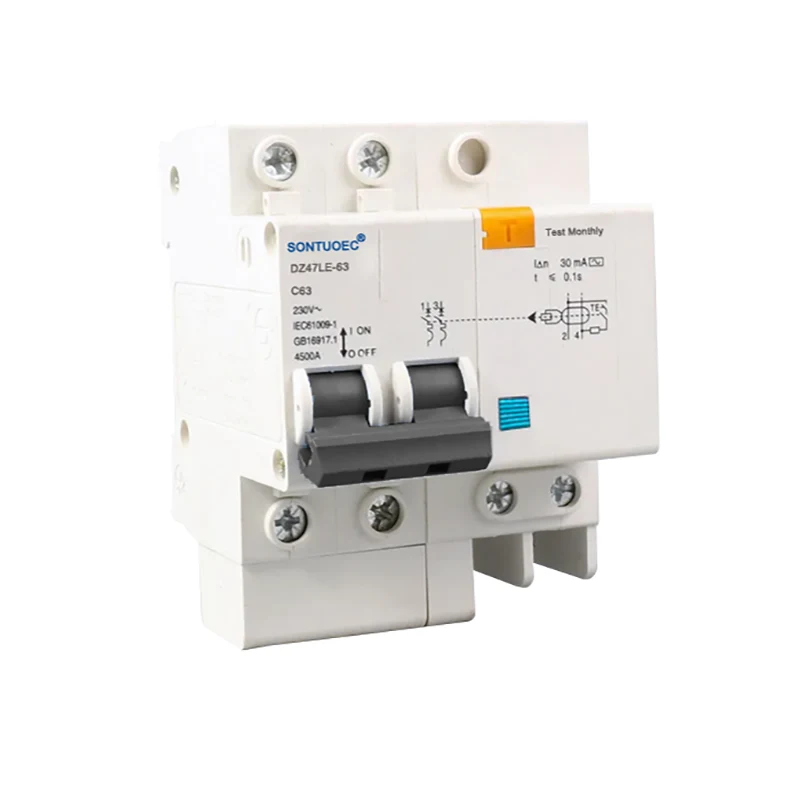

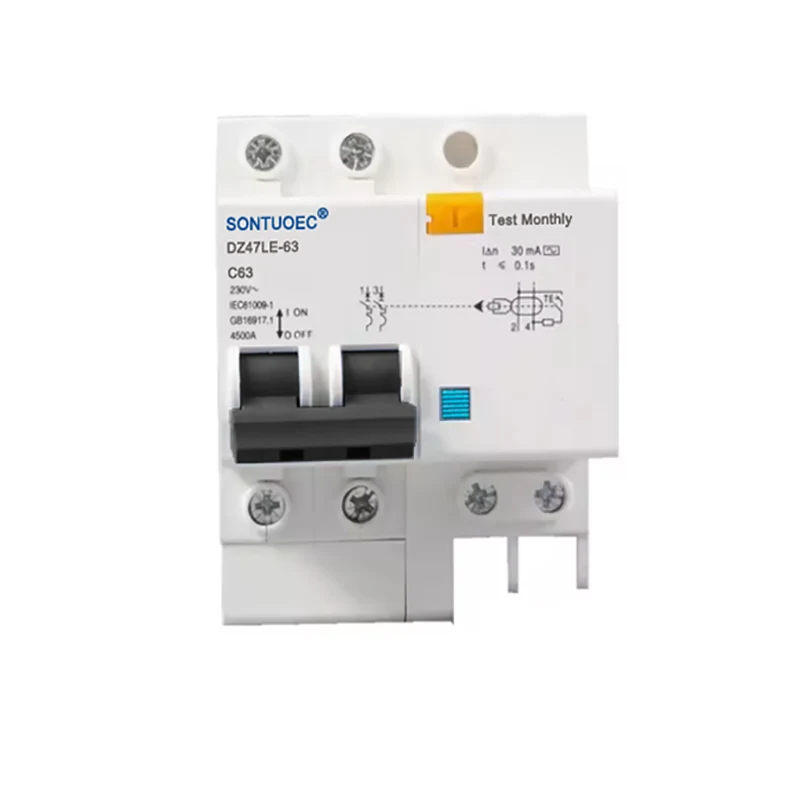

DZ47LE-63 Series Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Yooj Yim Rau Ib Theem 400v rau peb theem Circuit Court ntawm AC 50HZ / 60HZ. Nws tuaj yeem tiv thaiv Circuit Court daim ntawv tshaj thiab luv Circuit Court. Cov khoom no muaj qhov zoo ntawm cov khoom ntim me me, muaj peev xwm loj, kuj tiv thaiv tus neeg los ntawm hluav taws kub thiab xoom kab txuas rov qab.

Nws ua raws tus qauv iec61009-1, GB16917.1.

Nta:

1) .Provides tiv thaiv hluav taws xob, lub ntiaj teb txhaum, xau dej tam sim no;

3). Lub ntim me me, muaj peev xwm loj; Nyob xaim thiab xoom kab raug txiav rau tib lub sijhawm;

4). Qhov loj me thiab qhov hnyav, yooj yim installation thiab xaim, siab thiab ruaj khov ua haujlwm

5). Muab tsis ncaj rau kev ua txhaum cai los ntawm kev nthuav dav thiab hluav taws xob nrawm tam sim no.

Nta & Cov txiaj ntsig

Qhov kev tiv thaiv ntau yam: tus 4p rcbo ac hom sib txuas ntawm kev tiv thaiv tam sim no thiab overcurrent kev tiv thaiv kom muab kev tiv thaiv ntau rau kev sib tw rau cov voj voog thiab khoom siv.

High rhiab: Kev tiv thaiv rhiab tiv thaiv kev tso cai lossis qeeb qeeb ntawm residual sinusoidal ac tam sim no ua kom decougling.

Ntau yam ntawm daim ntawv thov: Tsim nyog rau AC circh nyob rau hauv tsev hauv tsev, kev lag luam thiab kev lag luam faib hluav taws xob, tshwj xeeb rau ib-xoom xaim hluav taws xob.

Yooj yim rau kev txhim kho thiab tswj hwm tsim nyog: Tsim tsim nyog, yooj yim rau nruab rau, thiab tib lub sijhawm yooj yim los tu kev saib xyuas thiab kho dua tshiab.

Daim Ntawv Thov Kev Pab Cuam

4P RCBO AC ntaus tau dav siv rau AC Circuit Cour tiv thaiv hauv tsev, chaw haujlwm, chaw lag luam thiab kev lag luam. Nws yog tsim nyog tshwj xeeb rau cov ntawv thov cov xaim hluav taws kub thiab xoom, thiab cov khoom siv hluav taws xob thiab kev tiv thaiv xws li cov khoom siv xws li.

4P RCBO AC Type
