Tsev
>
Khoom > Phab Txheem Breaker > Residual Circuit Court breaker nrog overcurrent tiv thaiv > Stro6-40 Circuit Breaker DIN Rail Type Installation RCBO

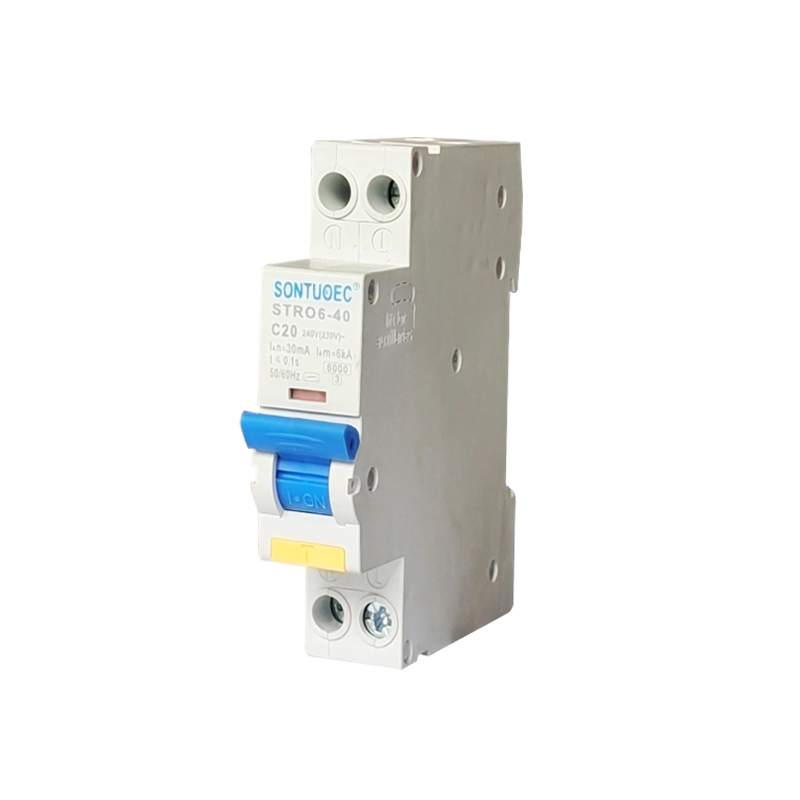

Stro6-40 Circuit Breaker DIN Rail Type Installation RCBO
SONTUOEC yog ib qho ntawm cov chaw muag khoom thiab cov chaw tsim khoom hauv Suav teb. Stro6-40 Circuit Breaker DIN Rail Type Installation RCBO ua raws li IEC61009 tus qauv. Lub rail mounted RCBO ntawm no STRO6-40 Circuit Court breaker yog ib tug hloov nyob rau hauv lub residual tam sim no Circuit Court breaker Circuit Court, feem ntau yog siv los tiv thaiv tus kheej hluav taws xob poob siab thiab muab overload, luv luv Circuit Court thiab lwm yam kev tiv thaiv rau kab thiab khoom siv.
Qauv:STRO6-40
Xa lus nug
Product Description
| Sandard | IEC / EN61009 | ||
| Hluav taws xob nta | Type(wave daim ntawv ntawm lub ntiaj teb to sensed) | Electro-magnetic hom, hom hluav taws xob | |
| Rated tam sim no Hauv | A | A, AC | |
| Ncej | P | 2,4 ib | |
| Rated voltage | V | AC 240/415 ib | |
| Rated Tam sim no: | 6A, 10, 16, 20, 25, 32, 40A | ||
| Rated rhiab heev I△n | A | 0.01, 0.03, 0.1, 0.3, 0.5 | |
| Rwb thaiv tsev voltage Ui | V | 500 | |
| Rated residual ua thiab | A | 630 | |
| tawg peev xwm I△m | |||
| Short-circuit tam sim no I△c | A | 6000 | |
| SCPD fuse | A | BitmapBitmapBitmapBitmap
|
|
| Rated zaus | Hz | 50/60 | |
| Pollution degree | 2 | ||
| Mechanical nta | Hluav taws xob lub neej | t | 4000 |
| Neeg kho tshuab lub neej | t | 10000 | |
| Kev tiv thaiv qib | IP20 | ||
| Ambient kub | ºC | -25 ~ + 40 | |
| (nrog rau qhov nruab nrab txhua hnub ≤35ºC) | |||
| Cia kub | ºC | -25 ~ + 70 | |
| Kev teeb tsa | Terminal hom kev sib txuas | Cable / U-hom busbar/pin-type busbar | |
| Terminal loj saum / hauv qab rau cable | mm2 ua | 25 | |
| AWG | 18-3 | ||
| Terminal loj saum / hauv qab rau busbar | mm2 ua | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2.5 | |
| Hauv-lbs | 22 | ||

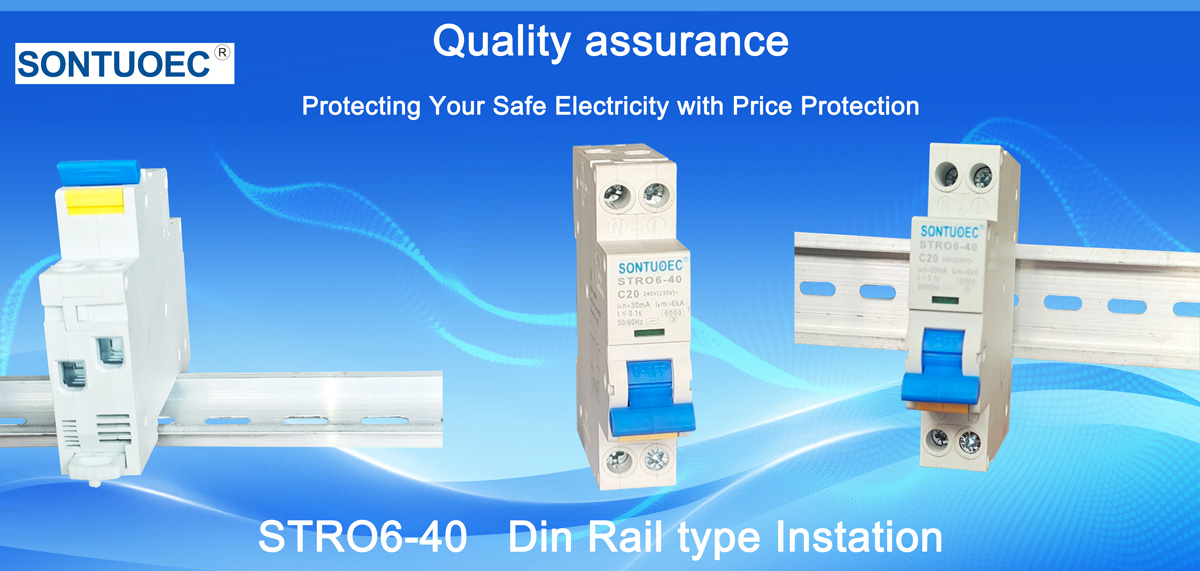

| Mounting | Ntawm DIN rail EN 60715 (35mm) los ntawm cov khoom siv ceev ceev | ||
| Kev sib txuas | Los ntawm saum thiab hauv qab | ||
Stro6-40 Circuit Breaker DIN Rail Type Installation RCBO
Product Over View:
1. Muab kev tiv thaiv lub ntiaj teb txhaum/tawg tam sim no thiab kev ua haujlwm ntawm kev sib cais
2. High short-circuit tam sim no muaj peev xwm
3. Muaj feem xyuam rau lub davhlau ya nyob twg thiab tus pin / diav rawg hom busbar kev sib txuas
4. Nruab nrog ntiv tes tiv thaiv kev sib txuas terminals
5. Tsis siv neeg txiav lub voj voog thaum lub ntiaj teb ua txhaum / tawm tam sim no tshwm sim thiab tshaj qhov ntsuas rhiab heev
6. Kev ywj pheej ntawm cov khoom siv hluav taws xob thiab kab hluav taws xob, thiab tsis muaj kev cuam tshuam sab nraud, kev hloov pauv voltage.
FAQ
Q 1. Lub sijhawm them nyiaj yog dab tsi?
A. Peb lees txais TT, 30% tso nyiaj thiab 70% sib npaug tiv thaiv daim ntawv BL
Q 2. Lub sijhawm khoom xa tuaj li cas?
A. feem ntau nws yuav siv li 25 hnub rau kev tsim khoom
Q 3. qhia kuv tus qauv ntawm pob?
A. Feem ntau yog cartons, tab sis kuj peb tuaj yeem ntim nws raws li koj xav tau.
Q 4.Koj puas kam siv peb lub logo?
A.Yog tias koj muaj qhov zoo, nws tsis muaj teeb meem ua OEM.
Q5. Kuv tuaj yeem coj qee qhov qauv?
A: Yog, peb txhawb nqa coj mus kuaj ua ntej tso qhov kev txiav txim. Tsuas yog xav tiv tauj nrog peb yog tias koj muaj kev xav tau.
Q6. Koj puas yog thawj Hoobkas?
A: Yog, peb muaj peb lub Hoobkas.
q7 ua. Koj yuav ua li cas kom paub tseeb tias cov khoom zoo?
A: Peb yuav ua raws li cov qauv zoo thoob ntiaj teb los tshuaj xyuas txhua yam khoom ua ntej tawm hauv peb lub Hoobkas.
