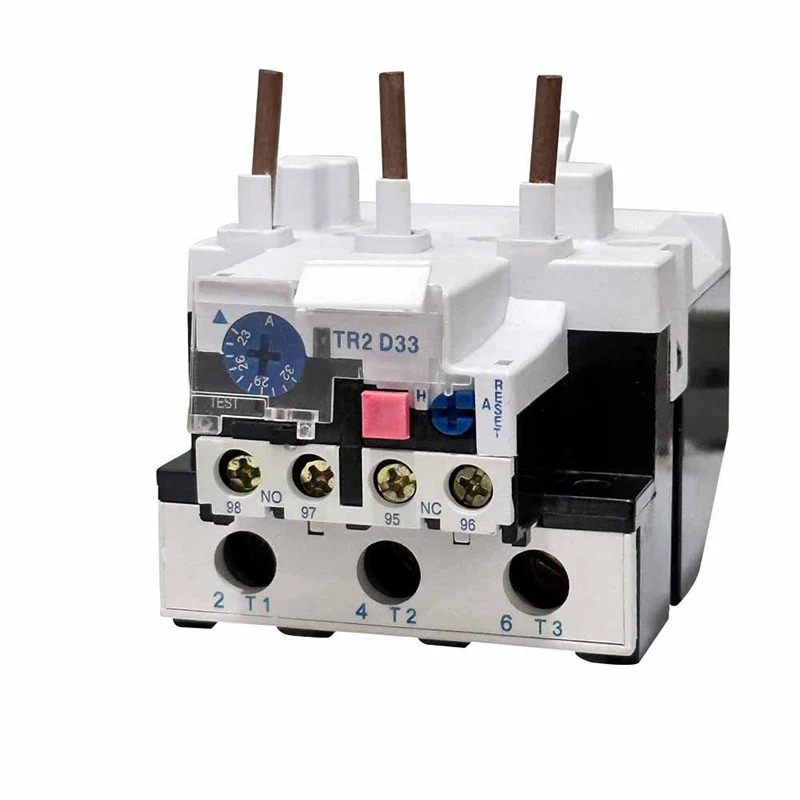

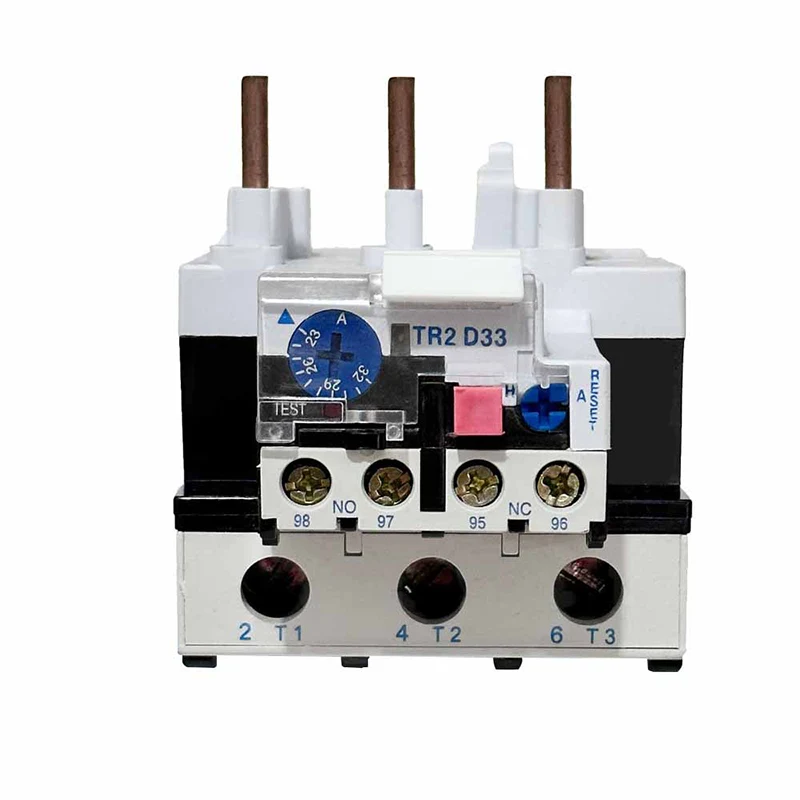

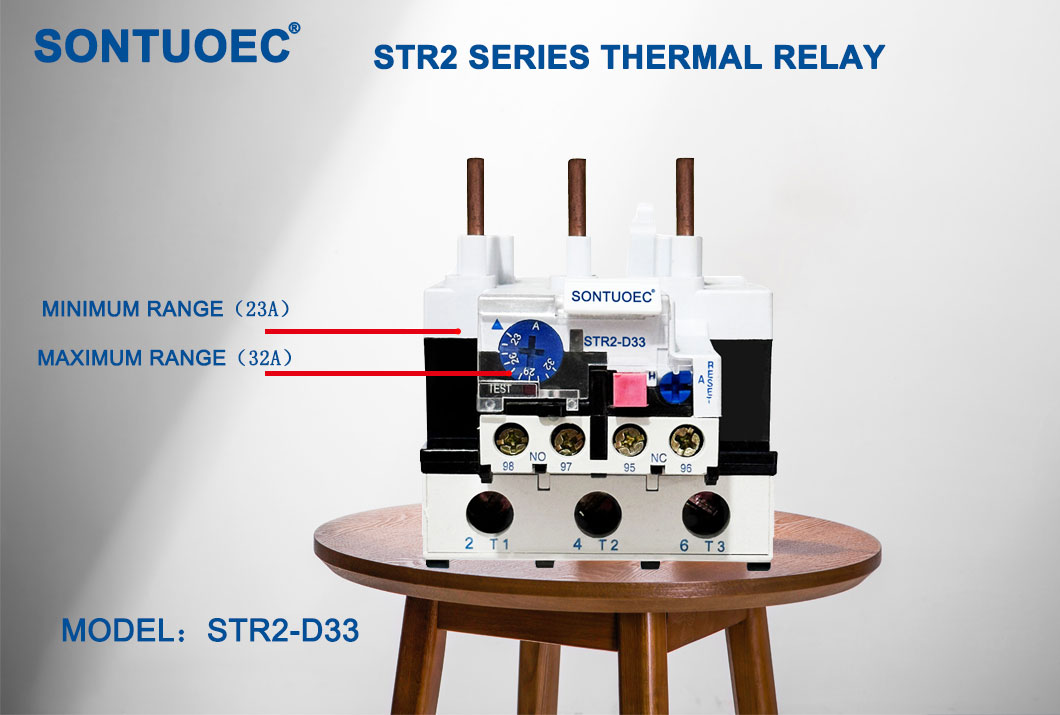

Str2-d33 thermal sib tshooj relay

Str2-d33 thermal overload rov qab ua haujlwm ntawm lub hauv paus ntsiab lus ntawm cov thermal cuam tshuam ntawm hluav taws xob tam sim no. Thaum lub cev muaj zog dhau lawm, nws cov kev nce khoom tam sim no, ua rau cov cua sov hauv lub thermal sib tshooj kom sov. Cov cua sov no pauv mus rau Bimetal, uas yog ua los ntawm ob co cofficients ntawm cov coefficients ntawm thermal expansion, yog li nws khoov thaum ua kom sov. Thaum qhov khoov mus txog ib qho taw tes, nws ua rau lub ntsiab lus siv tshuab, feem ntau yog ib qho kev sib cuag, uas disconnects lub zog xa mus rau lub cev muaj zog, yog li tiv thaiv nws los ntawm kev puas tsuaj.

Xa lus nug

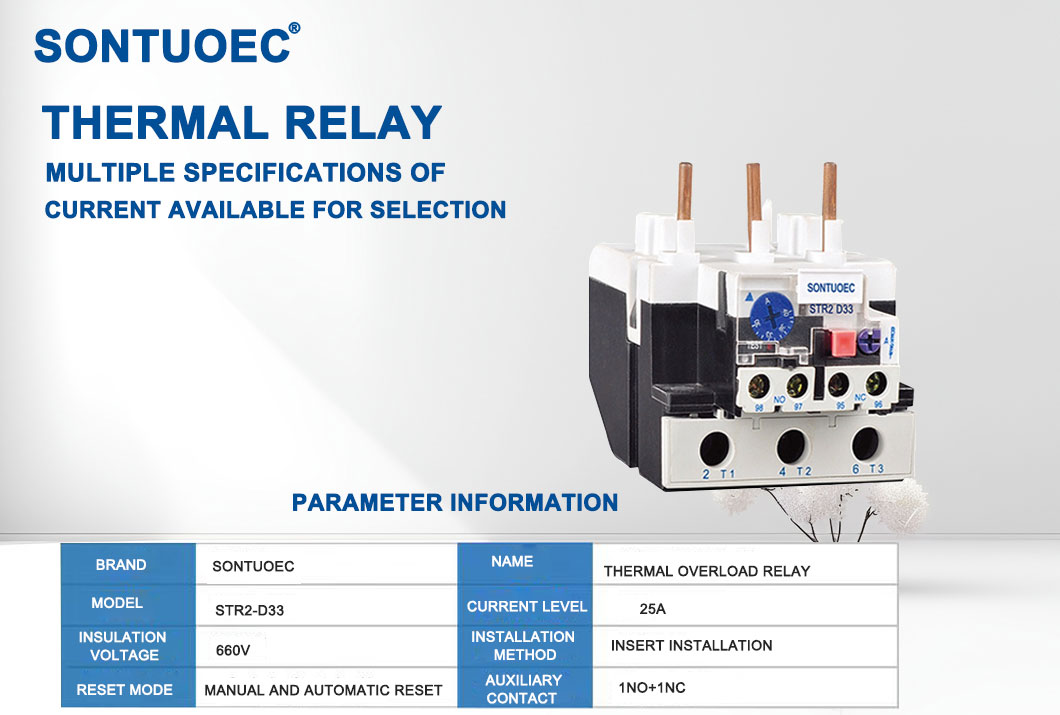

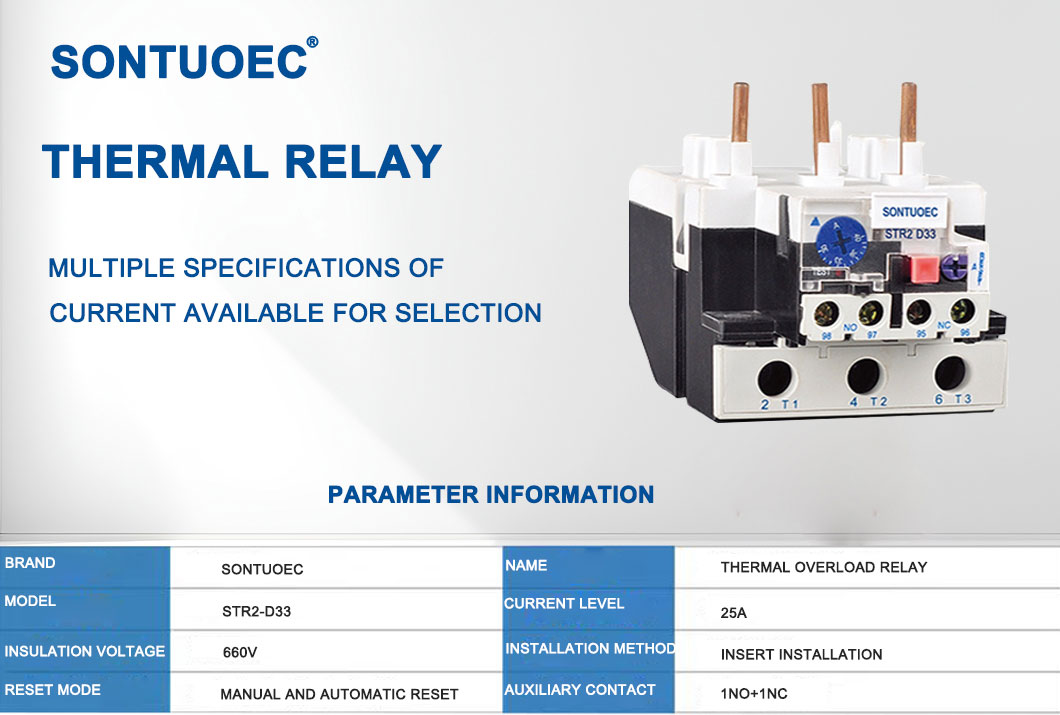

Product Description

Cov lus qhia tshwj xeeb:

Khoom Lub npe	Thermal tshaj relay
Tus qauv	St2-d33
Khoom	Yas, tshuab hluav taws xob
Thermal Tus neeg yus paub	1To + 1nc
Thermal Relayrated tam sim no	23A-93a	Pls ceeb toom cov tam sim no tej roob
Str2-93	Adjustable tam sim no ntau (A) teeb tsa ntau yam	3322	23 ~ 26 ~ 32	Str2-40 ~ 95
		3353	17 ~ 25
		3355	30 ~ 33 ~ 36 ~ 40
		3357	37 ~ 41 ~ 46 ~ 50	Str2-50 ~ 95
		3359	48 ~ 51 ~ 60 ~ 65	Str2-50 ~ 95
		3361	55 ~ 0 ~ 65 65 ~ 70	Str2-62 ~ 95
		3363	63 ~ 71 ~ 80	Str2-80 / str2-95
		3365	80 ~ 85 ~ 93	Str2-95
Hov ntau	660V
Tripping Chav Kawm	50 / 60Hz
Xim	Raws li daim duab qhia

Main Techical tsis muaj

Tus qauv	Rated tam sim no	Tsis muaj.	Teeb tsa ntau (a)	Rau cov neeg sib cuag
Str2-25	25	1301	0.1 ~ 0.12 ~ 0.14 ~ 0.16	Str2-9 ~ 32
		1302	0.16 ~ 0.19 ~ 0.22 ~ 0.25
		1303	0.25 ~ 0.3 ~ 0.35 ~ 0.4
		1304	0.4 ~ 0.05 ~ 0.63
		1305	0.63 ~ 0.8 ~ 0.9 ~ 1
		1306	1 ~ 1.2 ~ 1.4 ~ 1.6
		1307	1.6 ~ 1.9 ~ 2.2 ~ 2.5	Str2-12 ~ 32
		1308	2.5 ~ 3 ~ 3.5 ~ 4
		1309	4 ~ 5 ~ 6
		1312	5.5 ~ 6 ~ 7 ~ 8
		1314	7 ~ 8 ~ 9 ~ 10
		1316	9 ~ 11 ~ 13
		1321	12 ~ 14 ~ 16 ~ 18	Str2-12 ~ 32
		1322	17 ~ 21 ~ 25	Str2-12 ~ 32
		1353	23 ~ 32	Str2-25 / 32 (LC1-D25 / 32)
Str2-36	36	2353	23 ~ 26 ~ 29 ~ 32	Str2-25 / 32 (LC1-D25 / 32)
		2353	28 ~ 32 ~ 36	Str2-32
		2353	30 ~ 40	Str2-32
Str2-93	93	3322	23 ~ 26 ~ 32	Str2-40 ~ 95
		3353	17 ~ 25
		3355	30 ~ 33 ~ 36 ~ 40
		3357	37 ~ 41 ~ 46 ~ 50	Str2-50 ~ 95
		3359	48 ~ 51 ~ 60 ~ 65	Str2-50 ~ 95
		3361	55 ~ 0 ~ 65 65 ~ 70	Str2-62 ~ 95
		3363	63 ~ 71 ~ 80	Str2-80 / str2-95
		3365	80 ~ 85 ~ 93	Str2-95
Str2-140	140		80 ~ 104
			95 ~ 120
			110 ~ 140

Lub cev muaj zog

Kev tiv thaiv ntau dhau: Thaum lub nra ntawm lub cev muaj zog ntau dua nws tus nqi rated, Thermal ntau dhau lub cev muaj zog los tiv thaiv lub cev muaj zog los tiv thaiv lub cev muaj zog thiab puas.

Kev tiv thaiv dua qub: yog tias lub cev muaj zog rau qee qhov laj thawj (piv txwv li kub thiab kub thiab kub tsis quav cawv

Qhia ua haujlwm: Ntau ntau thermal relload muaj kev ua haujlwm ntsuas, uas cov cim qhia lossis hloov pauv, kom tus neeg teb xov tooj tuaj yeem nrhiav thiab ntsuas hauv lub sijhawm.

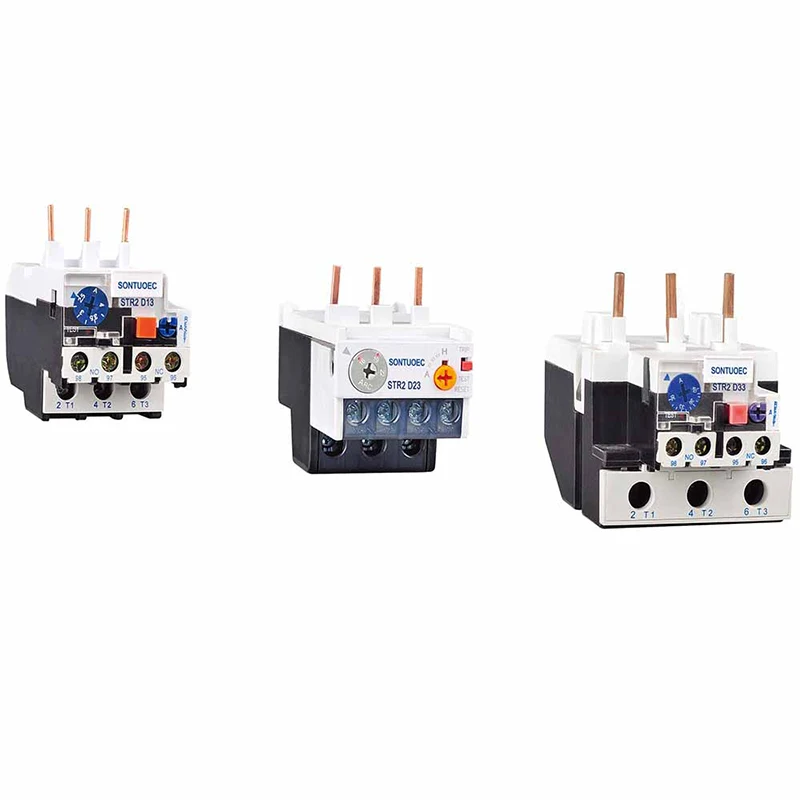

Nws pib xa tawm str2-d series ntawm thermal sib faib tuaj yeem siv nyob rau theem ntawm 50/60

Daim Ntawv Thov Kev Pab Cuam

Thermal sib tshooj tau dav yog dav siv nyob rau hauv ntau hom kev lag luam thiab kev lag luam uas yuav tsum muaj lub cev muaj zog tsav tsheb. Piv txwv li, lawv tau siv rau hauv cov twj, kiv cua, cov kiv cua, conveyors, thiab ntau yam cuab yeej siv tau kaw hauv qhov kev tshwm sim dhau los yog overheating mob.

Xaiv thiab teeb tsa

Thaum xaiv ib thermal sib tshooj relay, yam xws li lub cev muaj zog lub zog, ua haujlwm ib puag ncig, thiab thauj cov xeeb ceem ib puag ncig xav tau. Nws tseem tsim nyog los xyuas kom meej tias cov rated tam sim no ntawm lub thermal overload tam sim no ntawm lub cev muaj zog thiab tias nws muaj kev tiv thaiv zoo thiab ntau dhau kev tiv thaiv thiab ntau tshaj cov yam ntxwv.

Thaum txhim kho lub thermal sib tshooj relay, koj yuav tsum ua raws li cov ntawv tsim cov txheej txheem thiab ua kom pom tseeb tias nws raug txuas nrog lub cev muaj zog thiab tswj cov voj voog. Tsis tas li ntawd, thermal overload rigays yuav tsum tau kuaj xyuas thiab tswj hwm kom ntseeg tau tias ua haujlwm zoo thiab lub neej ntev.

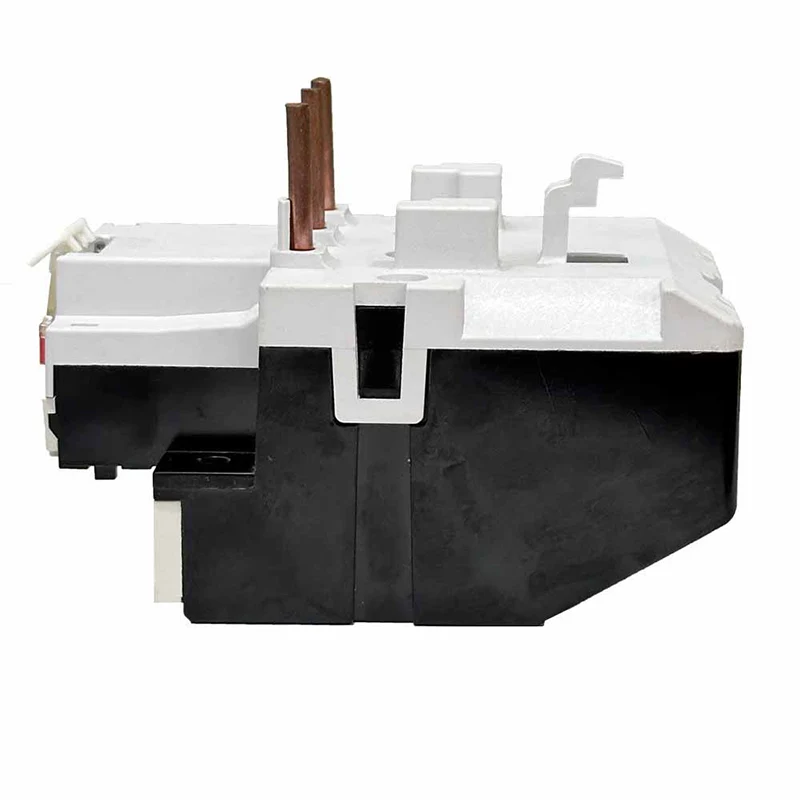

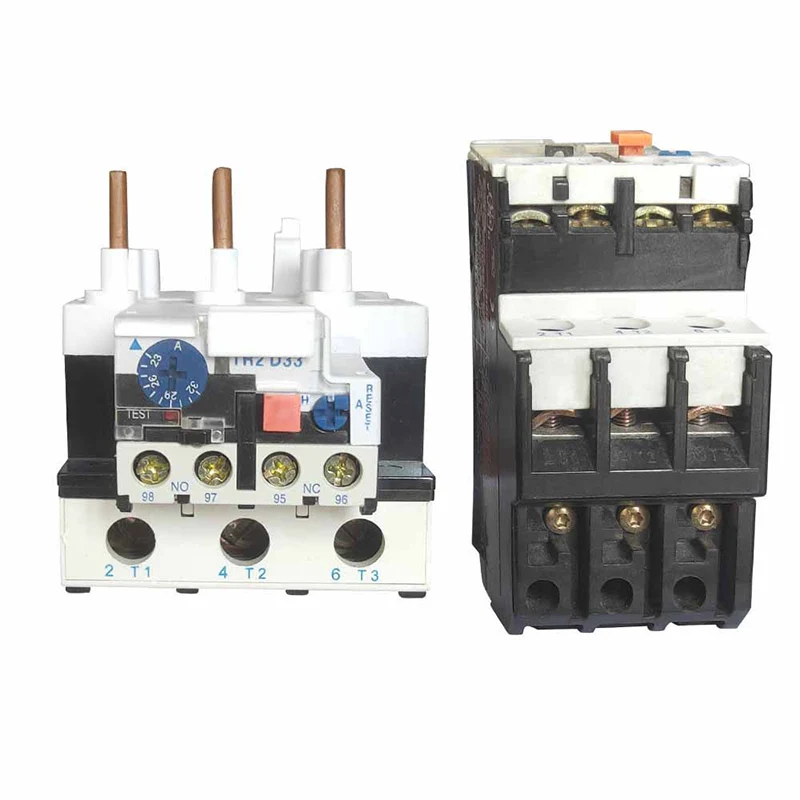

STR2-D33 Thermal Overload Relay
