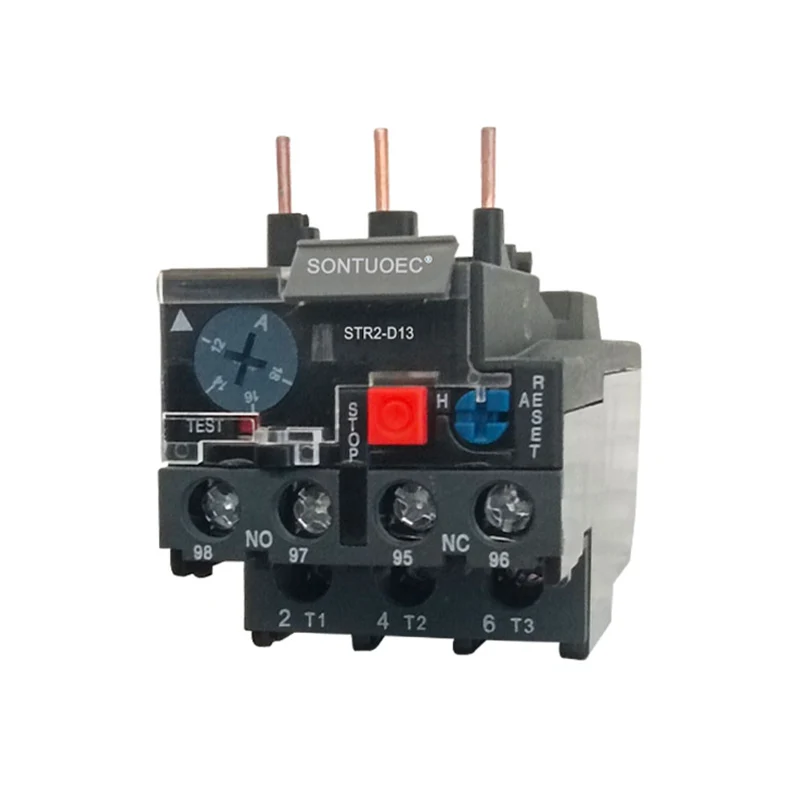

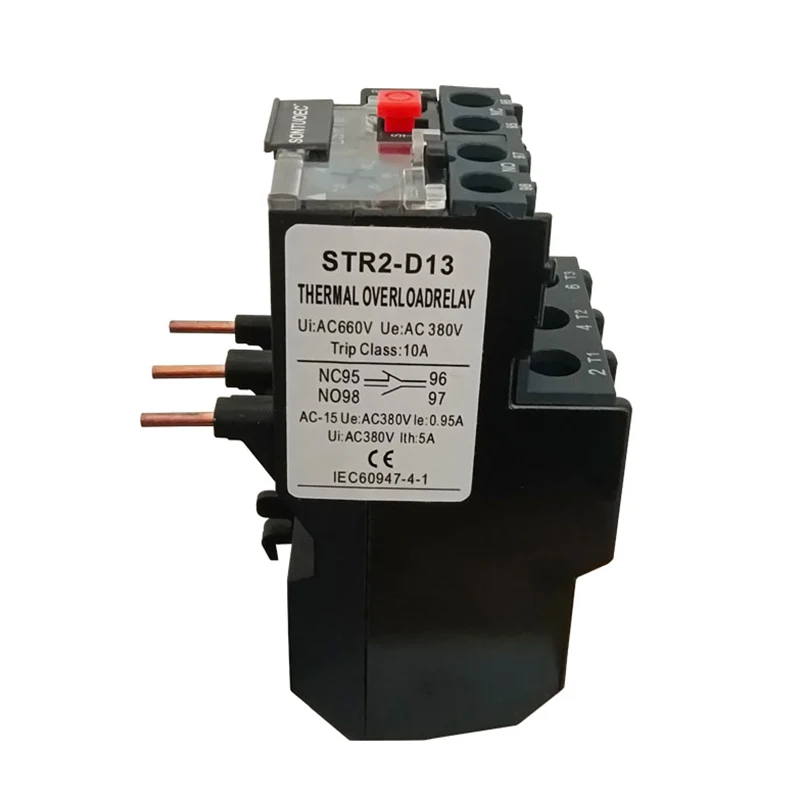

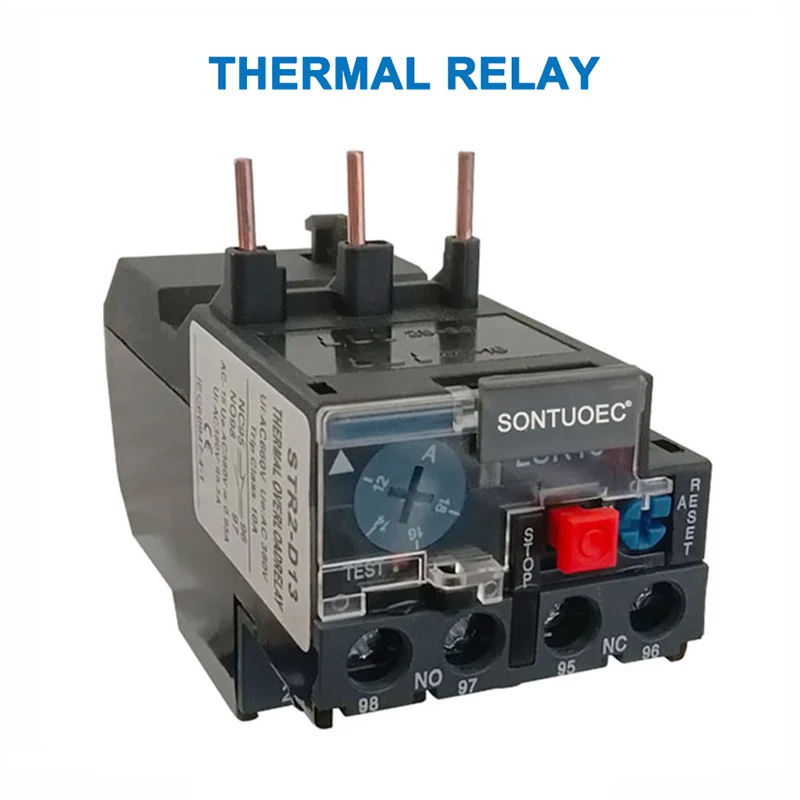

Str2-d13 thermal relay

Str2-d13 Thermal relay yog kev siv tam sim no los ntawm kev ua kom pom kev sib txawv, yog li ua kom muaj kev tiv thaiv ntawm cov kev nthuav dav, kom ua tiav qhov kev tiv thaiv ntawm lub cev muaj zog. Raws li ib qho kev tiv thaiv kev tiv thaiv lub cev muaj zog, str23 thermal relay muaj qhov zoo ntawm qhov loj me me, cov qauv yooj yim thiab tus nqi qis.

Qauv:STR2-D13

Xa lus nug

Product Description

Cov lus qhia tshwj xeeb:

Khoom npe	Thermal tshaj relay
Tus qauv	Str2-d13
Khoom	Yas, tshuab hluav taws xob
THEM THOV	1To + 1nc
Thermal relayrated tam sim no	0.1a-25a
Adjustable tam sim no ntau (A) teeb tsa ntau yam	1A-1.6a
	1.6A-2.5A
	4A-6A
	5.5A-8A
	7A-10a
	9A-13A
	12A-18A
	17a-25a
	Pls nco ntsoov qhov tam sim no thaum tso qhov kev txiav txim
ui
Hov ntau	660V
Tripping Chav Kawm	50 / 60Hz
Tag nrho cov loj (kwv yees)	7 × 4.5cm / 2.8 "× 1.95" (l * w * h)
Xim	Raws li daim duab qhia

Main Techical tsis muaj

Tus qauv	Rated tam sim no	Tsis muaj.	Teeb tsa ntau (a)	Rau cov neeg sib cuag
Str2-25	25	1301	0.1 ~ 0.12 ~ 0.14 ~ 0.16	Str2-9 ~ 32
		1302	0.16 ~ 0.19 ~ 0.22 ~ 0.25
		1303	0.25 ~ 0.3 ~ 0.35 ~ 0.4
		1304	0.4 ~ 0.05 ~ 0.63
		1305	0.63 ~ 0.8 ~ 0.9 ~ 1
		1306	1 ~ 1.2 ~ 1.4 ~ 1.6
		1307	1.6 ~ 1.9 ~ 2.2 ~ 2.5	Str2-12 ~ 32
		1308	2.5 ~ 3 ~ 3.5 ~ 4
		1309	4 ~ 5 ~ 6
		1312	5.5 ~ 6 ~ 7 ~ 8
		1314	7 ~ 8 ~ 9 ~ 10
		1316	9 ~ 11 ~ 13
		1321	12 ~ 14 ~ 16 ~ 18	Str2-12 ~ 32
		1322	17 ~ 21 ~ 25	Str2-12 ~ 32
		1353	23 ~ 32	Str2-25 / 32 (LC1-D25 / 32)
Str2-36	36	2353	23 ~ 26 ~ 29 ~ 32	Str2-25 / 32 (LC1-D25 / 32)
		2353	28 ~ 32 ~ 36	Str2-32
		2353	30 ~ 40	Str2-32
Str2-93	93	3322	23 ~ 26 ~ 32	Str2-40 ~ 95
		3353	17 ~ 25
		3355	30 ~ 33 ~ 36 ~ 40
		3357	37 ~ 41 ~ 46 ~ 50	Str2-50 ~ 95
		3359	48 ~ 51 ~ 60 ~ 65	Str2-50 ~ 95
		3361	55 ~ 0 ~ 65 65 ~ 70	Str2-62 ~ 95
		3363	63 ~ 71 ~ 80	Str2-80 / str2-95
		3365	80 ~ 85 ~ 93	Str2-95
Str2-140	140		80 ~ 104
			95 ~ 120
			110 ~ 140

Muaj pes tsawg leeg thiab cov qauv

Str2-d13 Thermal relay tsuas yog muaj cov cua sov lub caij, bimetal, cov neeg hu thiab hloov kho tshuab thiab hloov kho tshuab. Ntawm lawv, lub cua sov yog ib daig ntawm cov hlau ua kom tsis kam uas muaj tus nqi tseem ceeb, uas txuas rau hauv cov kab ke ntawm lub cev muaj kev tiv thaiv; Daim ntawv Bimetal yog ua los ntawm ob hom hlau cov ntaub ntawv nrog cov coefficients ntawm thermal tam sim no los ntawm cov ntawv cua sov, thiab thaum lub thawv hluav taws xob yuav khoov duav vim tias kub.

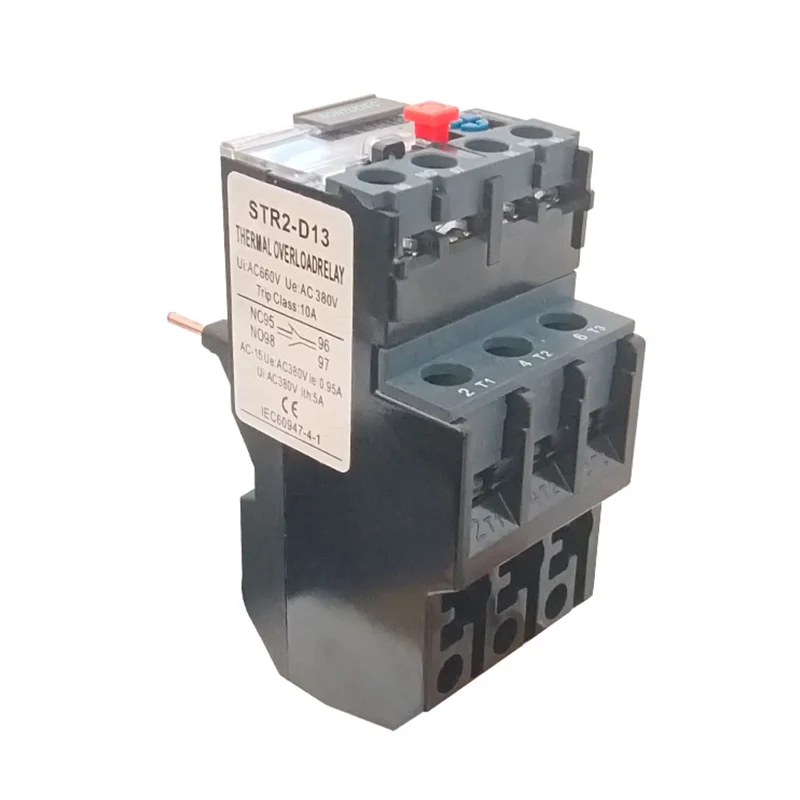

STR2-D13 Thermal Relay

Kev tsis muaj

Cov ntsiab lus tseem ceeb ntawm str23 thermal relay suav nrog voltage xws li ntsuas, ntsuas zaus tam sim no, cov zaus zaus thiab ib qho xwm txheej tam sim no. Ntawm lawv, cov ntsuas hluav taws xob ntsuas yog hais txog qhov hluav taws xob ntau tshaj plaws uas yog Str23 thermal relay tuaj yeem ua haujlwm ib txwm, feem ntau 220V, 600V, thiab lwm yam .; Qhov ntsuas Rated tam sim no yog hais txog qhov tam sim no los ntawm Str23 Thermal relay; Qhov ntsuas kev ntsuas feem ntau tau tsim nyob rau hauv raws li 45-62Hz; Qhov ntau ntawm cov rated tam sim no qhia txog kev sib raug zoo ntawm lub sijhawm txiav txim ntawm str23 thermal relay thiab lub xwmfab ntawm qhov kev sib nug tam sim no nyob rau hauv cov xwm txheej ntawm ib qho kev mob tam sim no.

Cov yam ntxwv ua haujlwm

Cov yam ntxwv ua haujlwm ntawm Str2-D14 Thermal relay nyob ntawm nws sab hauv bimetal thiab cua sov. Thaum lub cev muaj zog dhau lawm, tam sim no nyob rau hauv cov winding nce, thiab khoov mus rau qhov ntau dua, ua rau thawb txuas ntxiv rau hauv kev nqis tes ua thiab txiav tawm cov kev tswj hwm hluav taws xob. Tom qab str23 thermal relay tau ua yeeb yam, lub bimetal yuav tsum muaj lub sijhawm txias ua ntej nws tuaj yeem rov pib dua.

Lub luag haujlwm thiab kev thov

Str23 d13 thermal ncua feem ntau yog siv los tiv thaiv cov hluav taws xob hluav taws xob tiv thaiv kev ua yuam kev xws li ntau dua cov khoom siv hluav taws xob. Nyob rau hauv lub cev muaj zog circuits, str23 thermal cia yog ua tau zoo tshaj plaws thaum siv nrog Circuit Court tiv thaiv nrog luv luv-circuition tiv thaiv. Tsis tas li ntawd, str23 thermal xa tuaj yeem siv tau rau kev tiv thaiv hluav taws xob ntawm lwm cov khoom siv hluav taws xob lossis hluav taws xob circuical.

Ceev faj rau xaiv thiab siv

Thaum xaiv Str23 thermal thim, kev txiav txim siab ua haujlwm yuav tsum tau ua raws li qhov chaw nyob tam sim no, thiab xyuas kom meej tias nws cov hlau yog qhov tseeb thiab khov kho.

Nyob rau hauv chav kawm ntawm kev siv, cov xwm txheej ua haujlwm ntawm str23 thermal relay yuav tsum tau kuaj xyuas nws dua yooj yim dua, cov hluav taws xob hloov kho tau yooj yim dua, cov hluav taws xob sib zog.
