STN3 Hom Mould Cov Ntaub Ntawv Circuit Court

STN3 Hom Mould Cov Ntaub Ntawv Circuit Court yog ib qho kev ntseeg siab thiab kev daws teeb meem rau kev tiv thaiv hluav taws xob hauv ntau yam kev siv. Nws cov qauv kev tsim kho, muaj kev tiv thaiv ntau ntxiv, thiab kev sib txuas lus ua rau nws xaiv qhov hluav taws xob zoo tshaj plaws.

Qauv:STN3

Xa lus nug

Product Description

Cov lus qhia	Stn3 100				Stn3 160				Stn3 250				Stn3 400				STN3 630
Ncej Tam Sim No (A)	100				160				250				400				630
Tus naj npawb ntawm tus ncej	3		4		3		4		3		4		3		4		3		4
Qhov kawg breaking muaj peev xwm (ICU, KA)	F	N		H	F	N		H	F	N		H	F	N		H	F	N		H
AC220 / 240V (los ntawm)	85	90		100	85	90		100	85	90		100	40	85		100	40	85		100
AC380 / 415V (Ka)	36	50		70	36	50		70	36	50		70	36	50		70	36	50		70
Ntsuas cov ntaub ntawv rwb thaiv tsev voltage	AC800V
Cov Chaw Ua Haujlwm Ntsuas Ua Haujlwm	AC690V
Rated tam sim no, thermal tripping, TMD, a	63, 80, 100				80, 100, 125, 160				125, 160, 200, 250				-				-
Rated tam sim no, hluav taws xob tripping, mic, a	40, 100				40, 100, 160				100, 160, 250				250,				250, 400,
													400				630
Ntu, Tshaj Qhia, Ua txhaum Accessories	Lossis / sd / sde / sdx
Shunt & under voltage coil	Mx / mn
Neeg Kho Tshuab Lub Neej	50000				40000				20000				15000				15000
Lub Neej Hluav Taws Xob	30000				20000				10000				6000				4000

Qauv tsis muaj.	Stn3
Txheem:	Iec 60947-2
Arc-Extinguishing Nruab Nrab	Cua
Lub tsev	Mccb
Ntaus	Moulede Sib Circuit Court breaker
Daim ntawv muaj cai	Piam
Kev pom zoo	CE, ISO9001
Lub sijhawm khoom xa tuaj	Tsis pub dhau 20days
Kev qhia tshwj xeeb	63A-630A
Lub hauv paus	Wenzhou Zhanjiang
Muaj peev xwm ntau lawm	2000pieces / Lub Limtiam
Hov ceev	Txoj Kev Ncaj Ncees Qub
Kev muab cia	Kho
Tus lej ncej	3P 4P
Rooj mov	Cov Circuit Court Txheem, Circuit Court Kev Tiv Thaiv Kev Tiv Thaiv Kev Tiv Thaiv, Overcurrent tiv thaiv
Tus nqi	Hoobkas Nqe
Warranty Sijhawm	12momths
Ntaub	Sab hauv lub thawv / thawv
Trademark	ESUEEC, WZSCEC, ESUTUNE, IMDEC
Hs code	8536200000

Cov Nta Tseem Ceeb

• Kev Tiv Thaiv thiab Ua Haujlwm: Cov kev txhaum no muaj kev tiv thaiv hluav taws xob, suav nrog kev tiv thaiv ntau dhau thiab hla kev sib nrug. Lawv tau tsim los cia li txiav tawm qhov Circuit Court thaum lub txhaum tshwm sim, tiv thaiv kev puas tsuaj thiab kom muaj kev nyab xeeb.

• Plhaub tam sim no thiab ntaus nqi tam sim no (E.G., 160n) qhia tias qhov muaj peev xwm nthuav dav ntau tshaj plaws. Qhov Rated tam sim no (piv txwv li, 100a) yog qhov kev ua haujlwm ntau tshaj plaws tam sim no ntawm Circuit Courating tam sim no yuav tsum tsis pub dhau los tiv thaiv tripping seager vim overcurrent.

• Hauv 3-ncej (3p) thiab 4-ncej (4p) kev teeb tsa, haum rau cov hluav taws xob sib txawv thiab cov ntawv thov.

• Cov Chav Hluav Taws Xob Hauv Hluav Taws Xob: Kev ntsuas hluav taws xob ua kom haum thiab ntsuas kev sib txuas lus, pub rau cov hluav taws xob ntawm hluav taws xob.

• Kev tsim qauv kev cog lus: cov lus cog NSX series, tshwj xeeb, yog paub rau nws cov kev tsim hluav taws xob, uas sib xyaw ua ke, ntsuas, kev tswj hwm, thiab cov cuab yeej tswj hwm thiab kev tswjfuam.

Cov Ntawv Thov

• Muaj siv: siv dav hauv kev lag luam teeb tsa rau kev faib tawm thiab tiv thaiv lub zog hluav taws xob rau ntau yam khoom siv thiab cov tshuab.

• Lub zog thiab vaj tse: haum rau cov ntawv thov nyob rau hauv Zog kev nthuav dav networks thiab infrastrastructure tej yaam num.

• Kev lag luam thiab thaj chaw: kuj tseem siv rau hauv cov tsev lag luam thiab vaj tsev nyob rau lub ntsiab lus tseem ceeb thiab theem nrab.

Cov qauv ntxiv ntawm cov lus cog NSX series

• Kev tiv thaiv txhim kho: cov yam ntxwv xws li kev sib hloov ob-sib hloov thiab lub zog ua kom muaj kev tiv thaiv kom tsis txhob muaj kev txhaum.

• Kev xaiv kev sib koom tes: Txhim kho kev xaiv yuav tsum muaj kev sib txuas lus txuas ntxiv ntawm cov khoom siv hluav taws xob tsis txaus ntseeg thaum lub sijhawm ua txhaum cai.

• Muaj peev xwm sib txuas lus: Modbus kev sib txuas lus module thiab BSCM (breaker xwm txheej tswj module) pab cov ntaub ntawv sib kis ntawm lub Circuit Court breaker thiab tus saib xyuas lub cev.

• Tso saib thiab saib xyuas thiab kev npaj "coj thiab cov ntaub ntawv ntawm FDM, thaum FDM121 Txee rooj qhov rooj saib xyuas tau tuaj yeem ua rau muaj ntau yam ntsuas.

• Kev saib xyuas thiab kev teeb tsa: Kev saib xyuas kev saib xyuas hnav cov kev tiv tauj, cov khoom siv thauj khoom, thiab cov haujlwm suav, kev saib xyuas kev twv xyuas.

Txhim Kho thiab Txij Nkawm

• Kev teeb tsa: Ua raws cov chaw tsim khoom rau cov lus qhia rau kev teeb tsa kom haum, ua kom pom cov khoom siv tsawg kawg nkaus thiab siv cov khoom tsim nyog mounting.

• Kev Txij Nkawm: Kev Tshuaj Xyuas Ib Ntaug thiab Kev Ntsuam Xyuas Cov Circuit Court Qhov Kev Pab Cuam Circuit Court tau pom zoo kom lawv muaj kev tiv thaiv tas li.

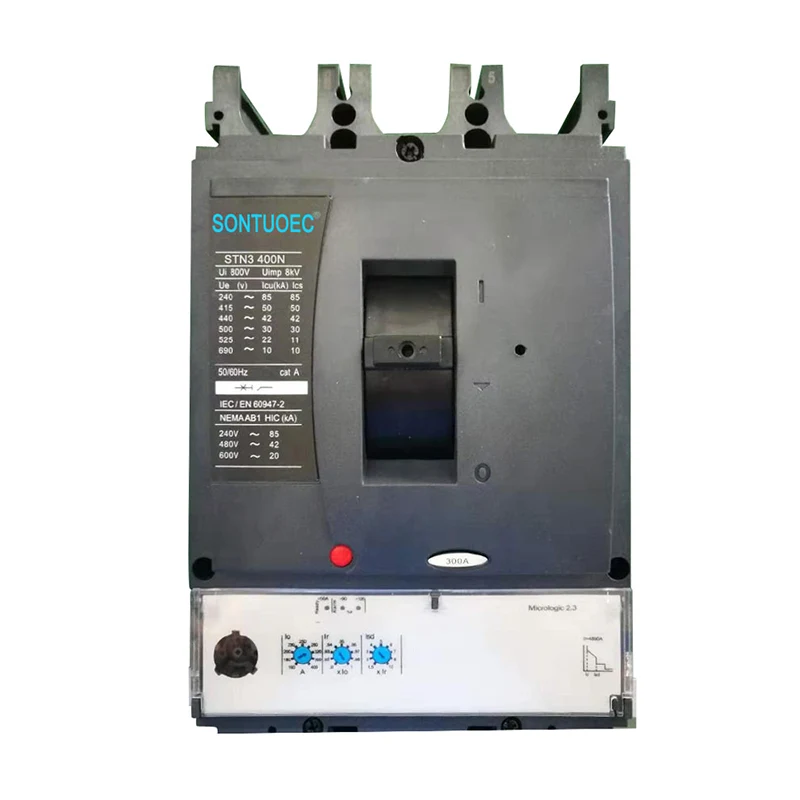

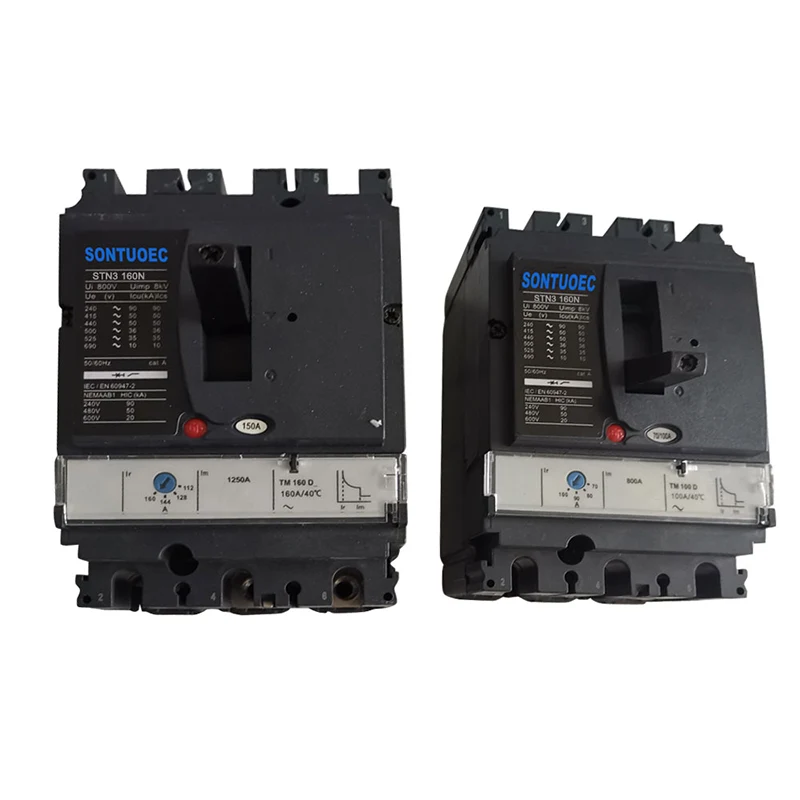

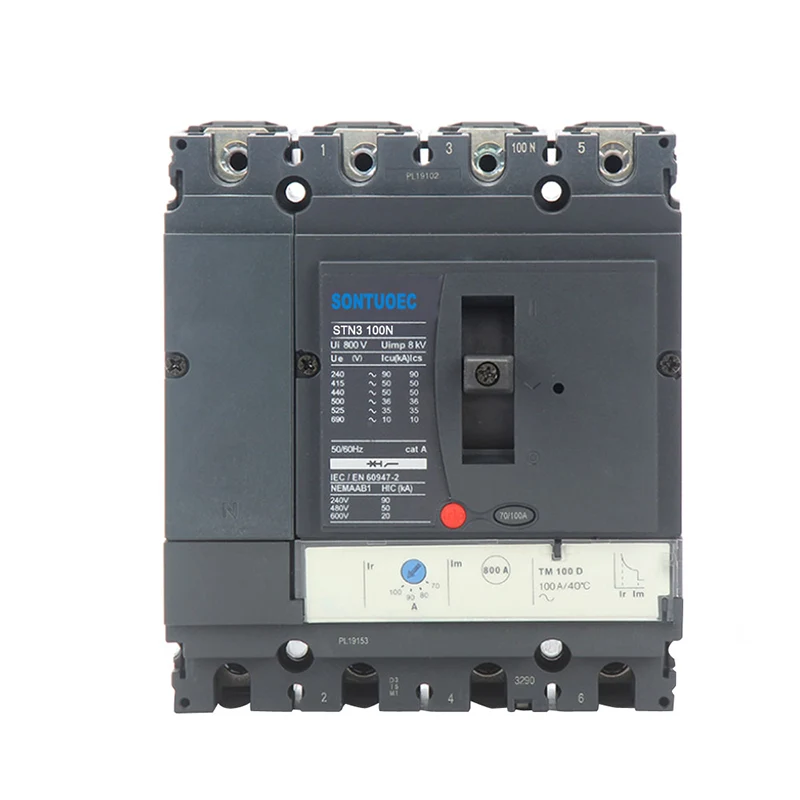

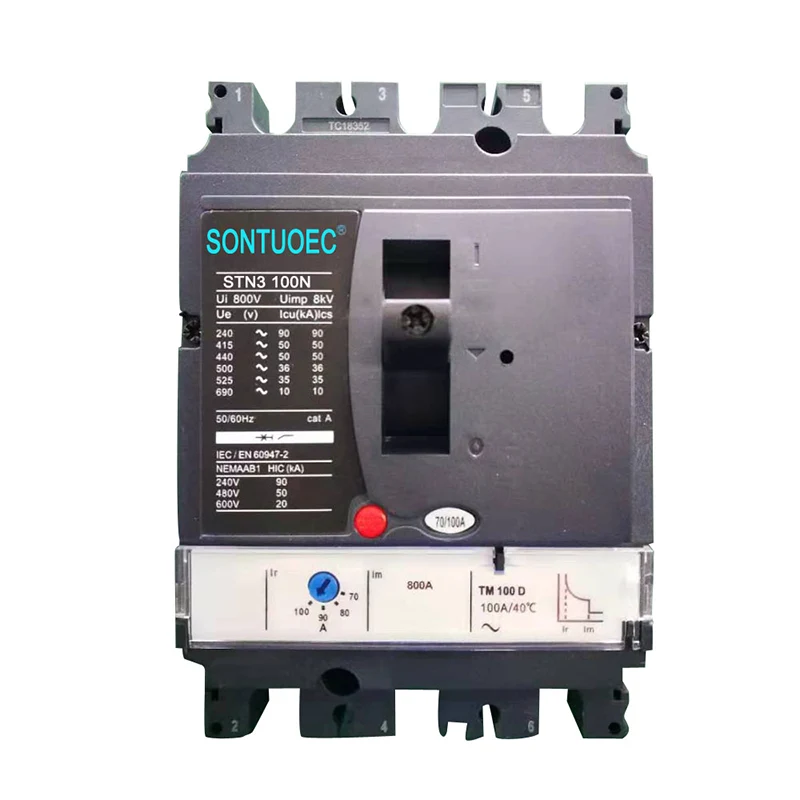

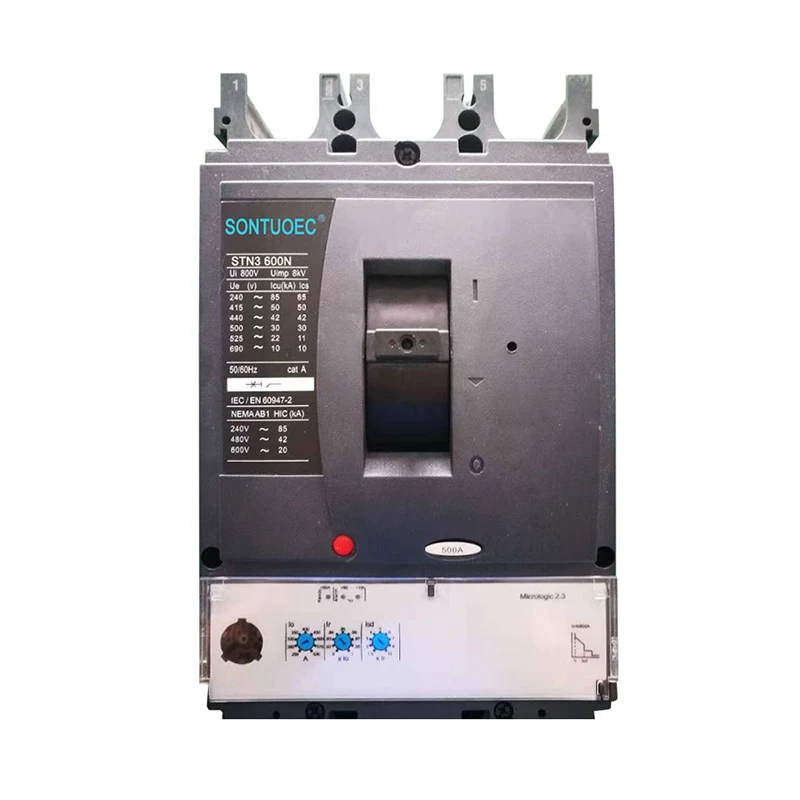

STN3 Type Moulded Case Circuit Breaker
