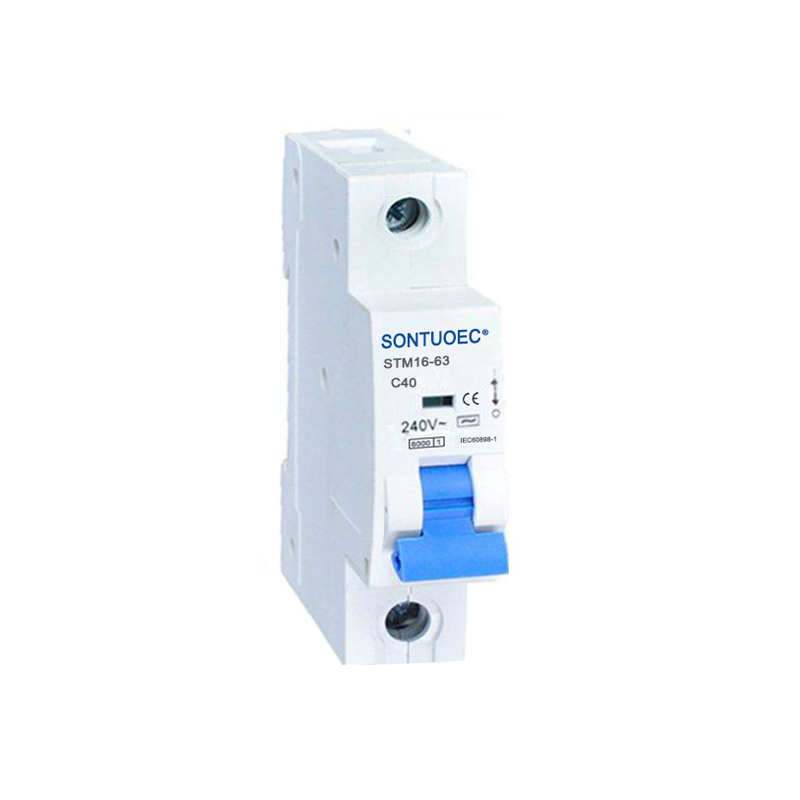

STM16-63 Tej Yam Me Ceg Txheem Cegruit Court Fais Fab Finer 6ka 1P 2P 3P 4P 16P 166 / 400v McB

Sontuoec Stm16-63 Tej Yam Me Cegruit Court Breaker 6ka 1P 2P 3P 4P 3P 16P 166 / Qhov Cuam Tshuam Loj, Qhov Chaw Ua Tau Zoo, Muaj Zog Hluav Taws Xob-Retardant Featard. Nws yog qhov haum rau lub zog hluav taws xob ntawm AC 50 / 60Hz, ntsuas hluav taws xob ntawm 230 / 400v, thiab ntaus nqi tam sim no txog 63a. Nws yog ib qho tseem ceeb ntawm chaw ua haujlwm lub tsev, chaw nyob, chaw nyob, faib hluav taws xob thiab ntau dhau ntawm cov khoom siv hluav taws xob. Nquag, nws tseem tuaj yeem siv los ua qhov tsis nquag hloov ntawm lub zog hluav taws xob. Nws conforms rau cov qauv IEC60898-1.

Qauv:STM16-63

Xa lus nug

Product Description

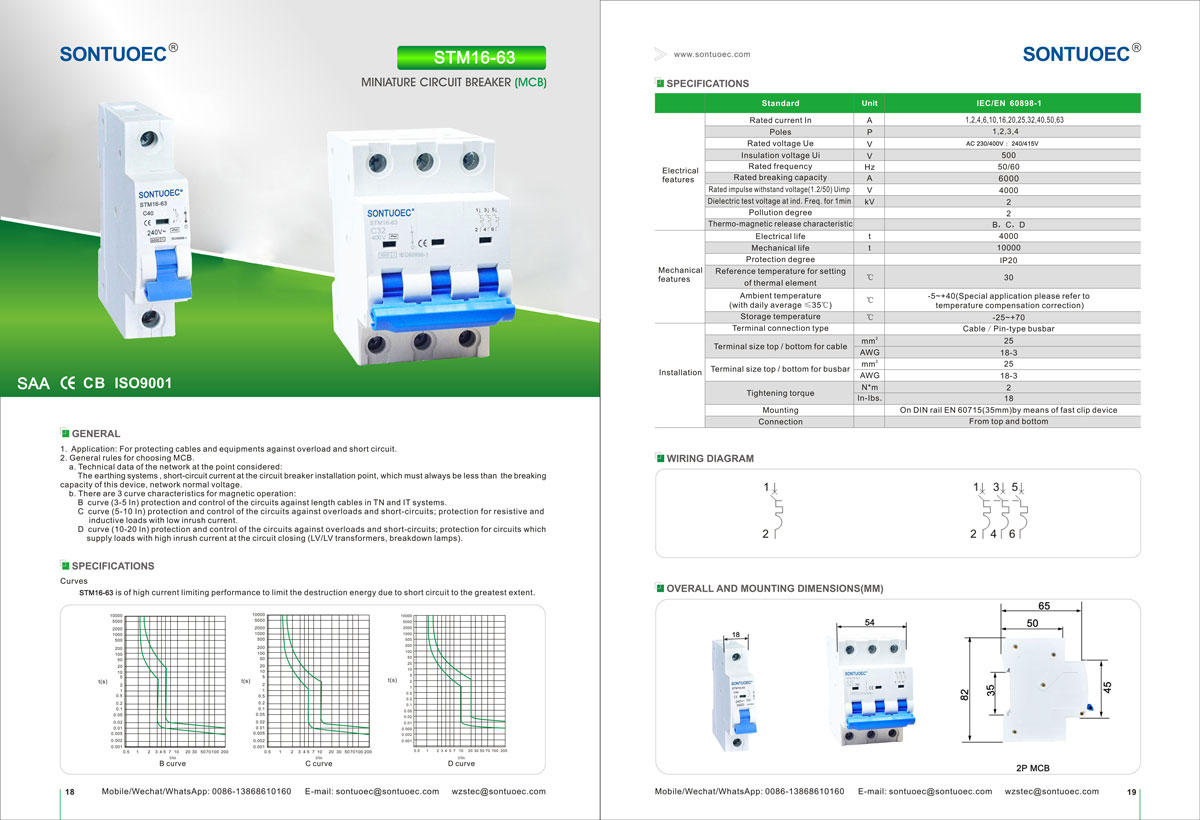

Cov lus qhia tshwj xeeb:

	Lub hom phiaj		Iec / en 60898-1
Hluav taws xob Nta	Rated tam sim no nyob rau hauv	A	1,2,4,10,16,20,25,32,40,50,63
	Ncej	P	1p, 2p, 3p, 4p
	Ntsuas Voltage UE	V	AC 230, 400
	Rwb Thaiv Tsev Voltage Ui	V	500
	Nyob Qhov Coob	Hz	50/60
	Kev ntsuas hluav taws xob rated	A	3000, 4500, 6000
	Nyob rau hauv impulse withstand voltage (1.2 / 50) Uimp	V	4000
	Dielectric kev xeem voltage ntawm ind.freq.for 1 min	Kv	2
	Degion degree		2
	Thermo-sib nqus tso cov xeeb ceem		B, c, d
Txawj kho ub no Nta	Hluav Taws Xob Lub Neej	t	4000
	Neeg Kho Tshuab Lub Neej	t	10000
	Kev tiv thaiv degree		Liphaus20
	Kev siv qhov kub thiab txias rau kev teeb tsa ntawm thermal caij	ºC	30
	Thaj kub cua sov (nrog nruab nrab hauv nruab nrab ≤35ºC)	ºC	-5 ~ + 40 (daim ntawv thov tshwj xeeb thov xa mus rau Kev Them Kho Qhov Kub)
	Cia kub	ºC	-25 ~ + 70
Kev muab cia	Lub Terminal Txuas Hom		Cable / PIN-hom Busbar
	Lub davhlau ya nyob twg loj dua / hauv qab rau cable	lub hli²	25
	Lub davhlau ya nyob twg loj dua / hauv qab rau cable	Txawm li	18-3
	Therminal loj saum toj / hauv qab rau Busbar	lub hli²	25
	Therminal loj saum toj / hauv qab rau Busbar	Txawm li	18-3
	Zawm Torque	N^*m	2
	Zawm Torque	Hauv-lbs	18
	Mounting		Ntawm lub tsheb nqaj hlau en 60715 (35 hli) los ntawm kev tuav ntaub ntawv
	Kev sib txua		Los ntawm sab saum toj thiab hauv qab

STM16-63 Tej Yam Me Ceg Txheem Cegruit Court Fais Fab Finer 6ka 1P 2P 3P 4P 16P 166 / 400v McB

* Cov ntaub ntawv txheej txheem ntawm lub network ntawm lub ntsiab lus suav hais tias:

Lub tshuab ua si, luv luv corrmuit Court tam sim no ntawm Circuit Court Breaker Installation, uas yuav tsum nco ntsoov yuav tsawg dua li qhov tawg

muaj peev xwm ntawm cov cuab yeej no, network li qub voltage.

* Muaj 3 tus yam ntxwv nkhaus rau kev sib nqus haujlwm:

* B nkhaus (3-5 hauv) kev tiv thaiv thiab tswj cov kab kev tawm tsam ntev cables hauv tn thiab nws systems.

* C nkhaus (5-10 hauv) kev tiv thaiv thiab tswj cov voj voog tiv thaiv kev sib txawv thiab luv luv hluav taws xob; Kev tiv thaiv rau kev tiv taus thiab

inductive thauj nrog qis inrush tam sim no.

* D nkhaus (10-20 nyob rau hauv) kev tiv thaiv thiab tswj ntawm cov voj voog tiv thaiv ntau dhau ntawm kev sib txawv thiab luv-circuits; Kev tiv thaiv rau cov cim uas

Muab cov khoom xa nrog cov kev kaw siab tam sim no tam sim no ntawm Circuit Close (LV / LV transformers, teeb tsa puas tsuaj).

Peb Pros:

1. TAM SIM NTAWB KEV LAG LUAM 20 XYOO KEV KAWM

2.competitive nqe

3.Covamuarance Pab thiab txhawb nqa

4.Qhoo-tom qab kev pabcuam

5.Qually constiability thiab ntev tsim lub neej

Cov FAQ

Q1. Koj muaj cov txiaj ntsig dab tsi?

A. Peb yog cov chaw tsim khoom ncaj qha nyob rau hauv Wenzhou Tuam Tshoj, thiab peb pab neeg muaj ntau dua 20 xyoo muaj ntau dua 20 xyoo muaj ntau tshaj li kev tsim tawm, kev lag luam thiab cov kev pabcuam zoo tshaj plaws.

Q2. Koj lub Hoobkas tau li cas txog kev tswj hwm zoo?

A. Txhua cov khoom yuav yog 100% kuaj xyuas ua ntej cov zaub mov xa tuaj.

Q3. Cov ntsiab lus them nqi twg?

A. Peb lees txais TT, 30% tso nyiaj thiab 70% sib npaug daim ntawv theej ntawm bl.

Q4. Lub sijhawm xa khoom li cas?

A. Feem ntau nws yuav siv sijhawm li 25 hnub rau kev tsim khoom.

Q5. Dab tsi yog koj cov khoom tseem ceeb?

A. Circuit Rurner (MCB, RCCB / RCD, RCBO, ELCB, MCCB, ACB); Tus neeg hu, thermal relay, stattersetic; Kev Hloov Mob Pwm, Hloov Hloov, Thawb khawm hloov, hluav taws xob tiv thaiv, thiab lwm yam.

Q6. Kuv puas tuaj yeem tso kuv lub logo rau nws?

A. Yog tias koj muaj ntau qhov ntau, nws kiag li tsis muaj teeb meem ua OEM.

Q7. Koj puas muab cov qauv? Puas yog nws pub dawb lossis ntxiv? Koj muab cov qauv? Puas yog nws pub dawb lossis ntxiv?

A. Yog, peb tuaj yeem muab cov qauv coj mus them dawb, tab sis tus nqi hais qhia yuav tsum tau them los ntawm cov neeg yuav khoom.

Q8. Koj cov nqe lus ntawm kev them nyiaj yog dab tsi?

A. Peb lees txais TT, 30% tso nyiaj thiab 70% sib npaug daim ntawv theej ntawm bl.

Q9. Koj txoj cai txiavtxim li cas?

A. 18 lub hlis.

Q10. Ib daim ntawv pov thawj ntawm koj lub tuam txhab lossis khoom lag luam?

A. Peb muaj ISO 9001, CE, CB, Semko, Saa, Tuv.
