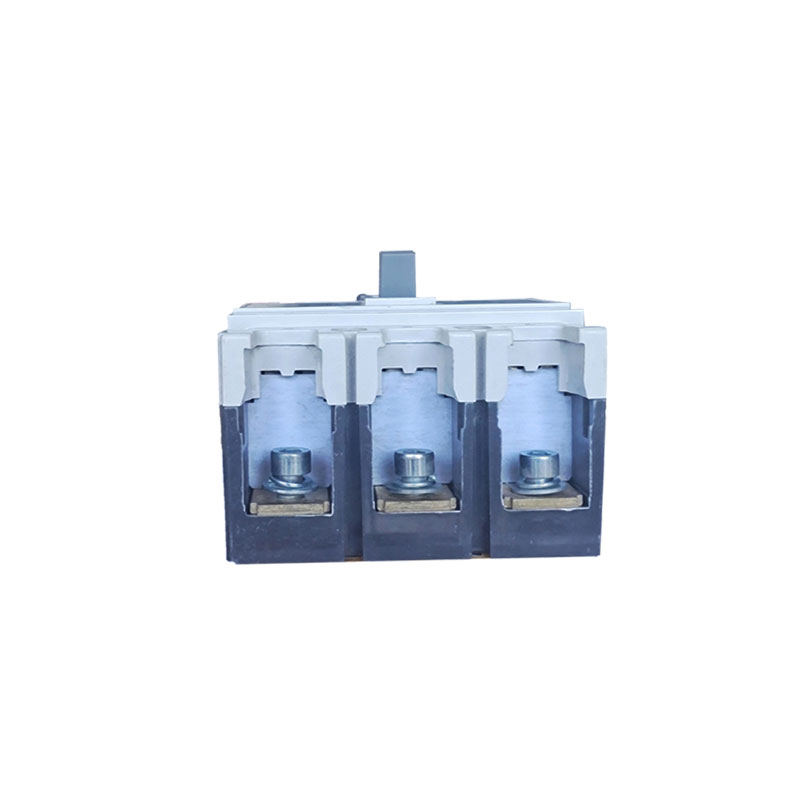

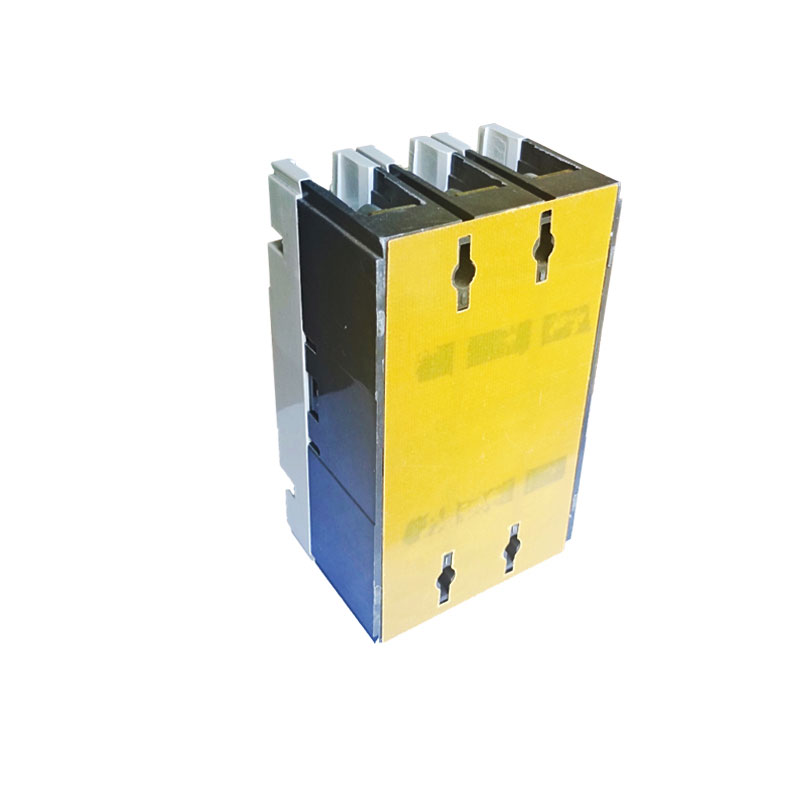

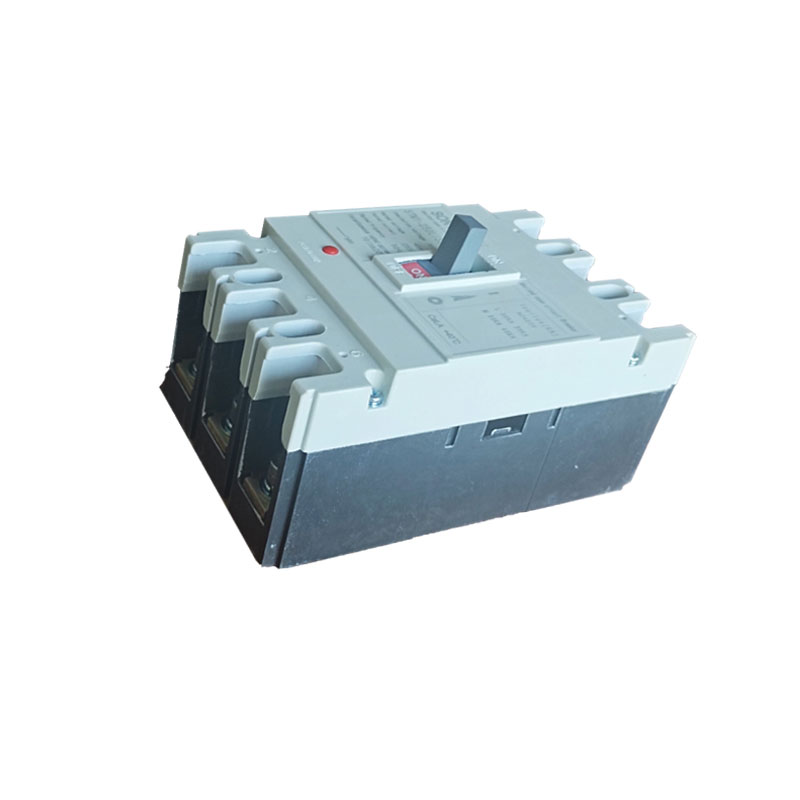

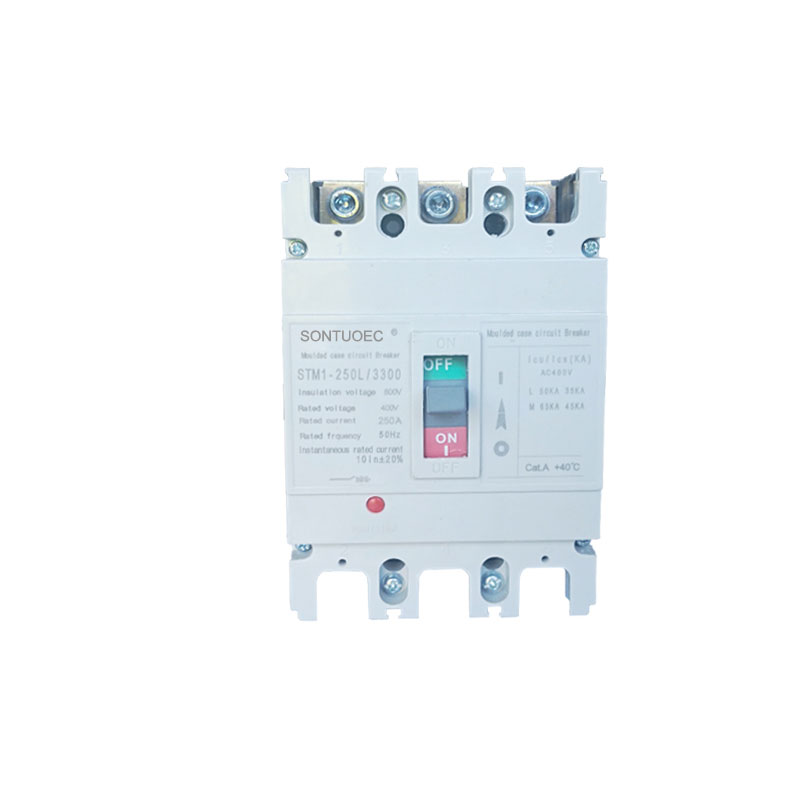

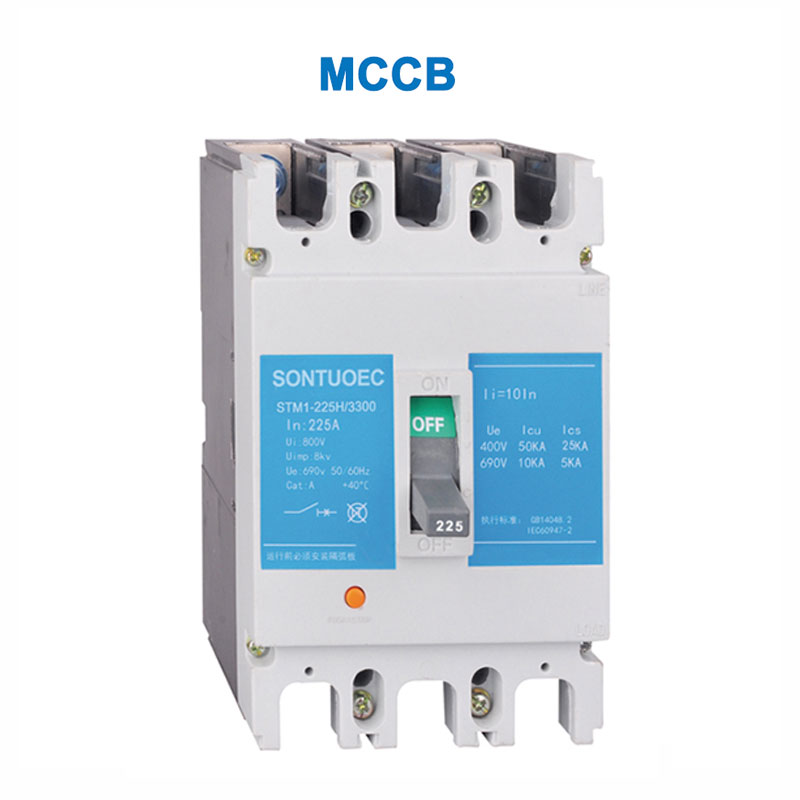

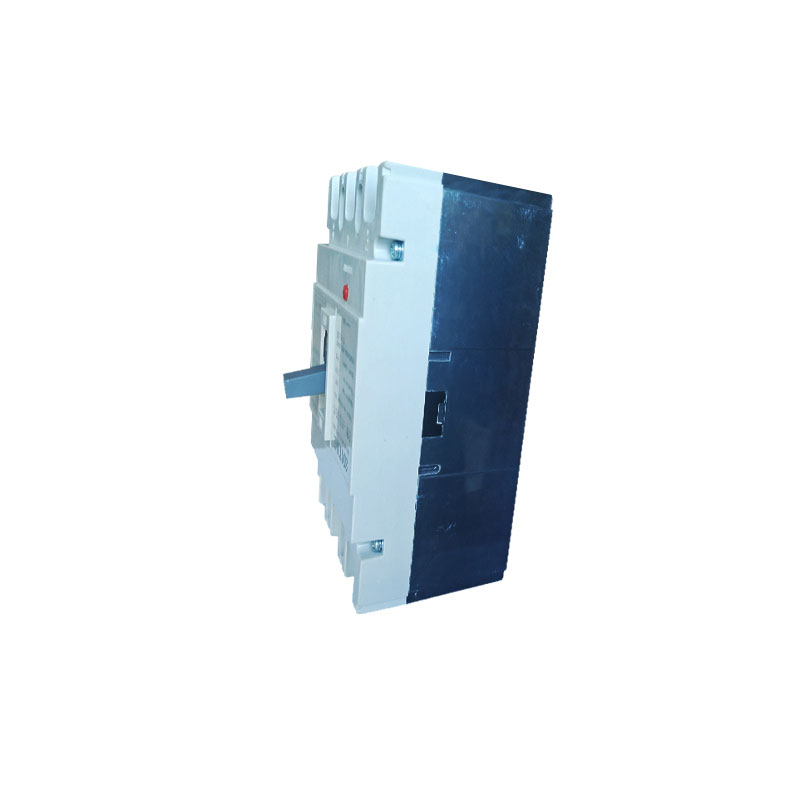

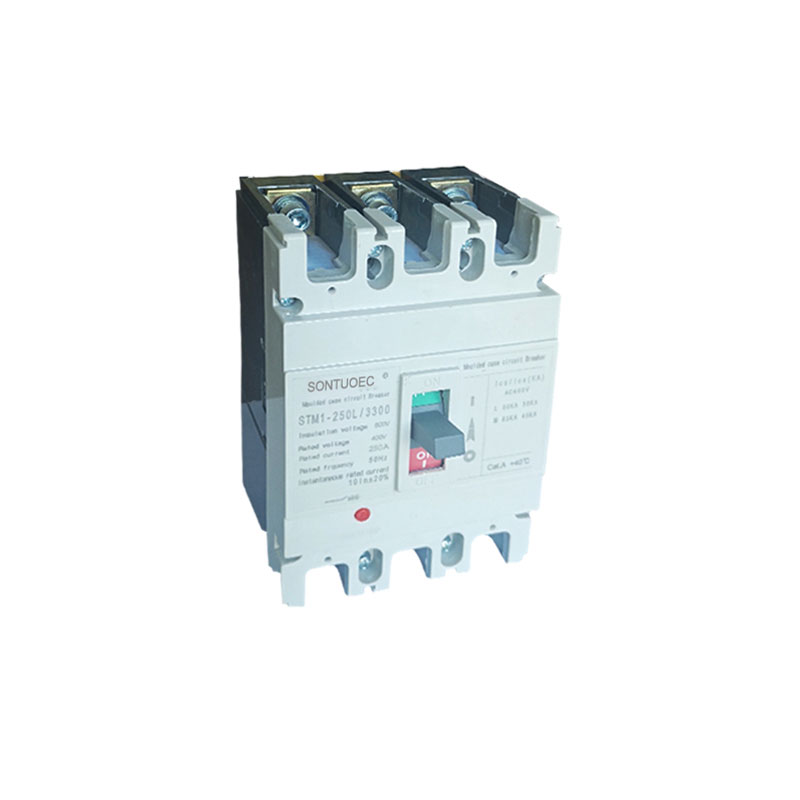

STM1 Mould Cov Ntaub Ntawv Sib Koom

STM1 Mould Cov Ntaub Ntawv Circuit Court, McCb, Lub Npe Tag Nrho yog Moulded Cov Ntaub Ntawv Circuit Coer. Nws yog cov khoom siv hluav taws xob hluav taws xob nrog cov kev tiv thaiv hluav taws xob ntau dhau los, cov khoom lag luam tsis sib haum xeeb nrog cov haujlwm muaj ntau dhau, kev tiv thaiv hluav taws xob ntau thiab undervolters kev tiv thaiv. Los ntawm kev nkag siab txog nws lub ntsiab cai ua haujlwm, cov yam ntxwv, thov xaiv thiab tswj STM1, koj tuaj yeem siv cov kab ke STM1, koj tuaj yeem ua haujlwm zoo thiab ua haujlwm zoo ntawm cov tshuab hluav taws xob.

Qauv:STM1-250

Xa lus nug

Product Description

Cov lus qhia

Ntaus	Ncej Tam Sim No (Lnm)	Rated tam sim no (a)	Cov Kev Siv Ua Haujlwm Voltage (V)	Ntsuas cov ntaub ntawv rwb thaiv tsev voltage	Rated txwv luv luv-circuit Cour	Rated ocearating luv-cerruit breaker muaj peev xwm ka 400v	Qhia Txog Qhov Ntev			Mounting qho loj

							L	W 3p / 4p	H	A	B	4-φd
STM1-63 L	63	(6), 10,16,20,25,32, 40,50,63	AC 400v	500V	25	18	135	78	73.5	25	117	Φ φ
STM1-63 M					50	35	135	78/103	81.5
Stm1-100l	100	(10), 16,20,25,32,40, 50,63,80,100	AC 400v	500V	35	35	150	92	68	30	129	Φو.5
STM1-100M					50	50	150	92/122	86
STM1-100 H					85	85
Stm1-160 l.	160	100,125,140,160	AC 400v	690V	35	35	165	107	86	35	126	Φو.5
STM1-160M					50	50	165	107/142	103
Stm1-160h					85	85
Stm1-225l	225	100,125,140,160,180, 200,225	AC 400v	690V	35	22	165	107	86	35	126	Φو.5
STM1-225M					50	35	165	107/142	103
STM1-225H					85	50
STM1-400L	400	225,250,350, 400	AC 400v	690V	42	35	257	150/198	105	44	194	Φ7
STM1-400M					65	50	257	150/198	105	44	194	Φ7
Stm1-400h					100	65
STM1-630L	630	400,500,630	AC 400v	690V	42	35	270	182/240	110	58	200	Φ7
STM1-630M					65	50	270	182	110	58	200	Φ7
STM1-630H					100	65
STM1-800M	800	630,700,800	AC 400v	690V	75	50	275	210	103	70	243	Φ7
STM1-800H					100	65

Cov haujlwm tseem ceeb ntawm STM1 Moulded Case Circuit Court

Kev tiv thaiv ntau dhau: Thaum qhov tam sim no nyob rau hauv Circuit Court ntau dua li tus nqi ntawm STM ntawm lub sijhawm ntawm lub sijhawm hauv Circuit Court, nws yuav txiav txim siab rau lub sijhawm ua haujlwm hauv Circuit Court, nws yuav txiav cov khoom siv los ntawm kev kub ntxhov, yog li zam cov hluav taws thiab kev puas tsuaj.

Circuit Court tiv thaiv luv luv: Thaum lub sijhawm luv luv tshwm sim hauv Circuit Court, STM1 Mould Cov Kev Tiv Thaiv Kev Tiv Thaiv Kev Tiv Thaiv Kev Tawm Tsam Tsis Txaus Rau Circuit Court tam sim no thiab khoom siv.

Undervoltage kev tiv thaiv (qee qhov STM1 Mould Cov Kev Pab Cuam Circuit Court muaj qhov ua haujlwm no tau txo qis rau cov khoom siv hluav taws xob kom tiv thaiv cov khoom siv los ntawm kev ua kom puas los sis kev ua haujlwm tsis muaj voltage.

STM1 Molded Case Circuit Breakers

Lub hauv paus ntsiab lus ntawm cov stm1 Moulded Case Circuit Court

StM1 Mould Cov Kev Sib Tw Cov Nkoj muaj cov cua sov thermal sib nqus lossis hluav taws xob mus nrhiav cov tam sim no thiab voltage hloov hauv Circuit Court. Thaum lub sijhawm tam sim no lossis voltage yog txawv txav, tus neeg tawm tsam qhov trippingchism ntawm STM1 Mould Cov Circuit Court, ua rau nws txiav tawm sai ntawm Circuit Court.

1. Tswvyim hlau sib nqus: nws siv cov cua sov tsim tawm thaum cov tam sim no hla dhau tus neeg xyuas coj mus ncig ua si. Thaum cov tam sim no siab dhau, tus neeg xyuas pib ua kom sov, ua rau lub ntsej muag bimetal sab hauv lub thermal sib nqus striker kom khoov, yog li ua rau lub tshuab sib tw.

2.Txoj kev ua qauv: nws siv hluav taws xob sib hloov los kuaj cov hloov hluav taws xob hloov pauv ntawm cov kev ua ntawm lub tshuab txuas. Thaum qhov txawv txawv yog kuaj pom, cov neeg hauv hluav taws xob xa cov teeb liab mus rau kev hloov me ntsis los txiav tawm ntawm Circuit Court.

Nta ntawm STM1 Mould Ntawv Cog Lus Circuit Court

Muaj peev xwm siab breaking: STM1 Mould Cov Kev Sib Cor Circuit Court muaj lub siab luv-taws kev sib tw muaj peev xwm ua kom nrawm nrawm thiab tiv thaiv kev nyab xeeb ntawm Circuit Court thiab khoom siv.

Ntau qhov kev tiv thaiv kev tiv thaiv: Ntxiv rau qhov pib kev tiv thaiv ntau dua thiab cov neeg sib tw STM

Yooj yim rau nruab thiab tswj hwm: STM1 Mould Cov Ntaub Ntawv Feem ntau feem ntau tau txais kho qauv, uas yooj yim rau nruab thiab tswj hwm, thiab haum rau ntau lub hwj huam faib khoom.

Kev ntseeg siab: STM1 Mould Cov Kev Cai Sib Tw tau sim thiab lees paub kom muaj kev ntseeg siab thiab ruaj khov ua haujlwm ntawm cov tshuab hluav taws xob.

Daim Ntawv Thov Kev Ua Si ntawm STM1 Moulded Cov Ntaub Ntawv Circuit Court

Stm1 Mould Cov Ntaub Ntawv Sib Cor Circuit Cours yog siv dav hauv Hwjchim faib tawm, kev lag luam thiab chaw nres tsheb lossis ceg hloov ntawm Circuit Court. Lawv feem ntau tau nruab rau hauv cov thawv faib khoom, cov khoom xa tawm lossis kev tswj txee los tiv thaiv kev sib ncig thiab cov khoom siv los ntawm kev puas tsuaj los ntawm kev ua phem thiab volasages.
