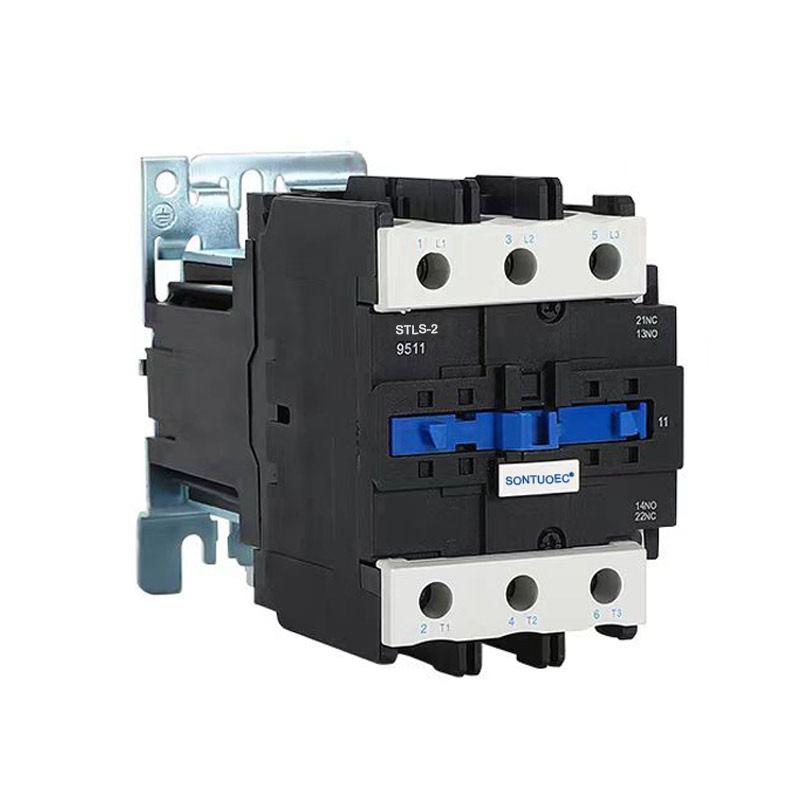

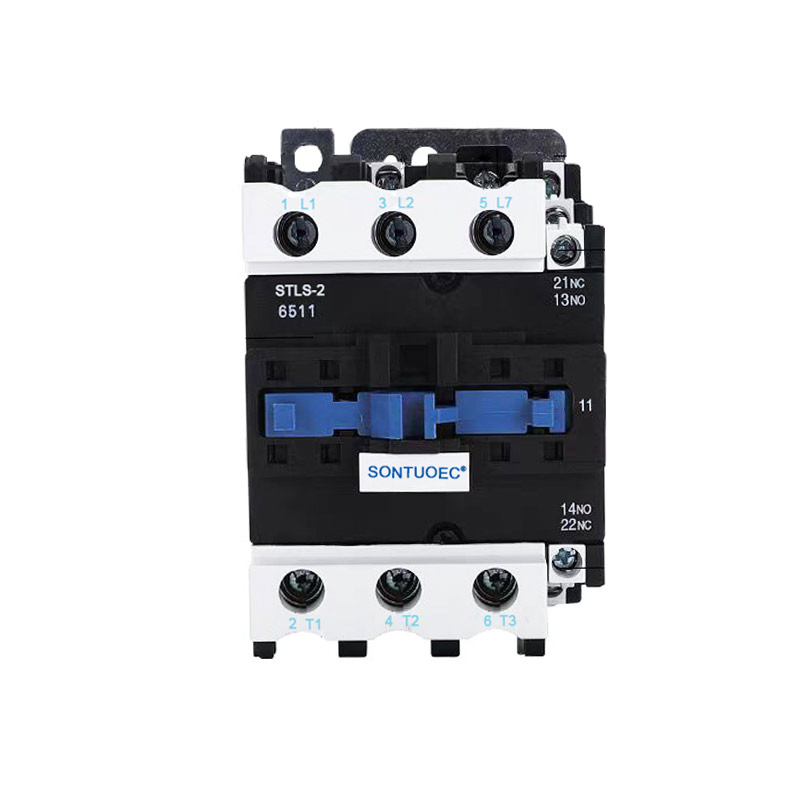

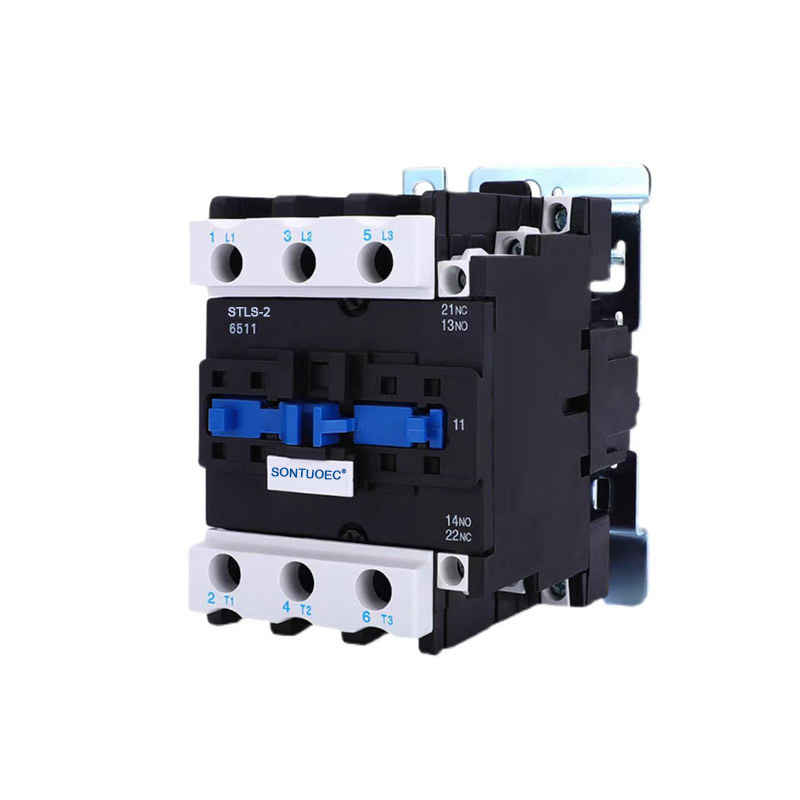

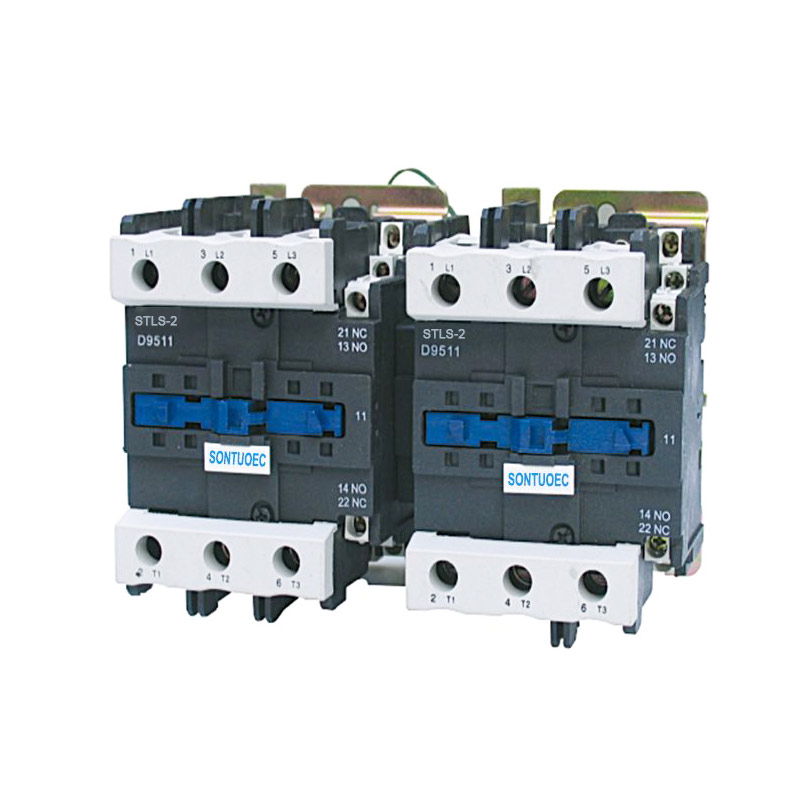

Stls-2 (Cjx2) Series Mechanical Interlocking Contactor

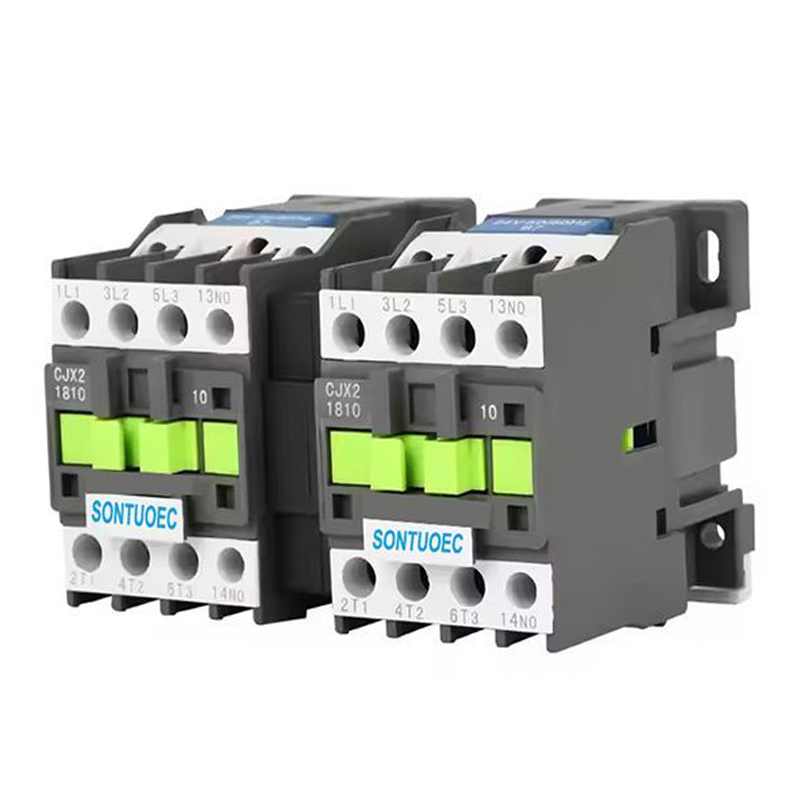

Stls-2 (Cjx2) Series Mechanical Interlocking Contactor yog tsim rau siv nyob rau hauv lub circuits mus txog qhov ntsuas voltage 660V AC 50Hz, tam sim no 620A, rau convertible tswj lub cev muaj zog. Qhov no mechanical interlocking ntaus ntawv xyuas kom meej kev sib cuag ntawm ob convertible contactors. Nws ua raws li IEC60947-4-1 Cov Qauv.

Qauv:STLS-2(CJX2)

Xa lus nug

Product Description

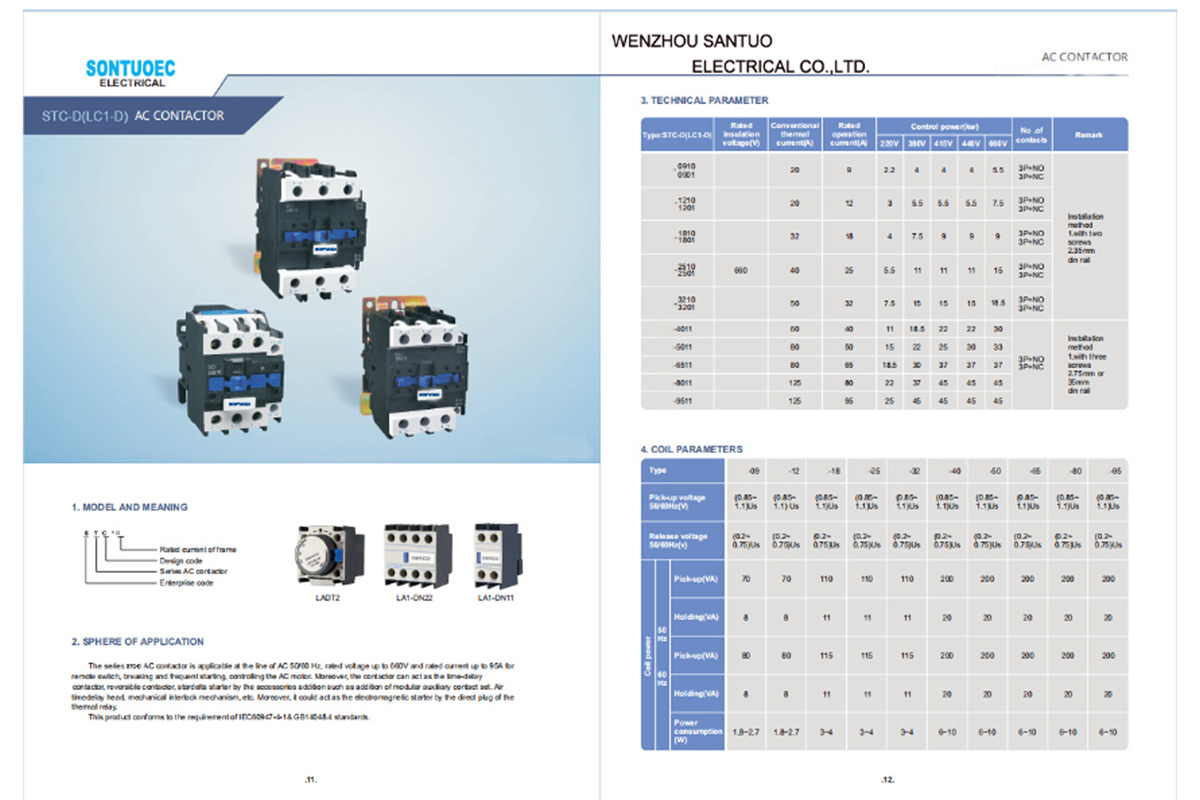

Hom		TSI-2	TSI-2	TSI-2	TSI-2	TSI-2	TSI-2	TSI-2	TSI-2	TSI-2	TSI-2
		9	12	18	25	32	40	50	63	80	95
									60
Rated insulatio voltage		660	660	660	660	660	660	660	660	660	660
cov pa thermal		20	24	32	40	50	60	75	80	110	125
tam sim no		20	24	32	40	50	60	75	80	110	125
Rated ua haujlwm		9	12	16	25	32	40	50	63	80	95
tam sim no		9	12	16	25	32	40	50	63	80	95
tswj	220 V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
zog (kw)	380v ua	4	5.5	7.5	11	15	18.5	22	30	37	45
	4 15v	4	5.5	9	11	15	22	35	37	45	45
	440v ua	4	5.5	9	11	15	22	30	37	45	45
	660v ua	5.5	7.5	10	15	18.5	30	33	37	45	45
Nco tseg		Lub installation ntawm lub					Lub installation ntawm lub
		Relays tuaj yeem siv ob lub hau					relays tau peb
		thiab tseem siv 35mm					screws thiab tseem siv cov
		installation rail					75mm lossis 35mm installation
							tsheb ciav hlau

Cov qauv thiab cov yam ntxwv

Qauv:

3P AC Contactor feem ntau muaj cov khoom siv hluav taws xob (xws li coil, core, thiab lwm yam), kev sib txuas lus (xws li kev sib cuag tseem ceeb thiab kev sib cuag), arc extinguishing device thiab plhaub thiab lwm yam. Ntawm lawv, kev sib cuag tseem ceeb yog siv los nqa cov khoom siv hluav taws xob siab, thiab kev sib tiv tauj yog siv kom paub txog kev sib kis thiab kev tawm tswv yim ntawm kev tswj cov cim.

Nta:

Nrog peb txoj kev ywj pheej, nws tuaj yeem tswj peb-theem fais fab thiab ib kab xoom tib lub sijhawm.

Qhov kev sib cuag yog ua los ntawm cov ntaub ntawv zoo nrog zoo conductivity thiab hnav tsis kam.

Lub tshuab electromagnetic muaj lub zog nqus txaus kom ntseeg tau thiab tso cov neeg sib cuag.

Lub arc extinguishing ntaus ntawv tuaj yeem tua cov arc tsim tau zoo thaum cov kev sib cuag raug txiav, tiv thaiv cov neeg los ntawm kev puas tsuaj.

Stls-2(Cjx2) Series Mechanical Interlocking Contactor yog tsim rau siv nyob rau hauv circuits cov ntsuas voltage mus txog 660V AC 50Hz lossis 60Hz, ntsuas tam sim no mus txog 95A, rau kev ua & tawg, nquag pib & tswj lub AC lub cev muaj zog. Ua ke nrog kev pab cuam tiv thaiv, timer ncua & tshuab-interlocking ntaus ntawv thiab lwm yam, nws dhau los ua tus ncua contactor, mechanical interlocking contactor, star-delta starter. Nrog lub thermal relay, nws tau ua ke rau hauv lub tshuab hluav taws xob electromagnetic. Cov Contactor yog tsim tawm raws li IEC 60947-1.

Txoj Cai ntawm Kev Ua Haujlwm

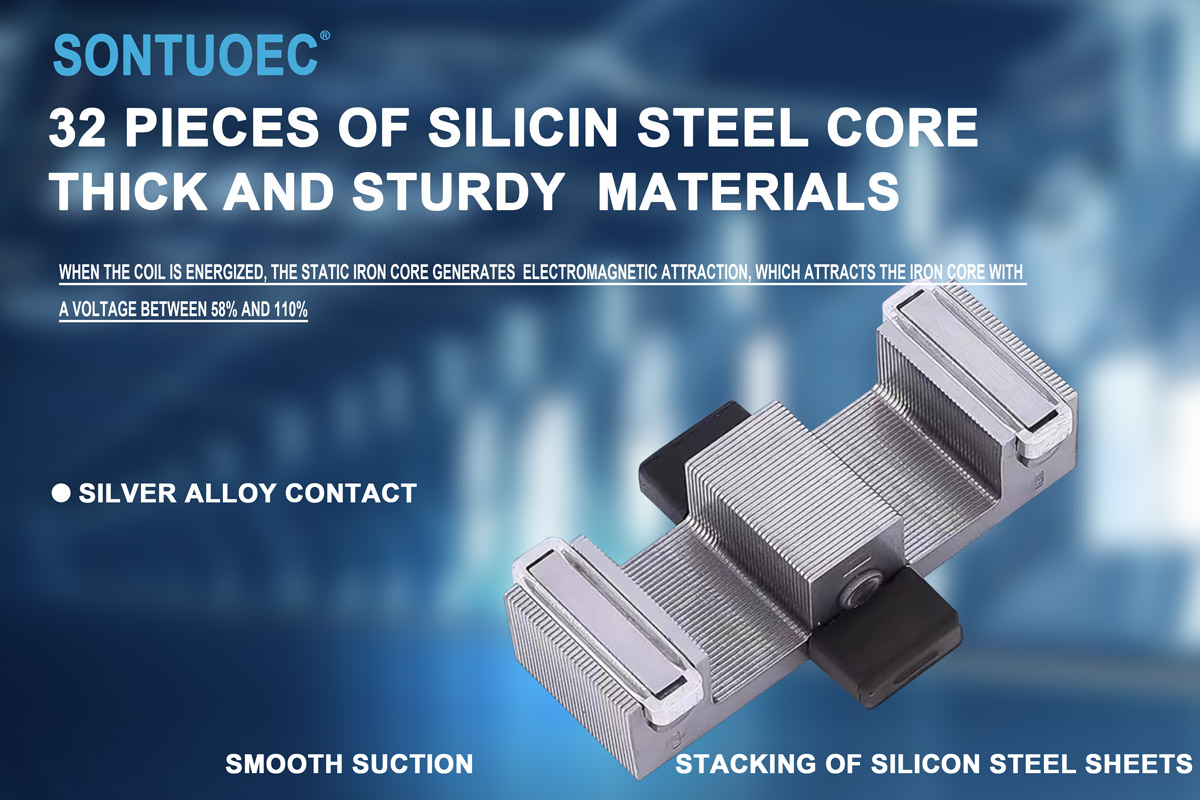

Thaum lub coil ntawm 3P AC Contactor yog lub zog, cov tub ntxhais hlau tsim cov hlau nplaum thiab nyiam cov kab sib txuas kom kaw, yog li txuas peb-theem fais fab mov thiab xoom xaim. Thaum lub kauj yog de-energized, cov tub ntxhais poob nws cov hlau nplaum thiab cov kab sib txuas sib cais nyob rau hauv qhov kev txiav txim ntawm lub caij nplooj ntoos hlav, yog li disconnecting peb-theem fais fab mov los ntawm xoom kab. Ua li no, 3P AC Contactor tuaj yeem paub cov chaw taws teeb tswj ntawm cov khoom siv hluav taws xob.
