Sth-n qauv thermal relay

Sth-n QAUV THABTAL Relay yog tshwj xeeb tshaj yog tsim rau kev tiv thaiv ntau dua li qhov ntsuas hluav taws xob, thaum lub cev muaj zog tuaj yeem txiav tawm ntawm lub cev muaj zog vim yog kev puas tsuaj dhau los vim kev ua txhaum cai.

Qauv:STH-N

Xa lus nug

Product Description

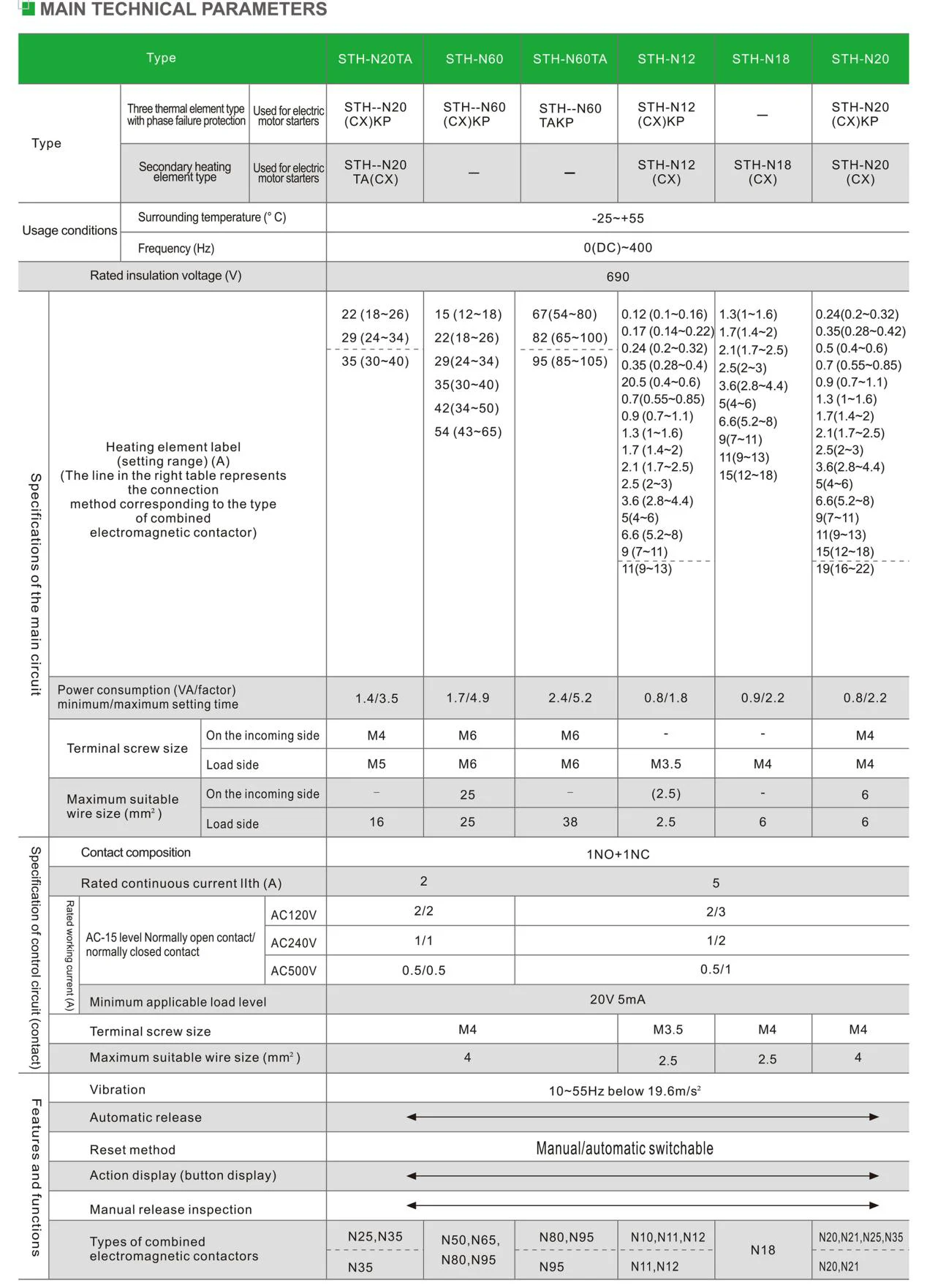

Cov lus qhia tshwj xeeb:

Khoom Lub npe	Thermal Tshaj relay
Tus qauv	Yam sth-n
Khoom	Yas, tshuab hluav taws xob Cheebtsam
Thermal Tus neeg yus paub	1To + 1nc
Thermal Relayrated tam sim no	0.1a-105a
Tam sim no ntau yam	Pls ceeb toom cov tam sim no ntau thaum tso qhov kev txiav txim
Hov ntau	660V
Tripping Chav Kawm	50 / 60Hz
Xim	Raws li daim duab qhia

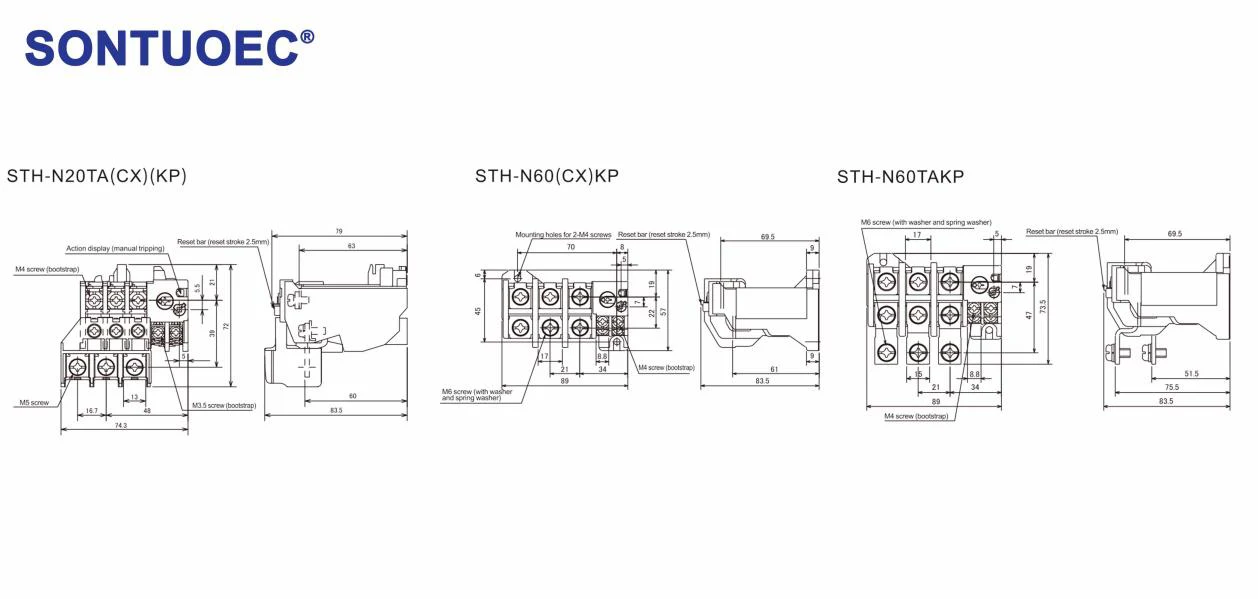

Ntaus	Ib	Ib	Ab	AC	B	Lub txhab	Tus ntses bb	BC	C	Ca	Tsheb hauv paus	M	Hnyav (kg)
STH-N12 (CX) (KP)	45	10	8	24	55	31	15	6.5	76.5	35	57	M3.5	0.11
Sth-n18 (cx)	54	12.5	10.2	24.5	59	32.5	16.3	6.7	80	40	58.5	M4	0.13

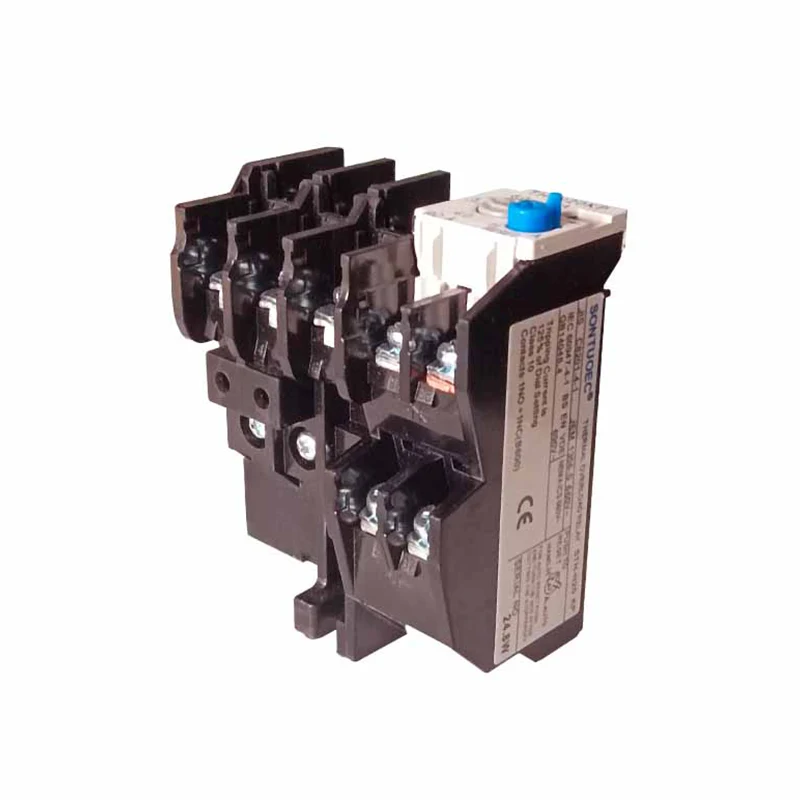

STH-N Model Thermal Relay

Ua Haujlwm Cov Ntsiab Cai

Lub hauv paus ntsiab lus ua haujlwm ntawm sth-n qauv thermal relay yog raws li cov thermal cuam tshuam ntawm hluav taws xob tam sim no. Thaum lub cev muaj zog dhau lawm, kev ntws tam sim no los ntawm Thermal relay nce, ua rau cov cua sov los tsim kom muaj cua sov ntxiv. Qhov kub ua rau lub bimetal kom khoov thiab deform, thiab thaum muaj kev sib tw sib txuas, ua rau cov neeg sib txuas, yog li txiav tawm lub zog rau lub cev muaj zog.

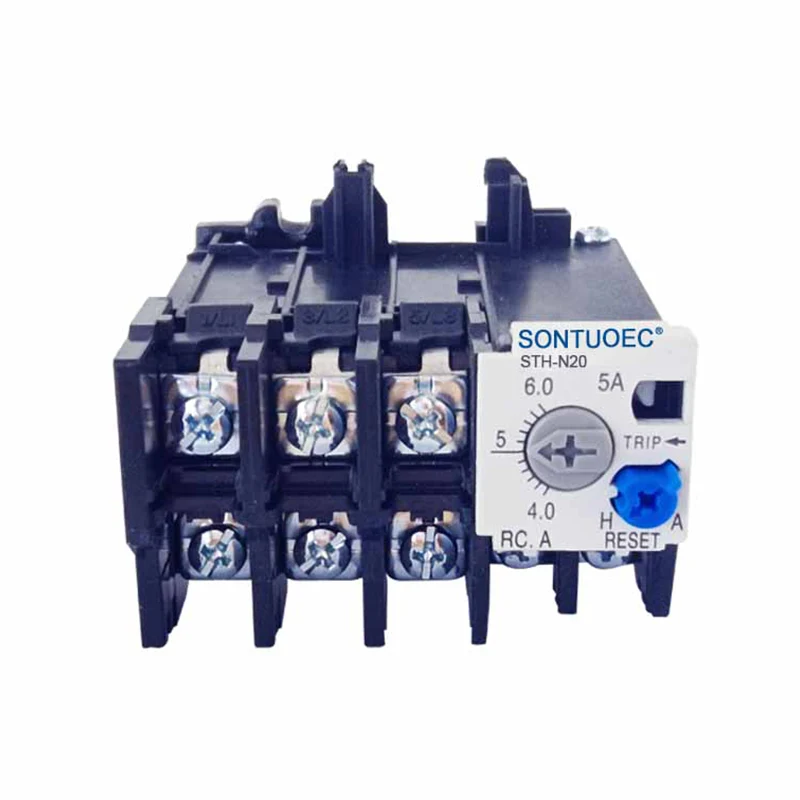

STH-N Model Thermal Relay

Cov yam ntxwv tseem ceeb

Kev tiv thaiv kev muaj nuj nqi muaj nuj nqi: TH-n hom thermal relay muaj kev tiv thaiv kev muaj nuj nqi, uas tuaj yeem txiav tawm ntawm Circuit Court nyob rau lub sijhawm thaum lub cev muaj zog tshaj thiab tiv thaiv lub cev muaj zog.

Qhov tseeb tiag: Cov yam ntxwv nqis ntawm cov thermal relay yog qhov ruaj khov yog ruaj khov, thiab nws tuaj yeem ua qhov raug ntawm cov kev ua kom muaj kev puas tsuaj.

Compact qauv: TH-n hom thermal relay Adopts tsim qauv qauv, nyob rau thaj chaw me thiab yooj yim rau nruab thiab tswj hwm.

Lub neej ntev kev pabcuam: Vim tias cov thermal relay adopts cov ntaub ntawv zoo thiab tsim kev tsim khoom, nws muaj lub neej kev pabcuam ntev thiab kev ntseeg siab ntev thiab kev ntseeg siab.

Cov tau txais daim ntawv thov

TH-N Hom thermal relays yog dav siv nyob rau hauv cov ntawv thov kev tiv thaiv, xws li muaj tshuab hluav taws xob tswj hwm cov tshuab hluav taws xob, cov khoom siv hluav taws xob, siv rau hauv. Tshwj xeeb tshaj yog nyob rau hauv lub cev muaj zog circuits uas yuav tsum tau pib nquag thiab nres, lub luag haujlwm ntawm kev tawg yog qhov tshwj xeeb.
