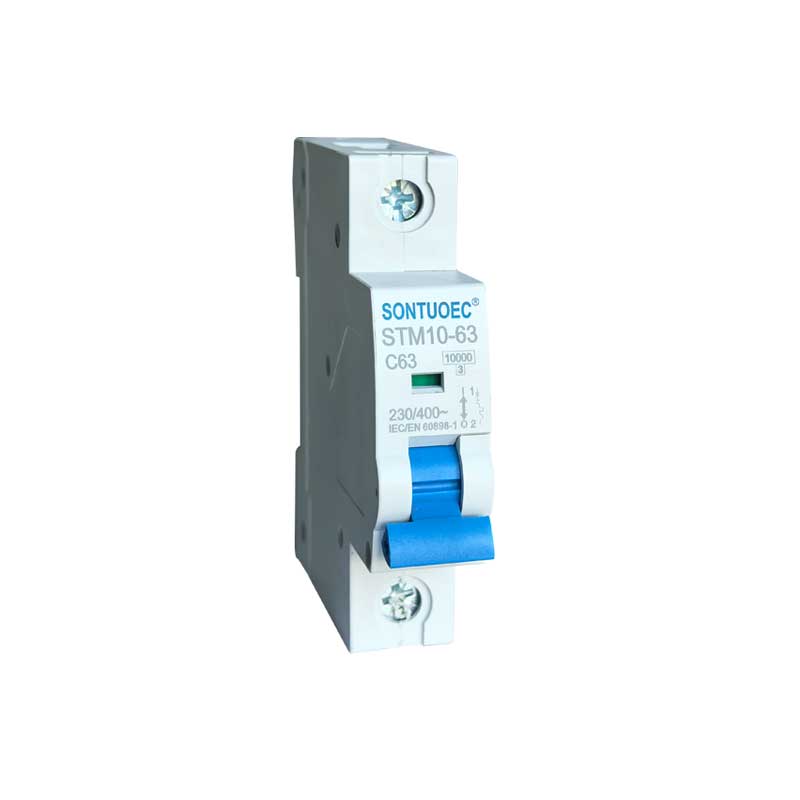

Sontuoec Hoobkas ncaj muag MCB Stm10-63 Series 6ka Miniature Circuit Breaker

SONTUOEC yog ib qho ntawm cov neeg muag khoom / chaw tsim khoom hauv Suav teb tshwj xeeb hauv kev tsim khoom ntawm ntau yam khoom siv hluav taws xob me STM10-63 Series siab tawg me me Circuit Court breaker muaj cov yam ntxwv ntawm cov qauv siab, kev ua tau zoo, kev ua haujlwm siab, tawg muaj peev xwm siab, zoo li elegant thiab nws lub plhaub thiab qhov chaw yog ua los ntawm cov khoom uas muaj kev cuam tshuam, muaj zog nplaim-retardant feature. Nws tsim nyog rau lub zog ntawm 50 lossis 60 zaus, Ue 400V thiab qis dua, Ui 63A thiab hauv qab. Nws yog tsuas yog siv nyob rau hauv chaw ua hauj lwm tsev, chaw nyob, teeb pom kev zoo, hluav taws xob faib thiab overload thiab luv luv Circuit Court tiv thaiv cov khoom. Nquag, nws kuj tuaj yeem siv tau raws li qhov tsis nquag hloov pauv ntawm lub zog hluav taws xob. Nws ua raws li cov qauv IEC60898.1 thiab GB10963.1

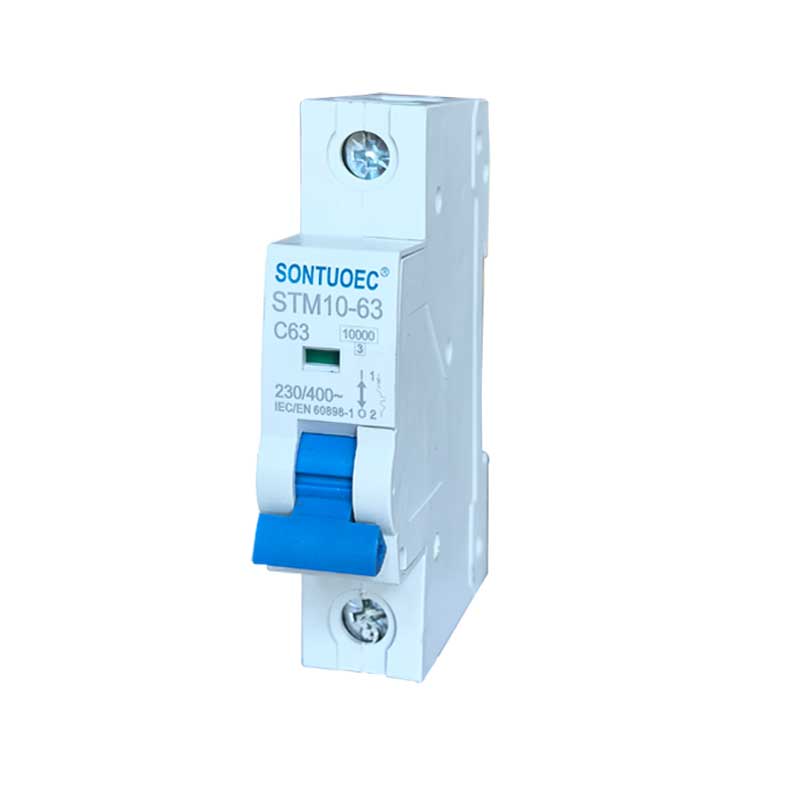

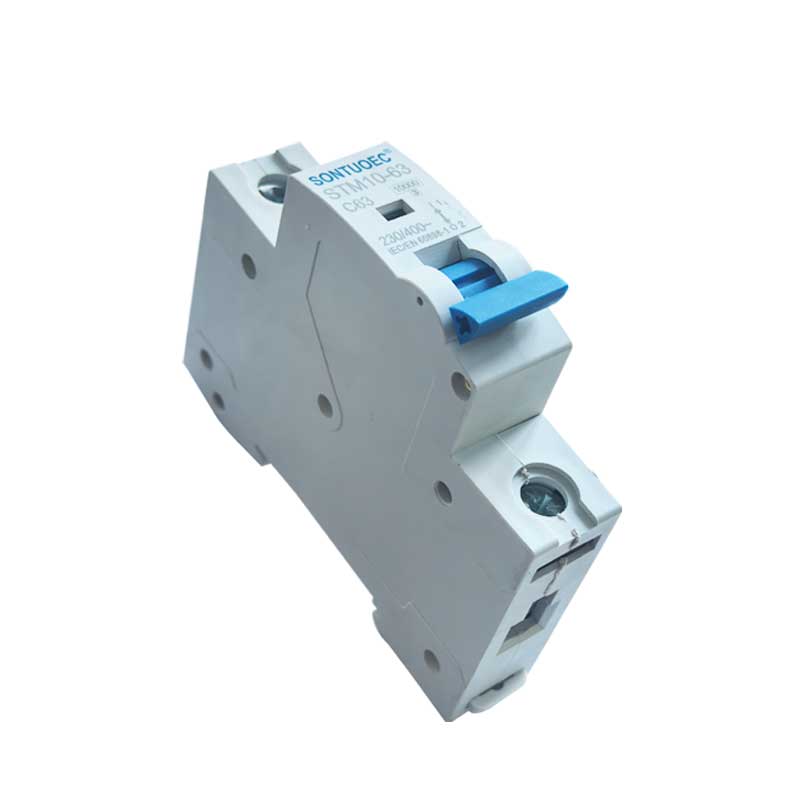

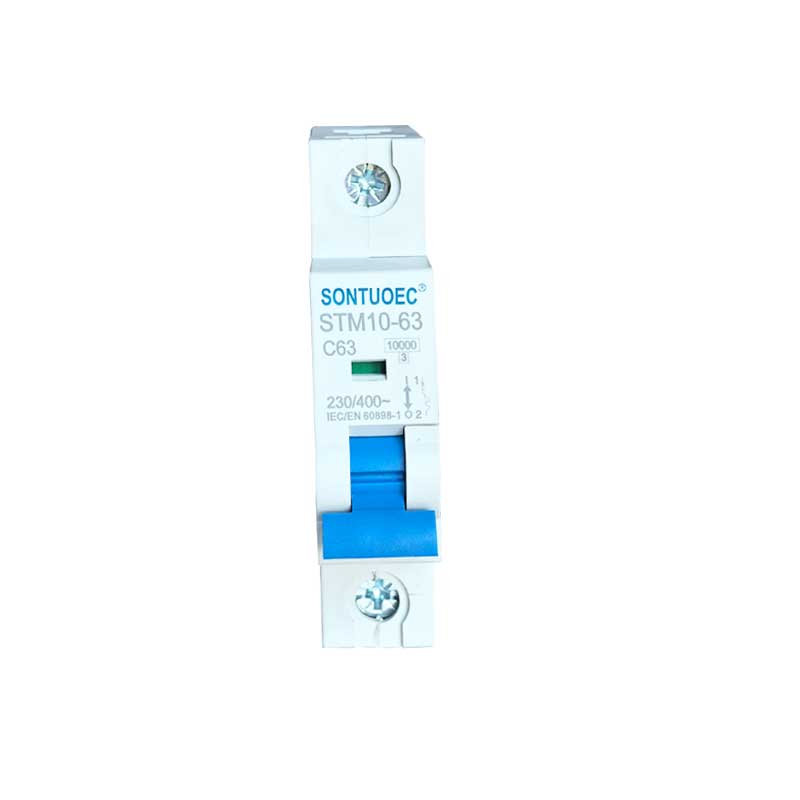

Qauv:STM10-63

Xa lus nug

Product Description

Specifications:

	Txuj		IEC / EN 60898-1
Hluav taws xob	Rated tam sim no Hauv	A	1,2,4,6,10,16,20,25,32,40,50,63A

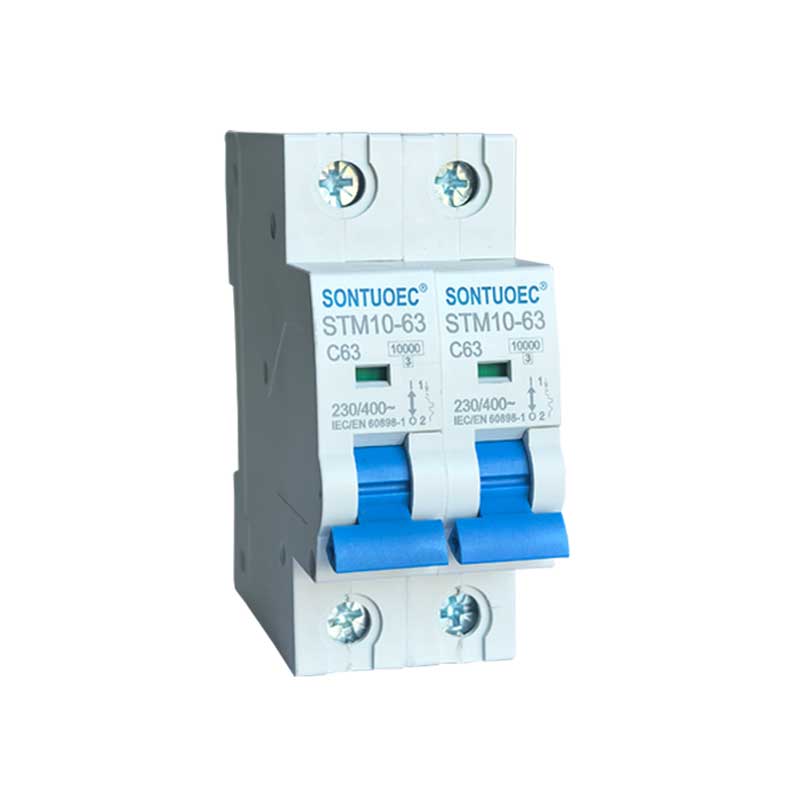

nta	Ncej	P	1, 2, 3, 4
	Rated voltage Ue	V	AB 230, 400
	Rwb thaiv tsev voltage Ui	V	500
	Rated zaus	Hz	50/60
	Rated tawg peev xwm	A	3000, 4500, 6000
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric xeem voltage ntawm ind.Freq.for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic tso tawm yam ntxwv		B, C, D
Neeg kho tshuab	Hluav taws xob lub neej	t	4000
nta	Neeg kho tshuab lub neej	t	10000
	Kev tiv thaiv qib		IP20
	Siv qhov ntsuas kub rau kev teeb tsa	ºC	30
	ntawm thermal element	ºC	30
	Ambient kub	ºC	-5 ~ + 40 (Kev thov tshwj xeeb thov xa mus rau
	(nrog rau qhov nruab nrab txhua hnub ≤35ºC)	ºC	Kev kho qhov kub thiab txias)
	Cia kub	ºC	-25 ~ + 70
Kev teeb tsa	Terminal txuas hom		Cable / Pin-type busbar
	Terminal loj saum / hauv qab rau cable	mm2	25
	Terminal loj saum / hauv qab rau cable	AWG	3 Peb Hlis 18
	Therminal loj saum / hauv qab rau busbar	mm2	25
	Therminal loj saum / hauv qab rau busbar	AWG	3 Peb Hlis 18
	Tightening torque	N*m	2
	Tightening torque	Hauv-lbs	18

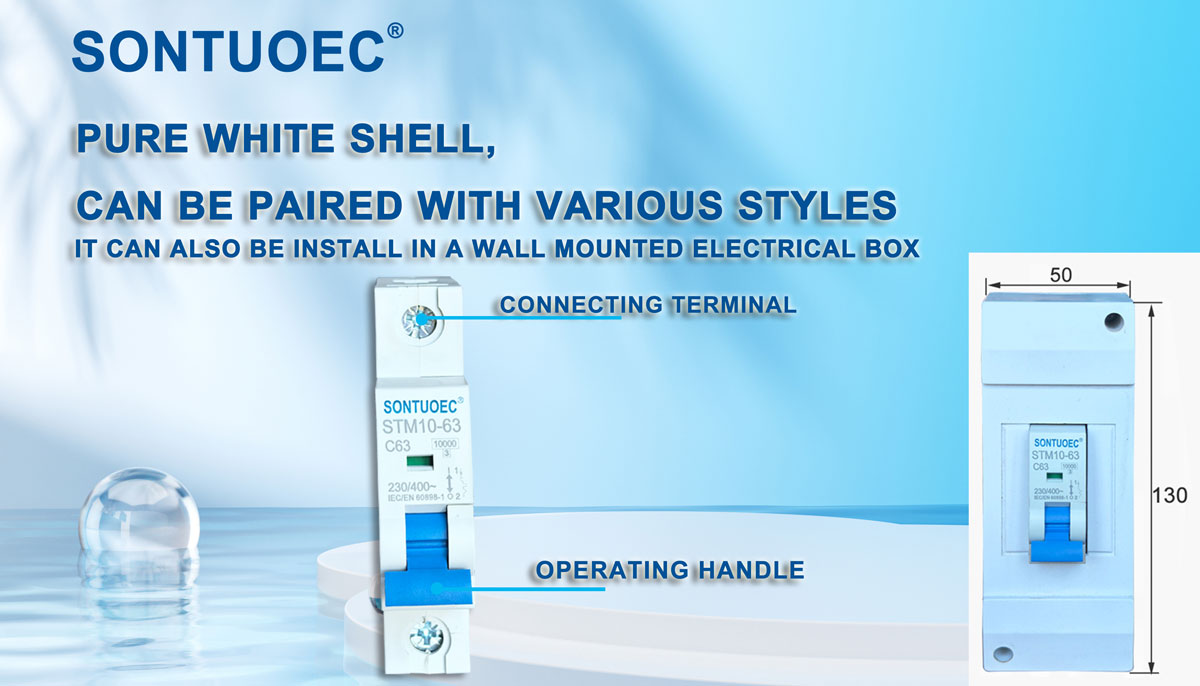

	Mounting		ntawm DIN rail EN 60715 (35mm) los ntawm kev siv ceev ceev clip
	Kev sib txuas		Los ntawm sab saum toj thiab hauv qab

Lub luag haujlwm tseem ceeb ntawm STM10-63 Miniature Circuit Breaker

1.Overload tiv thaiv: Thaum tam sim no nyob rau hauv Circuit Court tshaj tus nqi ntawm MCB, lub STM10-63 Miniature Circuit Breaker yuav txiav tawm Circuit Court nyob rau hauv ib lub sij hawm ntawm lub sij hawm los mus tiv thaiv lub Circuit Court thiab cov khoom los ntawm overheating.

2.Short-circuit tiv thaiv: Thaum lub caij luv-circuit tshwm sim hauv Circuit Court, STM10-63 Miniature Circuit Breaker yuav txiav tawm Circuit Court tam sim ntawd los tiv thaiv qhov luv-circuit tam sim no los ntawm kev puas tsuaj rau Circuit Court thiab khoom siv.

3.Leakage tiv thaiv (qee qhov MCBs muaj qhov ua haujlwm no): rau MCBs nrog kev tiv thaiv cov dej xau, thaum muaj cov xau hauv Circuit Court, STM10-63 Miniature Circuit Breaker yuav txiav tawm sai sai los tiv thaiv tus kheej kev nyab xeeb.

Txoj cai ntawm kev ua haujlwm ntawm MCBs

MCBs feem ntau muaj lub thermal magnetic los yog hluav taws xob mus ncig hauv lub cev, uas yog siv los kuaj xyuas cov kev hloov pauv tam sim no hauv Circuit Court. Thaum qhov tam sim no muaj qhov txawv txav, tus neeg tawm tsam ua rau lub voj voog ntawm MCB, ua rau STB1-63 Miniature Circuit Breakerto txiav tawm sai sai.

1.Thermal magnetic striker: Nws siv cov cua sov uas tsim los thaum tam sim no dhau los ntawm tus neeg xyuas pib los ua rau qhov kev poob qis. Thaum qhov tam sim no loj dhau lawm, tus neeg xyuas pib ua kom sov, ua rau cov bimetal hauv lub thermal magnetic striker khoov, yog li ua rau lub tshuab tripping.

2.Electronic striker: Nws siv cov khoom siv hluav taws xob los kuaj xyuas cov kev hloov pauv tam sim no thiab tswj qhov kev txiav txim ntawm lub tshuab tripping. Thaum kuaj pom qhov txawv txav tam sim no, lub tshuab hluav taws xob hluav taws xob xa cov teeb liab mus rau lub tshuab ua kom tsis muaj zog kom txiav tawm lub voj voog.

Daim ntawv thov Scenario ntawm MCB

MCBs tau siv dav hauv cov tshuab hluav taws xob hauv thaj chaw nyob, kev lag luam thiab kev lag luam los tiv thaiv circuits thiab cov khoom siv los ntawm kev puas tsuaj los ntawm cov dej tsis zoo. Lawv feem ntau yog ntsia rau hauv cov thawv xa khoom, cov keyboards lossis cov txee tswj thiab siv los ua lub ntsiab hloov lossis ceg hloov ntawm lub voj voog.

Kev xaiv thiab kev teeb tsa ntawm MCBs

1.Kev xaiv: Thaum xaiv MCBs, koj yuav tsum xav txog yam xws li cov ntsuas tam sim no ntawm lub voj voog, qib voltage, kev tiv thaiv tus yam ntxwv, thiab seb puas yuav tsum tau muaj kev tiv thaiv los ntawm kev xau. Nws tseem yog ib qho tseem ceeb kom ntseeg tau tias qhov kev xaiv STB1-63 Miniature Circuit Breaker ua raws li cov qauv kev nyab xeeb hluav taws xob hauv zos thiab cov cai.

2.Installation: Lub STB1-63 Miniature Circuit Breakers yuav tsum tau muab tso rau hauv qhov chaw qhuav, qhov cua tsis muaj corrosive gases thiab xyuas kom meej tias nws yog wired kom raug thiab ruaj ntseg. Thaum lub sij hawm installation, cov kev cai ntawm hluav taws xob kev nyab xeeb thiab cov txheej txheem kev khiav hauj lwm yuav tsum tau soj ntsuam.
