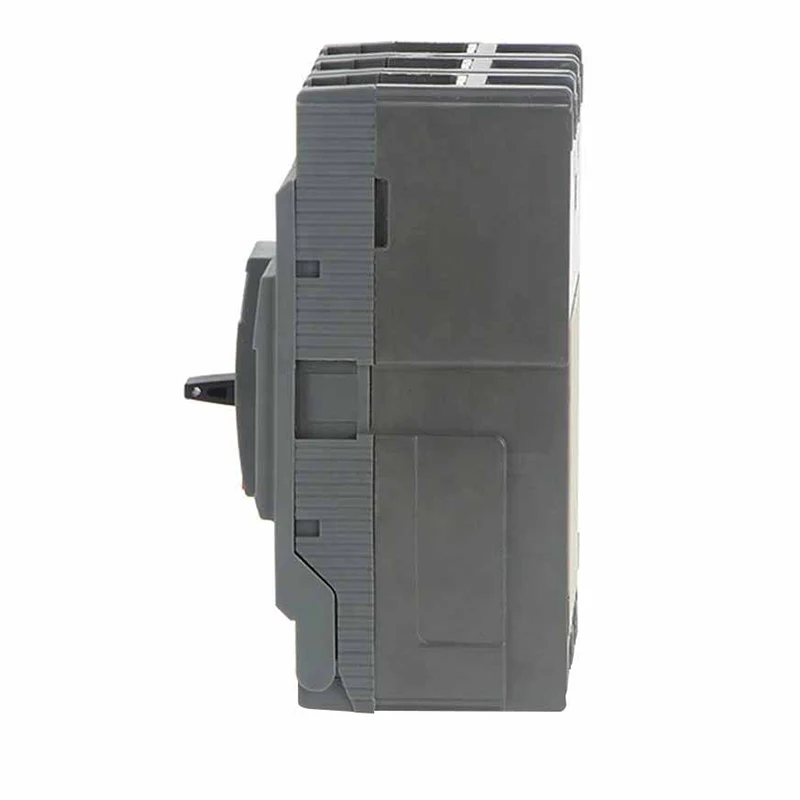

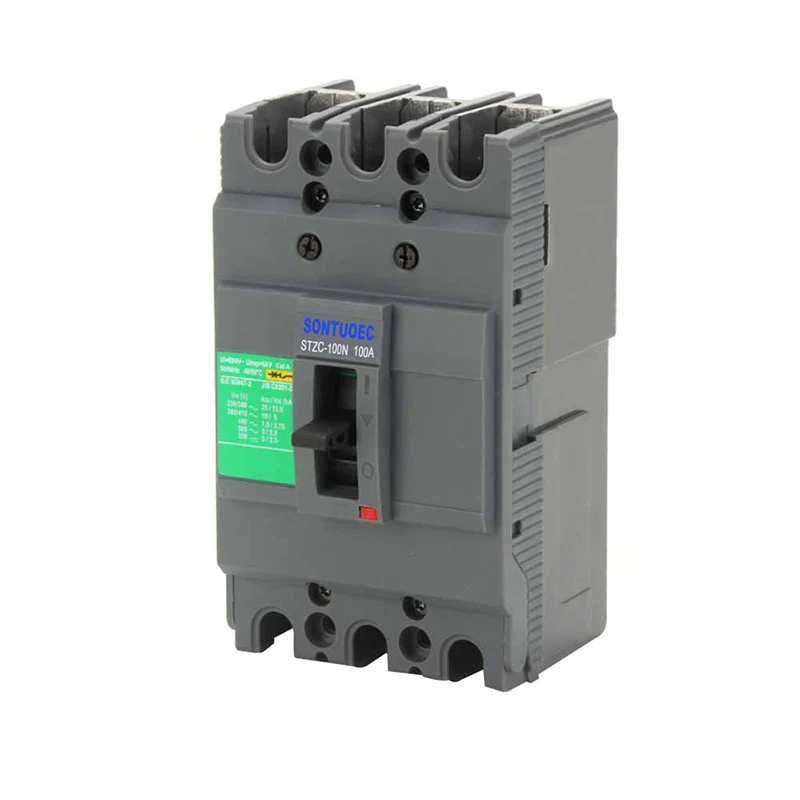

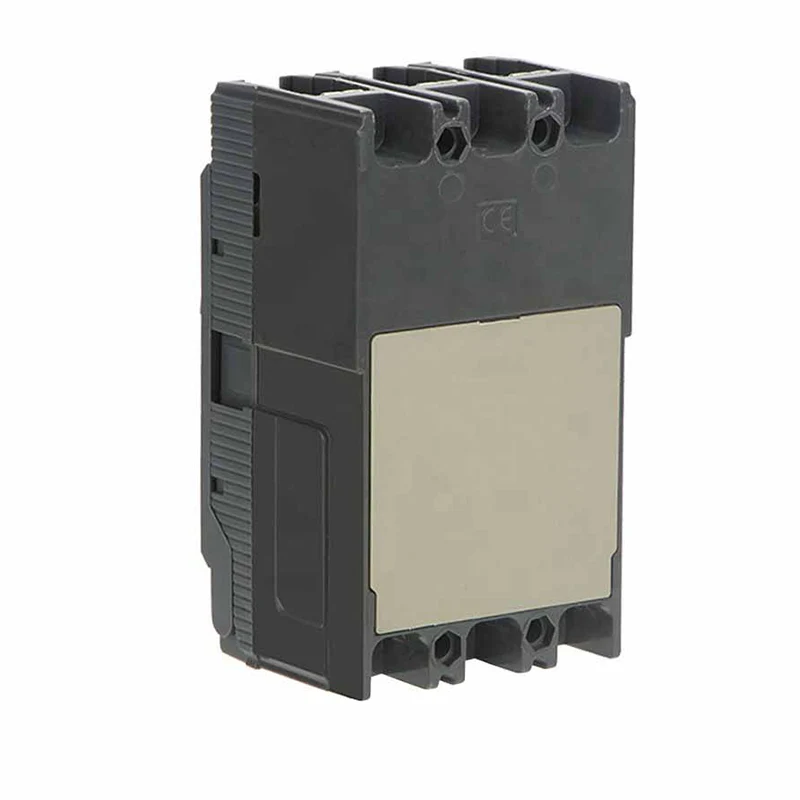

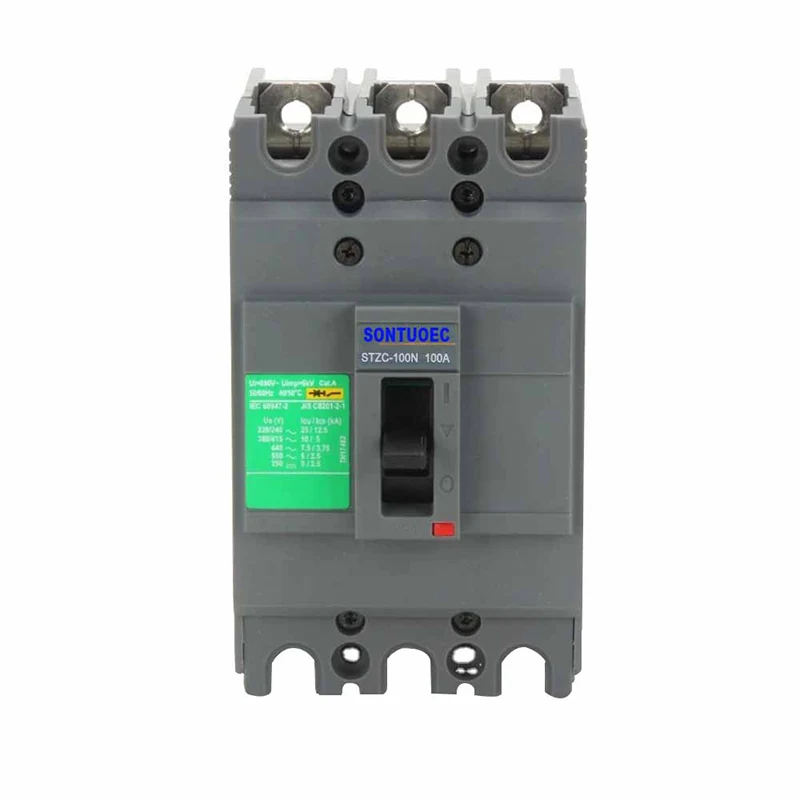

Hnub Ci System Moulded Npe Circuit Coer

Lub hnub ci system pwm pwm hluav taws xob beather siv high-zog yas lossis cov khoom tseem ceeb los ua rau lub plhaub, thiab cov khoom sib xyaw ua ke, fertomagnetic tso sab hauv. Nws tuaj yeem txiav tawm sai ntawm Circuit Court thaum lub sijhawm tam sim no tshaj tus nqi hluav taws xob, yog li tiv thaiv cov khoom hluav taws xob hauv lub hnub ci los ntawm kev sib tw lossis kev sib tw.

Qauv:STZC

Xa lus nug

Product Description

Cov lus qhia tshwj xeeb:

Ntaus	Rated tam sim no (a)	Tus ncej	Rated rwb thaiv tsev voltage (v), UI (v)	Ntsuas Voltage (V) UE	Cov ntug dej hiav txwv Rauv muaj peev xwm ICS (ka)	Qhov chaw tiv thaiv kev raug cai los ntawm kev muaj peev xwm ICU (KA)	Kev ua haujlwm lub neej (sijhawm)
							Hluav Taws Xob / Mechaoj

				AC
Stzc-100	16,20,25,32,40,50,63,80,100	3p, 4p	690	220/230/240	13	25	1500	8500
				400/415	8	15
				440	5	10
				550	3	5
				250 (Dc)	3	5
Stzc-160	100,125,160			220/230/240	13	25	1000	7000
				400/415	9	18
				440	8	15
				550	3	5
				250 (Dc)	3	5
Stzc-250	160,180,200,225,250			220/230/240	13	25	1000	5000
				400/415	9	18
				440	8	15
				550	3	5
				250 (Dc)	3	5

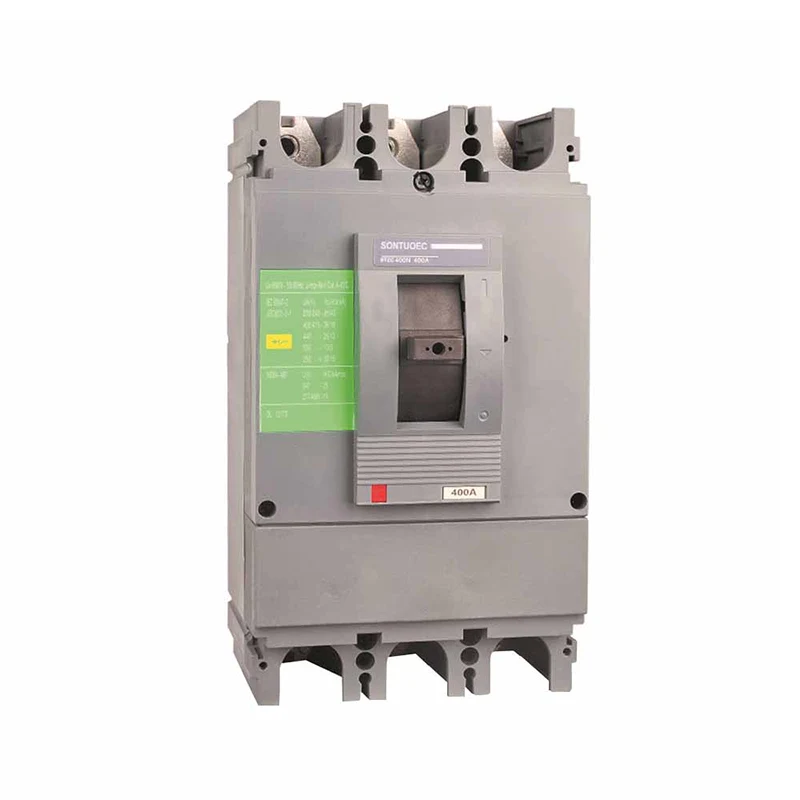

Stzc-400	250,300,315,400			220/230/240	43	85	1000	4000
				400/415	18	36
				440	18	36
				500	10	20
				550	8	15
Stzc-630	400,500,600,630			220/230/240	43	85	1000	4000
				400/415	18	36
				440	18	36
				500	10	20
				550	8	15

Cov yam ntxwv tseem ceeb

Kev tiv thaiv zoo: Lub hnub ci system tuaj yeem tiv thaiv kev ua txhaum thiab cov sijhawm luv luv, uas tuaj yeem ua kom cov haujlwm ruaj khov ntawm lub hnub ci.

Qhov ntau hloov tau: Lub Circuit Coffer breaker yog qhov tsim nyog rau qhov sib txawv thiab cov hnub ci zog, suav nrog cov kab sib txuas thiab sib txuas nrog cov tshuab.

Kev nyab xeeb thiab txhim khu kev qha: tau txais kev tiv thaiv kev tiv thaiv kev sib nqus hlau sib nqus, nws tuaj yeem txiav tawm ntawm Circuit Court thaum tiv thaiv hluav taws thiab lwm yam kev nyab xeeb.

Yooj yim rau nruab thiab tswj hwm: kev cog lus compact, yooj yim rau nruab, thaum ua tiav kev txij nkawm yooj yim, xws li cov kev tshem tawm tau yooj yim thiab lwm yam.

Sezc-100 series ntawm MCCB yog siv hauv kev xa tawm network ntawm ACT 50 / 60Hz, ntsuas kev ua haujlwm ntsuas 440v thiab ntaus nqi tam sim no los ntawm 1530a. Nws yog siv rau kev faib tawm lub zog thiab tiv thaiv cov fais fab, hluav taws xob thiab cov hluav taws xob puas tsuaj, uas txhim kho kev ntseeg tau thiab txuas ntxiv ntawm cov fais fab.

Kev Ua Tshwj Xeeb

Kev qhia txuj ci kev paub rau hnub ci system Moulded rooj sib xws ntawm hom thiab qauv, tab sis feem ntau suav nrog cov ntsuas hluav taws xob tam sim no, ntsuas hluav taws xob, thiab muaj peev xwm tawg. Piv txwv li, qee cov qauv ntawm cov kab ke hauv hluav taws xob yuav muaj qhov ntsuas uas muaj rated tam sim no ntawm 63-125A thiab ib qho ntsuas hluav taws xob ntawm DC500V. Thaum xaiv cov breaker Circuit Court, nws yuav tsum sib phim rau qhov kev xav tau tiag tiag ntawm lub hnub ci.
