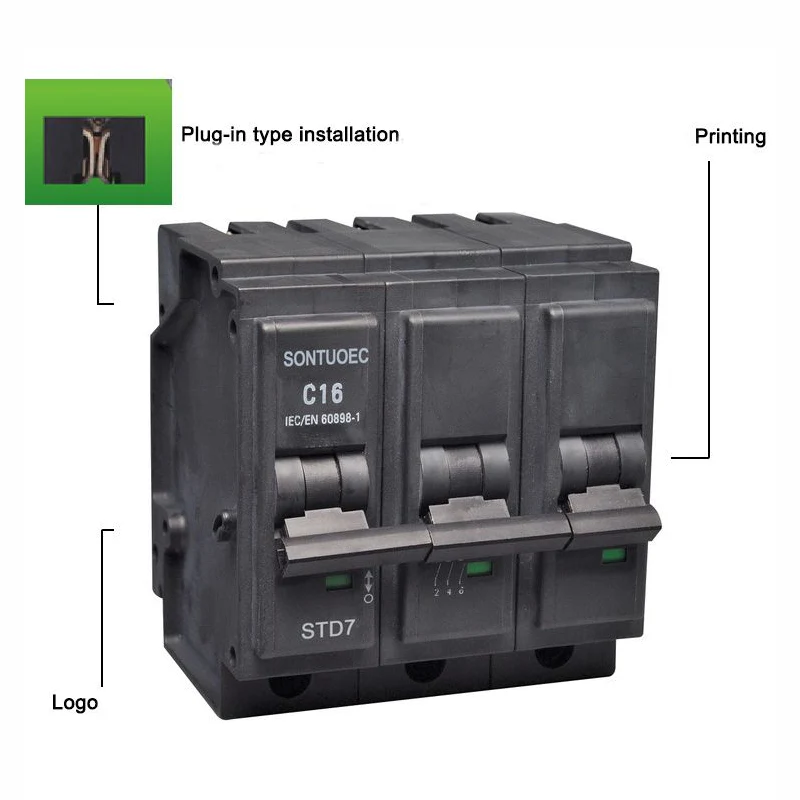

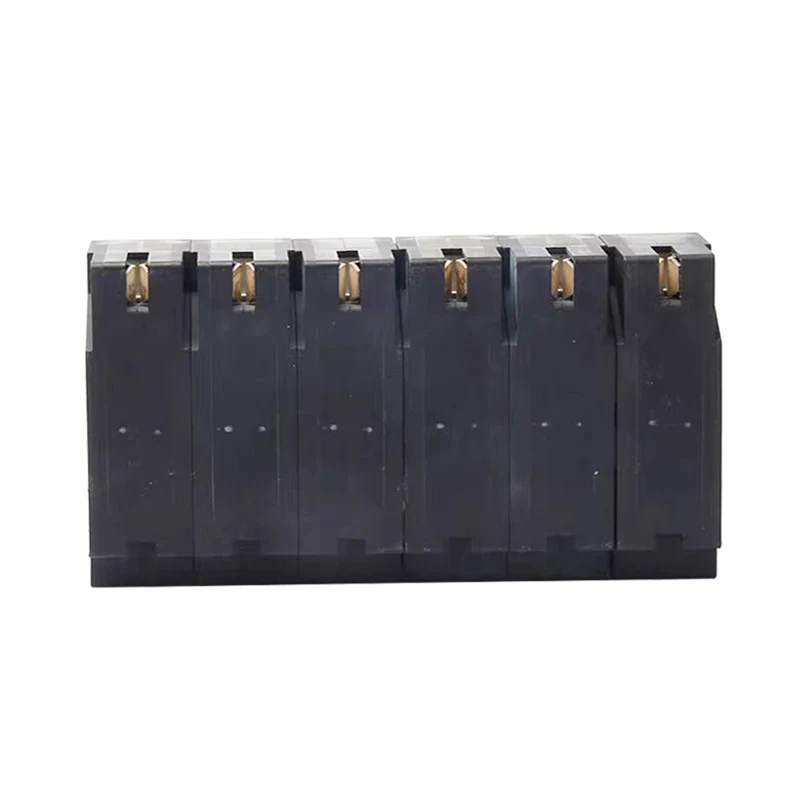

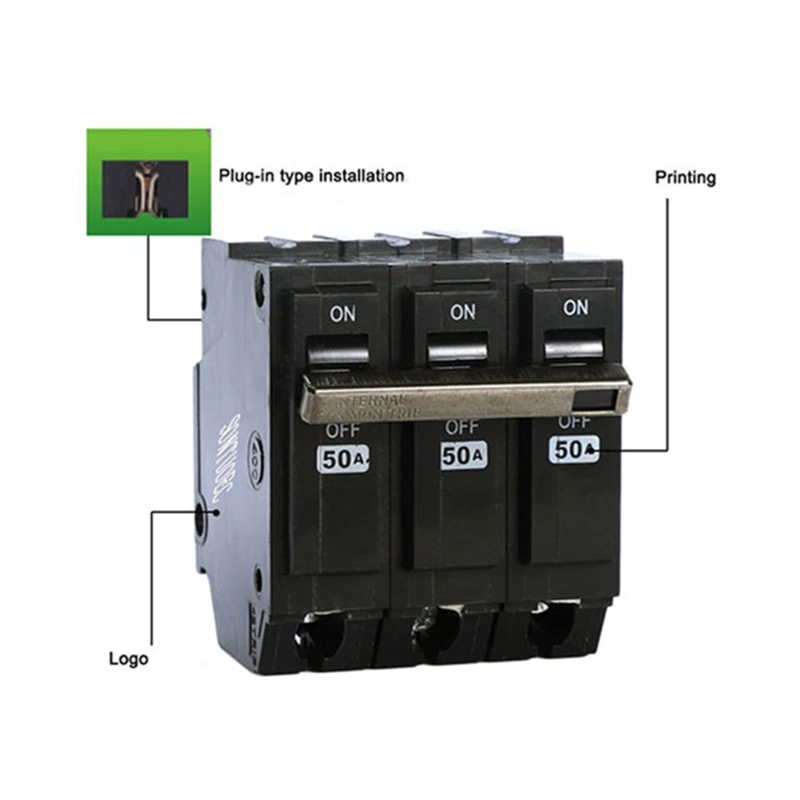

Ntsaws rau hauv hom 3p Tej Me Circuit Court Breaker McB

Cov ntsaws hauv hom 3p tej yam me me Circuit Court breaker breaker McB nrog peb tus ncej (lossis theem, raws li nws tau ua kom tau ntau dhau los tiv thaiv cov khoom hluav taws xob thiab kev nyab xeeb ntawm tus kheej.

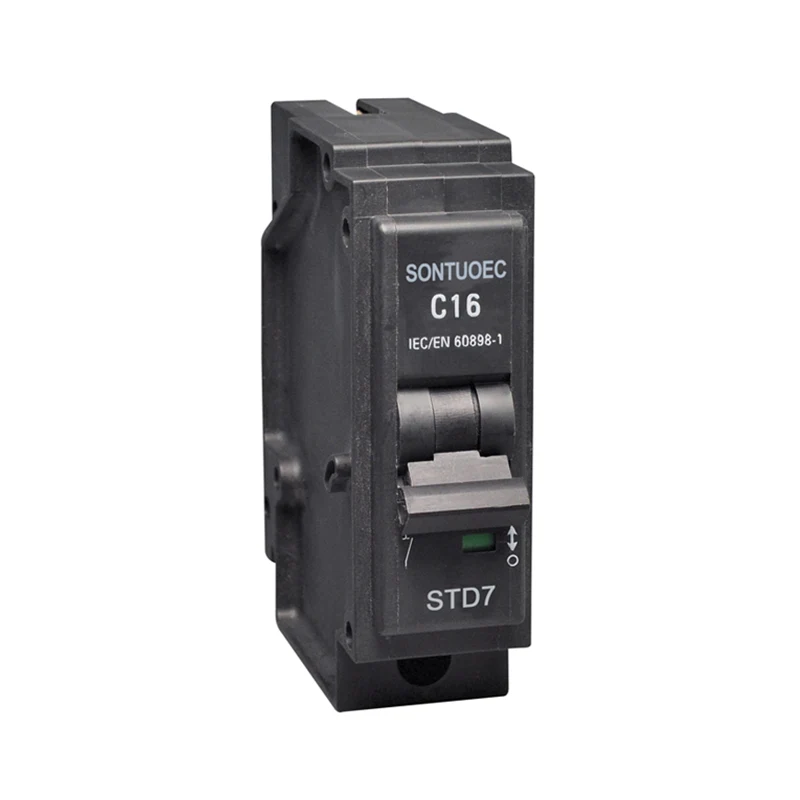

Qauv:STD7-63

Xa lus nug

Product Description

Tus qauv	Std7-63
Lub hom phiaj	Iec / en 60947-2; Iec60898-1
Tus ncej	1p, 2p, 3p, 4p
Tripping nkhaus	B, c, d
Rated luv-circuit muaj peev xwm (icn)	5ka (240 / 415v) 10ka (120V)
Rated tam sim no (hauv /)	6,1520,30,40,50,63a
Ntsuas voltage (un)	AC230 (240) / 400 (415) V
Sib Nqus Tawm	B nkhaus: nruab nrab ntawm 3in thiab 5in C Nkhaus: Ntawm 5in thiab 10in D Nkhaus: Nruab nrab ntawm 10in thiab 14in
Electro-tshuab xaus	Tshaj li 6000 toj

Ntsaws ntsuas qhov hluav taws xob Circuit Court breaker MCB yog qhov kev tiv thaiv me me los tiv thaiv kev tiv thaiv kev puas tsuaj lossis ua rau hluav taws thiab lwm yam kev nyab xeeb.

Cov lus qhia tshwj xeeb thiab tsis muaj

Tus naj npawb ntawm cov ncej: 3 ncej, haum rau peb-theem ncig kev tiv thaiv.

Cov ntsuas ntsuas tam sim no: Raws li cov qauv tshwj xeeb, cov nqi uas muaj ntau yam ntawm 3A, 10a, 25a, 40a, 40a, 63a, 63a thiab lwm yam.

Qhov ntsuas hluav taws xob: feem ntau rau cov cim nrog AC 50 / 60Hz thiab ntsuas voltage ntawm 230V / 400v.

Breaking muaj peev xwm: Nws qhia tau qhov ntau tshaj plaws tam sim no tus nqi uas MCB tuaj yeem txiav cov kab ke kom haum, thiab lub peev xwm tawg ntawm cov qauv sib txawv ntawm 3P MCB yuav txawv.

Nta thiab Qhov Zoo

Compact Cov Qauv: 3P MCB me me nyob rau hauv loj thiab lub teeb nyob rau hauv qhov hnyav, yooj yim rau nruab thiab tswj hwm.

Kev ntseeg siab: Nws tuaj yeem teb sai sai rau kev txawv txav tam sim no hauv Circuit Court thiab raug txiav tawm ntawm Circuit Court los tiv thaiv cov khoom hluav taws xob tiv thaiv hluav taws xob los ntawm kev puas tsuaj.

Versatility: ntxiv rau theem pib muaj zog thiab luv luv

Xaiv Xaiv thiab Txhim Kho Kev Nyab Xeeb

 Rating tam sim no thiab load txuam: Xaiv cov nqi ntsuas uas tsim nyog raws li cov khoom siv ntawm Circuit Court kom ntseeg tau tias MCB tuaj yeem ua haujlwm tau zoo thiab tiv thaiv cov kab ke.

 Hom thiab Zoo: Xaiv cov khoom lag luam zoo thiab cov khoom lag luam zoo los xyuas kom cov khoom muaj kev cia siab thiab kev nyab xeeb.

 Kev muab cov qauv txheej txheem: Ua raws cov qauv kev teeb tsa thiab kev nyab xeeb rau kev teeb tsa kom paub meej tias tus MCB tuaj yeem txuas nrog Circuit Court thiab ua si lub luag haujlwm tiv thaiv kab mob.

 Kev tu ib txwm niaj hnub: ib txwm kuaj xyuas cov xwm txheej ua haujlwm ntawm MCB kom ntseeg tau tias nws ua haujlwm tau zoo. Yog tias muaj kev txawv txav lossis kev puas tsuaj tau pom, nws yuav tsum tau hloov lossis kho hauv lub sijhawm.

Plug in Type 3P Miniature Circuit Breaker MCB
