OverVoltage thiab undervoltage tiv thaiv

Overvoltage thiab undervoltage tiv thaiv yog ib qho khoom tiv thaiv siv los tiv thaiv cov voltage nyob rau hauv Circuit Court los ntawm kev tshaj tawm tus nqi thiab khoom puas. Lub undervolTage tiv thaiv yog cov cuab yeej tiv thaiv siv los tiv thaiv cov hluav taws xob hauv lub Circuit Court los ntawm kev ua haujlwm tsawg thiab ua rau nws tsis ua haujlwm zoo.

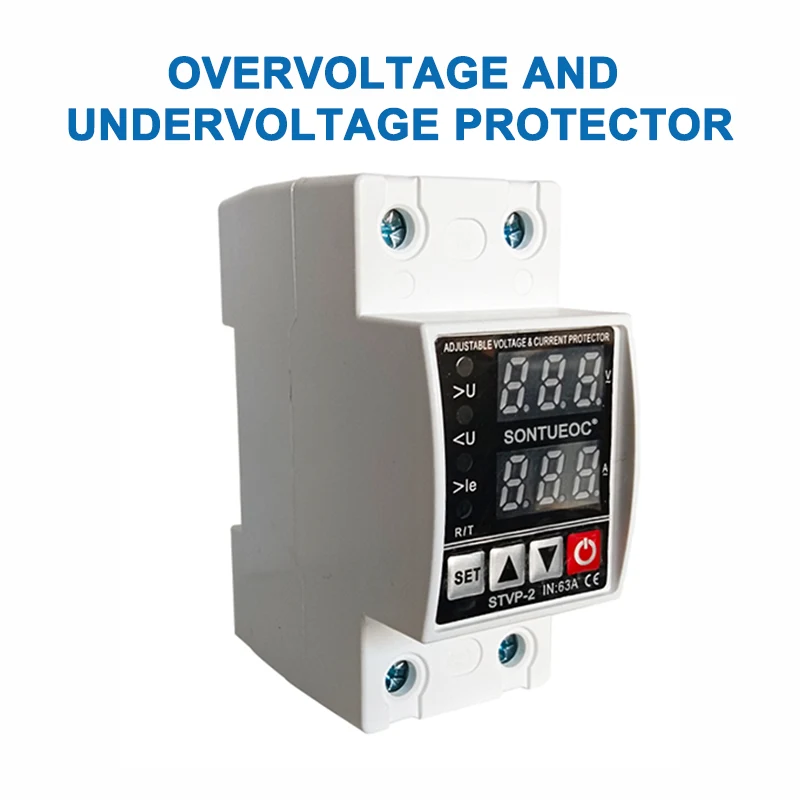

Qauv:STVP-2

Xa lus nug

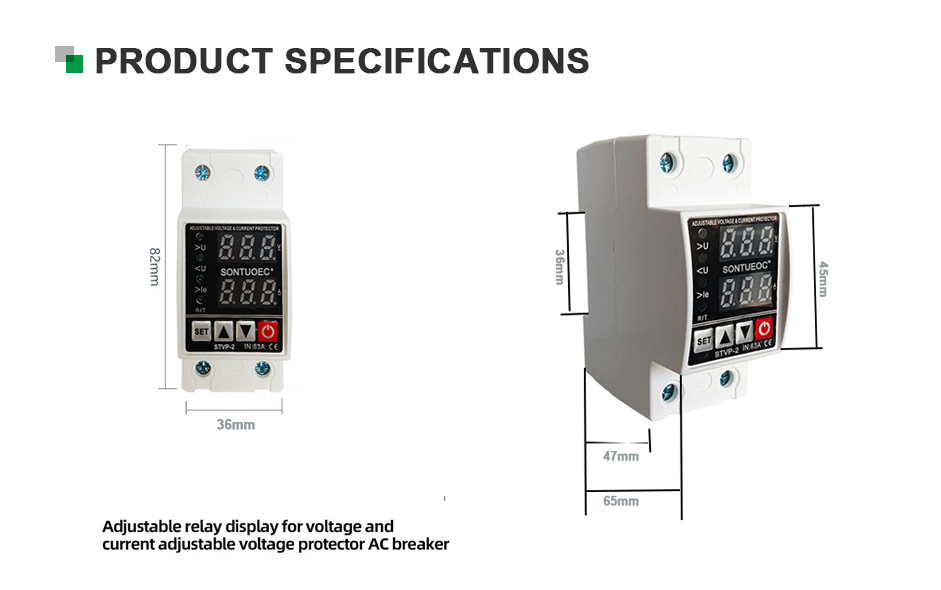

Product Description

Cov khoom lag luam tsis muaj:

Tus qauv tus nab npawj	Stvp-2
Kev pab fais fab	230vac 50 / 60Hz
Max.loading hwjchim	1 ~ 63a Adjustable (Ua tsis tau: 63A)
Ntau dhau-voltage Kev Tiv Thaiv Tus Nqi	230V ~ 300 ~ Off (default: 270V)
Ntau dhau-voltage Rov Qab Voltage Ntau	225V - 295V (tsis ncaj ncees lawm: 250V)
Ntau dhau-voltage Kev Tiv Thaiv Lub Sijhawm	0.1s ~ 30s (Lub neej ntawd Tus nqi: 0.5s)
Tshaj-voltage r ECPAPT qeeb sijhawm	1s ~ 500s (vim li cas: 30s)
Under-voltage Kev Tiv Thaiv Tus Nqi	140V - 210V --Off (tsis ua li cas: 170V)
Under-voltage Rov Qab Voltage Ntau	145v - 215v (Vim Li Cas: 190V)
Under-voltage Kev Tiv Thaiv Lub Sijhawm	0.1s ~ 30s (default: 0.5s)
Under-voltage r EJNAAR qeeb sijhawm	1s ~ 500s (vim li cas: 30s)
Dhau-tam sim no Hloov kho ntau yam	1-40A (Default20a) 1-63a (Lub neej ntawd: 40A)
Dhau-tam sim no Tes hauj tsi	0.1 ~ 30 Thib Ob (Vim li cas: 0.5s)
Tshaj-tam sim no R ECovery ncua sijhawm	1s ~ 500s (vim li cas: 30s)
Lub Hwj Chim-Rau Ncua sij hawm	1s ~ 500s (vim li cas: 10s)
Hwjchim kev noj	<2w
Noj fai fab Machinery lub neej	100,000 zaug

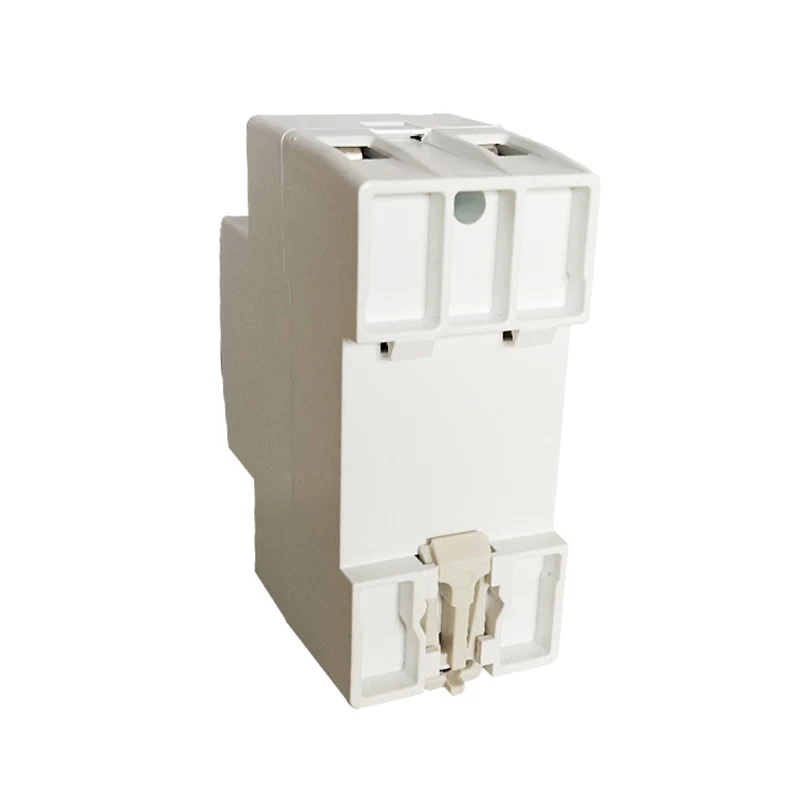

Kev muab cia	35MM DIN Rail

Peb-theem sib npaug cov lus tsa suab

Tsis yog.	Lub sij hawm ntawm kev teeb tsa tam sim no	Cov Sijhawm Kaw Lus			Pib Muaj Mob	Thaj kub cua sov
1	1.05	> 2h			Lub Xeev Txias	20 ± 5OC
2	1.2	<2h			Tshav kub lub xeev (raws li NO.1 xeem)
3	1.5	<4min
4	7.2	10a	2s	A≤63A	Lub Xeev Txias
		10	4s	> 63a

Theem-swb tsa cov yam ntxwv

Tsis yog.	Lub sij hawm ntawm kev teeb tsa tam sim no		Cov Sijhawm Kaw Lus	Pib Muaj Mob	Thaj kub cua sov
	Ib ntu ob theem	Lwm Theem
1	1	0.9	> 2h	Lub Xeev Txias	20 ± 5OC
2	1.15	0	<2h	Tshav kub lub xeev (raws li NO.1 xeem)

Lub hauv paus ntsiab lus ntawm kev ua haujlwm:

Los ntawm kev soj ntsuam cov voltage nyob rau hauv Circuit Court, thaum lub voltage yog qis dua cov khoom muaj nqis, qhov tsis muaj kev tiv thaiv los tiv thaiv cov khoom siv los ntawm kev puas tsuaj lossis tsis tuaj yeem ua haujlwm ib txwm vim yog undervoltage.

Daim Ntawv Thov:

Haum rau ntau lub sijhawm uas yuav tsum tau siv hluav taws xob ruaj khov, xws li hluav taws xob hluav taws xob, kev lag luam automation tswj cov system, tsev neeg cov khoom siv thiab lwm yam.

Nta:

Tsiag ntawv los ntawm high rhiab siab, raug thiab kev tiv thaiv zoo.

Nws tuaj yeem tiv thaiv cov khoom siv los ntawm kev ua kom muaj zog hauv voltuag thiab xyuas kom meej tias cov khoom siv ua haujlwm tsis tau raws li ib puag ncig ruaj khov.

Overvoltage and Undervoltage Protectors

Sau tseg: Thaum koj xub txuas cov khoom, koj yuav tsum tos txog 10 thib ob (Lub sijhawm thib ob (tom qab lub teeb liab kaw, tom qab cov khoom yuav ua haujlwm.

Overvoltage and Undervoltage Protectors

Sib txuas tiv thaiv

Ntxiv nrog rau cais tawm cov kev tiv thaiv thiab undervoltage tiv thaiv, muaj kev tiv thaiv kev sib xyaw uas muab ob qho kev tiv thaiv ob qho tib si thiab kev tiv thaiv tsis sib tiv thaiv. Cov kev tiv thaiv no feem ntau muaj cov yam ntxwv tiv thaiv ntau dua thiab muaj peev xwm teb tau ntau yam, muab kev tiv thaiv ntau dua rau cov voj voog thiab khoom siv.
