LC1-N Hom AC Hu rau

LC1-N Hom AC cov neeg tiv toj yog qhov tsim nyog rau siv nyob rau hauv kev ncig nrog ac 50Hz, voltages txog 690V rau qee cov qauv) thiab cov khoom siv tau mus txog 95A. Nws yog siv rau kev sib txuas thiab rhuav cov voj voog dhau qhov kev ncua deb, nrog rau kev pib thiab tswj hwm AC motors.

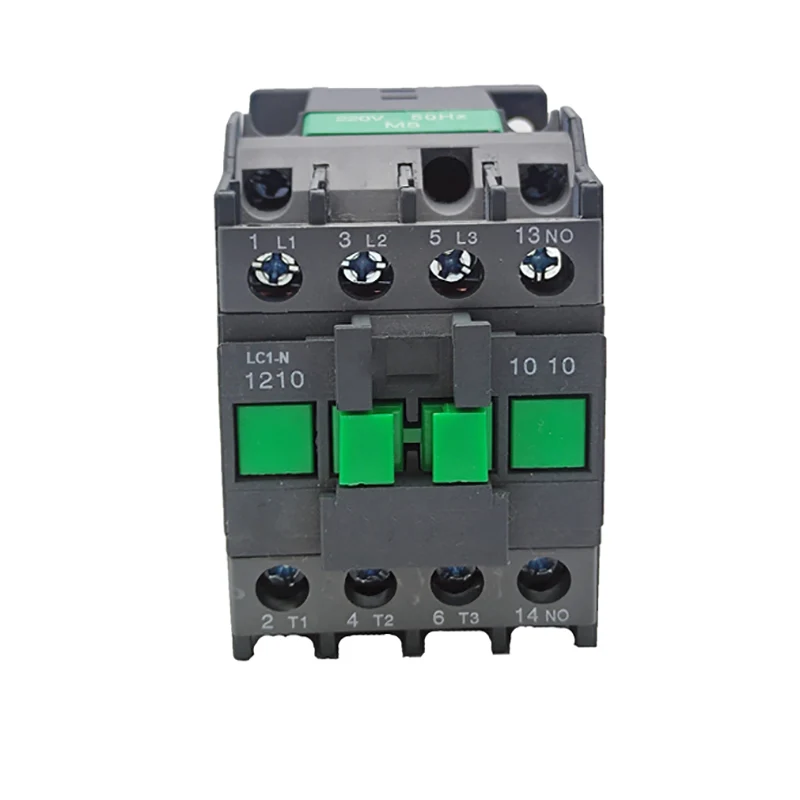

Qauv:LC1-N1210

Xa lus nug

Product Description

Ntaus		Lci-n09	LC1-N12	LC1-N18	LC1-N25	LC1-N32	LC1-N40	LC1-N50	LC1-N65	LC1-N80	LC1-N95
Rated Ua Haujlwm Tam Sim No (a)	AC3	9	12	18	25	32	40	50	65	80	95
Rated Ua Haujlwm Tam Sim No (a)	Yog	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Txheem ntsuas ntawm 3-theem Cov Motors 50 / 60Hz Incatitory-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400v	4	5.5	7.5	11	15	18.5	22	30	37	45
	415v	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated tshav kub tam sim no (a)		20	20	32	40	50	60	80	80	125	125
Hluav Taws Xob Lub Neej	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Hluav Taws Xob Lub Neej	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Neeg kho tshuab lub neej (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Tus naj npawb ntawm cov neeg	3p + tsis muaj					3p + NC + tsis muaj
Tus naj npawb ntawm cov neeg	3p + NC					3p + NC + tsis muaj

Qauv nta

Modular tsim: LC1-N Hom AC Tus Zauv Adopts cov qauv uas ua tiav nrog cov neeg siv lossis sib txuas raws li lawv cov kev xav tau.

Electromagnetic Tsim: suav nrog Electromagnetic Coil thiab Hlau Core, uas yog ib feem tseem ceeb ntawm tus neeg sib cuag, cia siab rau nws tsav tsheb kaw.

Hu rau qhov system: suav nrog kev sib cuag thiab tus lej tiv thaiv. Lub ntsiab sib cuag yog siv los txuas thiab ua txhaum lub circuit Court tseem ceeb thiab tswj qhov loj dua; Tus ntsuas kev sib cuag yog nyob rau hauv kev tswj hwm hluav taws xob kom tau raws li qhov xav tau ntawm ntau txoj kev tswj hwm.

Arc extinguishing system: Nruab nrog lub arc extoruishing cov khoom siv, thiab nruab nrog cov neeg sib nqus uas muaj kev sib tw ua kom tawg, txo cov arc exenched quenched, txo cov arc kev puas tsuaj rau cov neeg sib tiv tauj.

Lub hauv paus ntsiab lus ntawm kev ua haujlwm

Thaum twg kev tswj hwm hluav taws xob tau energized, lub tshuab hluav taws xob tsim hluav taws xob, uas nyiam cov kev sib tw los kaw, yog li txuas cov circuit Coillor ntawm lub compressor. Thaum twg kev tswj hwm hluav taws xob yog de-energized, lub sib nqus teb ploj mus nyob rau hauv qhov kev txiav txim ntawm lub caij nplooj ntoo hlav, thiab lub circuit Court ntawm lub compressor kuj tau txiav tawm.
