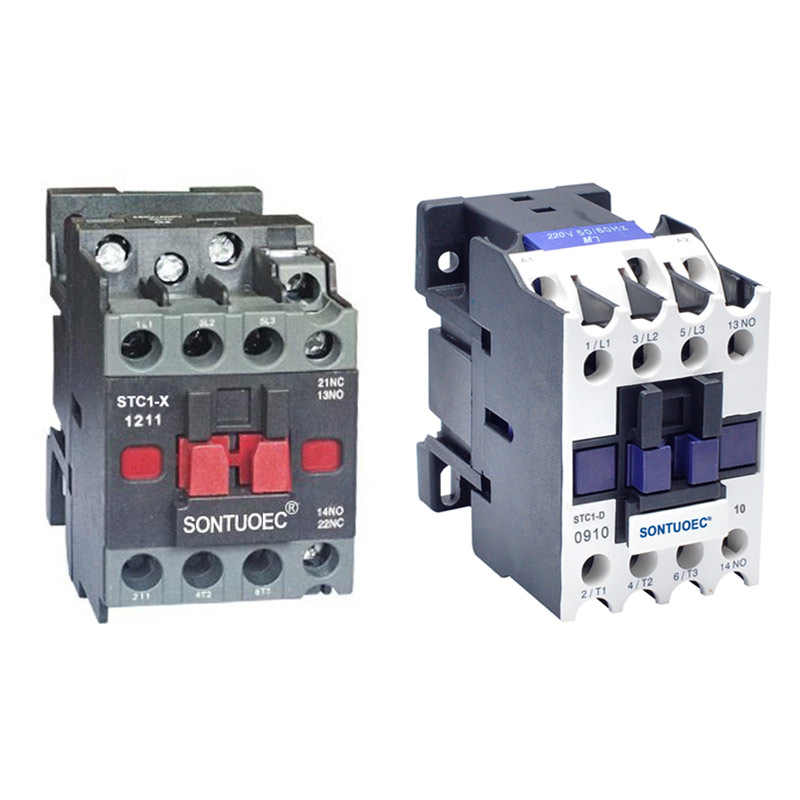

Lub Npe Hluav Taws Xob Hluav Taws Xob

Sontuoc Zoo Tshaj Plaws Hluav Taws Xob Zoo Siab yog siv nyob rau hauv lub circluits nyob rau hauv lub cirational lub ntsuas qhov ntev txog 95A, rau kev ua thiab tawg, nquag pib & tswj hwm AC lub cev muaj zog. Ua ke nrog cov ib pab pawg tiv thaiv block, timer qeeb & tshuab-sib tham, tshuab interbering, star-Delta Starter. Nws hloov mus rau hauv lub tshuab hluav taws xob thaum nws ua haujlwm ua ke nrog cov hluav taws xob hluav taws xob sib xyaw, uas tuaj yeem tiv thaiv cov hluav taws xob ntau dua. Tus neeg sib cuag yog tsim raws li IC60947-4-1.

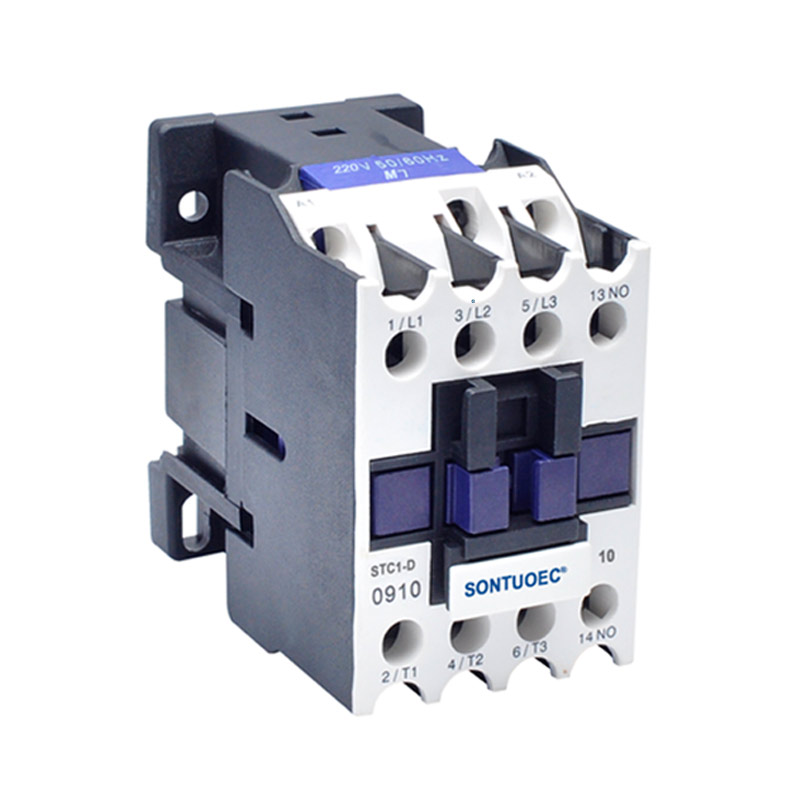

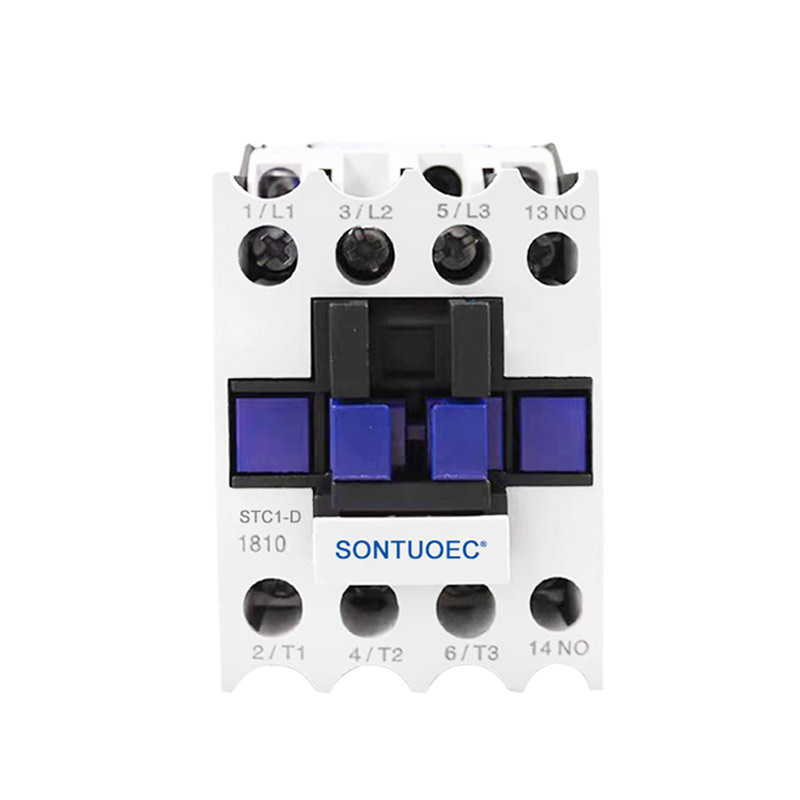

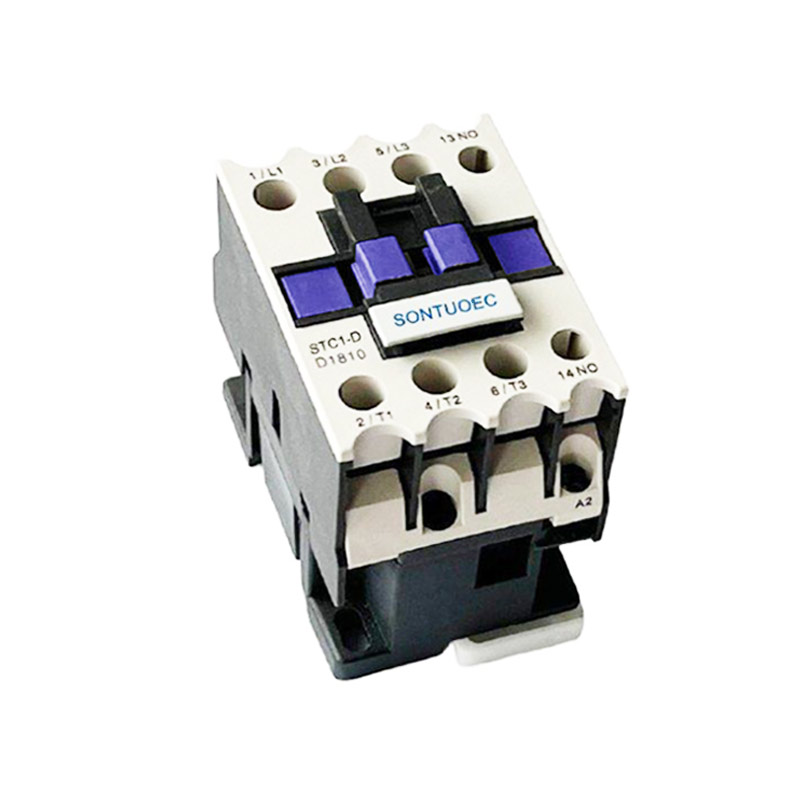

Qauv:STC1-D

Xa lus nug

Product Description

Ntaus		Stc1-d09	SCC1-D12	SC1-D18	SCC1-D25	SC1-D32	SC1-D40	SCC1-D50	SC1-D65	SC1-D80	SC1-D95
Rated Ua Haujlwm Tam Sim No (a)	AC3	9	12	18	25	32	40	50	65	80	95
Rated Ua Haujlwm Tam Sim No (a)	Yog	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Tus Qauv Txheej Txheem Ntaus 3-theem motors 50 / 60HZ hauv qeb ACC-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400v	4	5.5	7.5	11	15	18.5	22	30	37	45
	415v	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated tshav kub tam sim no (a)		20	20	32	40	50	60	80	80	125	125
Hluav Taws Xob Lub Neej	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Hluav Taws Xob Lub Neej	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Neeg kho tshuab lub neej (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Tus naj npawb ntawm cov neeg	3p + tsis muaj					3p + NC + tsis muaj

Khoom nta

Kev ua yeeb yam siab: Cov neeg tiv toj hluav taws xob yog tsim los ua qhov tsawg tshaj plaws, thiab tus nqi qis tshaj plaws txog 500 ° C) thiab muaj peev xwm cuam tshuam ntawm 2000a (ntawm 320VDC).

Zog txuag hluav taws xob: built-in cheil lub zog ua haujlwm ntawm tsuas yog 1.7w tuav hwj chim (ntawm 12VdC) thiab tuaj yeem txwv hluav taws xob hluav taws xob (EMF) rau 0V.

Kev Nyab Xeeb: Cov khoom lag luam yog hermetically kaw rau intrinsic kev nyab xeeb thiab muaj peev xwm khiav tawm ib puag ncig uas tsis muaj oxidization lossis kev sib kis tau ntawm lub sijhawm tsis muaj sijhawm ntev.

Versatility: Yeem Saib Xyuas cov neeg xaiv tau muab rau kev saib xyuas yooj yim ntawm txoj haujlwm ntawm lub zog ntawm lub zog. Kuj tseem muaj cov peev txheej yooj ywm?

Daim Ntawv Thov Kev Pab Cuam

Electronics cov neeg tiv toj tau siv nyob rau hauv ntau cov ntawv thov, suav nrog tab sis tsis txwv rau:

Cov Roj Teeb: Tshwj xeeb yog tsim nyog rau European Community (EC) qhov twg CE khij yuav tsum muaj.

Kev tiv thaiv Circuital tiv thaiv thiab hloov pauv: xws li hloov thiab rov qab cov hluav taws xob tswj, hom III), nrog rau DC voltage tiv thaiv, thiab kev nyab xeeb hauv Aiag QS9000 Tsim.

Lwm hom kev lag luam: Tsis tas li rau kev siv tsheb, aerospace, kev sib txuas lus, cov khoom siv hluav taws xob, kev kho mob thiab lub zog.
