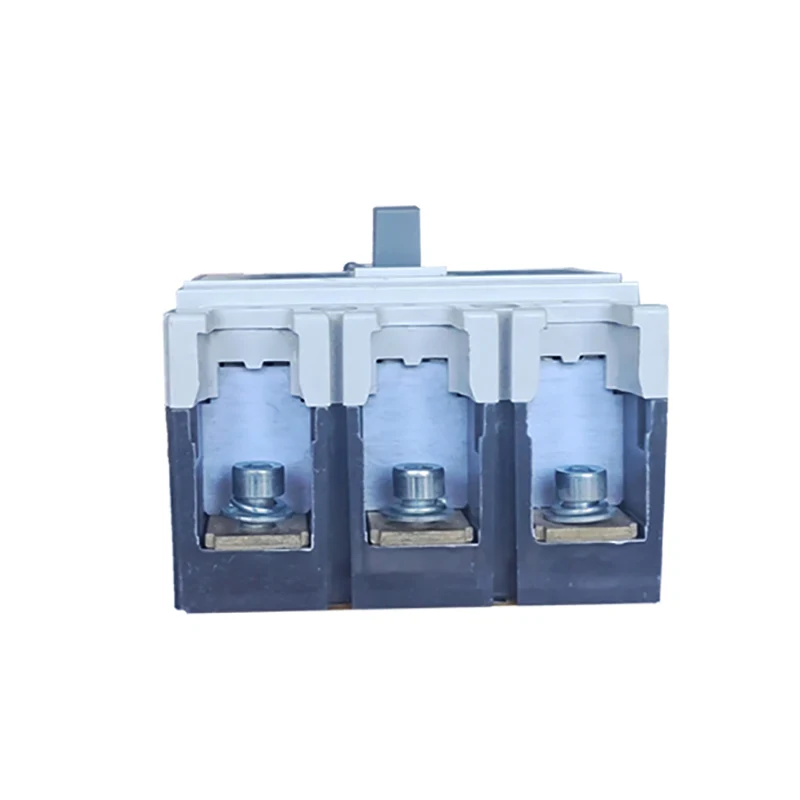

Hluav taws xob Moulded Case Circuit Breaker

Hluav taws xob Moulded Case Circuit Breaker yog ib yam khoom siv hluav taws xob uas muaj kev tiv thaiv kev ua haujlwm xws li overload, luv Circuit Court thiab nyob rau hauv voltage. Nws txoj hauv kev ua haujlwm yog tias nyob rau hauv kev ua haujlwm ib txwm muaj, lub Circuit Court breaker yog nyob rau hauv lub xeev kaw, thaum lub Circuit Court overload, luv luv Circuit Court los yog nyob rau hauv voltage thiab lwm yam txhaum, lub Circuit Court breaker yuav txiav tawm lub Circuit Court, thiaj li tiv thaiv lub Circuit Court thiab kev ruaj ntseg ntawm cov khoom.

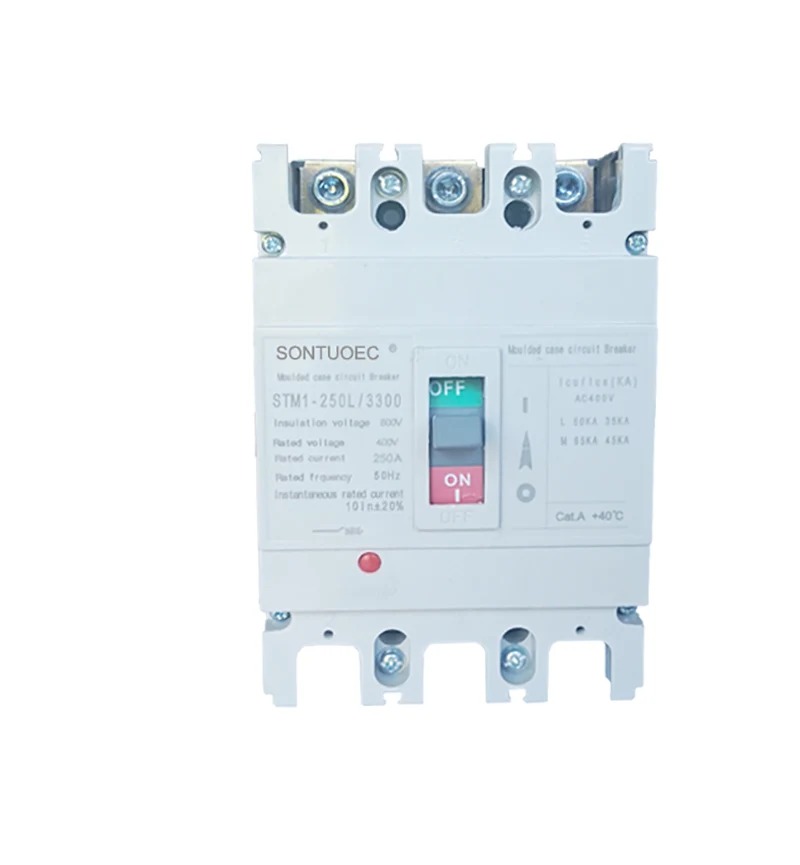

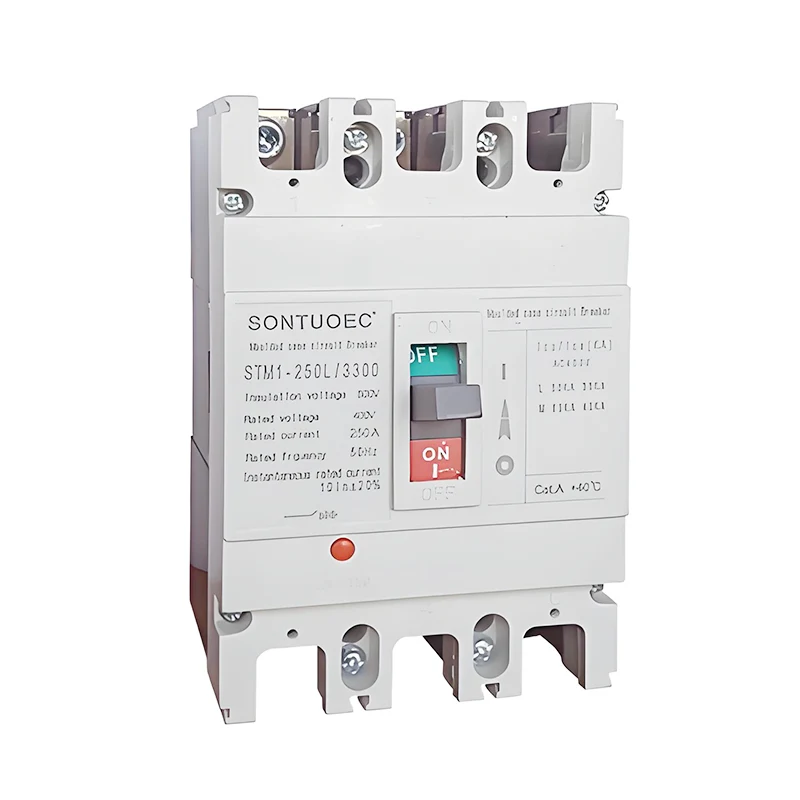

Qauv:STM1-250L

Xa lus nug

Product Description

Qauv		STM 1-125			STM 1-250			STM 1-400			STM 1-630			STM 1-800			STM 1-1250
Rated Cortirucus curert		125			250			400			630			800			1250
Rated Curert hn(A)		16, 20, 25, 32, 40.50 Nws			100, 125, 140, 160,			250,315,350,400			400,500,630			630,700,800 ib			80,010,001,250
		63, 80, 100, 125			180, 200, 225.25
Rated Ua Haujlwm Votage Ue(V)DC								500,550,7			501,000 ib
Rated Isuation Votage UKV)		1000			1000			1500			1500			1500			1500
Qhov (KV)
Test Votage Ib Miute (V)		3500			3500			3500			3500			3500			3500
Lub peev xwm tawg (KA)		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
ku(1cs = 75% ku)	250 V	25	35	50	35	50	65	35	50	65	35	50	65	50	65	80	50	65	80
	500 V	25	25	50	35	35	65	35	35	65	35	35	65	50	50	80	50	50	80
	750v ua	25	15	50	35	25	65	35	25	65	35	25	65	50	35	80	50	35	80
	1000V	25	10	50	35	15	65	35	15	65	35	15	65	50	20	80	50	20	80
Mechaarical Nws	Sijhawm	7000			7000			4000			4000			2500			2000
Hluav taws xob lub neej	Sijhawm	2000			2000			1000			1000			800			600
Lub sijhawm tawg (ms)		20			20			20			20			20			20
Qhov chaw teeb tsa		Txhua qhov chaw
bolator muaj peev xwm		yog
Txuj		IEC 60947-2, IEC 60947-1, GB 14048, GB 14048-2
Kub (C)		25 ℃ - 50 ℃
Kev tiv thaiv Degress		b 20 ua
Accessory		OF/SD/MX
Arcing nrug (mm)		250

Qauv TSIS MUAJ.	STM1-250L / 3300 hli
Arc-extinguishing nruab nrab	Cua
Standard:	IEC 60947-2: Cov
Qauv	MCCB
Hom	Moulede Case Circuit Breaker
Daim ntawv pov thawj	CE
Kev pom zoo	CE, ISO9001
Lub sij hawm xa tuaj	Hauv 20 hnub
Specification	63A-630A IB
Keeb kwm	Wenzhou Zhejiang
Muaj Peev Xwm Ntau Lawm	2000pcs / lub lis piam
Ceev	Hom li qub Circuit Breaker
Kev teeb tsa	Tsau
Ncej Number	3p4 ib
Muaj nuj nqi	Cov pa Circuit Breaker, Kev tiv thaiv tsis ua haujlwm ntawm Circuit Breaker, Kev tiv thaiv overcurrent
Nqe	Hoobkas Nqe
Lub Sijhawm Warranty	12 hli
Thauj Pob	Sab hauv Box / Carton
Cov cim lag luam	SONTUOEC, WZSTEC, SONTUNE, IMDEC
HS Code	8536200000

Cov qauv thiab cov yam ntxwv

Structure: hluav taws xob molded rooj plaub Circuit Court breaker feem ntau muaj kev sib cuag, arc extinguishing system, kev khiav hauj lwm mechanism, striker, thiab plhaub thiab lwm yam.

Nta:

Nws muaj peev xwm tawg siab thiab zoo dynamic thermal stability.

Lub plhaub yog ua los ntawm cov nplaim hluav taws-retardant, arc-resistant insulating khoom, nrog rau kev ua haujlwm siab.

Cov txheej txheem kev khiav hauj lwm yog hloov tau thiab txhim khu kev qha, uas yooj yim rau cov neeg siv los ua haujlwm manually lossis hluav taws xob.

Lub disconnector muaj ntau yam kev tiv thaiv kev ua haujlwm, thiab tuaj yeem ua cov haujlwm sib xws raws li qhov sib txawv ntawm cov khoom siv hluav taws xob.

Muaj nuj nqi thiab siv

Muaj nuj nqi: Hluav taws xob molded rooj plaub Circuit Court breaker muaj ntau yam kev tiv thaiv xws li kev tiv thaiv overload, tiv thaiv luv luv, tiv thaiv hluav taws xob thiab tiv thaiv to. Ntawm lawv, kev tiv thaiv overload txhais tau hais tias thaum lub Circuit Court yog overloaded, lub Circuit Court breaker tuaj yeem txiav tawm Circuit Court los tiv thaiv cov cuab yeej los ntawm kev puas tsuaj vim overheating; Kev tiv thaiv luv luv txhais tau hais tias thaum lub caij luv luv tshwm sim hauv Circuit Court, lub Circuit Court breaker tuaj yeem txiav tawm qhov txhaum tam sim no sai los tiv thaiv hluav taws thiab lwm yam kev nyab xeeb; kev tiv thaiv undervoltage txhais tau hais tias thaum lub hwj chim mov voltage qis dua tus nqi ntsuas, lub Circuit Court breaker tuaj yeem txiav tawm lub Circuit Court los tiv thaiv cov khoom los ntawm kev puas tsuaj; thiab kev tiv thaiv cov dej xau txhais tau hais tias thaum muaj hluav taws xob tshwm sim hauv Circuit Court, lub Circuit Court breaker tuaj yeem txiav tawm lub hwj chim raws sij hawm los tiv thaiv tus kheej kev nyab xeeb. Kev tiv thaiv hluav taws xob txhais tau hais tias cov hluav taws xob hluav taws xob tuaj yeem txiav tawm lub zog hluav taws xob hauv lub sijhawm thaum muaj cov dej xau hauv Circuit Court los tiv thaiv tus kheej kev nyab xeeb.

Siv: Hluav taws xob molded rooj plaub Circuit Court breakers yog dav siv nyob rau hauv hluav taws xob systems nyob rau hauv vaj tse, coj mus muag, industrial thiab tsheb thauj mus los teb. Hauv thaj chaw nyob, nws yog siv los tiv thaiv kev nyab xeeb ntawm lub tsev circuits thiab cov khoom siv hluav taws xob; nyob rau hauv kev lag luam, nws yog siv los tiv thaiv hluav taws xob systems ntawm cov tsev loj thiab cov chaw lag luam; nyob rau hauv kev lag luam teb, nws yog siv los tswj thiab tiv thaiv kev nyab xeeb ntawm lub Hoobkas khoom thiab tshuab; nyob rau hauv kev thauj mus los, nws yog siv los tiv thaiv kev ua haujlwm ruaj khov ntawm cov teeb pom kev, kev tsheb ciav hlau thiab lwm yam khoom siv.
