Dz47le-63 Series Unified Appearance Loj Circuit Court Breaker RCBO

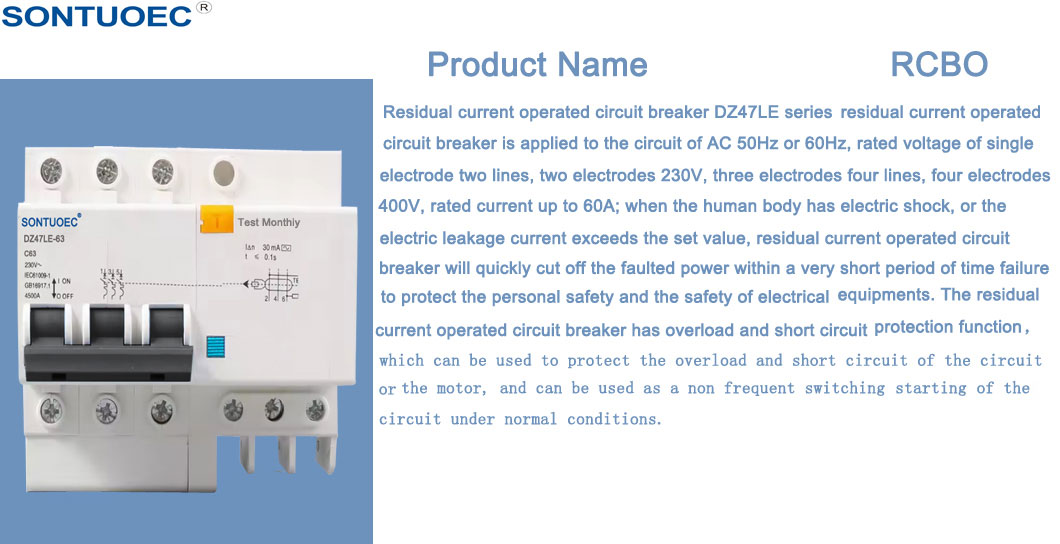

1.RCBO feem ntau yog siv hauv AC 50Hz (60Hz), ntsuas qhov hluav taws xob 230/400V, ntsuas tam sim no 6A txog 63A tsis tshua muaj hluav taws xob davhlau ya nyob twg qhov system. RCBO sib npaug nrog MCB + RCD muaj nuj nqi; Nws yog siv rau kev tiv thaiv hluav taws xob thiab kev tiv thaiv tib neeg kev tiv thaiv kev tiv thaiv, cov khoom siv hluav taws xob tiv thaiv thaum tib neeg lub cev kov hluav taws xob lossis hluav taws xob hluav taws xob hluav taws xob xau tam sim no tshaj tus nqi tau teev tseg, thiab dhau kev thauj khoom thiab kev tiv thaiv luv luv; Nws kuj tseem tuaj yeem yog tus neeg ua haujlwm tsis muaj zaus hauv Circuit Court, siv wildly hauv thaj chaw nyob thiab kev lag luam. Nws ua raws li tus qauv ntawm IEC61009-1. 2.MCB yog siv nyob rau hauv AC50/60Hz, rated voltage ntawm 230V3, 4 ncej 400V, rated tam sim no mus rau 63A rau overload thiab luv-circuit tiv thaiv raws li zoo raws li rau unfrequented switching nyob rau hauv ib txwm rooj. 3.RCCB yog ua raws li cov qauv ntawm IEC61008.Nws tuaj yeem txiav tawm qhov txhaum tam sim ntawd ntawm lub sijhawm muaj kev puas tsuaj los yog lub ntiaj teb to ntawm trunkline.Yog li nws tsim nyog kom tsis txhob muaj kev poob siab thiab hluav taws kub los ntawm lub ntiaj teb to.

Qauv:DZ47LE-63

Xa lus nug

Product Description

Specifications:

RCBO

	Txuj	Chav tsev	IEC / EN 61009-1
Hluav taws xob	Hom		Hom hluav taws xob
nta	Hom (yoj daim ntawv ntawm lub ntiaj teb leakage sensed)		A, AC
	Thermo-magnetic tso tawm yam ntxwv		B, C, D
	Rated tam sim no ln	A	6, 10, 16, 20, 25, 32, 40, 63
	Ncej	P	1P + N, 3P + N
	Rated voltage Ue	V	AB 230, 400
	Rated rhiab heev I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Rated residual ua thiab tawg muaj peev xwm l△m	A	500
	Rated luv-circuit peev Icn	A	6000
	Lub sijhawm so hauv qab I△n	S	≤0.1
	Rated zaus	Hz	50/60
	Rated impulsewithstand voltage (1.2/50) Uimp	V	4000
	Dielectric xeem voltage ntawm ind.Freq rau 1min	kV ua	2
	Rwb thaiv tsev voltage Ui	V	250
	Pollution degree		2
Mechanical nta	Hluav taws xob lub neej		4000
	Neeg kho tshuab lub neej		10000
	Fault current Indicator		YOG
	Kev tiv thaiv qib		IP20
	Ambient kub	ºC	-5 ~ + 40 (Kev thov tshwj xeeb thov xa mus rau
	(nrog rau qhov nruab nrab txhua hnub ≤35ºC)	ºC	Kev kho qhov kub thiab txias)
	Cia kub	ºC	-25 ~ + 70
Kev teeb tsa	Terminal txuas hom		Cable / Pin-type busbar / U-type busbar
	Terminal loj saum / hauv qab rau cable	mm2	25
	Terminal loj saum / hauv qab rau cable	AWG	5 Peb Hlis 18
	Terminal loj saum / hauv qab rau busbar	mm2	25
	Terminal loj saum / hauv qab rau busbar	AWG	3 Peb Hlis 18

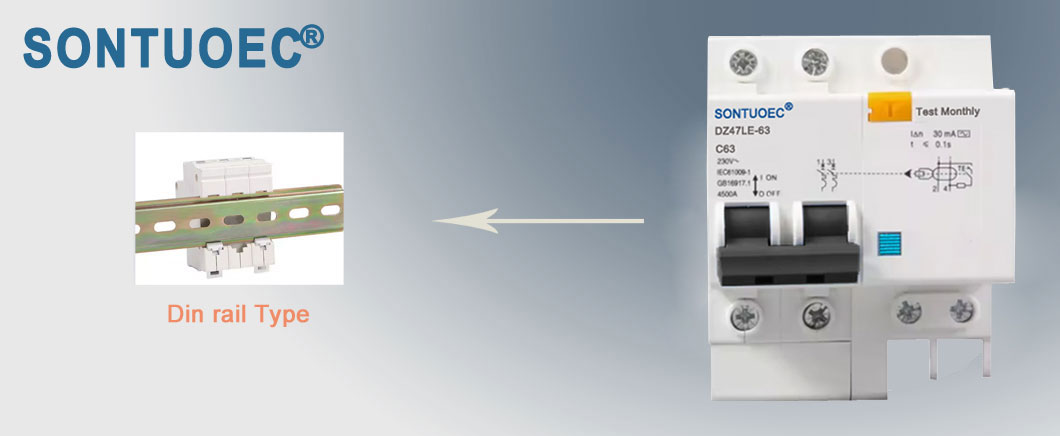

	Mounting		Ntawm DIN rail EN 60715 (35mm) los ntawm kev siv ceev ceev clip
	Kev sib txuas		Los ntawm sab saum toj

Roduct Over View:

1. Muab kev tiv thaiv lub ntiaj teb txhaum/kawg tam sim no thiab kev ua haujlwm ntawm kev sib cais

2. High short-circuit tam sim no withstand peev3. Muaj feem xyuam rau lub davhlau ya nyob twg thiab tus pin / diav rawg hom busbar txuas

5. Tsis siv neeg txiav lub voj voog thaum lub ntiaj teb ua txhaum / qhov hluav taws xob tam sim no tshwm sim thiab tshaj qhov ntsuas rhiab heev

6. Kev ywj pheej ntawm cov khoom siv hluav taws xob thiab kab hluav taws xob, thiab tsis muaj kev cuam tshuam sab nraud, kev hloov pauv hluav taws xob.

MCB

Qauv	MCB
Txuj	IEC 60898-1
Ncej	1 P, 2, 3P, 4P
Tripping Curve	B, C, D
Rated Short-circuit peev (Icn)	3 KA, 4.5KA, 6KA, 10KA
Rated Tam sim no (hauv)	1,2,4,6,10,16,20,25,32,40,50,63A
Rated voltage (Un)	AC230 (240) / 400 (415)V
Sib nqus tawm	B nkhaus: nruab nrab ntawm 3 thiab 5 Hauv
	B nkhaus: nruab nrab ntawm 3 thiab 5 Hauv
	C nkhaus: nruab nrab 5i10 ib
	C nkhaus: nruab nrab 5i10 ib
	D nkhaus: nruab nrab ntawm 10 thiab 14In
	D nkhaus: nruab nrab ntawm 10 thiab 14In
Electro-mechanical endurance	tshaj 6000 cyclesC

RCCB


	Txuj	Chav tsev	IEC / EN 61008-1
Hluav taws xob	Hom (yoj daim ntawv ntawm lub ntiaj teb leakage sensed)		AC, UA
Feature	Rated tam sim no Hauv	A	16, 25, 32, 40, 63
	Ncej	P	2,4 ib
	Rated voltage Ue	V	230/400 Nws
	Rated rhiab heev I n	A	0.01, 0.03, 0.1, 0.3
	Rwb thaiv tsev voltage Ui	V	500
	Rated residual ua thiab	A	630
	tawg peev xwm kuv m
	Short-circuit tam sim no kuv c	A	4500/6000
	SCPD fuse	A	6000
	Lub sijhawm so hauv qab kuv n	s	<0.1
	Rated zaus	Hz	50/60
	Pollution degree		2
MechanicaI	Hluav taws xob lub neej	t	4000
nta	Mechanica Ib	t	20000
	Fault tam sim no qhia		Yog lawm
	Kev tiv thaiv qib		IP20
	Ambient kub	C	Los ntawm -25C mus txog 40C
	(nrog rau qhov nruab nrab txhua hnub 35)
	Cia kub	C	Los ntawm -25C mus txog 70C

FAQ

Q 1. Lub sijhawm them nyiaj yog dab tsi? A. Peb lees txais TT, 30% tso nyiaj thiab 70% sib npaug tiv thaiv daim ntawv BL

Q 2. Lub sijhawm khoom xa tuaj li cas?

A. feem ntau nws yuav siv li 25 hnub rau kev tsim khoom

Q 3. qhia kuv tus qauv ntawm pob?

A. Feem ntau yog cartons, tab sis kuj peb tuaj yeem ntim nws raws li koj xav tau.

Q 4.Koj puas kam siv peb lub logo?

A.Yog tias koj muaj qhov zoo, nws tsis muaj teeb meem ua OEM.

Q5. Kuv tuaj yeem coj qee qhov qauv?

A: Yog, peb txhawb nqa coj mus kuaj ua ntej tso qhov kev txiav txim. Tsuas yog xav tiv tauj nrog peb yog tias koj muaj kev xav tau.

Q6. Koj puas yog thawj Hoobkas?

A: Yog, peb muaj peb lub Hoobkas.

q7 ua. Koj yuav ua li cas kom paub tseeb tias cov khoom zoo?

A: Peb yuav ua raws li cov qauv zoo thoob ntiaj teb los tshuaj xyuas txhua yam khoom ua ntej tawm hauv peb lub Hoobkas. Hu rau peb Ua tsaug rau koj kev nyeem ntawv.Yog tias ib yam khoom ua tau raws li koj xav tau. Zoo siab txais tos xa email rau peb lossis los ntawm Wechat thiab WhatsApp.
