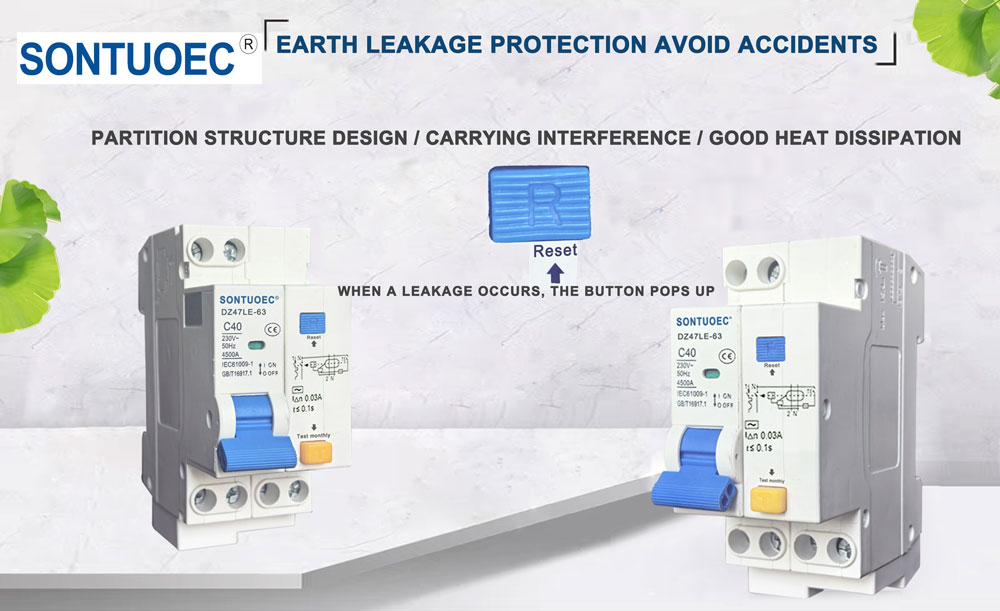

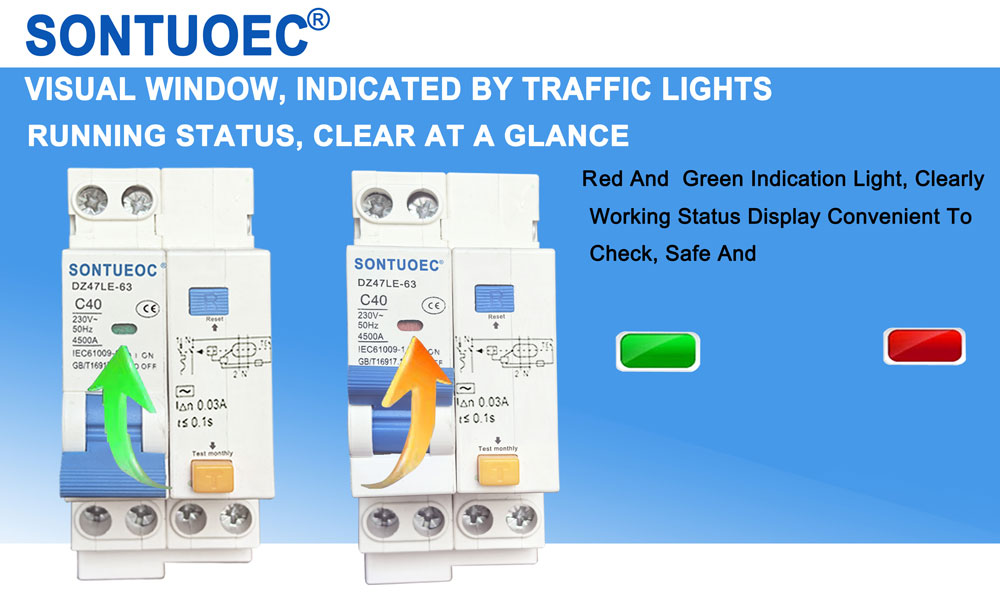

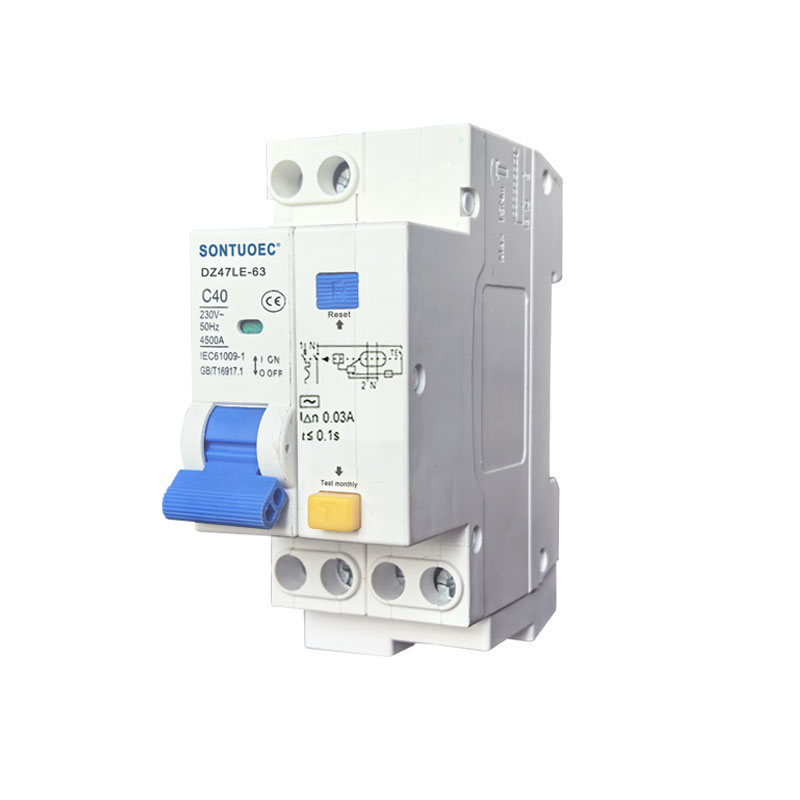

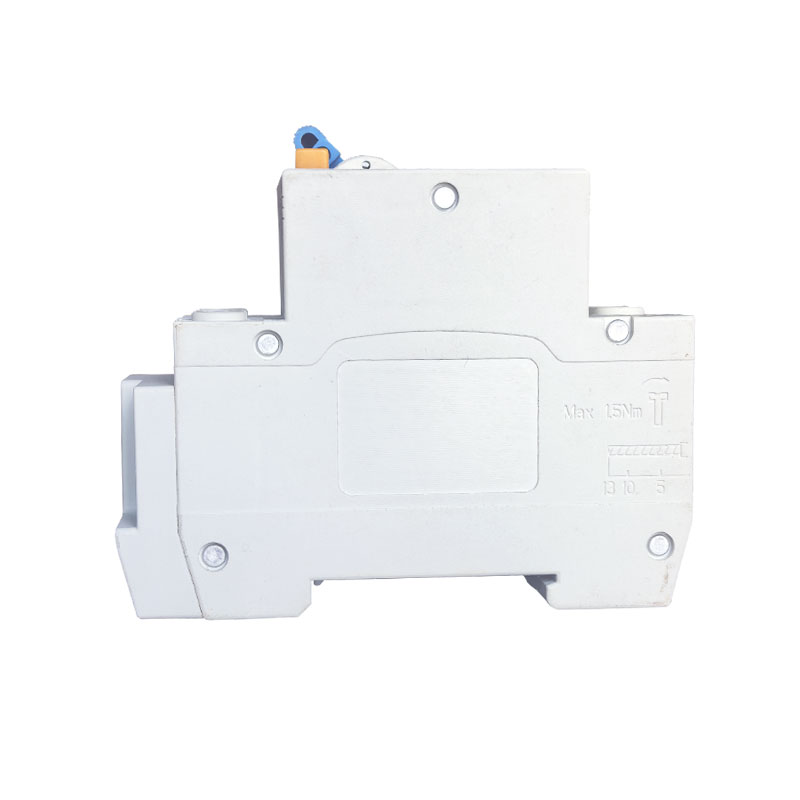

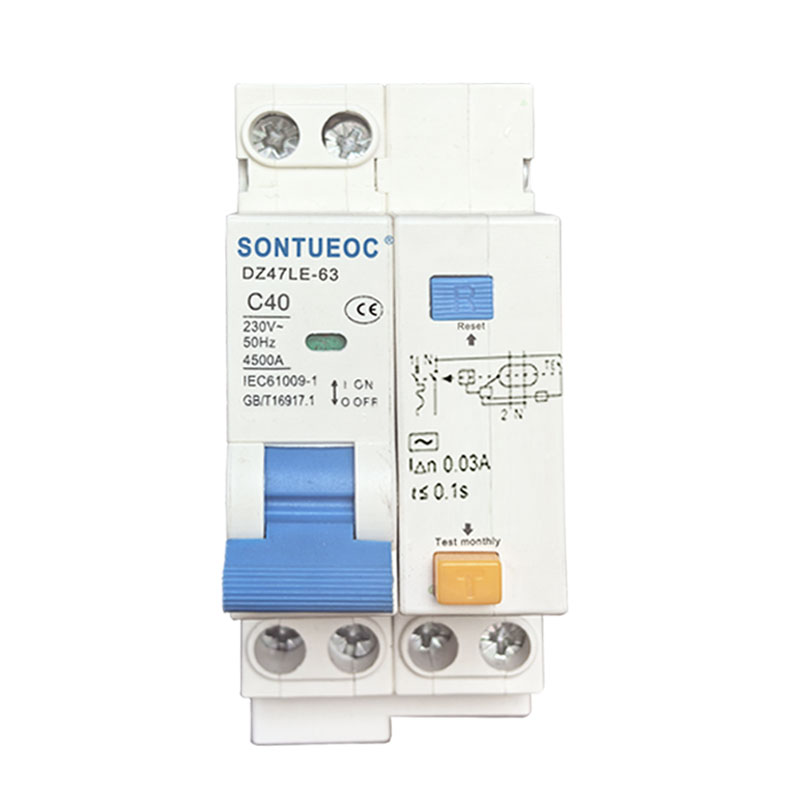

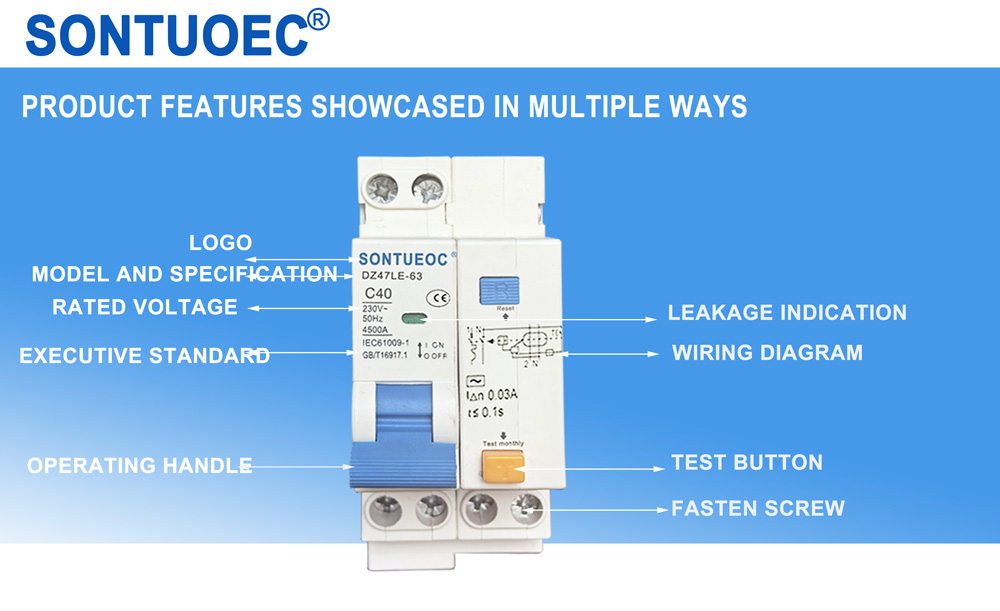

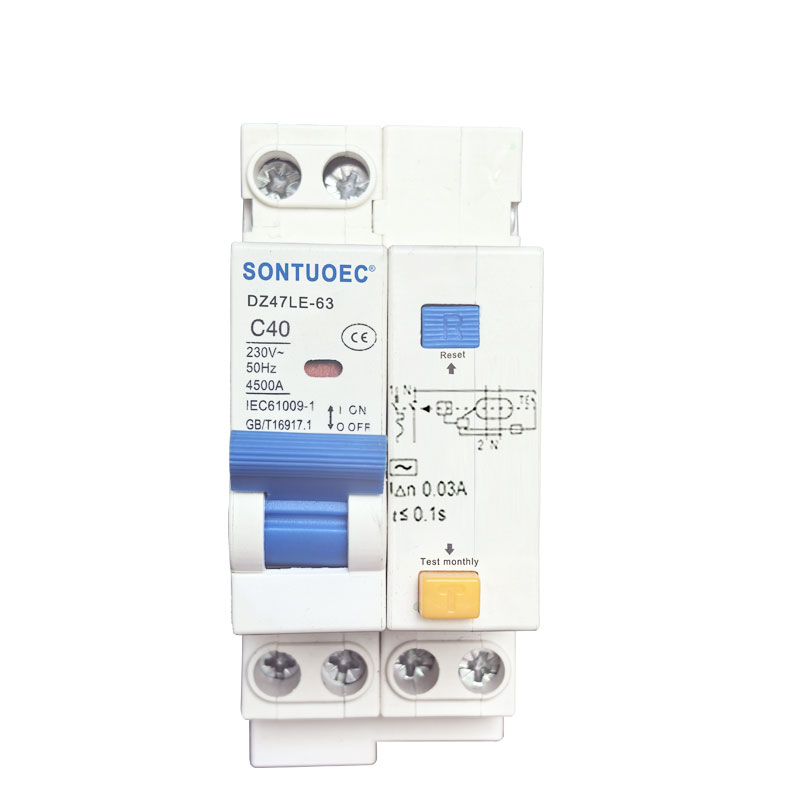

Dz47le-63 RCBO Series Leakage tam sim no Circuit Court Breaker

SONTUOEC yog ib qho ntawm cov neeg muag khoom hauv Suav teb / cov chaw tsim khoom tshwj xeeb hauv kev tsim khoom ntawm ntau yam khoom siv hluav taws xob me me.DZ47LE muaj feem xyuam rau txoj kab ntawm AC 50/60Hz rated voltage 230V rau ib tus ncej ob lub xaim, 2 pole หรือ 400 re e. 4 tus ncej thiab ntsuas tam sim no mus txog 63A. Nws tuaj yeem tiv thaiv kab thiab lub cev muaj zog los ntawm kev tshaj dhau thiab luv luv Circuit Court Nws kuj tuaj yeem siv rau cov kab hloov pauv tsis tu ncua thiab tsis tshua muaj lub cev muaj zog pib.Nws ua raws li tus qauv ntawm IEC61009.

Qauv:DZ47LE-63

Xa lus nug

Product Description

Technical Parameters:

Rated voltage (V)	Rated Tam sim no ntawm Case Inm(A)	Ncej	Neutra	Rated CurrentIn(A)	Rated luv Circuit Breaking Capacity Icu (KA)		Rated Current Leakage Breaking Current	Rated tam sim no tsis tawg tam sim no (mA)
Rated voltage (V)	Rated Tam sim no ntawm Case Inm(A)	Ncej	Kab	Rated CurrentIn(A)	Kev Sib Tw Muaj Peev Xwm Icu (KA)	COS	(mA))	Rated tam sim no tsis tawg tam sim no (mA)
230	6-63	1	N	6, 10, 16,	6	0.7	30,50,	15, 25, ib.
230	6-63	2		20, 25, 32, ib.	6	0.7	100,300	50, 150
400	6-63	3		40, 50, 63 ib	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

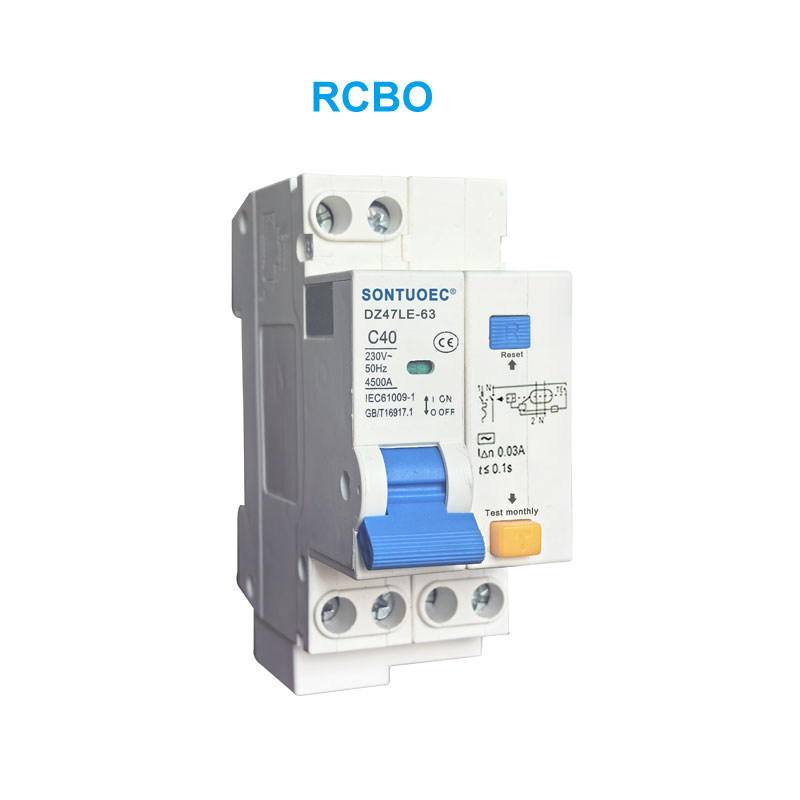

DZ47LE Residual Current Operated Circuit Breaker nrog kev tiv thaiv dhau tam sim no (Electronic):

1. Daim ntawv thov

Cov neeg ua haujlwm thiab tiv thaiv hluav taws

Cable thiab kab tiv thaiv overload thiab luv-circuits

2. Cov cai dav dav rau xaiv RCBO:

a.Rated residual kev khiav hauj lwm tam sim no

Hauv ≤ 30 mA: kev tiv thaiv ntxiv nyob rau hauv rooj plaub ntawm kev sib cuag ncaj qha Hauv ≤300 mA: kev tiv thaiv hluav taws kub hauv cov ntaub ntawv hauv av txhaum tam sim no

b.Tawm chav kawm

AC chav kawm - Tripping yog guaranteed rau sinusoidal, alternating tam sim no, seb lawv yuav tsum tau ceev ceev los yog maj mam nce.

c.Tripping nkhaus

C nkhaus (5-10 Nyob rau hauv) kev tiv thaiv thiab tswj cov circuits tiv thaiv overloads thiab luv-circuits; kev tiv thaiv rau resistive thiab inductive loads nrog tsawg inrush tam sim no.

D nkhaus (10-14 Nyob rau hauv) kev tiv thaiv thiab kev tswj ntawm circuits tiv thaiv overloads thiab luv-circuits; kev tiv thaiv rau cov khoom siv hluav taws xob uas muab cov khoom ntim nrog cov hluav taws xob muaj zog ntawm qhov kaw (LV / LV transformers, tawg teeb).
