Nkhaus D MCB Tej Me Circuit Court Fais Fab

Los ntawm kev ua raws li cov qauv kev nyab xeeb thoob ntiaj teb thiab cov ntawv pov thawj kev sib tw, nkhaus d MCB tej kev siv hluav taws xob muab cov kev siv hluav taws xob uas muaj kev nyab xeeb thiab ruaj khov. Thaum xaiv thiab siv nkhaus d mcbs, nws raug nquahu kom pom tias kev xaiv raws li cov khoom muaj hluav taws xob tshwj xeeb, thiab cov cai tswjfwm yuav tsum ua raws.

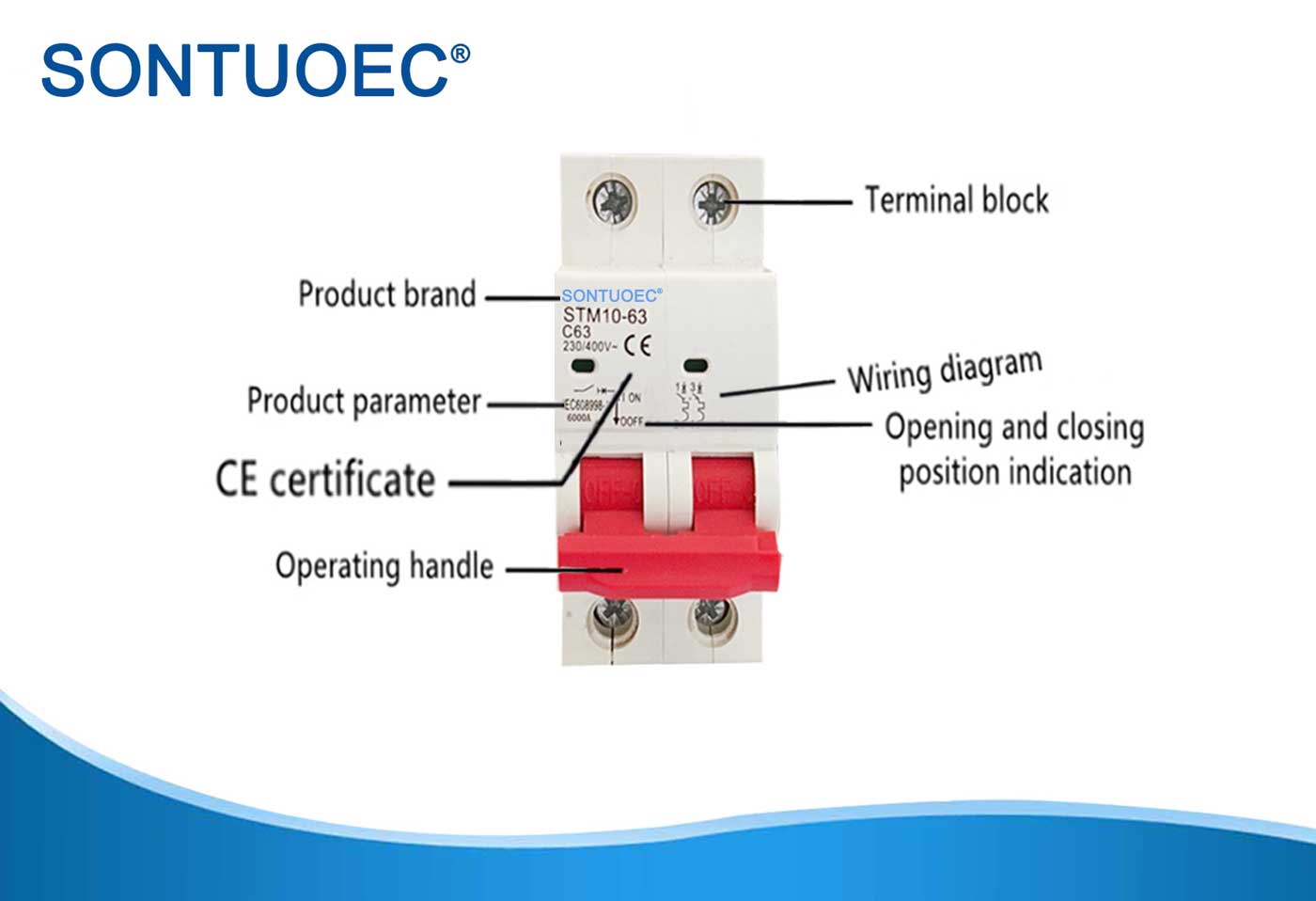

Qauv:STM10-63

Xa lus nug

Product Description

Lub hom phiaj		Iec / en 60898-1
Hluav taws xob Nta	Rated tam sim no nyob rau hauv	A	1,2,4,6,16,20,25,32,40,50,63a
	Ncej	P	1p, 2p, 3p, 4p
	Ntsuas Voltage UE	V	AC 230/400
	Rwb Thaiv Tsev Voltage Ui	V	500
	Nyob Qhov Coob	Hz	50/60
	Kev ntsuas hluav taws xob rated	A	3000, 4500, 6000
	Nyob rau hauv impulse withstand voltage (1.2 / 50) Uimp	V	4000
	Dielectric kev xeem voltage ntawm ind.freq.for 1 min	Kv	2
	Degion degree		2
	Thermo-sib nqus tso cov xeeb ceem		B, c, d
Txawj kho ub no Nta	Hluav Taws Xob Lub Neej	t	4000
	Neeg Kho Tshuab Lub Neej	t	10000
	Kev tiv thaiv degree		Liphaus20
	Kev siv qhov kub thiab txias rau kev teeb tsa ntawm thermal caij	ºC	30
	Thaj kub cua sov (nrog nruab nrab hauv nruab nrab ≤35ºC)	ºC	-5 ~ + 40 (daim ntawv thov tshwj xeeb thov xa mus rau Kev Them Kho Qhov Kub)
	Cia kub	ºC	-25 ~ + 70

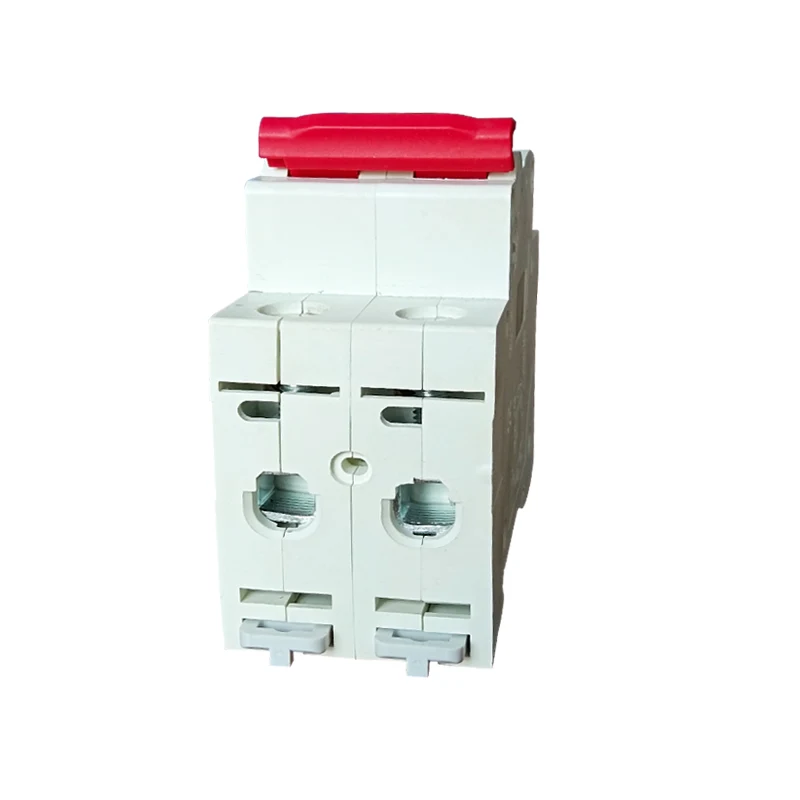

Kev muab cia	Lub Terminal Txuas Hom		Cable / PIN-hom Busbar
	Lub davhlau ya nyob twg loj dua / hauv qab rau cable	mm2	25
		Txawm li	18-3
	Therminal loj saum toj / hauv qab rau Busbar	mm2	25
		Txawm li	18-3
	Zawm Torque	N * m	2
		Hauv-lbs	18
	Mounting		Ntawm lub tsheb nqaj hlau en 60715 (35 hli) los ntawm kev tuav ntaub ntawv
	Kev sib txua		Los ntawm sab saum toj thiab hauv qab

Cov yam ntxwv khoom

 Rating tam sim no thiab voltage: nkhaus d mcbs yog haum rau ntau yam ntsuas uas muaj ntau yam li 110v, 5020, thiab lwm yam, thiab rau zaus ntawm 50 / 60Hz.

 Tshem tawm cov yam ntxwv: nkhaus D MCBs yog qhov tsim nyog rau cov khoom siv hluav taws xob, xws li cov hluav taws xob loj, thiab cov khoom xa hluav taws xob, thiab cov khoom siv hluav taws xob ntau. Nws instantaneous tam sim no feem ntau yog 10-40 zaug Rated tam sim no, uas txhais tau tias nws tuaj yeem tiv thaiv kev puas tsuaj sai sai thaum lub sijhawm nce tam sim no.

R-Circuit Court luv luv: D-Nkhaus McBs muaj lub peev xwm luv luv-circuit Rhuav lub peev xwm ntawm 6ka uas tuaj yeem ntseeg tau tiv thaiv kev sib tw los ntawm cov chaw luv luv.

Cov Qauv Kev Nyab Xeeb thiab cov ntawv pov thawj: Cov khoom lag luam no feem ntau ua raws li cov qauv kev nyab xeeb rau cov lej hauv ntiaj teb, thiab lwm yam, kom paub tseeb tias cov khoom muaj kev nyab xeeb thiab txhim khu kev qha.

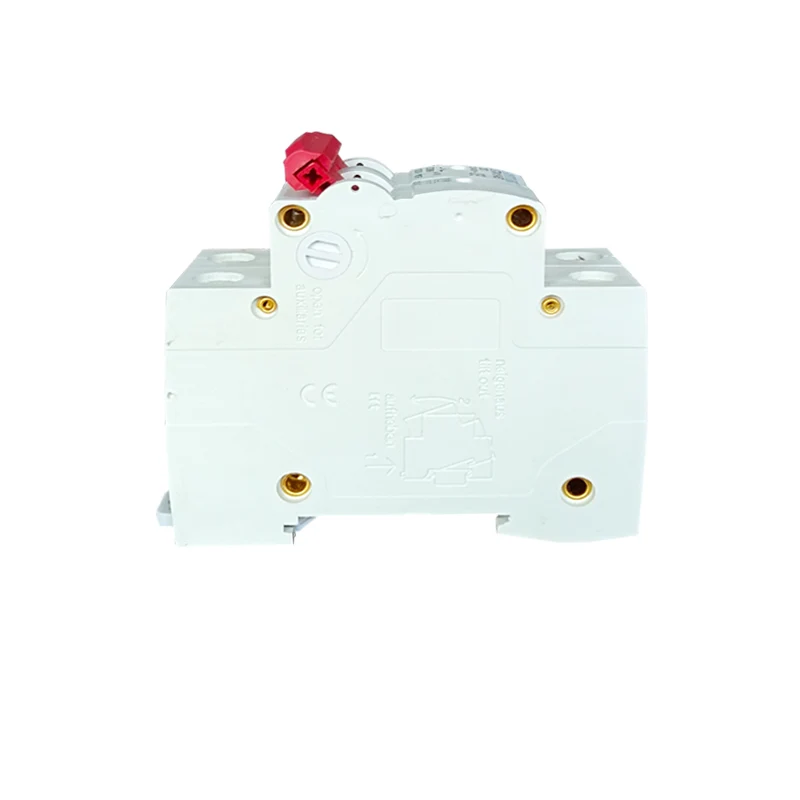

Curve D MCB Miniature Circuit Breaker
