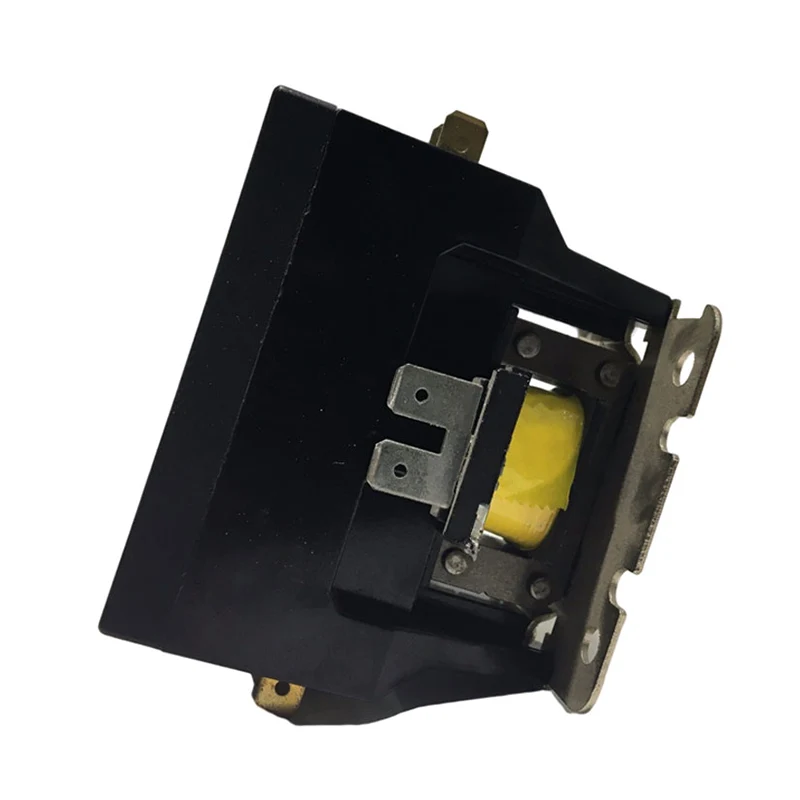

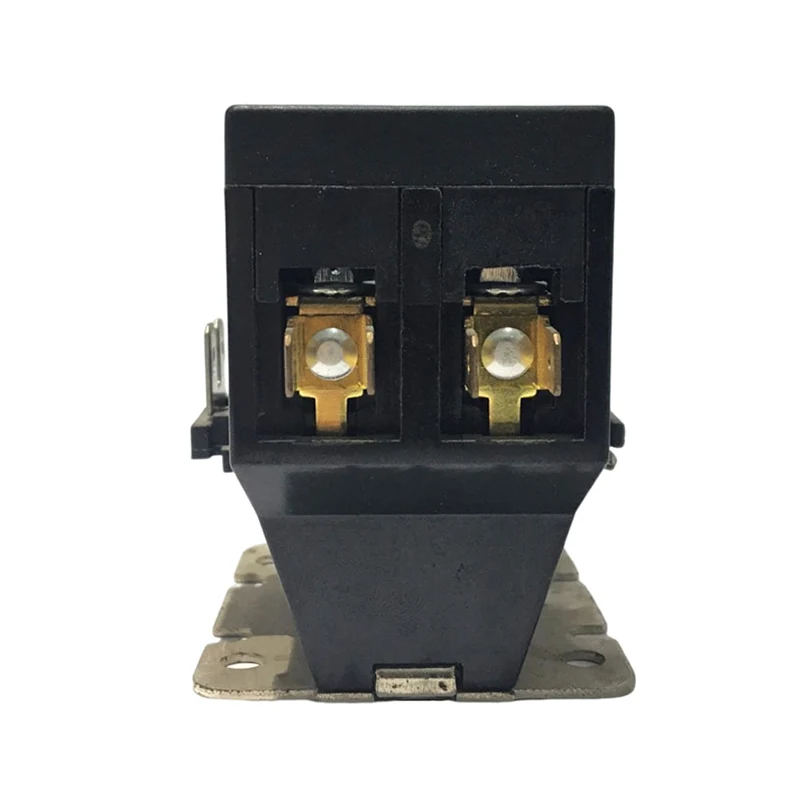

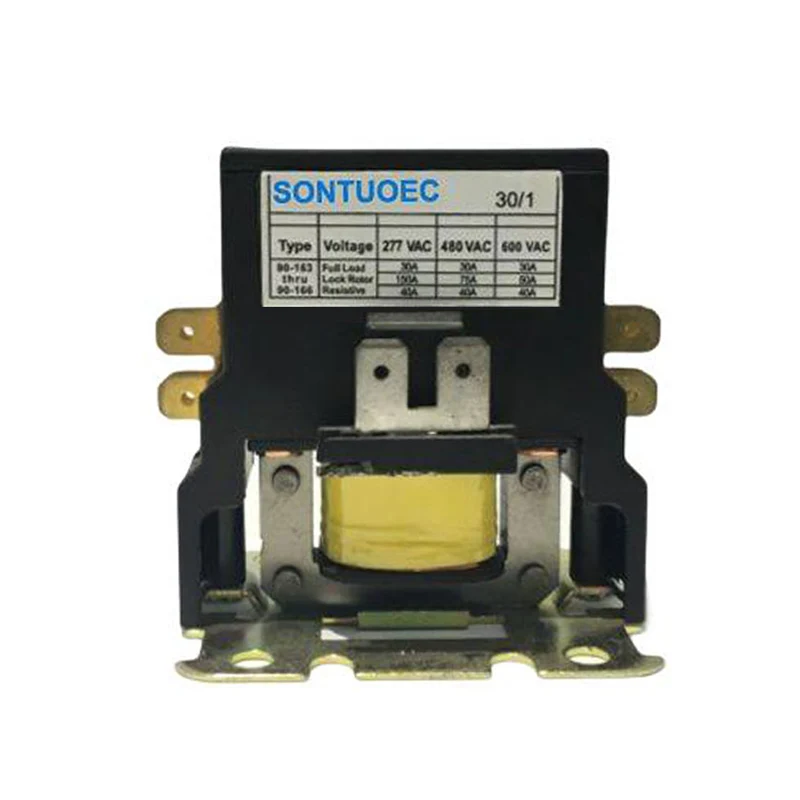

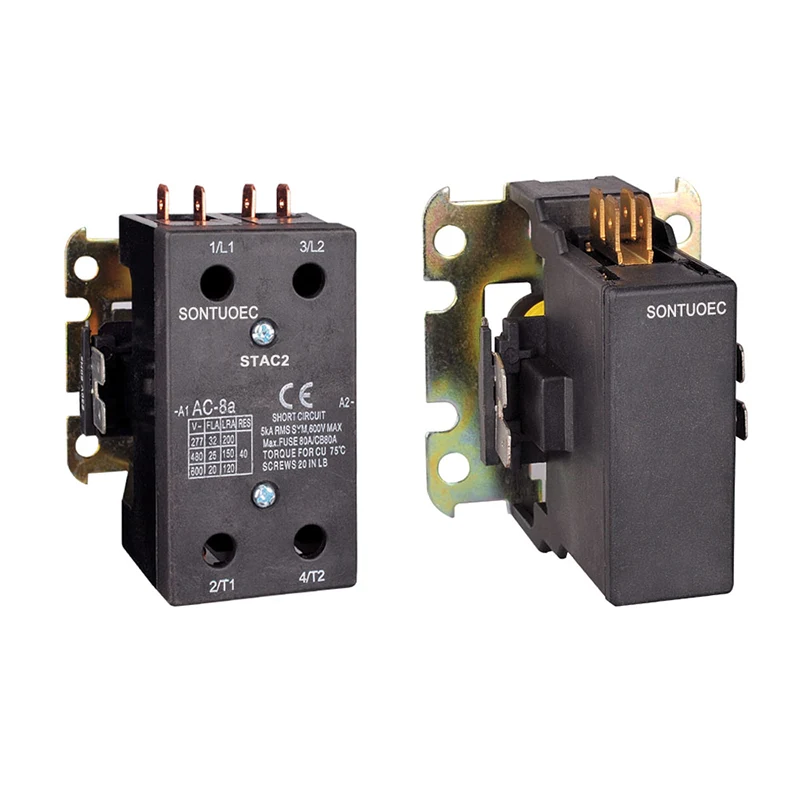

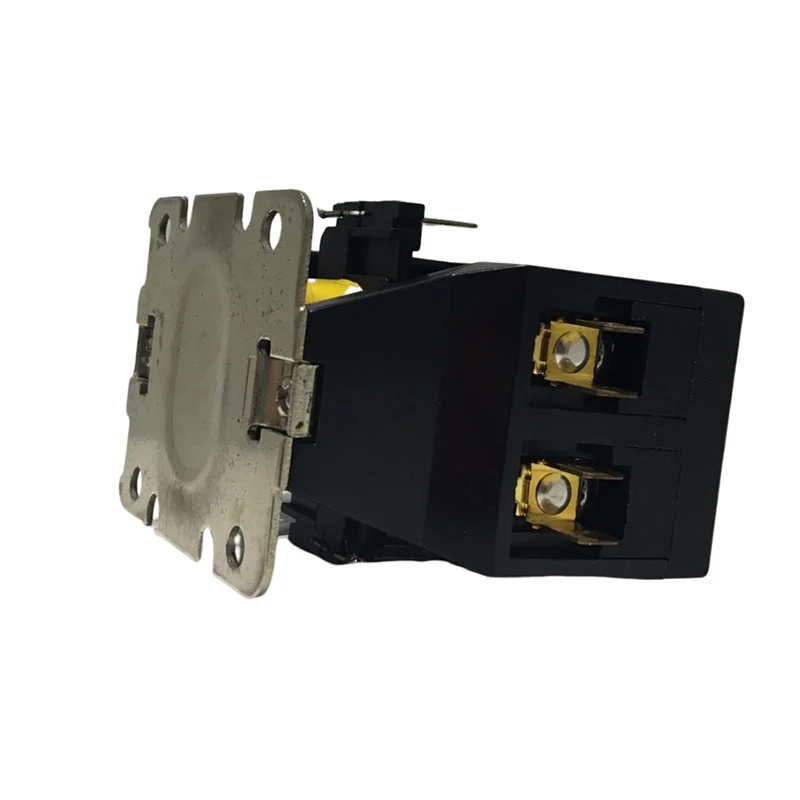

Cua Txias Ac Hu Xov Tooj Cua

Air Conditioning AC Contactors are definite purpose AC contactor are designed for use in refrigeration, air conditioning, and electric heating systens. Kev sib txuas hluav taws xob tuaj yeem ua nrog cov ntsia hlau terminals nrog kev txuas nrawm lossis cov ntaub thaiv kev sib txuas nrog txuas nrawm

Xa lus nug

Product Description

Qauv tsis tau	Tas Nrho Load	Resistive amps (a)	Ncej Tsis muaj.	Chev Volterage ( V)	Kab Voltage (V)	Max HP		-
Qauv tsis tau	Amps (a)	Resistive amps (a)	Ncej Tsis muaj.	50 / 60Hz	Kab Voltage (V)	Fai fab hov ntau (V)	Ib leeg Caij	Peb Caij
CJX9-20 / 1	20	30	1	24	240/277	120	1.5	-
CJX9-20 / 1.5			1.5
CJX9-20 / 2			2
CJX9-20 / 3			3	120	480	240/270	3	7.5
CJX9-20 / 4			4	208/240	600	480/600	-	7.5
CJX9-25 / 1.5	25	35	1.5	24	240/277	120	2	-
CJX9-25 / 2			2	24	240/277	120	2	-
CJX9-25 / 3			3	120	480	240/270	5	7.5
CJX9-25 / 4			4	208/240	600	480/600	-	15/20
CJX9-30 / 1.5	30	40	1.5	24	240/277	120	2	-
CJX9-30 / 2			2	120	480	240/270	5	10
CJX9-30 / 3			3	208/240	600	480/600	-	15/20
CJX9-30 / 4			4	208/240	600	480/600	-	15/20
CJX9-40 / 2	40	50	2	24	240/277	120	3	-
CJX9-40 / 3	40	50	3	120	480	240/270	7.5	10
CJX9-40 / 4	40	50	4	208/240	600	480/600	-	15/20
CJX9-50 / 2	50	60	2	24	240/277	120	3	-
CJX9-50/3	50	60	3	120	480	240/270	10	15
CJX9-50/1	50	60	4	208/240	600	480/600	-	25/25
CJX9-60 / 2	60	70	2	24	240/277	120	5	-
CJX9-60 / 3	60	740	3	120	480	240/270	10	20
CJX9-60 / 4	60	70	4	208/240	600	480/600	-	30/30
CJX9-75 / 2	75	85	2	24	240/277	120	5	-
CJX9-75 / 3	75	85	3	120	480	240/270	15	25
CJX9-75 / 4	75	85	4	208/240	600	480/600	-	40/40
CJX9-90 / 2	90	100	2	24	240/277	120	7.5	-
CJX9-90 / 3	90	100	3	120	480	240/270	20	30
CJX9-90 / 4	90	100	4	208/240	600	480/600	-	50/50

Cov khoom siv insulating	Hu rau thaiv thiab cov cab kuj yog qhov zoo Hluav Taws Xob-Qib Thondosetting Rapin
Qhov ntsuas kub ntau	-40 ° F rau 150 ° F; -5- + 40
Txhua yam lub neej (tsis muaj thauj khoom)	Conforms rau UL thiab ARI cov qauv tshwj xeeb txheem
Lub Neej Hluav Taws Xob	Conforms rau UL thiab ARI specifications Lub hom phiaj
Nyhav (kwv yees)	9.25 oz
Coil zaus	50 / 60Hz
Chev Rwb Thaiv Tsev	Chav Kawm B (130ºC)
Kev txiav hlo	Siab connector thiab ob npaug 1/4 q.c
Tsav	85% ntawm nasinal coil coltage; 110% tshaj plaws muaj kev nyab xeeb tsav
Lub Luag Haujlwm Ncig Ua Si	Mus txua ntxiv

Tus qauv thiab cov yam ntxwv

Tus qauv:

Electromagetic Txheej Txheem: suav nrog coils, cores, thiab lwm yam.

Hu rau qhov system: Xws li kev sib cuag thiab tus neeg sib chwv. Lub ntsiab kev sib cuag yog siv los nqa cov rated tam sim no ntawm lub tshuab cua txias, thaum tus lej sib tiv thaiv yog siv los paub qhov kis tau tus mob thiab cov lus taw qhia ntawm lub teeb liab tswj.

Arc Extinguishing ntaus ntawv: siv los tua cov arc tsim tawm thaum tus tiv tauj yog disconnected tiv thaiv kev sib tiv tauj los ntawm kev puas tsuaj.

Plhaub thiab tshav kub dissipation ntaus ntawv: siv los tiv thaiv sab hauv cov feem ntawm ib puag ncig sab nraud thiab muab qhov tsim nyog cua sov dissipation muaj nuj nqi.

Nta:

Tshwj xeeb: Tsim rau cov tshuab cua txias kom tau raws li cov kev xav tau ntawm cov cua txias rau cov tshuab cua txias rau kev tswj hluav taws xob.

Kev ntseeg tau: Lub kaw lus tiv thaiv yog ua los ntawm cov khoom siv hluav taws xob zoo nrog kev ua haujlwm zoo thiab ua haujlwm ntev.

Kev Nyab Xeeb: Nruab nrog lub arc extoruishing, kev tiv thaiv kev ua kom muaj kev puas tsuaj rau cov neeg sib chwv thiab ib puag ncig ib puag ncig.

Kev sib xyaw: Tau tshaj nrog ntau cov cua txias ntawm cov tshuab cua txias thiab tswj hluav taws xob, yooj yim rau kev teeb tsa thiab commissioning.

Ua Haujlwm Cov Ntsiab Cai

Thaum tus kauj ntawm 2P cua txias AC ACS ACC uas muaj zog ua sib nqus thiab ua kom pom cov khoom sib ze los kaw, yog li txuas cov tshuab cua txias rau lub zog hluav taws xob. Thaum lub kauj yog de-energized, tus hlau core tsises nws cov hlauetism thiab lub kaw lus hu yuav raug txiav txim los ntawm lub caij nplooj ntoo hlav, yog li disconnecting cov cua txias los ntawm lub zog hluav taws xob. Nyob rau hauv txoj kev no, tus neeg hu tau tuaj yeem paub cov chaw taws teeb ntawm cov tshuab cua txias.
