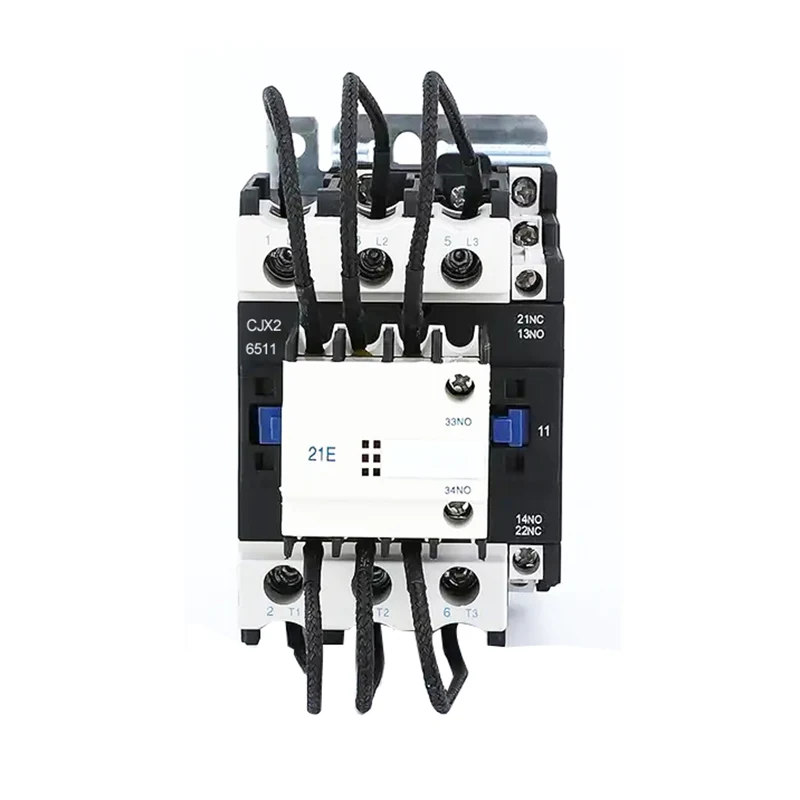

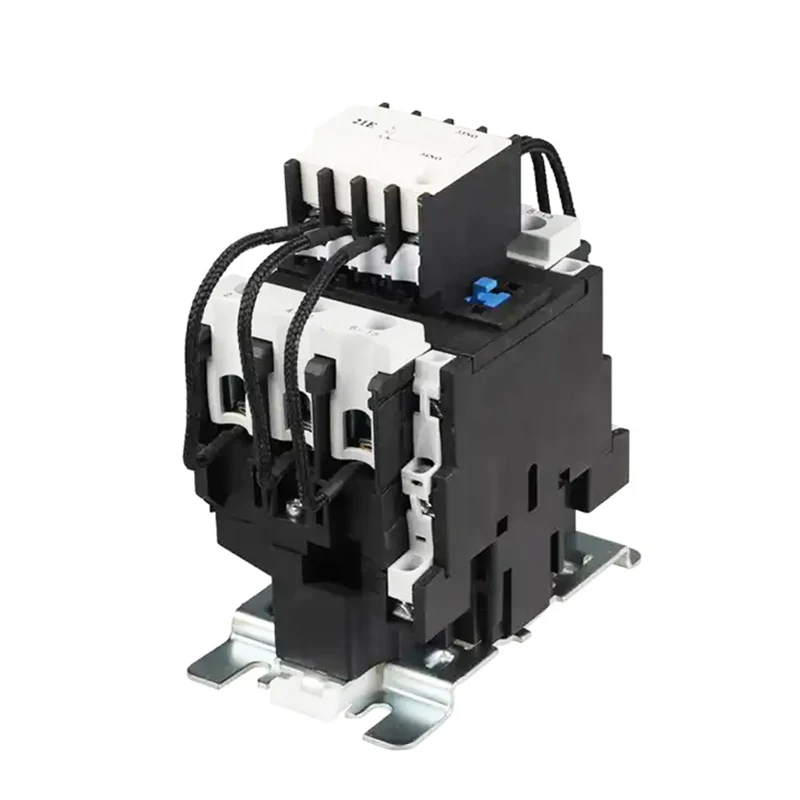

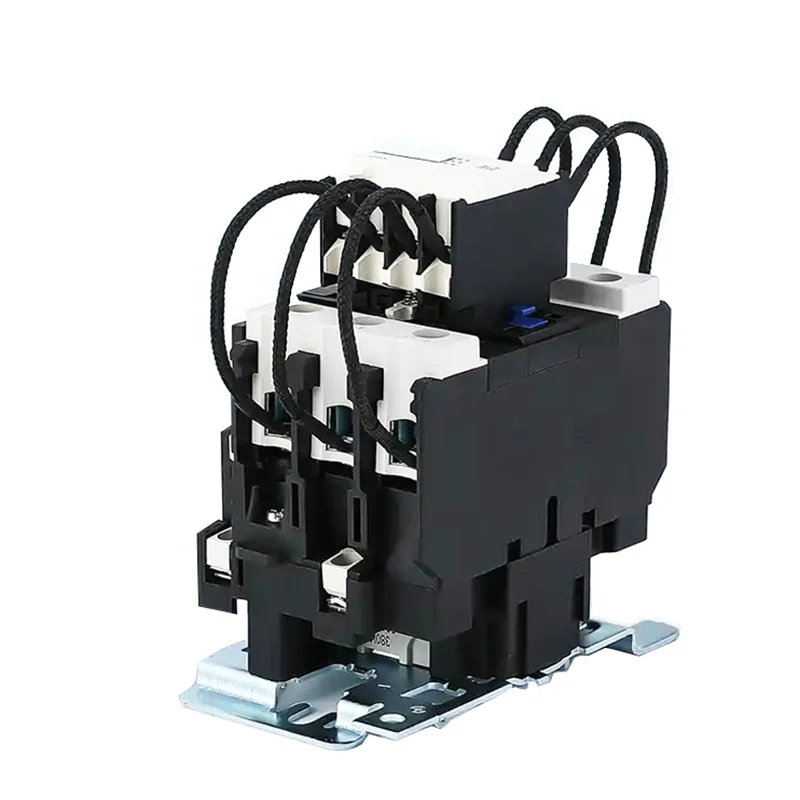

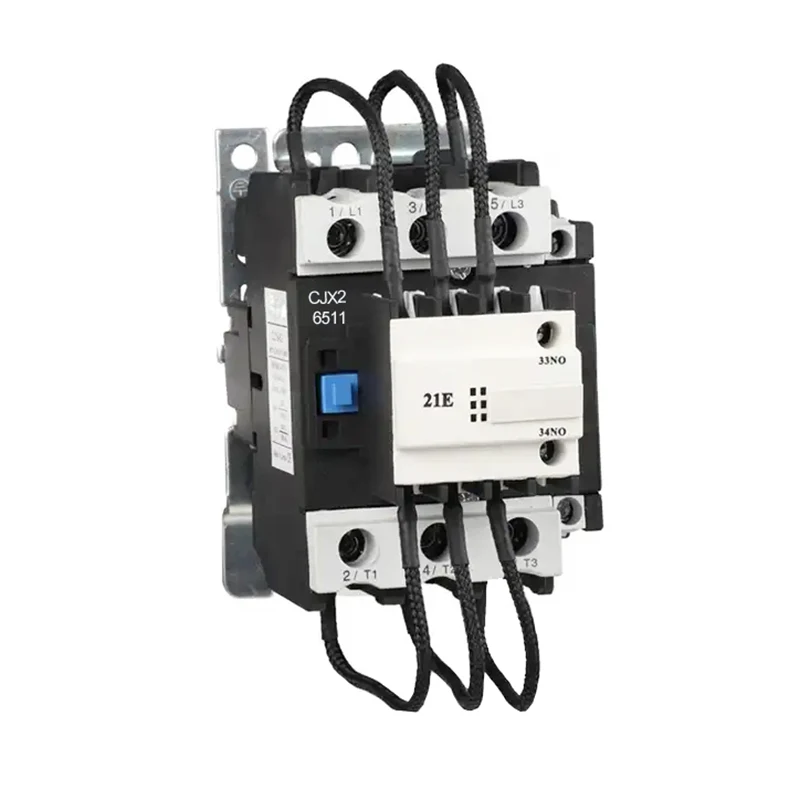

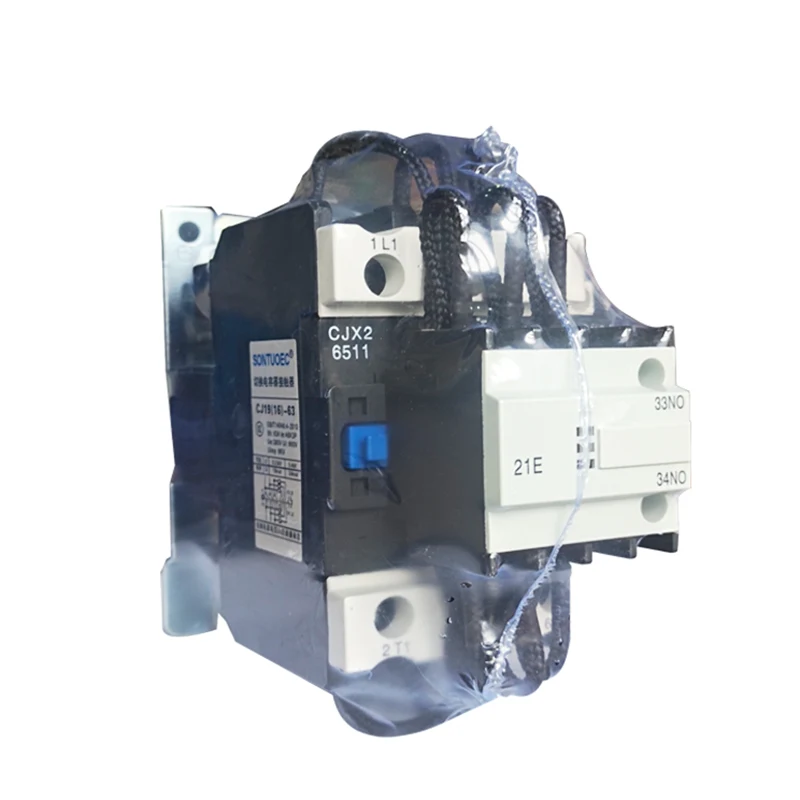

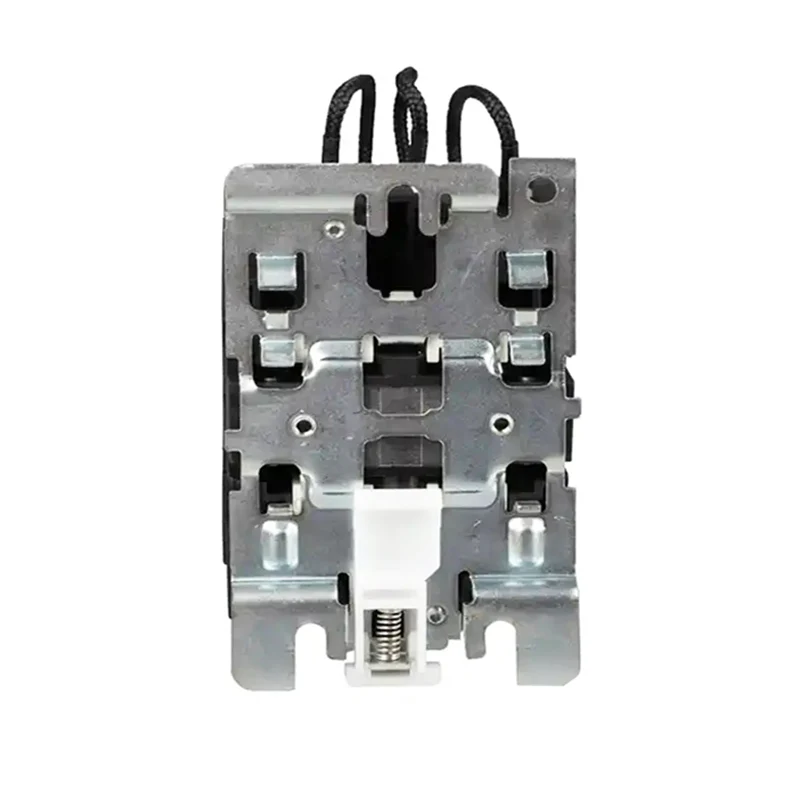

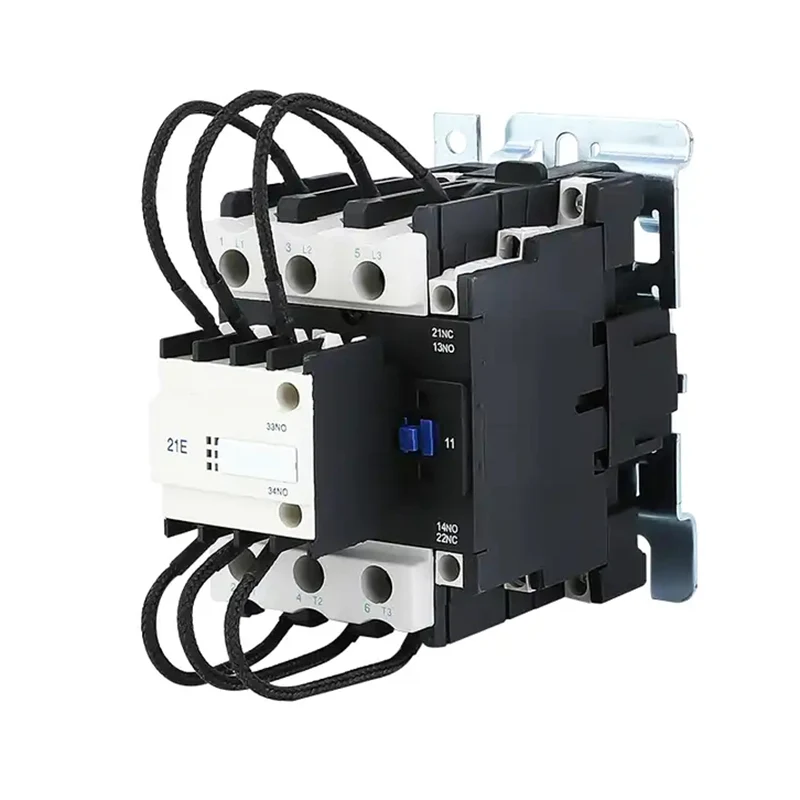

Pob Sib Nqus Sib Nqus

AC sib nqus uas tau sib nqus yog siv rau hauv lub zog network ntawm AC 50Hz lossis 60Hz, nce mus txog 380V, rau kev ua haujlwm lossis hloov LV capactritor tswj ntaus hauv lv reactive fais fab tuag. Nrog rau antisurge ntaus ntawv, nws tuaj yeem txo qhov cuam tshuam ntawm kev kaw kev tawm thiab tiv thaiv los ntawm kev cuam tshuam ntau dua li tawg.

Xa lus nug

Product Description

Ntaus		CJ19-09	CJ19-12	CJ19-18	CJ19-25	CJ19-32	CJ19-40	CJ19-50	CJ19-65	CJ19-80	CJ19-95
Rated Ua Haujlwm Tam Sim No (a)	AC3	9	12	18	25	32	40	50	65	80	95
Rated Ua Haujlwm Tam Sim No (a)	Yog	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Txheem ntsuas ntawm 3-theem Cov Motors 50 / 60Hz Incatitory-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400v	4	5.5	7.5	11	15	18.5	22	30	37	45
	415v	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated tshav kub tam sim no (a)		20	20	32	40	50	60	80	80	125	125
Hluav Taws Xob Lub Neej	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Hluav Taws Xob Lub Neej	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Neeg kho tshuab lub neej (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Tus naj npawb ntawm cov neeg	3p + tsis muaj					3p + NC + tsis muaj
Tus naj npawb ntawm cov neeg	3p + NC					3p + NC + tsis muaj

Scj19 hloov mus rau lub zog capacitor yog siv hauv lub hwj chim network ntawm AC 50Hz lossis 60Hz, nce mus txog 380V, rau kev ua haujlwm tswj hwm hauv LV candlective fais fab tuag. Nrog rau antisurge ntaus ntawv, nws tuaj yeem txo qhov cuam tshuam ntawm kev kaw kev tawm thiab tiv thaiv los ntawm kev cuam tshuam ntau dua li tawg.

Lub ntsiab cai ntawm kev ua haujlwm

Lub hauv paus ntsiab lus ua haujlwm ntawm AC sib nqus tus neeg sib nqus yog ua raws cov induction electromagnetic thiab sib nqus. Thaum lub coil yog energized, lub pob sib nqus tsim tawm nyiam cov hlau core thiab kaw cov neeg, yog li qhib lub Circuit Court. Thaum lub kauj yog de-energized, lub sib nqus daim teb ploj mus thaum lub caij nplooj ntoo hlav, kev tiv tauj tawg thiab lub Circuit Court tau raug kaw. Nyob rau hauv txoj kev no, ACS cov neeg sib nqus sib nqus pom tau tswj hwm ntawm AC Circuit Court.

Cov qauv thiab muaj pes tsawg leeg

AC sib nqus sib nqus feem ntau yog tsim ntawm cov ntu hauv qab no:

Electromagetic Tsim: Suav suav nrog coil, tub ntxhais thiab armature, uas yog qhov tseem ceeb rau cov khoom sib nqus thiab sib nqus.

Hu rau qhov system: suav nrog kev sib cuag tseem ceeb thiab kev sib cuag nrog, uas siv los tig thiab tawm ntawm Circuit Court. Cov neeg sib tiv tauj tseem ceeb feem ntau yog siv los nqa cov dej loj dua, thaum cov neeg sawv cev tau siv los paub ntau yam kev tswj hwm ntau yam.

Arc extoruishing ntaus ntawv: siv los tua cov arc thaum kev tiv tauj yog disconnected, tiv thaiv arc los ntawm kev tiv tauj.

Lwm yam: xws li springs, tsev, tsev, thiab lwm yam.

Qauv Nta

1. Tus neeg hu ua ke nrog kev txwv tsis pub dhau tam sim no, muaj peev xwm txwv tsis pub hloov chaw nyob rau hauv kev tso cai tus nqi.

2. Tus neeg sib cuag yog ncaj qha ua tus qauv dual-tawg, ua yeeb yam yog agile, yooj yim tshawb xyuas los ntawm tes, kev cog lus compact qauv los hloov chaw.

3.Werming Terminal Thaiv Tiv thaiv los ntawm Npog, muaj kev nyab xeeb thiab txhim khu kev qha.

4.Nws tuaj yeem muab cov screws, lossis ntawm 35/75 hli kev tsheb nqaj hlau.

Ua haujlwm thiab kev teeb tsa cov xwm txheej

(1) Ambient Kub: --5 ℃ - + 40 ℃, qhov kub nruab nrab yuav tsum tsis yog saum + 35 ℃ hauv 24 teev.

(2) Cov Kev Nyab Xeeb Kev Nyab Xeeb: Chaw Thaj Chaw Thaj Chaw noo Hauv lub hlis Wettest nruab nrab qis tshaj plaws qis tshaj plaws + 25 ℃ rau qhov nruab nrab ntawm cov av noo yog 90%, thiab txiav txim siab qhov ntsuas kub hloov thiab tshwm sim vim tias cov khoom ntawm lub gel.

(3) qhov siab tshaj plaws tsis siab tshaj 2000m thaum kev teeb tsa.

(4) Chav qias neeg muaj kuab paug: 3 chav kawm

(5) Chav Kawm Chav Kawm: III

(6) Cov mob instard

Cov yam ntxwv tseem ceeb

Kev Ua Haujlwm Ua Haujlwm: Pob sib nqus yog ua los ntawm cov ntaub ntawv muaj txiaj ntsig zoo thiab cov txheej txheem tsim kev tsim khoom zoo, uas muaj kev ntseeg siab thiab ruaj khov.

Lub neej ntev kev pabcuam: Tus xov tooj ntawm cov khoom siv uas tiv thaiv, uas tuaj yeem tiv thaiv loj tam sim no thiab voltage shocks, sim lub neej pabcuam.

Yooj yim los tswj: Tus qauv tsim nyog tsim, yooj yim kom disassemble thiab kho, txo tus nqi kho.

Ntau yam kev qhia tshwj xeeb: txhawm rau kom tau raws li cov neeg siv sib txawv muaj ntau qib kev sib nqus thiab cov qib voltage thiab cov kev sib tiv thaiv.
