AC Lub Hu Tau Nrog Cov Kev Pab Tiv Thaiv Pob Liab

Tus neeg hu xov tooj nrog cov nyiaj tiv thaiv pob tshab yog qhov hloov hluav taws xob uas ua haujlwm los ntawm kev tswj hwm lub zog hluav taws xob los ntawm kev deb. Nws muaj peev xwm ntawm kev paub txog kev pib ntau zaus, nres thiab thim rov qab ntawm lub cev muaj zog, thiab muaj kev tiv thaiv cov haujlwm xws li kev tshaj lij thiab luv.

Qauv:cjx2

Xa lus nug

Product Description

Ntaus		Stc1-C09	Stc1-c12	SC1-C18	SCC1-C25	Stc1-C32	SCC1-C40	STC1-C50	SCC1-C65	SCC1-C80	Stc1-C95
Rated Ua Haujlwm Tam Sim No (a)	AC3	9	12	18	25	32	40	50	65	80	95
Rated Ua Haujlwm Tam Sim No (a)	Yog	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Txheem ntsuas ntawm 3-theem Cov Motors 50 / 60Hz Incatitory-3	220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380 / 400v	4	5.5	7.5	11	15	18.5	22	30	37	45
	415v	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated tshav kub tam sim no (a)		20	20	32	40	50	60	80	80	125	125
Hluav Taws Xob Lub Neej	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Hluav Taws Xob Lub Neej	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Neeg kho tshuab lub neej (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Tus naj npawb ntawm cov neeg	3p + tsis muaj					3p + NC + tsis muaj
Tus naj npawb ntawm cov neeg	3p + NC					3p + NC + tsis muaj

Cov yam ntxwv tseem ceeb

Kev ntseeg siab: AC tus neeg tiv toj nrog cov ntaub ntawv tiv thaiv kab mob zoo nkauj zoo nkauj, uas muaj lub neej kev pabcuam ntev thiab kev ntseeg tau ntev.

Kev ua tau zoo: nws cov kev sib cuag muaj hluav taws xob thiab cov kws kho hluav taws xob, muaj peev xwm tiv thaiv loj tam sim no thiab cov hluav taws xob loj tau hnav tsis kam thiab tiv thaiv arc kev ua yeeb yam.

Yooj yim los tswj: Tus qauv ntawm ACT ACTS tshiab tsim tau, yooj yim kom muaj disassemble thiab kho cov nqi kho mob.

Ntau yam specifications: txhawm rau kom tau raws li cov neeg siv sib txawv, cov qauv tshiab muaj ntau qib kev sib tw tam sim no, cov qauv hluav taws xob ntau ntau thiab cov qauv ntsuas.

Nais phoo

CJX2 (SC1-d) Series Ac Hu Rau Siv Hauv Qhov Chaw Voltage Mus Txog 95A, Rau Kev Ua & Txhaum Cai & Tswj AC Tsav. Ua ke nrog cov ib pab pawg tiv thaiv block, timer qeeb & tshuab-sib tham, tshuab interbering, star-Delta Starter. Nrog lub thermal relay, nws yog ke rau hauv lub electromagnetic oob khab. Tus neeg sib cuag yog tsim raws li IC60947-4-1.

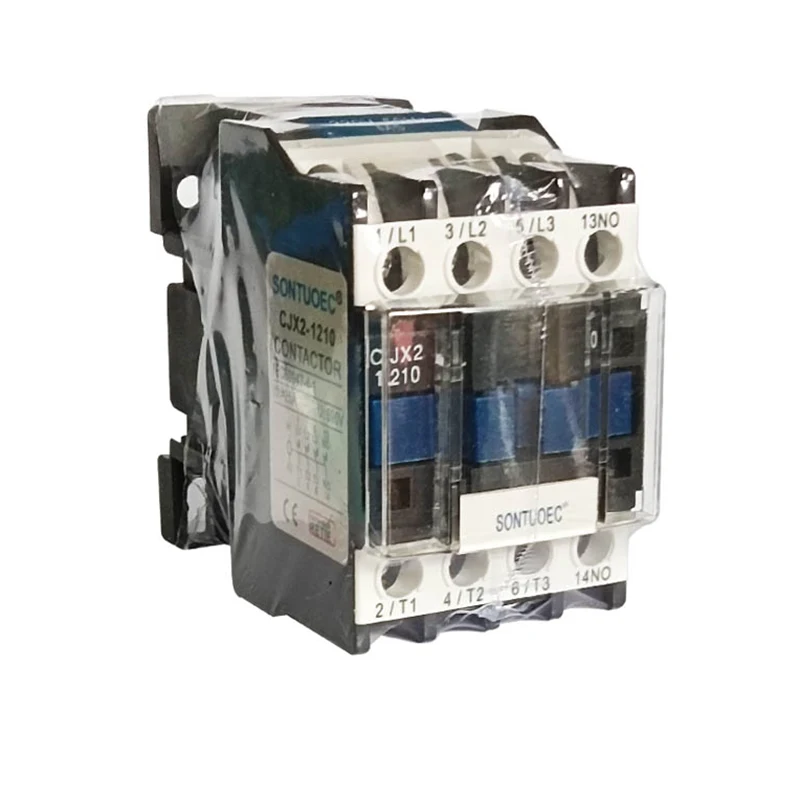

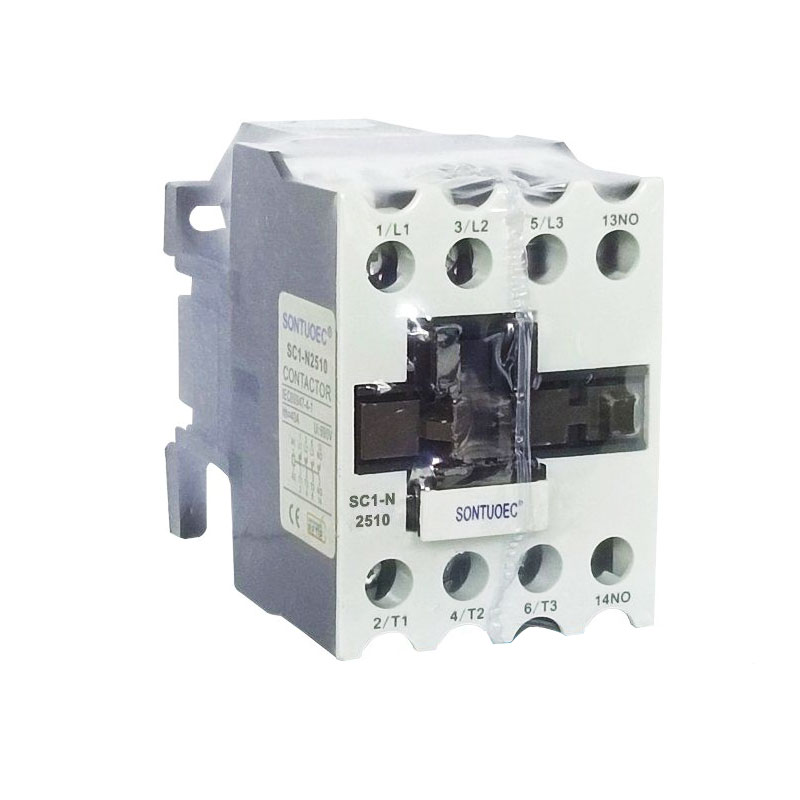

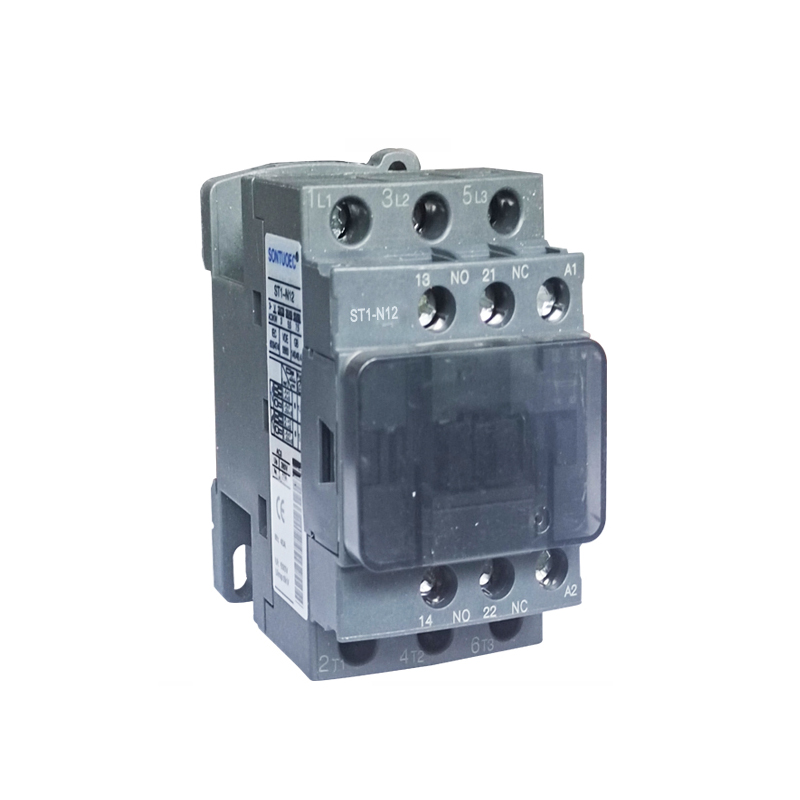

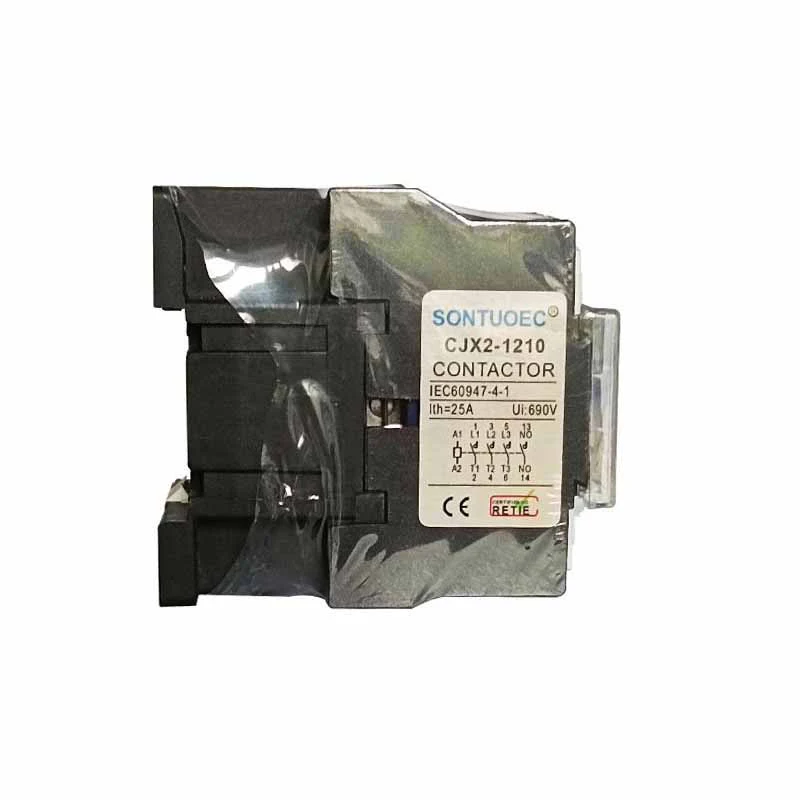

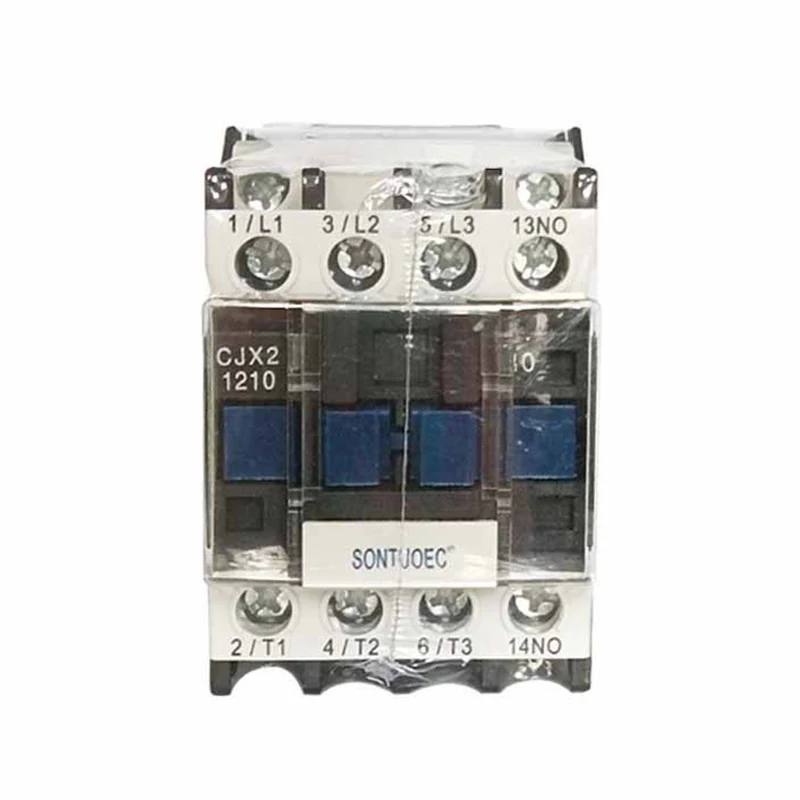

AC Contactor with transparent protection cover
