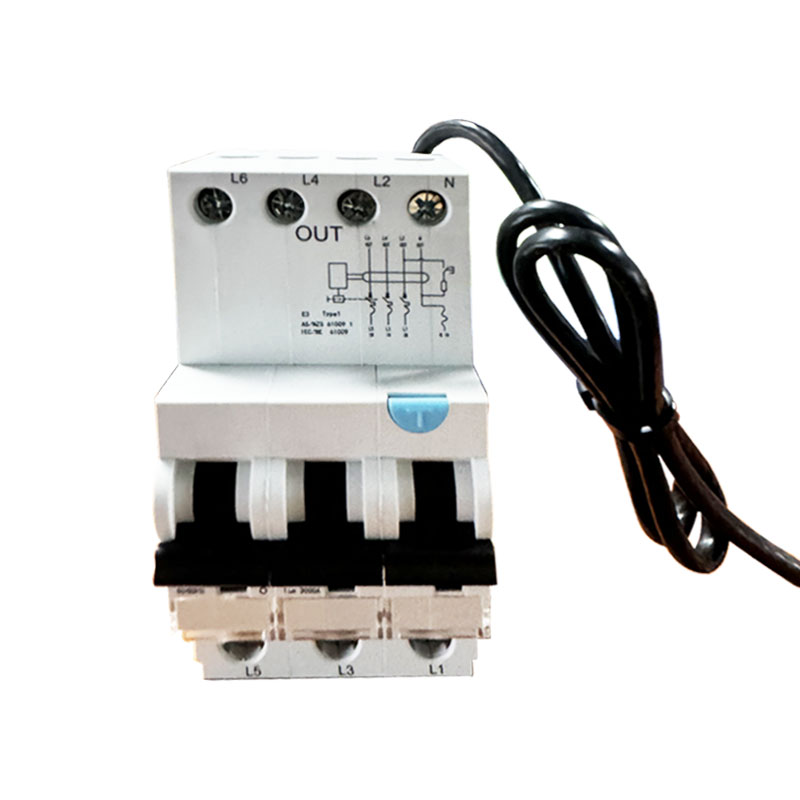

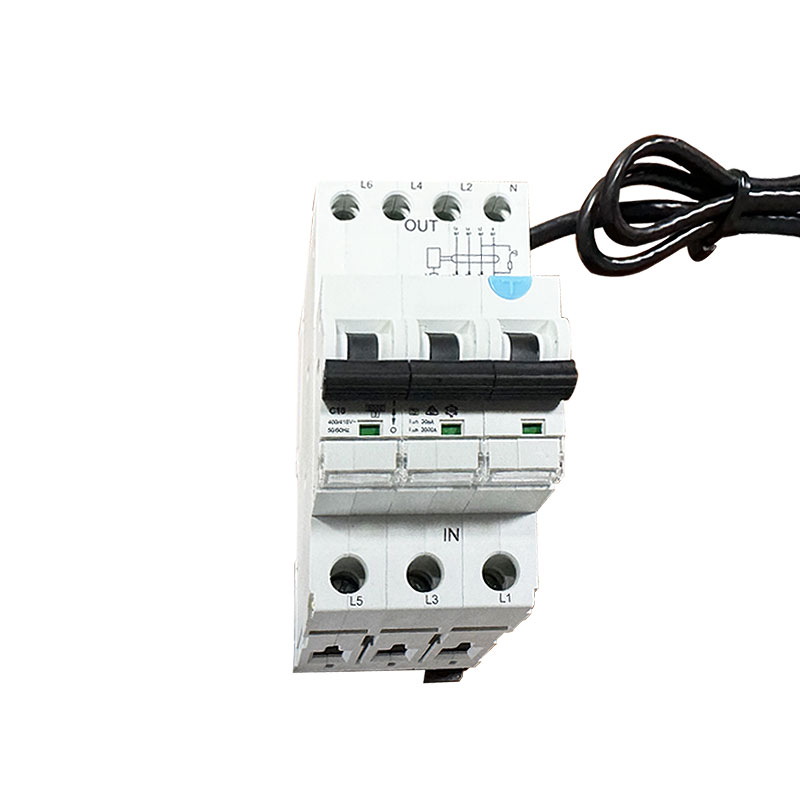

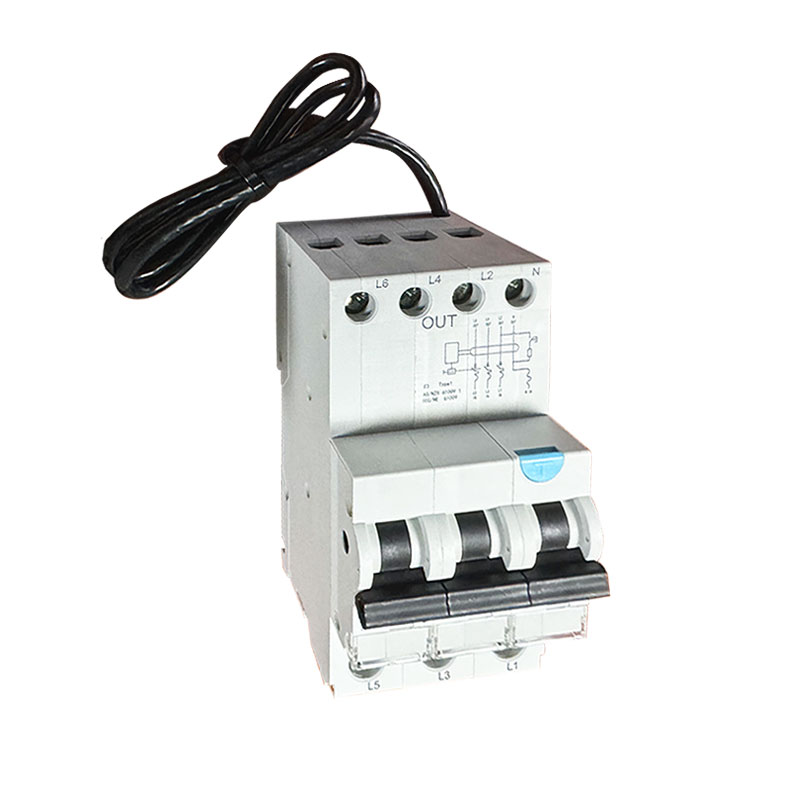

6ka 3p + N Leakage Circuit Breaker a (AC) Hom RCBO nrog Cable

SONTUOEC yog ib qho ntawm cov neeg muag khoom hauv Suav teb / cov chaw tsim khoom tshwj xeeb hauv kev tsim khoom ntawm ntau yam khoom siv hluav taws xob me me 6ka 3P + N Leakage Circuit Breaker a (AC) Hom RCBO nrog Cable yog siv hauv AC 50Hz (60Hz), ntsuas voltage 110/220V, 120/240V, 4 mins tam sim no kev faib tawm voltage. RCBO STRO3-40L sib npaug nrog MCB + RCD muaj nuj nqi; Nws yog siv rau kev tiv thaiv hluav taws xob thiab kev tiv thaiv tib neeg kev tiv thaiv kev tiv thaiv, kev tiv thaiv cov khoom siv hluav taws xob thaum tib neeg lub cev kov hluav taws xob lossis hluav taws xob hluav taws xob hluav taws xob tam sim no tshaj li cov nqi teev tseg, thiab dhau kev thauj khoom thiab kev tiv thaiv luv luv.

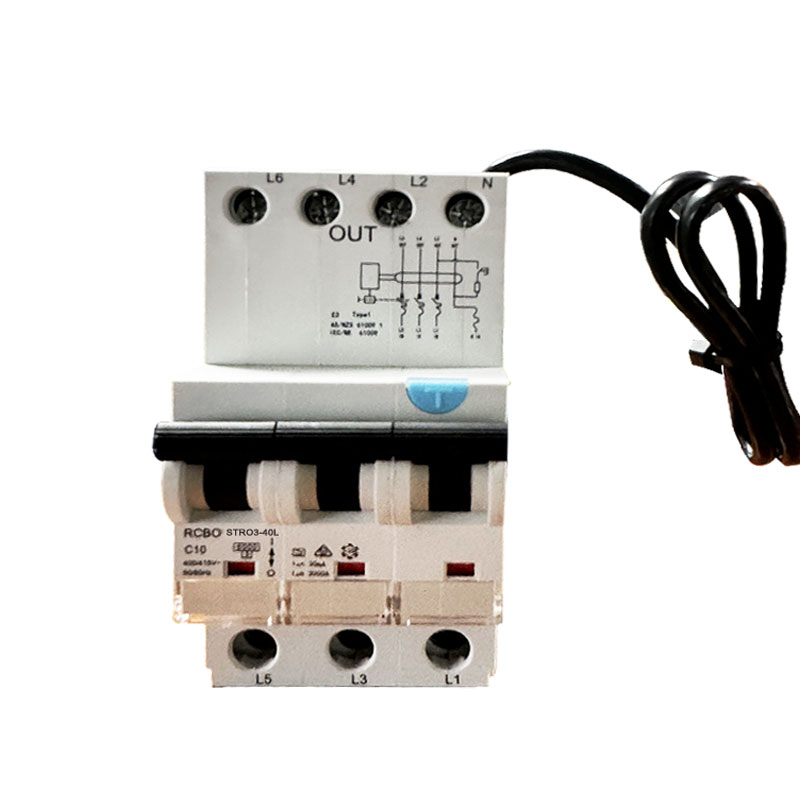

Qauv:STRO3-40L

Xa lus nug

Product Description

Technical data:

Sandard

IEC / EN61009-1

Hluav taws xob nta

Type(wave daim ntawv ntawm lub ntiaj teb to sensed)

Electro-magnetic hom

Rated tam sim no Hauv

A, AC

Ncej

(1P + N)

Rated voltage

110/220, 120V

Rated Tam sim no:

6, 10, 16, 20, 25, 32, 40A

Rated rhiab heev I△n

0.01, 0.03, 0.1

Rwb thaiv tsev voltage Ui

500

Rated residual ua thiab

500

tawg peev xwm I△m

Short-circuit tam sim no I△c

6000

SCPD fuse

6000, 10000 A

BitmapBitmapBitmapBitmap

Rated zaus

50/60

Pollution degree

Mechanical nta

Hluav taws xob lub neej

4000

Neeg kho tshuab lub neej

4000

Kev tiv thaiv qib

IP20

Ambient kub

ºC

-5 ~ + 40 (Kev thov tshwj xeeb thov xa mus rau Kev kho qhov kub thiab txias)

(nrog rau qhov nruab nrab txhua hnub ≤35ºC)

Cia kub

ºC

-25 ~ + 70

Kev teeb tsa

Terminal hom kev sib txuas

Cable / U-hom busbar/pin-type busbar

Terminal loj saum / hauv qab rau cable

mm²

AWG

18-5

Terminal loj saum / hauv qab rau busbar

mm²

AWG

18-5

Tightening torque

N^*m

Hauv-lbs

Mounting

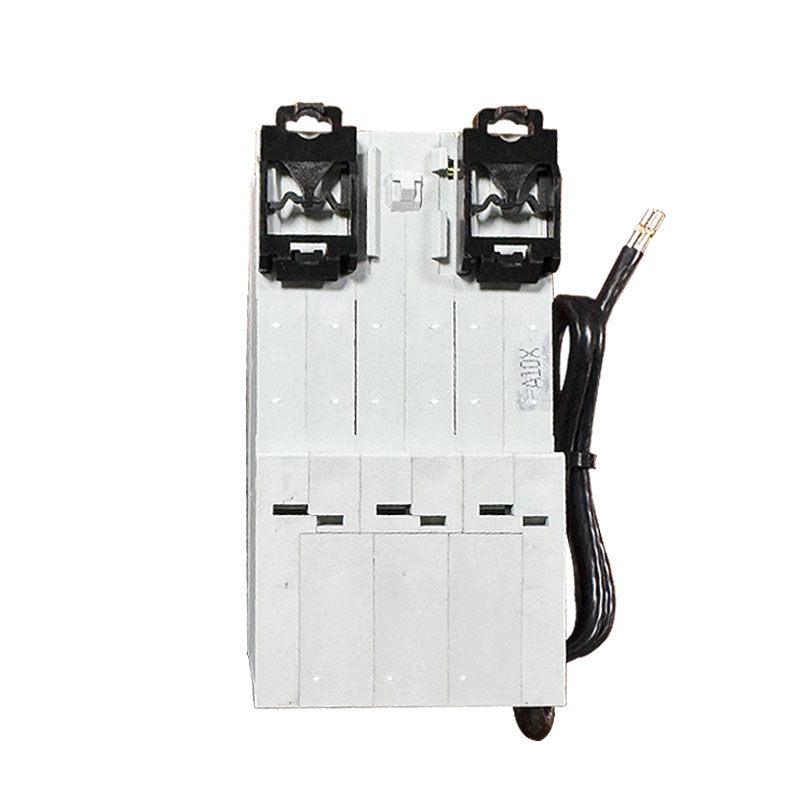

Ntawm DIN rail EN 60715 (35mm) los ntawm cov khoom siv ceev ceev

Kev sib txuas

Los ntawm saum thiab hauv qab

Main Features thiab Functions

Residual tam sim no tiv thaiv: Thaum cov seem tam sim no (piv txwv li, cov xau tam sim no) hauv Circuit Court ncav cuag tus nqi preset, RCBO muaj peev xwm ua tau sai los txiav tawm Circuit Court, yog li tiv thaiv hluav taws xob hluav taws xob thiab hluav taws xob hluav taws xob.

Kev tiv thaiv overload: Thaum tam sim no nyob rau hauv Circuit Court tshaj qhov ntsuas tam sim no ntawm RCBO, nws muaj peev xwm txiav tawm Circuit Court nyob rau hauv ib lub sij hawm teev, yog li tiv thaiv kev puas tsuaj rau lub Circuit Court los yog hluav taws kub xwm txheej tshwm sim los ntawm overload.

Kev tiv thaiv luv luv: Thaum lub caij luv luv tshwm sim hauv Circuit Court, RCBO tuaj yeem ua sai sai los txiav tawm qhov luv luv tam sim no thiab tiv thaiv kev nyab xeeb ntawm lub voj voog thiab cov khoom siv.

B-hom kev tso tawm yam ntxwv: Raws li tau hais los saum toj no, B-hom RCBOs tshwj xeeb tshaj yog tsim rau cov khoom thauj uas tsis nkag siab rau lub sijhawm dhau los, tab sis nkag siab rau lub sijhawm ntev dhau.

Daim ntawv thov Scenario

6ka 3p + N Leakage Circuit Breaker a (AC) Hom RCBO nrog Cable yog dav siv nyob rau hauv qhov chaw uas yuav tsum tau muaj ntau yam kev tiv thaiv Circuit Court, tshwj xeeb tshaj yog cov circuits uas siv cov loads tshwj xeeb rau cov yam ntxwv overload. Piv txwv:

Cov vaj tsev nyob thiab kev lag luam: siv los tiv thaiv cov teeb pom kev zoo, cov khoom siv hluav taws xob, thiab lwm yam.

Cov chaw muaj kev lag luam: rau kev tiv thaiv ntau yam khoom siv hauv kev lag luam, xws li cov khoom siv hluav taws xob, cov khoom siv hluav taws xob, thiab lwm yam, txhawm rau tiv thaiv cov khoom puas lossis hluav taws kub ntxhov los ntawm kev sib tsoo lossis tawg.

Kev ua liaj ua teb thiab horticulture: siv los tiv thaiv cov cuab yeej ua liaj ua teb xws li tsev cog khoom, cov kav dej, thiab lwm yam, kom ntseeg tau tias cov cuab yeej ua haujlwm zoo thiab kev nyab xeeb ntawm cov neeg ua haujlwm.

Kev ceev faj thiab kev tu

Kev xaiv kom raug ntawm cov ntsuas tam sim no: Thaum xaiv 6ka 3p + N Leakage Circuit Breaker a (AC) Hom RCBO nrog Cable, qhov tsim nyog ntsuas tus nqi tam sim no yuav tsum raug xaiv raws li qhov ntsuas tam sim no thiab cov yam ntxwv ntawm cov khoom thauj.

Kev soj ntsuam xyuas thiab tu ncua sij hawm: Kev tshuaj xyuas ib ntus thiab tswj xyuas RCBO kom ntseeg tau tias nws ua haujlwm tau zoo, muaj kev ruaj ntseg, thiab tsis muaj kev puas tsuaj lossis xeb.

Zam kev ua haujlwm tsis raug: Thaum txhim kho thiab siv, yuav tsum tau saib xyuas kom tsis txhob txhim kho RCBO nyob rau hauv ib puag ncig muaj kev cuam tshuam los tiv thaiv nws txoj haujlwm tsis raug.

Kev tswj xyuas qhov tsis raug raws sijhawm: Thaum RCBO ua tsis tiav lossis ua haujlwm, qhov laj thawj yuav tsum raug txheeb xyuas thiab kev daws teeb meem yuav tsum tau ua tiav hauv lub sijhawm kom ntseeg tau tias muaj kev nyab xeeb ntawm lub voj voog.
