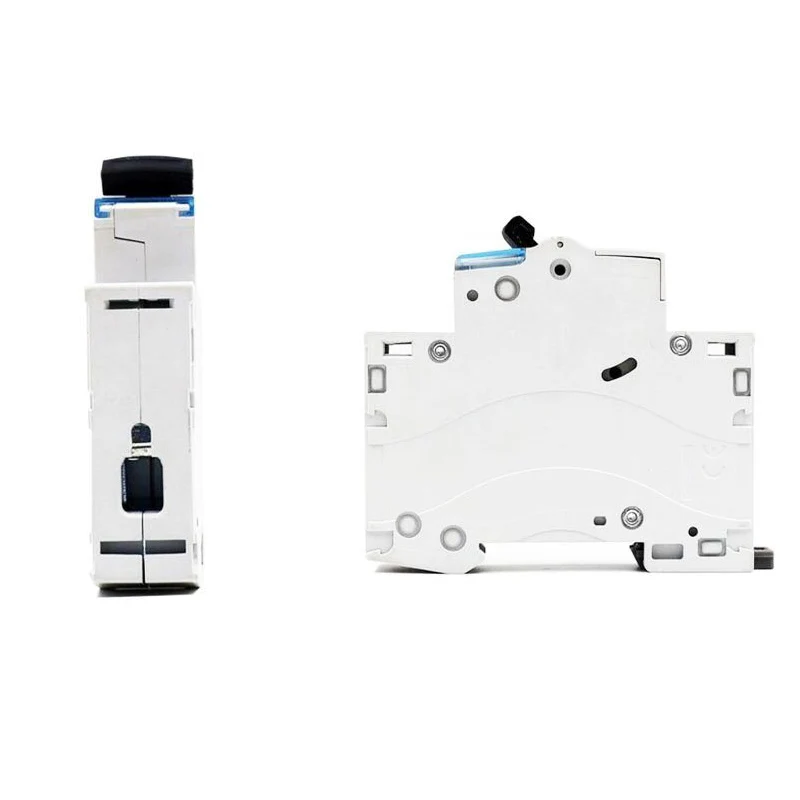

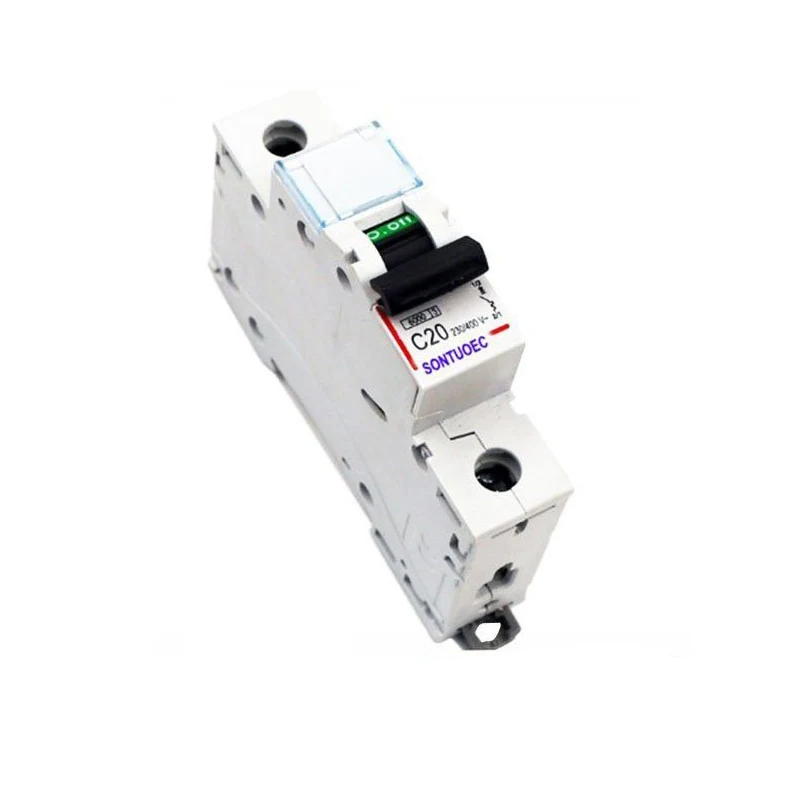

63A McB

63A MCB muaj peev xwm sai sai teb thiab raug txiav tawm kom raug rau cov khoom siv hluav taws xob, uas tuaj yeem tiv thaiv hluav taws xob tsis zoo vim yog Circuit Coup lossis Luv Luv. 63A MCB yog kev cog lus, yooj yim rau nruab thiab rov ua dua tshiab, txo cov nqi kho tus nqi hauv ntau qhov chaw xws li muaj kev lag luam, lag luam, lub tsev nqa khoom noj.

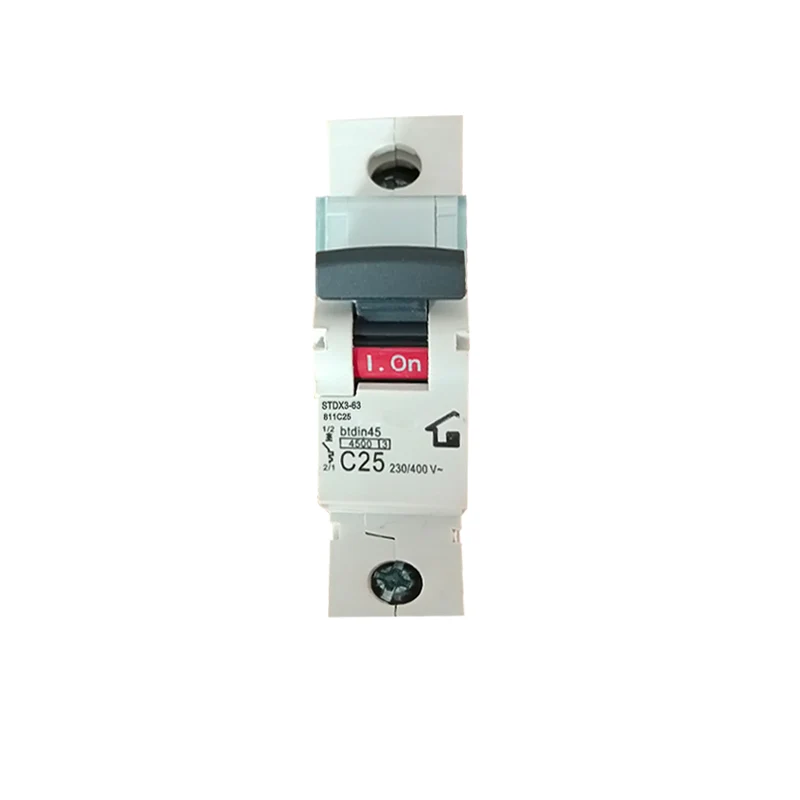

Qauv:STDX3-63

Xa lus nug

Product Description

Lub hom phiaj	Ib yam	Iec / en 60898-1
Hluav taws xob Nta	Rated tam sim no nyob rau hauv	A	1,2,4,6,16,20,25,32,40,50,63a
	Ncej	P	1p, 2p, 3p, 4p
	Ntsuas Voltage UE	V	AC 230, 400
	Rwb Thaiv Tsev Voltage Ui	V	500
	Nyob Qhov Coob	Hz	50/60
	Kev ntsuas hluav taws xob rated	A	3000, 4500, 6000
	Nyob rau hauv impulse withstand voltage (1.2 / 50) Uimp	V	4000
	Dielectric kev xeem voltage ntawm ind. Freq. Rau 1min	kv	2
	Degion degree		2
	Thermo-sib nqus tso cov xeeb ceem		B, c, d
Txawj kho ub no Nta	Hluav Taws Xob Lub Neej	t	4000
	Neeg Kho Tshuab Lub Neej	t	10000
	Kev tiv thaiv degree		Liphaus20
	Kev siv qhov kub thiab txias rau kev teeb tsa ntawm Thermai keeb	ºC	30
	Thaj kub cua sov (nrog nruab nrab hauv nruab nrab ≤35ºC)	ºC	-5 ~ + 40 (Daim Ntawv Thov Tshwj Xeeb Thov mus rau kev hloov kho qhov ntsuas qhov ntsuas kub)
	Cia kub	ºC	-25 ~ + 70
Kev muab cia	Lub Terminal Txuas Hom		Cable / PIN-hom Busbar
	Lub davhlau ya nyob twg loj dua / hauv qab rau cable	mm2	25
		Txawm li	18-3
	Lub davhlau ya nyob twg sab saum toj / hauv qab rau busbar	mm2	25
		Txawm li	18-3
	Zawm Torque	N * m	2
		LN-IBS.	18
	Mounting		Ntawm lub tsheb nqaj hlau en 60715 (35 hli) los ntawm kev tuav ntaub ntawv
	Kev sib txua		Los ntawm sab saum toj thiab hauv qab

Cov lus qhia tshwj xeeb thiab tsis muaj

 Tam sim no muaj pes tsawg: 63a, qhia tias qhov siab tshaj plaws tam sim no uas tus MCB no muaj peev xwm nyab xeeb yog 63 amps.

 Ntsuas Voltage: Cov ntsuas hluav taws xob ntawm MCB yuav sib txawv nyob ntawm daim ntawv thov thiab cov kev xav tau, tab sis nws yog feem ntau haum rau cov cim nrog AC 50 / 60Hz thiab ntsuas voltage ntawm 230 / 400v.

 Tus lej ntawm tus ncej: Tus lej ntawm MCBs yuav txawv ntawm tus qauv rau qauv rau qauv, thiab cov ib txwm muaj yog ib leeg (1p), peb-ncej (4p) thiab plaub-ncej (4p). Ntawm lawv, 4p qhia tau tias cov MCB no siv rau peb-theem + n-xaim hluav taws xob.

Cov Ntawv Thov

 Circuit Court: Nws yog qhov haum rau kev tiv thaiv Circuit Court ntawm cov khoom siv hluav taws xob cov khoom siv hluav taws xob, xws li teeb pom kev zoo, cov pob tw thiab lwm yam.

Brands lag luam: Hauv vaj tse ua lag luam xws li khw khw thiab chaw ua hauj lwm vaj tse, 63A MCB tuaj yeem siv los tiv thaiv cov khoom siv hluav taws xob nrog cov khoom hluav taws xob loj.

 Industrial: Hauv Automation thiab

 cov kab ntau lawm, 63A McB tuaj yeem siv los tiv thaiv cov khoom tseem ceeb thiab cov dej ntau lawm.
