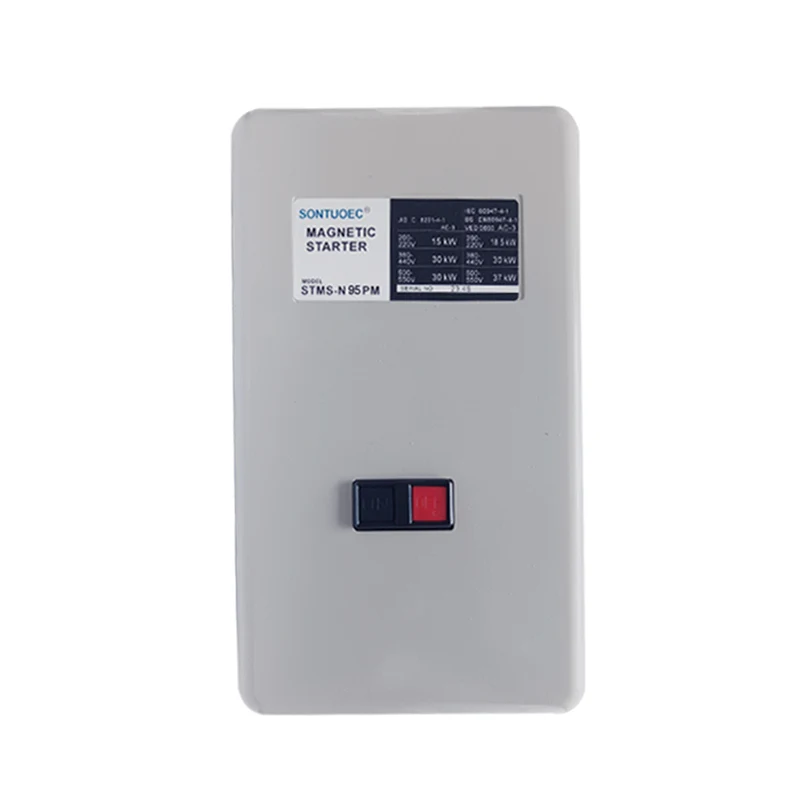

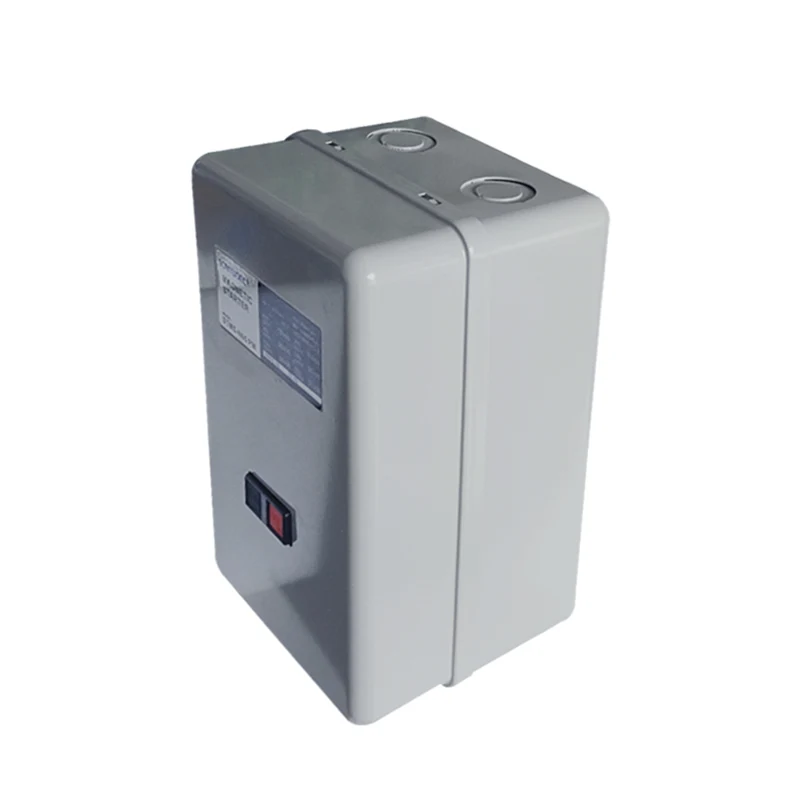

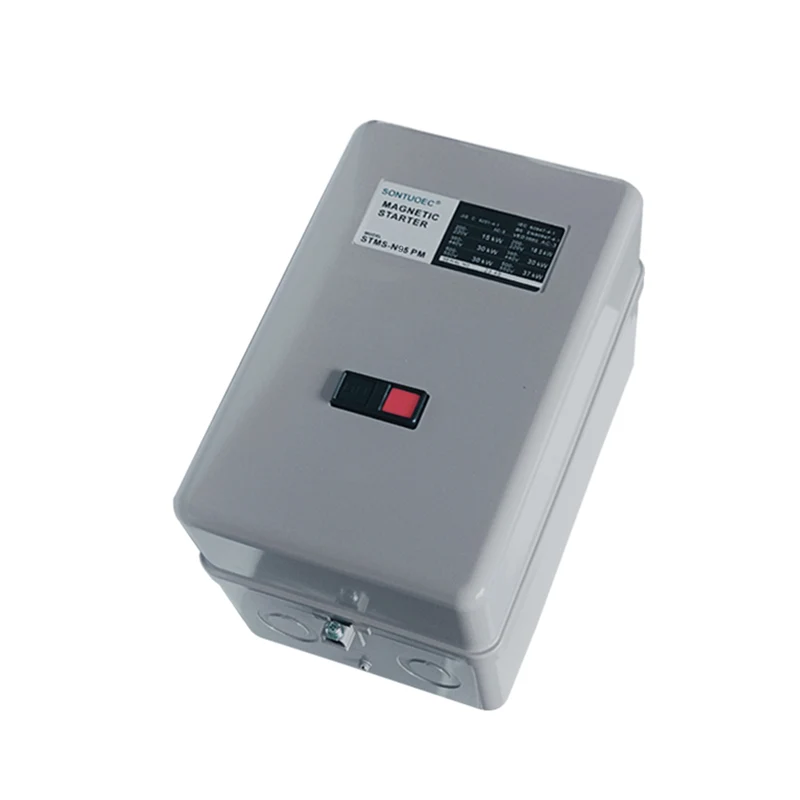

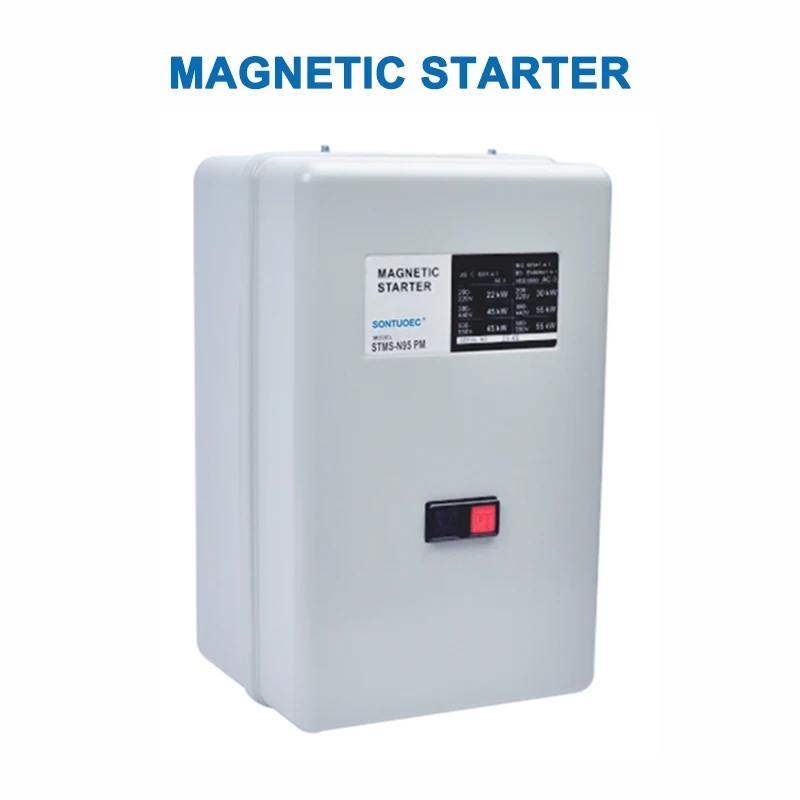

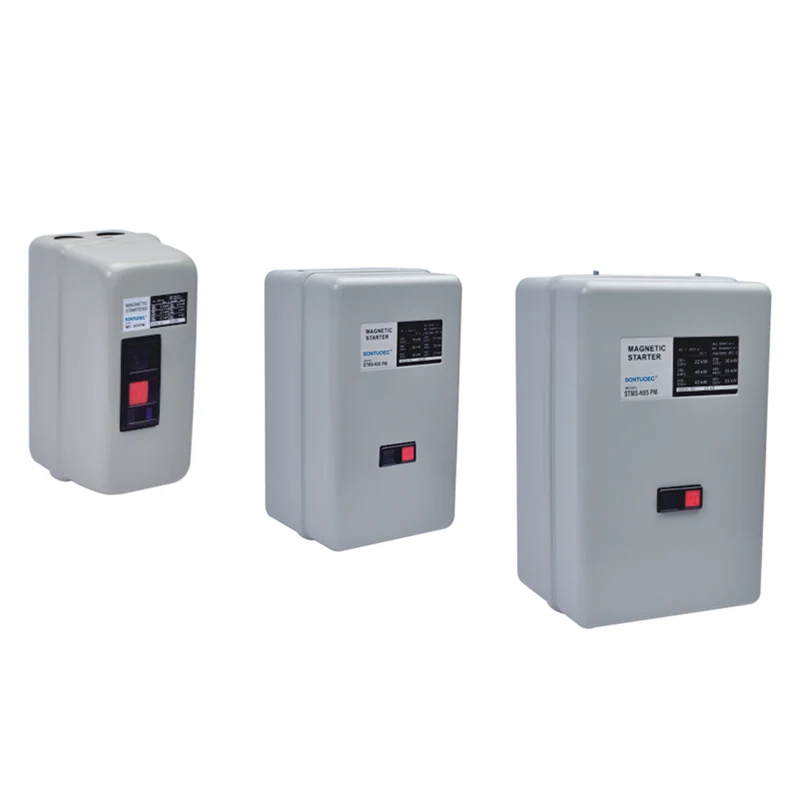

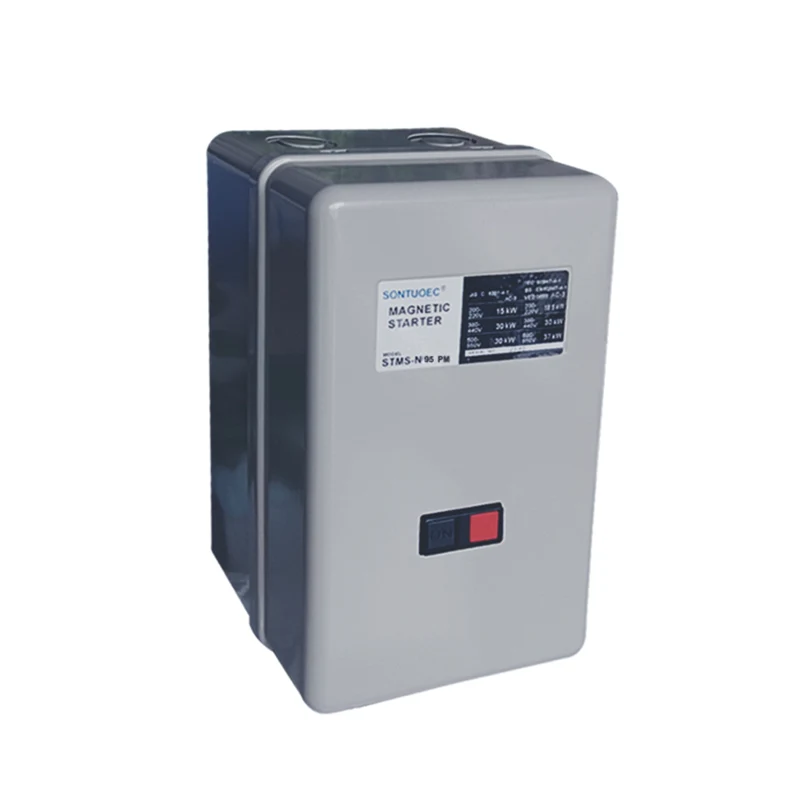

3 Theem Tsav oob khab 3
Tus 3 theem lub cev muaj zog starter qhib thiab kaw lub zog tiv thaiv txuas nrog lub cev muaj zog kom paub lub cev muaj zog thiab nres tswj. Nyob rau tib lub sijhawm, nws kuj tseem muaj kev tiv thaiv muaj zog ntau dhau, uas tuaj yeem txiav tawm ntawm Circuit Court thaum lub cev muaj zog tau dhau lub cev muaj zog los tiv thaiv lub cev muaj kev puas tsuaj.
Xa lus nug
Product Description
Lub ntsiab ntsuas:
| Ntaus | Stms-N10 / 12 | Stms-N18 | Stms-N20 | Stms-N21 | Stms-N25 | Stms-N35 | Stms-n50 | Stms-N65 | Stms-N80 | Stms-N95 | |
| KW / HP (AC-3) CEEV FAIS (AC-3) IEC60947-4 |
220V | 2.2 / 3 2.7 / 3.5 | 3.7/5/5 | 4/5 5.5 | 4/5 5.5 | 5.5 / 7.5 | 7.5 / 10 | 15/2/5 | 18.5 / 22 | 22/30 | 30/35 |
| 380v | 2.7 / 3.5 4 / 5.5 | 5.5 / 7.5 | 7.5 / 10 | 7.5 / 10 | 11/15 | 15/2/5 | 22/25 | 25/30 | 37/45 | 45/55 | |
| Rov tau tam sim no (AC-3) GB14048.4 |
220V | 11/13 | 18 | 20 | 20 | 26 | 35 | 50 | 65 | 80 | 95 |
| 380v | 7/9 | 13 | 20 | 20 | 25 | 32 | 50 | 65 | 80 | 95 | |
| Tau muab cua sov tam sim no (a) | 20 | 25 | 32 | 50 | 60 | 80 | 100 | 135 | 150 | ||
| Rov ua tau cov tshuaj insutaled (v) 660 660 | |||||||||||
| Tus neeg sib chwv AC-15 |
Tus neeg yus paub | lub hom phiaj | 1no | 1To + 1nc | 2Tsis + 2nc | ||||||
| Rov tau tam sim no (a) | 220V | 1.6 | |||||||||
| 380v | 0.95 | ||||||||||
| Qhov thaiv kev ntaus nqi | LPR30 | ||||||||||
| Machanical Lub Neej | 1000 | 500 | |||||||||
| Ntaus | L | W | H1 | H2 | Hoob nab | C2 |
| Stms-n20 / 21 | 104 | 170 | 110 | 115 | 135 | 76 |
| Stms-N25 / 35 | 135 | 225 | 126 | 131 | 155 | 95 |
| Stms-N50 / 65 | 160 | 270 | 145 | 150 | 210 | 120 |
| Stms-N80 / 95 | 190 | 300 | 163 | 168 | 250 | 150 |
Lub ntsiab cai ntawm kev ua haujlwm

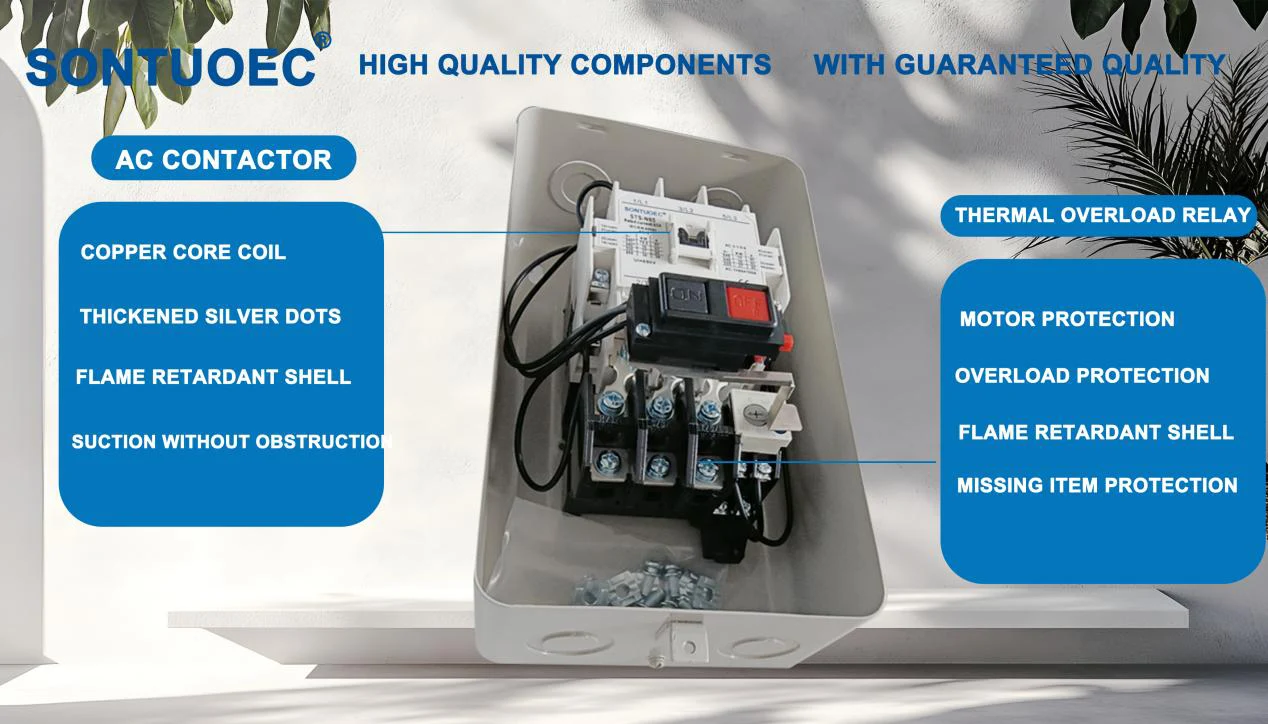

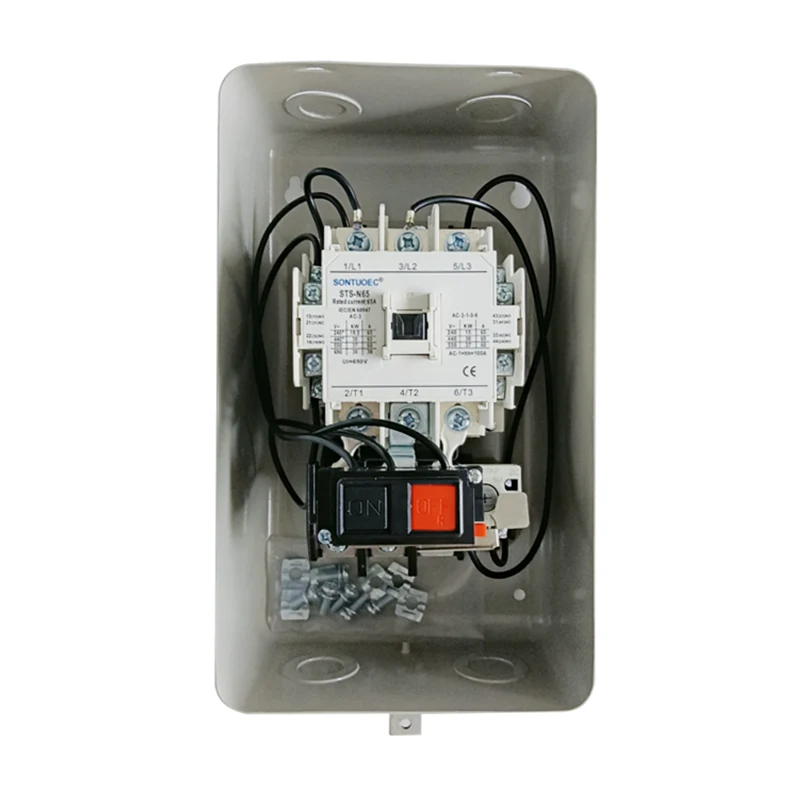

Tus txheej txheem ua hauj lwm ntawm peb-theem sib nqus lub cev muaj zog oob khab yog ua raws li txoj cai ntawm electromagnetic induction. Thaum lub sib nqus hu tau coil yog energized, nws generates daim teb sib nqus, uas nyiam cov neeg ua yeeb yam kom ua thiab kaw cov neeg muaj zog, yog li tig ntawm lub zog rau lub cev muaj zog. Thaum nws yog qhov tsim nyog los nres lub cev muaj zog, lub zog xa mus rau lub sib nqus hu, cov neeg sib nqus teb, cov neeg sib tw tau tawg thiab lub cev muaj zog nres. Nyob rau tib lub sijhawm, cov overload relay yuav saib xyuas cov khiav tam sim no ntawm lub cev muaj zog, nws yuav ua rau muaj tus nqi tiv thaiv thiab txiav tawm ntawm Circuit Court.
Cov yam ntxwv tseem ceeb
Kev tiv thaiv kev muaj nuj nqi muaj nuj nqi: Qhov peb-theem sib nqus lub cev muaj zog starter muaj cov built-in expering relay, uas tuaj yeem txiav tawm ntawm lub cev thaum lub cev muaj zog dhau thiab tiv thaiv lub zog los ntawm kev puas tsuaj.
Pib Tswj: Lub cev muaj zog pib tswj tau pom los ntawm kev tiv toj sib nqus, uas muaj lub neej txhim khu kev qha.
Compact Tus Qauv: Lub Peb-theem sib nqus lub cev muaj zog oob khab Engl qauv kev tsim qauv qauv, ua haujlwm me me thiab yog qhov yooj yim rau nruab thiab tswj hwm.
Ntau yam kev tswj hwm: Raws li cov ntawv thov sib txawv, lub hom phiaj sib nqus lub cev muaj zog, xws li pib ncaj qha, lub hnub qub-Delta, AutotransFormer pib, thiab lwm yam.
Cov tau txais daim ntawv thov
Peb-theem sib nqus muaj lub cev muaj zog starters yog dav siv hauv kev muaj cov tshuab hluav taws xob, cov cuab yeej siv hluav taws xob, cov khoom siv hluav taws xob yuav tsum tau pib thiab nres. Tshwj xeeb tshaj yog nyob rau hauv lub cev muaj zog circuits uas yuav tsum tau pib nquag thiab nres, kev tiv thaiv ntawm peb-theem sib nqus muaj zog pib tshwj xeeb.
| Ntaus | L | W | H1 | H2 | Hoob nab | C2 |
| Stms-n20 / 21 | 104 | 170 | 110 | 115 | 135 | 76 |
| Stms-N25 / 35 | 135 | 225 | 126 | 131 | 155 | 95 |
| Stms-N50 / 65 | 160 | 270 | 145 | 150 | 210 | 120 |
| Stms-N80 / 95 | 190 | 300 | 163 | 168 | 250 | 150 |
| Ntaus | L | W | H1 | H2 | Hoob nab | C2 |
| Stms-n20 / 21 | 104 | 170 | 110 | 115 | 135 | 76 |
| Stms-N25 / 35 | 135 | 225 | 126 | 131 | 155 | 95 |
| Stms-N50 / 65 | 160 | 270 | 145 | 150 | 210 | 120 |
| Stms-N80 / 95 | 190 | 300 | 163 | 168 | 250 | 150 |
| Ntaus | L | W | H1 | H2 | Hoob nab | C2 |
| Stms-n20 / 21 | 104 | 170 | 110 | 115 | 135 | 76 |
| Stms-N25 / 35 | 135 | 225 | 126 | 131 | 155 | 95 |
| Stms-N50 / 65 | 160 | 270 | 145 | 150 | 210 | 120 |
| Stms-N80 / 95 | 190 | 300 | 163 | 168 | 250 | 150 |
