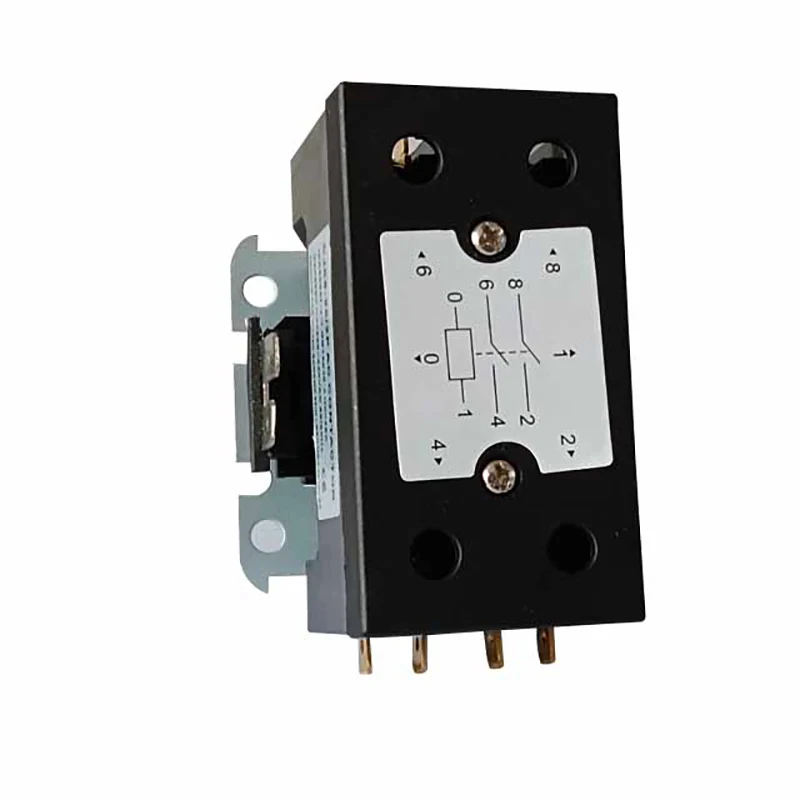

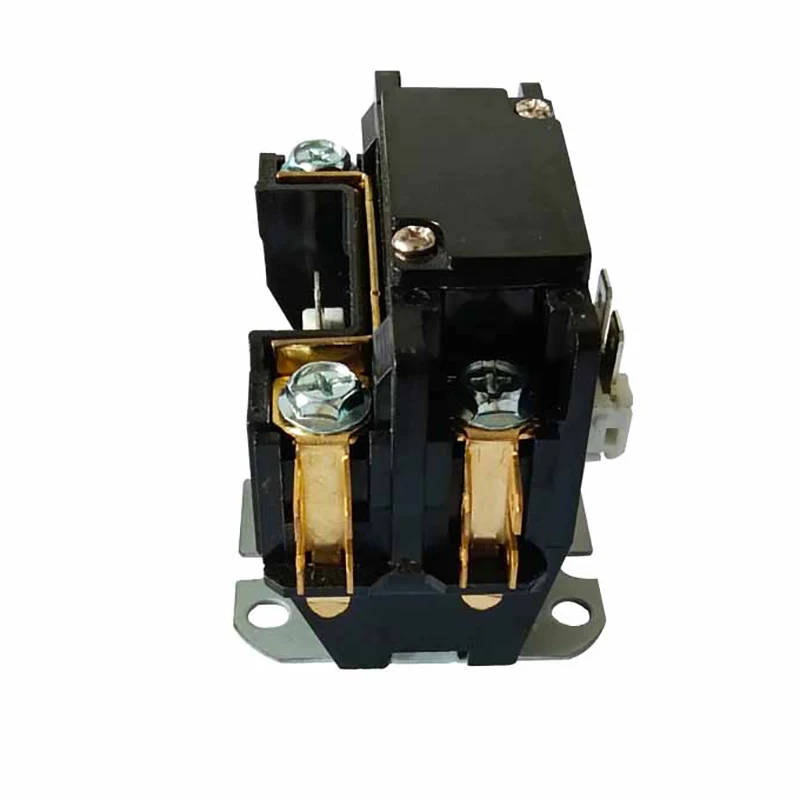

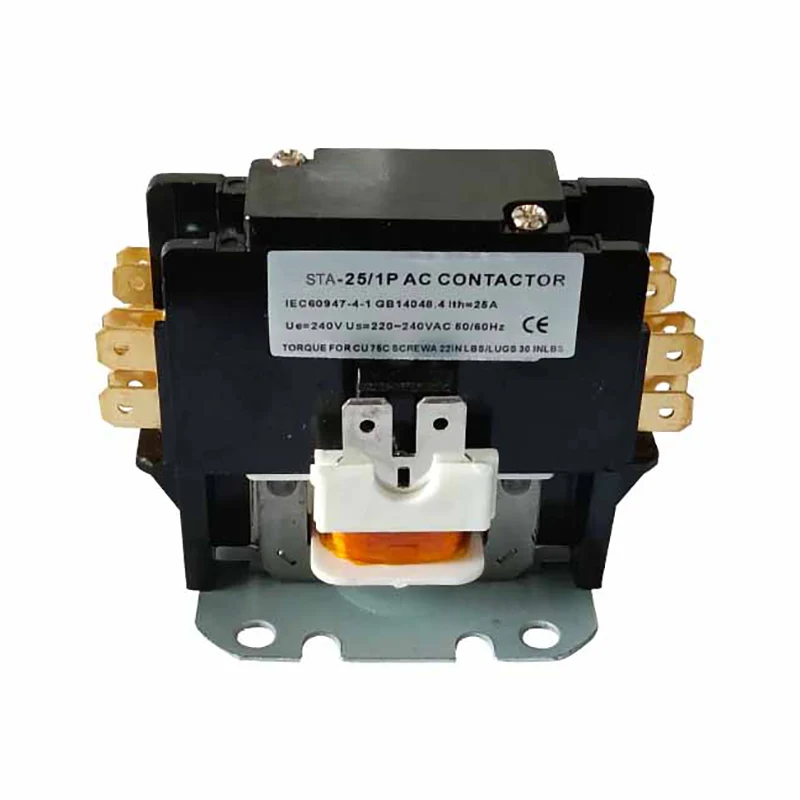

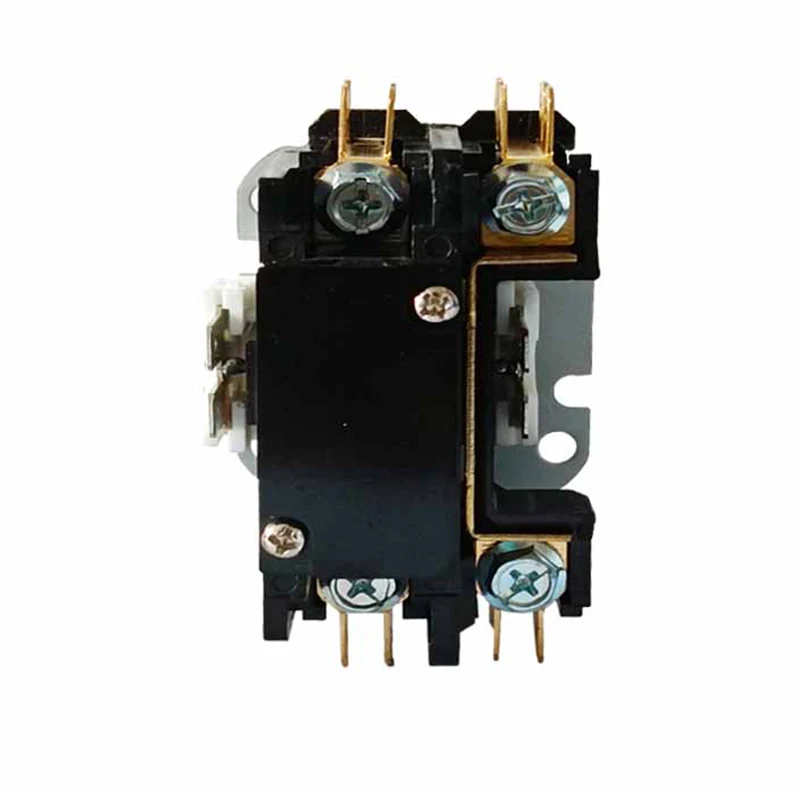

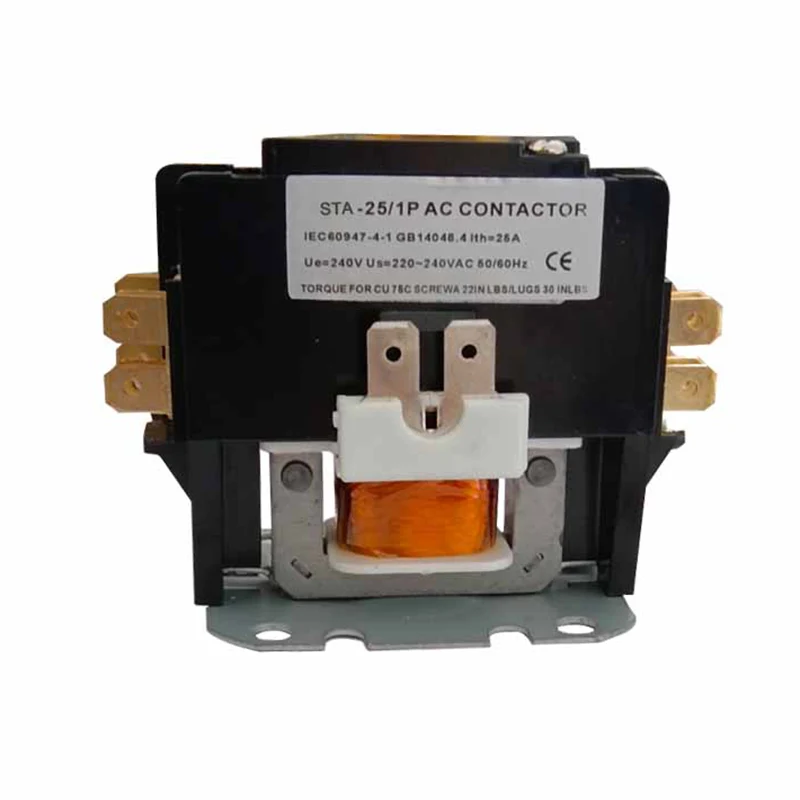

1.5p 25a ance air ach tus neeg tiv toj
1.5p 25a ancer Air Cov Chaw Ua Si hauv lub hom phiaj ACTOMOF yog tsim rau kev siv nyob rau hauv tub yees, cua txias, thiab cua kub systens. Kev sib txuas hluav taws xob tuaj yeem ua nrog cov ntsia hlau terminals nrog kev txuas nrawm lossis cov ntaub thaiv kev sib txuas nrog txuas nrawm Lawv ua raws li IEC60947-4-1
Xa lus nug
Product Description

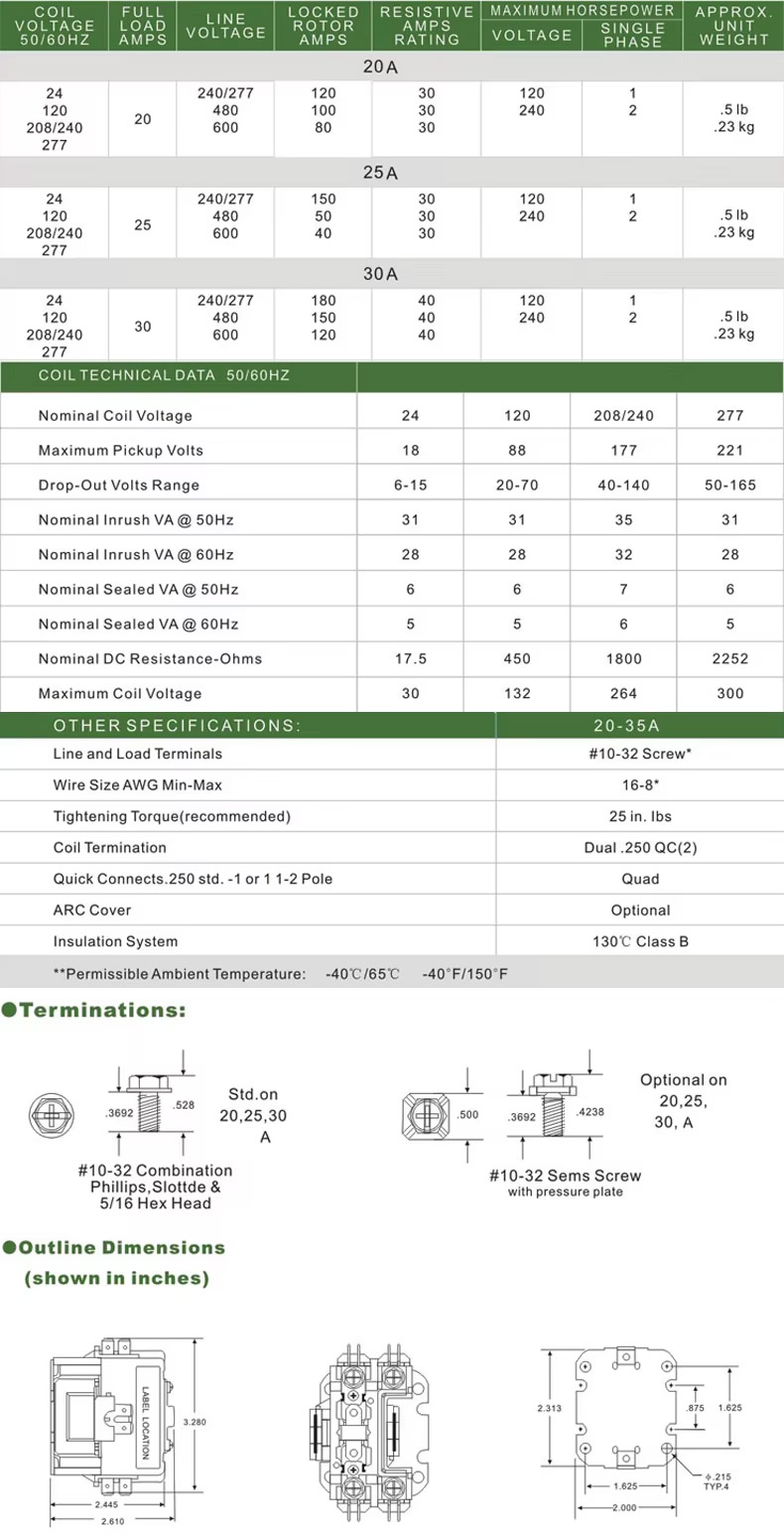

| Qauv tsis tau | Tas Nrho Load | Resistive amps (a) | Ncej Tsis muaj. | Chev Volterage ( V) | Kab Voltage (V) | Max HP | - | |
| Amps (a) | 50 / 60Hz | Fai fab hov ntau (V) | Ib leeg Caij | Peb Caij | ||||
| CJX9-20 / 1 | 20 | 30 | 1 | 24 | 240/277 | 120 | 1.5 | - |
| CJX9-20 / 1.5 | 1.5 | |||||||
| CJX9-20 / 2 | 2 | |||||||
| CJX9-20 / 3 | 3 | 120 | 480 | 240/270 | 3 | 7.5 | ||
| CJX9-20 / 4 | 4 | 208/240 | 600 | 480/600 | - | 7.5 | ||
| CJX9-25 / 1.5 | 25 | 35 | 1.5 | 24 | 240/277 | 120 | 2 | - |
| CJX9-25 / 2 | 2 | |||||||
| CJX9-25 / 3 | 3 | 120 | 480 | 240/270 | 5 | 7.5 | ||
| CJX9-25 / 4 | 4 | 208/240 | 600 | 480/600 | - | 15/20 | ||
| CJX9-30 / 1.5 | 30 | 40 | 1.5 | 24 | 240/277 | 120 | 2 | - |
| CJX9-30 / 2 | 2 | 120 | 480 | 240/270 | 5 | 10 | ||
| CJX9-30 / 3 | 3 | 208/240 | 600 | 480/600 | - | 15/20 | ||
| CJX9-30 / 4 | 4 | |||||||
| CJX9-40 / 2 | 40 | 50 | 2 | 24 | 240/277 | 120 | 3 | - |
| CJX9-40 / 3 | 40 | 50 | 3 | 120 | 480 | 240/270 | 7.5 | 10 |
| CJX9-40 / 4 | 40 | 50 | 4 | 208/240 | 600 | 480/600 | - | 15/20 |
| CJX9-50 / 2 | 50 | 60 | 2 | 24 | 240/277 | 120 | 3 | - |
| CJX9-50/3 | 50 | 60 | 3 | 120 | 480 | 240/270 | 10 | 15 |
| CJX9-50/1 | 50 | 60 | 4 | 208/240 | 600 | 480/600 | - | 25/25 |
| CJX9-60 / 2 | 60 | 70 | 2 | 24 | 240/277 | 120 | 5 | - |
| CJX9-60 / 3 | 60 | 740 | 3 | 120 | 480 | 240/270 | 10 | 20 |
| CJX9-60 / 4 | 60 | 70 | 4 | 208/240 | 600 | 480/600 | - | 30/30 |
| CJX9-75 / 2 | 75 | 85 | 2 | 24 | 240/277 | 120 | 5 | - |
| CJX9-75 / 3 | 75 | 85 | 3 | 120 | 480 | 240/270 | 15 | 25 |
| CJX9-75 / 4 | 75 | 85 | 4 | 208/240 | 600 | 480/600 | - | 40/40 |
| CJX9-90 / 2 | 90 | 100 | 2 | 24 | 240/277 | 120 | 7.5 | - |
| CJX9-90 / 3 | 90 | 100 | 3 | 120 | 480 | 240/270 | 20 | 30 |
| CJX9-90 / 4 | 90 | 100 | 4 | 208/240 | 600 | 480/600 | - | 50/50 |
|
Cov khoom siv insulating |
Hu rau thaiv thiab cov cab kuj yog qhov zoo Hluav Taws Xob-Qib Thondosetting Rapin |
|
Qhov ntsuas kub ntau |
-40 ° F rau 150 ° F; -5- + 40 |
|
Txhua yam lub neej (tsis muaj thauj khoom) |
Conforms rau UL thiab ARI cov qauv tshwj xeeb txheem |
|
Lub Neej Hluav Taws Xob |
Conforms rau UL thiab ARI specifications Lub hom phiaj |
|
Nyhav (kwv yees) |
9.25 oz |
|
Coil zaus |
50 / 60Hz |
|
Chev Rwb Thaiv Tsev |
Chav Kawm B (130ºC) |
|
Kev txiav hlo |
Siab connector thiab ob npaug 1/4 q.c |
|
Tsav |
85% ntawm nasinal coil coltage; 110% tshaj plaws muaj kev nyab xeeb tsav |
|
Lub Luag Haujlwm Ncig Ua Si |
Mus txua ntxiv |
Lub ntsiab cai ntawm kev ua haujlwm
Thaum lub kauj ntawm 1.5p 25A Air Air Tus kws hu ua energized ua sib nqus thiab ua kom pom kev sib tiv toj thiab yog li txuas cov hluav taws xob thauj khoom rau lub zog hluav taws xob. Thaum lub kauj yog de-energized, tus hlau core tsises nws cov hlauetism thiab lub kaw lus tiv thaiv tau sib cais los ntawm lub caij nplooj ntoo hlav, yog li disconnecting lub nra ntawm lub zog. Nyob rau hauv txoj kev no, tus neeg hu ua cov chaw taws teeb tswj ntawm cov hluav taws xob thauj khoom.
Daim ntawv thov lub hom phiaj meej lub hom phiaj tiv toj:
• CJX9 (lossis STA) Series Huab Cua AC PU cuag yog siv rau ib txoj kab ntawm AC 50Hz, ntsuas kev ua haujlwm ntev txog 60a, siv los kaw lossis hloov tawm ntawm kab
• Cov neeg ua ze rau lub hom phiaj ATM yog tsim rau kev siv nyob rau hauv tub yees, cua txias, thiab cua kub systens.
• Kev sib txuas hluav taws xob tuaj yeem ua nrog cov ntsia hlau kom tag nrog kev txuas nrawm lossis cov hnab looj kev sib tw nrog kev sib txuas nrawm
• Lawv ua raws li IEC60947-4-1
Tus qauv thiab cov yam ntxwv
Tus qauv:
Electromagetic Txheej Txheem: Xws li cov coil, cov tub ntxhais thiab lwm cov Cheebtsam, siv los ua cov sib nqus gravetic kom tsav lub qhov qhib thiab kaw ntawm lub kaw lus.
Hu rau cov kab ke: suav nrog kev sib cuag thiab tus neeg sib cuag tseem ceeb yog siv los nrhiav qhov kev kis tau tam sim no, thiab cov lus taw qhia ntawm kev tswj cov teeb liab.
Arc Extinguishing ntaus ntawv: siv los tua cov arc tsim tawm thaum tus tiv tauj yog disconnected tiv thaiv kev sib tiv tauj los ntawm kev puas tsuaj.
Lub Plhaub: Siv los tiv thaiv cov khoom sab hauv los ntawm ib puag ncig sab nraud, thaum muab cov cua sov dissipation.
Nta:
Nrog lub hom phiaj zoo thiab tshwj xeeb tsim rau cov khoom siv hluav taws xob tshwj xeeb thiab cov hom thauj khoom.
Lub kaw lus tiv thaiv yog tsim los ntawm cov ntaub ntawv zoo nrog cov hluav taws xob zoo thiab hnav tsis kam.
Lub kaw lus hluav taws xob tau muaj kev tiv thaiv kev quab yuam txaus kom muaj kev sib raug zoo thiab tso cov neeg sib tiv toj.
Lub arc extinguishing ntaus tuaj yeem ua tau zoo tua cov arc thiab tiv thaiv cov neeg sib cuag ntawm kev puas tsuaj.
Lub plhaub yog tsim qauv zoo nrog txaus lub zog thiab tshav kub dissipation kev ua tau zoo.
